SRGV72-O
CLEARANCE ITEM - NEW VIRNIG V50 SKELETON ROCK GRAPPLE WITH OPEN SIDES FOR SKID STEER
$4,999.00$6,315.00

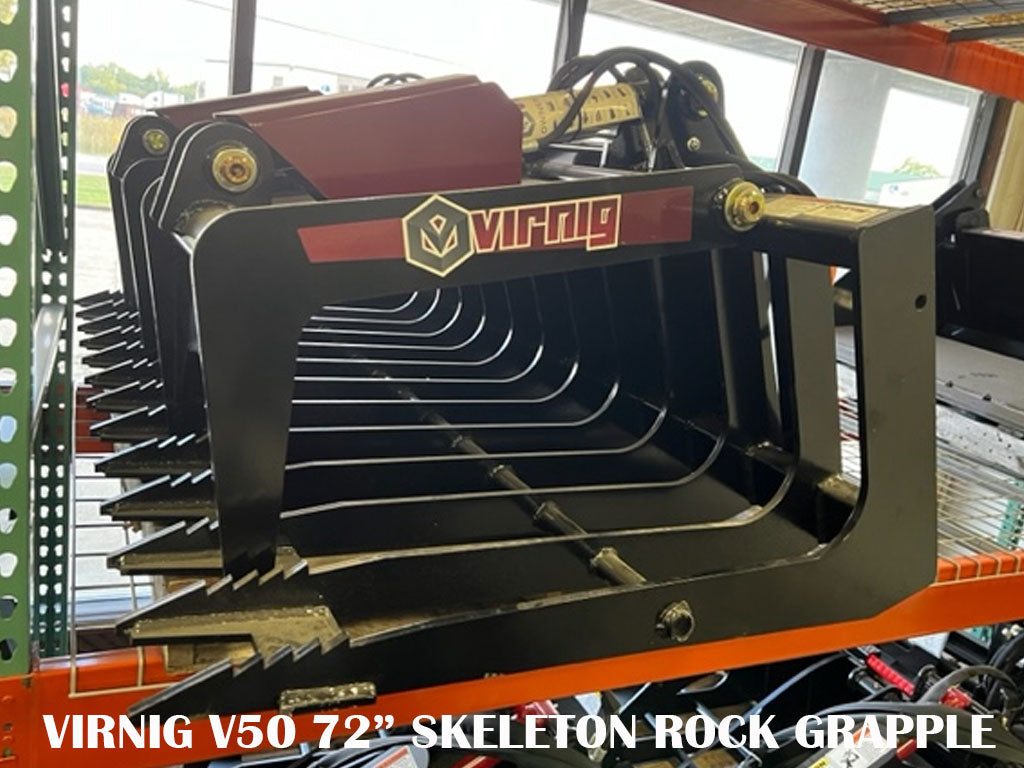

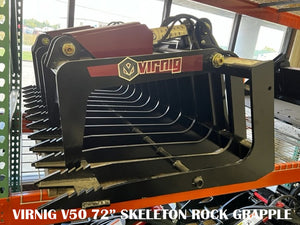

V50 SKELETON ROCK GRAPPLE - 72" WIDTH, OPEN SIDES, CYLINDER GUARDS
THIS ATTACHMENT INCLUDES
- UNIVERSAL SKID STEER MOUNTING
- HOSES, COUPLERS & FITTINGS
- STANDARD CYLINDER GUARD
- OPTIONAL OPEN SIDES

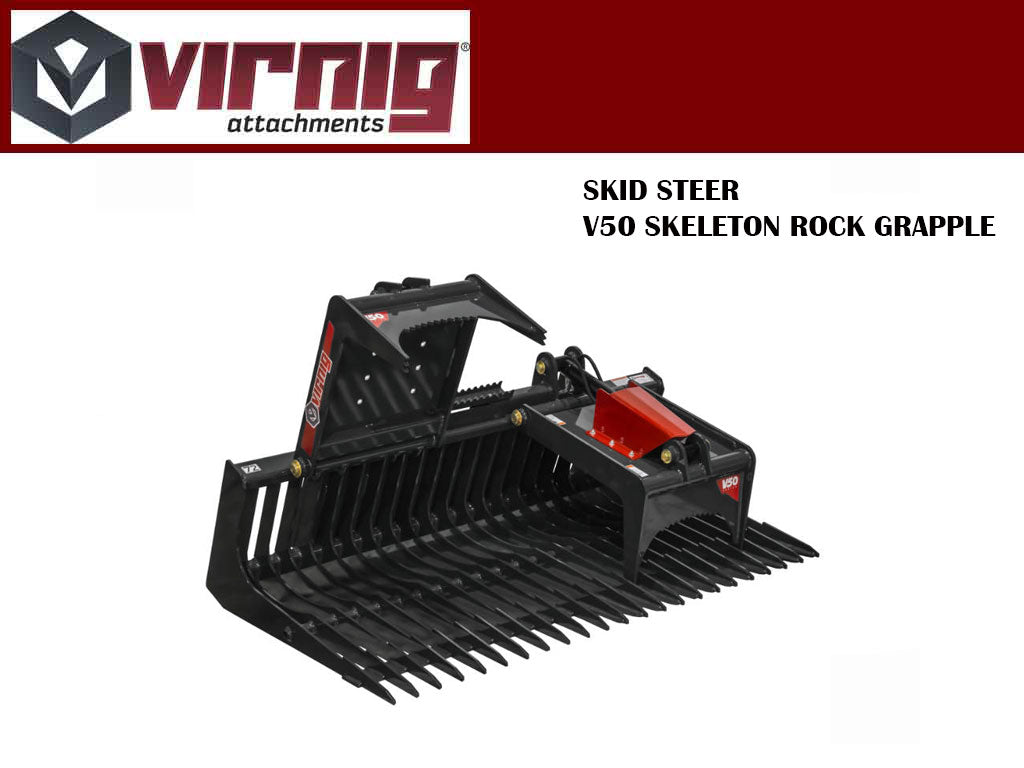

V50 Skeleton Rock Grapple
PRODUCT CATEGORY: Skid Steer
The Original Skeleton Rock Bucket designed with a grapple to help secure rocks and uneven loads.
- EVERY TINE IS MADE FROM ONE PIECE OF STEEL FOR MAXIMUM RIGIDITY
- ROCK DAM & NOTCH NEAR TINE TIPS HOLD ROCKS SECURELY
- NITROSTEEL® CYLINDER RODS & TEFLON® COATED BUSHINGS
- STANDARD WITH CYLINDER GUARDS
Known clearance issue on John Deere® G-Series loaders (330G, 331G, 332G, and 333G).
| MODEL | SRGV72 |
| Overall Width (Inches) | 74.3 |
| Height: Overall / Bucket (Inches) | 27.8 / 21.5 |
| Overall Depth (Inches) | 42.9 |
| Number of Tines (With Sides) | 23 |
| Space Between Tines (Inches) | 2.9 |
| Tine Thickness (Inches) | 0.375* |
| Cylinder Bore / Stroke (Inches) | 2.0 / 8.375 |
| Cylinder Pins / Hinge Pins Diameter (Inches) | 1.25 / 1.563 |
| Grapple Jaw Opening (Inches) | 36.1 |
| Approximate Weight (Pounds) | 1035 |
| Recommended Loader Capacity | Greater than 1500 pounds |
*Material is Grade 80 Plate (80,000 PSI Minimum Yield Strength).
