FF-30-JDHR—FTV-363S

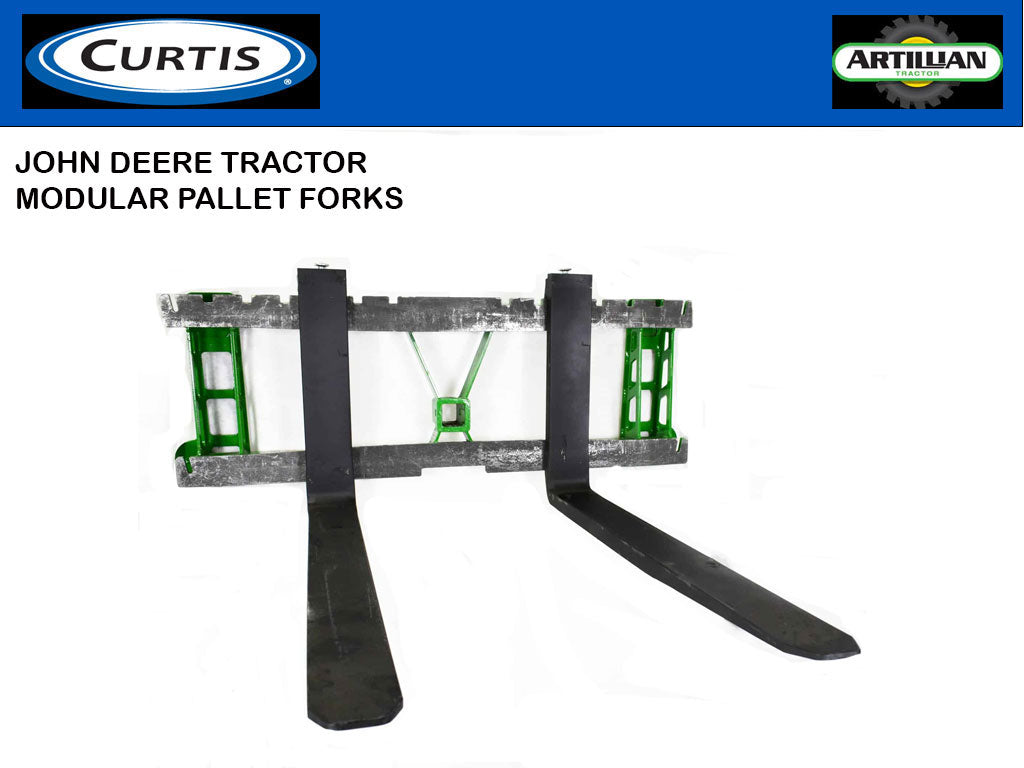

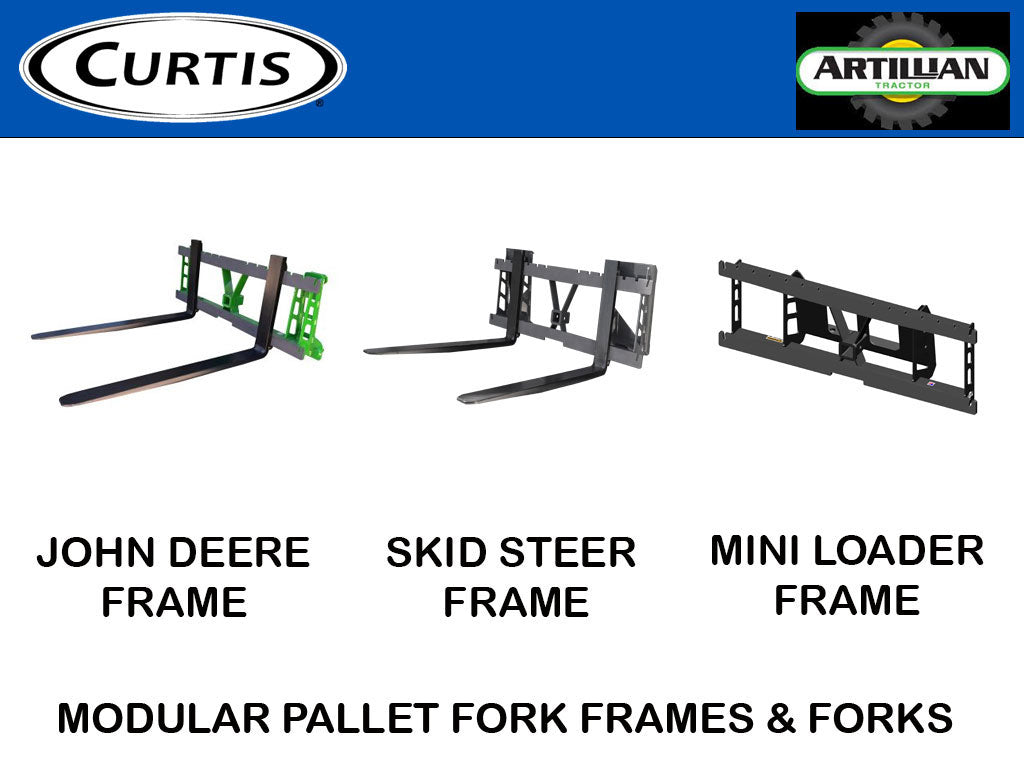

CURTIS / ARTILLIAN modular pallet forks, 3000 lbs. frame

FRAME
Size
Style

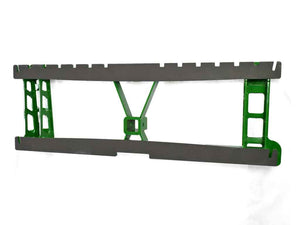

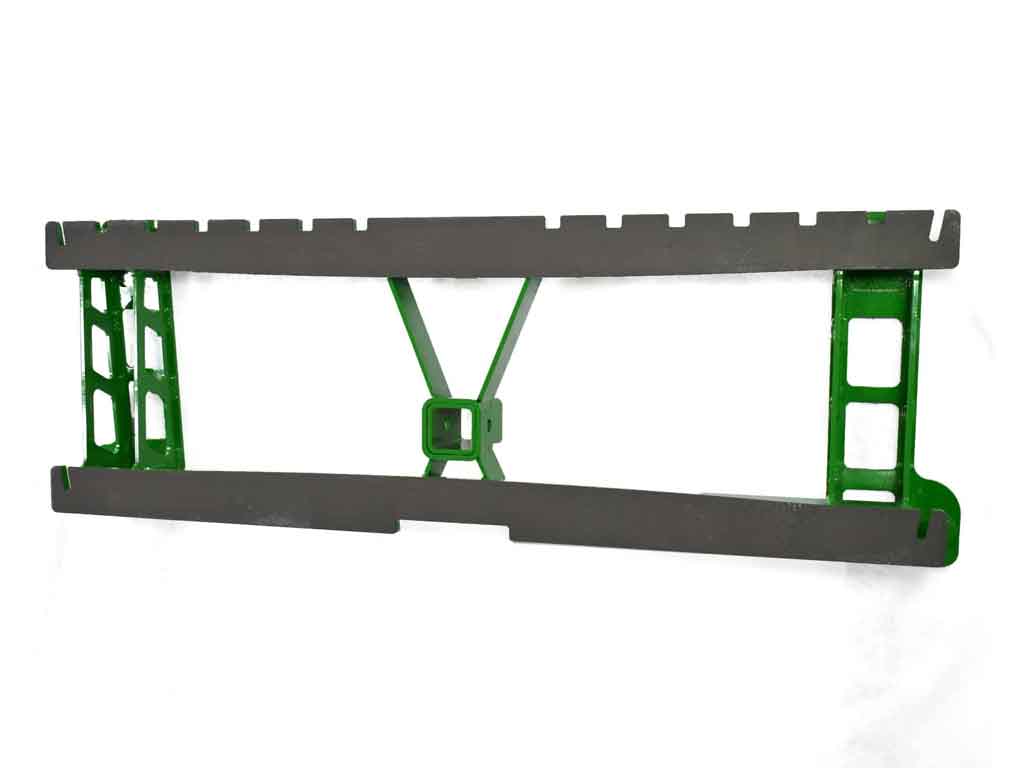

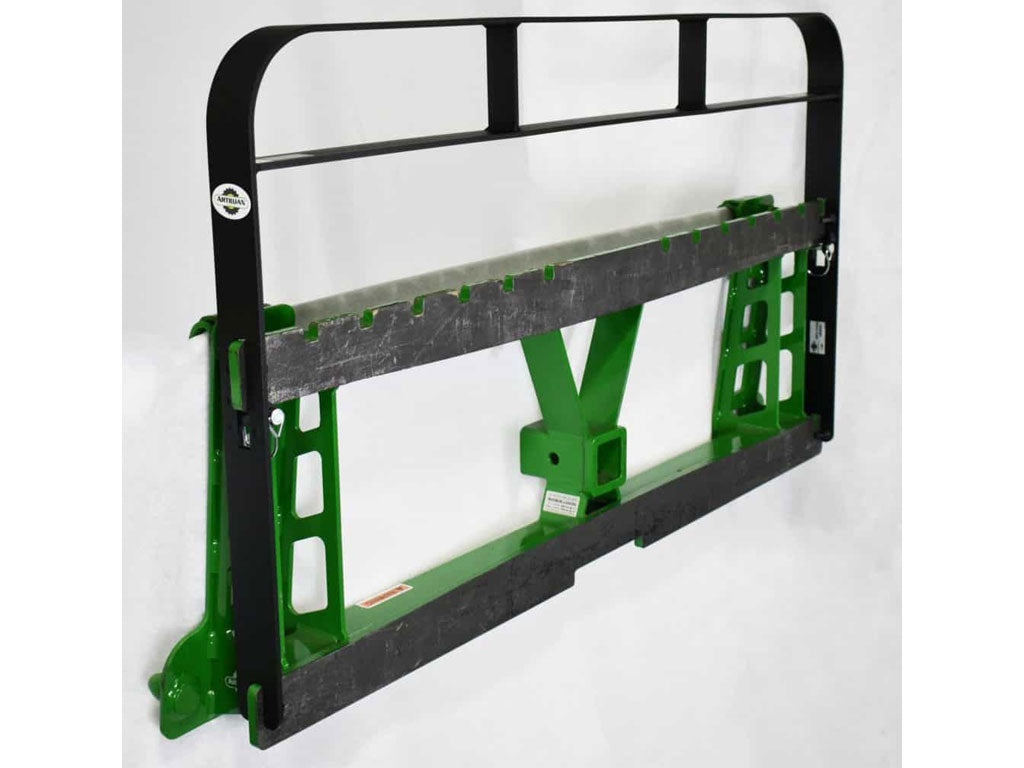

FORK FRAME SET WITH 3000 LB. QUICK ATTACH PALLET FRAME

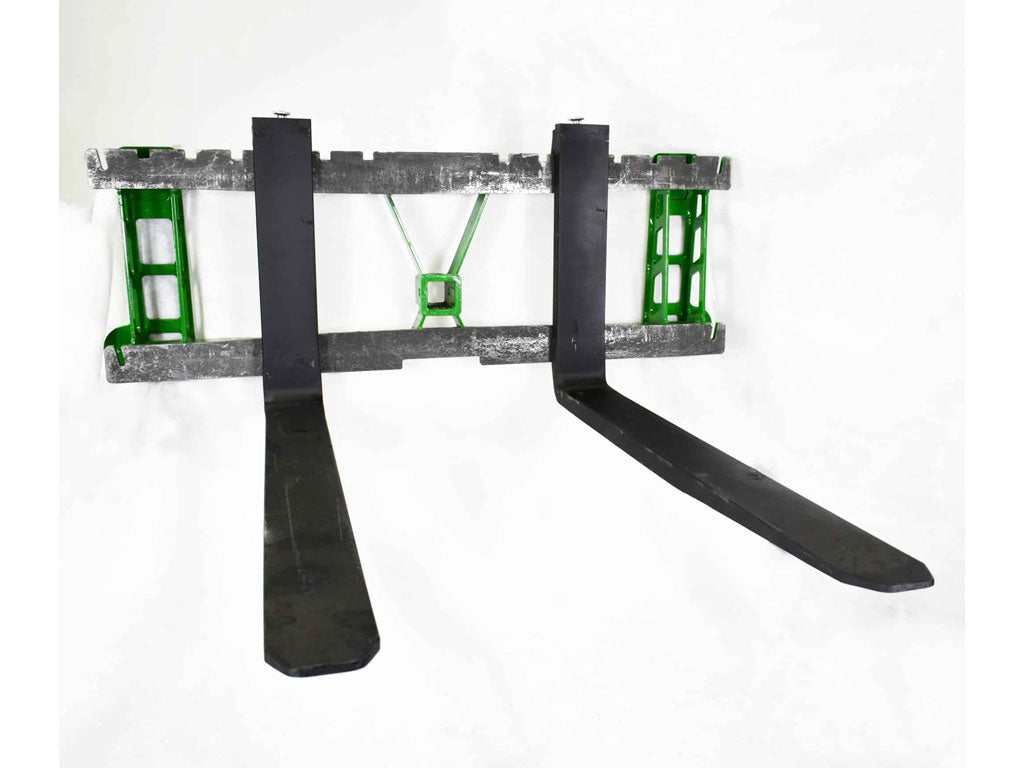

3000 lb. John Deere Quick Attach Pallet Fork Frame Set with choice of Artillian Forks

1-, 2-, 3- & 4-series sub-compact tractors or equivalent

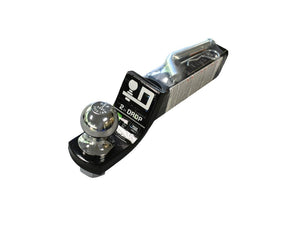

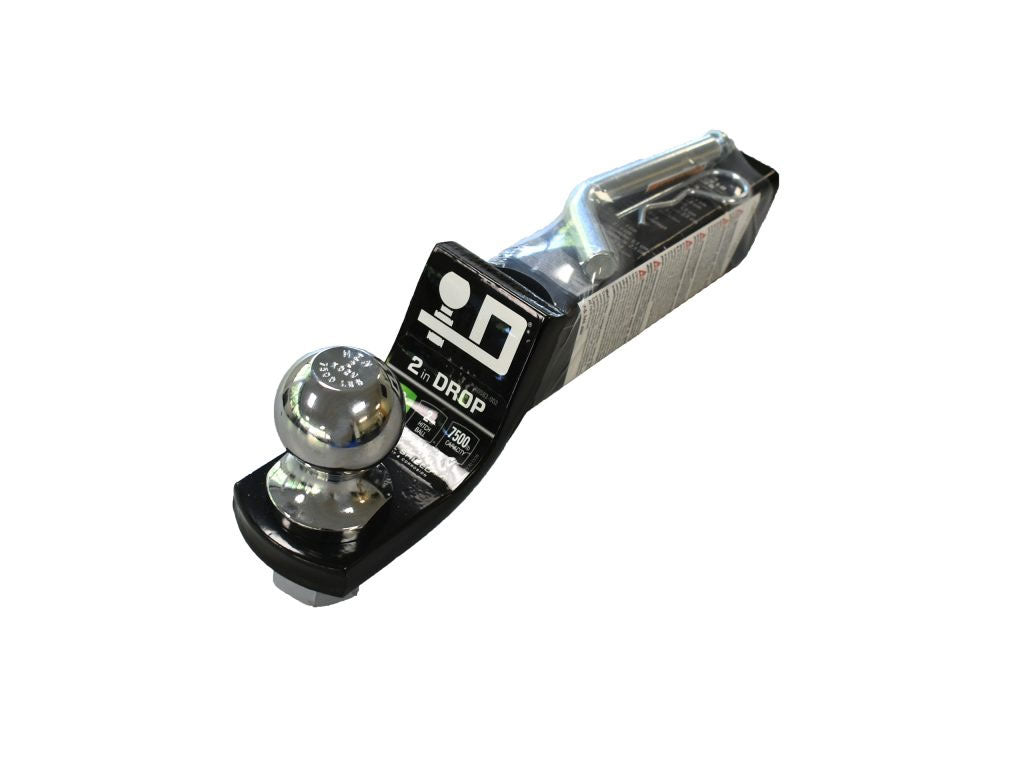

  • Includes built-in 2 inch receiver
  • ITA Class 2A Hook-Type Fork Tines

*Items may be shown with additional attachments

Adjustable Fork Spacing – Forks can be spaced apart from 10 inches (250mm) to 40 inches (1020 mm) and locked in place

Ground Rail Bevels – Match the fork tines for smooth fork sliding, just like forklift carriages

MIG Welded Construction – Engineered for strength and professionally hand crafted

Quality Materials – Built entirely in USA with high-strength North American steel

JDQA Hooks – Reinforced with cap plates for extra strength

Durable Protection – Baked on powder coat is augmented by our proprietary graphite coating on the fork rails for easiest sliding of forks

Chain Slots – For 5/16 inch (8 mm) link chain at all four corners for easy lifting and securing of loads

Trussed Frame – Every pound of excess weight is removed without losing strength

Industry Standard Forks – ITA Class II hook type (fixed) fork tines

Super High-Strength Upper & Lower Fork Rails – No cheap formed steel here. Our frames are built like a real forklift carriage. These rails are laser cut from extremely high-strength and wear-resistant North American steel

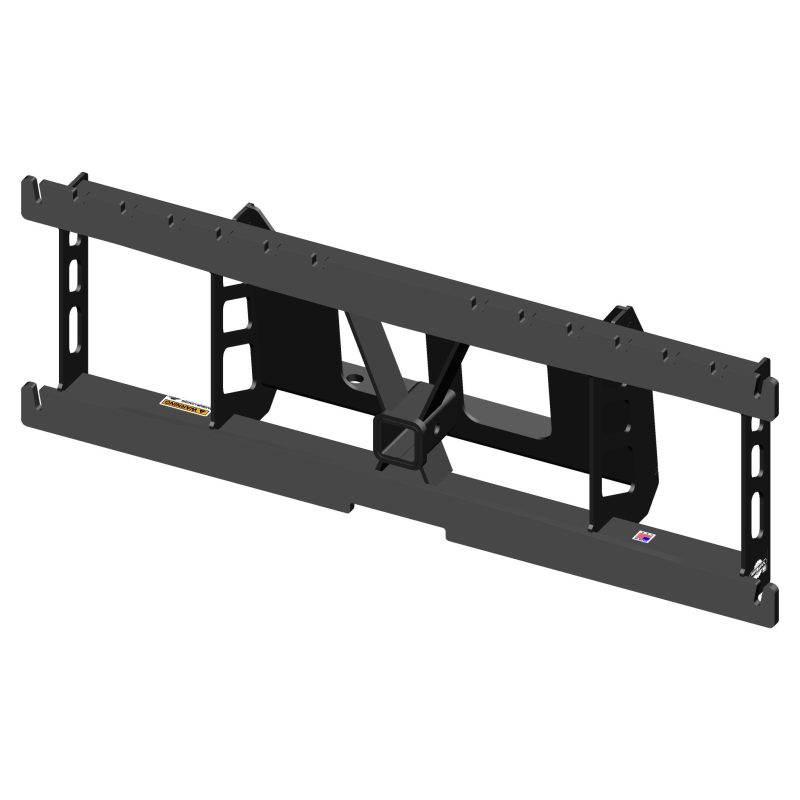

Frame

  • Fork frame is designed for a maximum load of 3000 lbs. (1360 kg) at 18 inches (46 cm) Load Center. Maximum load may be limited by lower capacity fork tines.

    • Fork frame weight: 91 lbs. (41 kg)
    • MIG Welded Construction
    • Powder-coat finish
    • Frame Rails: ½” thick ASTM A514/T-1 Alloy Steel
    • Tubes: ASTM A513 Steel
    • Mounting Trusses: ¼” HRPO 1010 Steel
    • JDQA Hooks: ¼” ASTM A572 Grade 50 Steel
    • JDQA Pins: Low Carbon Steel
    • SSQA Plates: ¼” ASTM A572 Grade 50 Steel

Forks

FORK 36"x3" 42"x3" 42"x4" 48"x4"
CAPACITY 2300 LBS 2300 LBS 3000 LBS 3000 LBS
WEIGHT LBS. (PAIR) 112 120 176 180

CAPACITY

24" LOAD CENTER

2300 LBS 2300 LBS 3700 LBS 3700 LBS

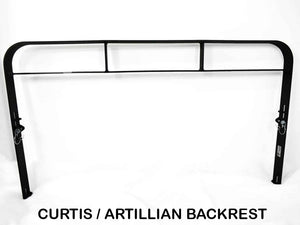

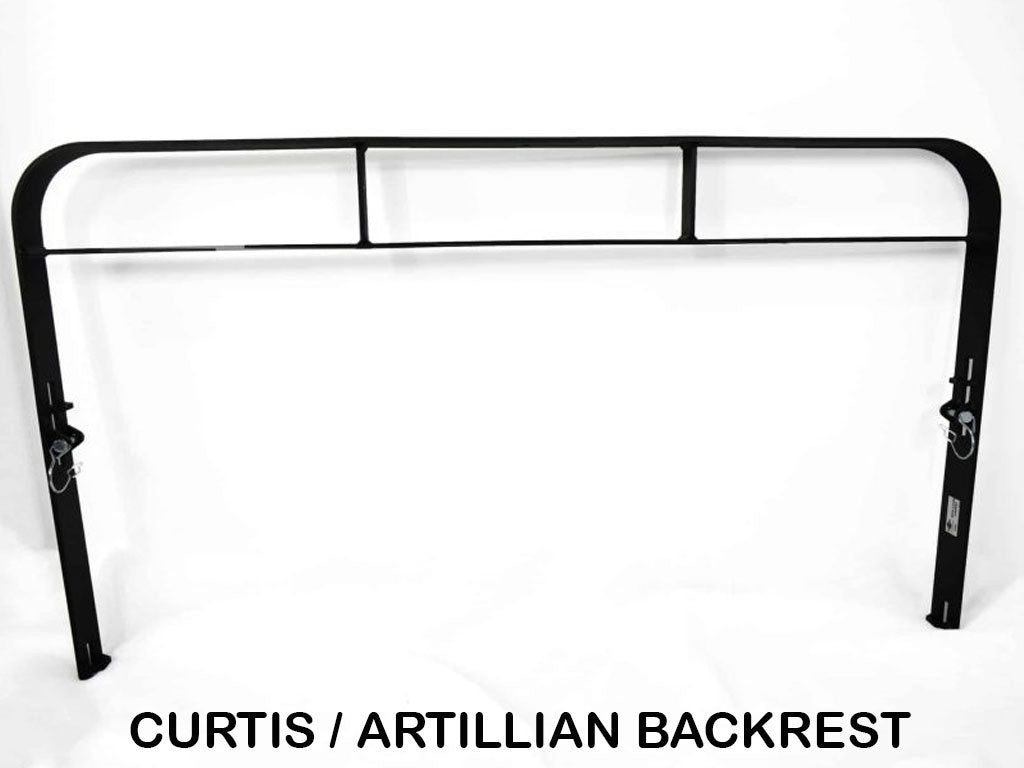

BACKREST

THE BACKREST IS FOR USE WITH FORKS ONLY, DO NOT USE WITH ANY OTHER ARTILLIAN ATTACHMENT

Fits all Artillian Pallet Fork Frames built after model year 2010.

Helps support brush limbs to avoid slipping backward.

This safety guard rises 29-inches (.75 m) above the forks.

It weighs just 23 lbs. (10.5 kg) and is easily removable when not needed. It is designed for a 500 lbs. (227 kg) load directly against the top edge.
