MTL-000015

DIGGA bigfoot trencher for mini loaders

CHAIN
SIZE
Included:
  • Hoses & Fittings
  • Mounting (We may need you machines make and model)
  • Crumber Bar
  • Recommended machine flow (13-25 GPM)

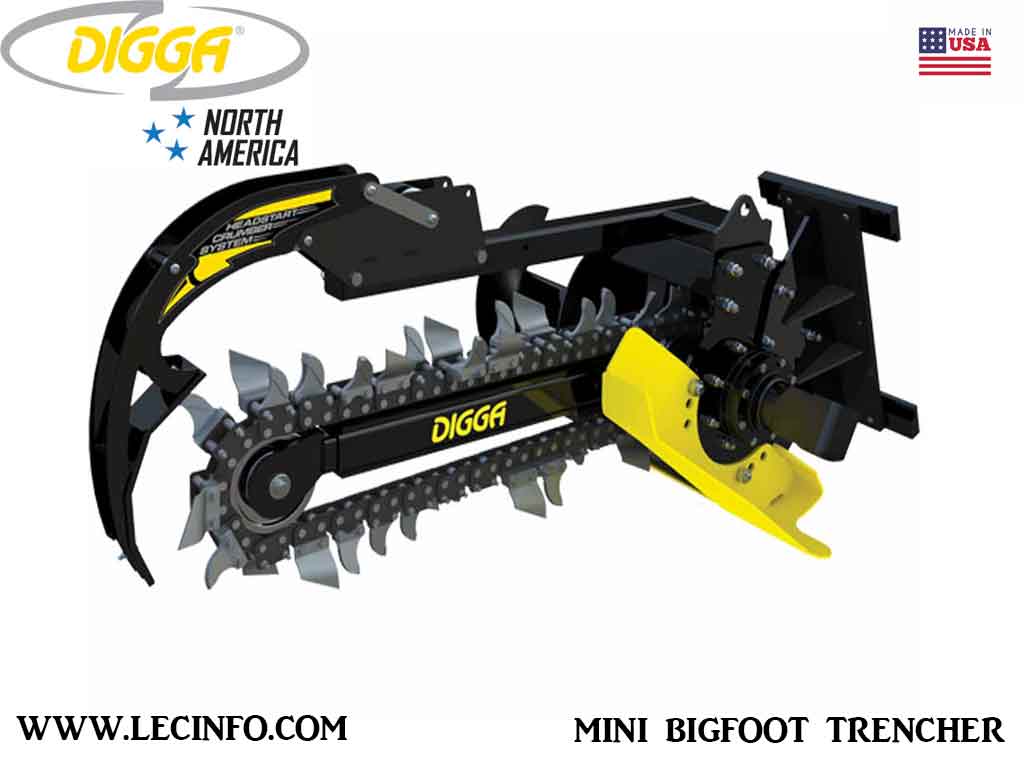

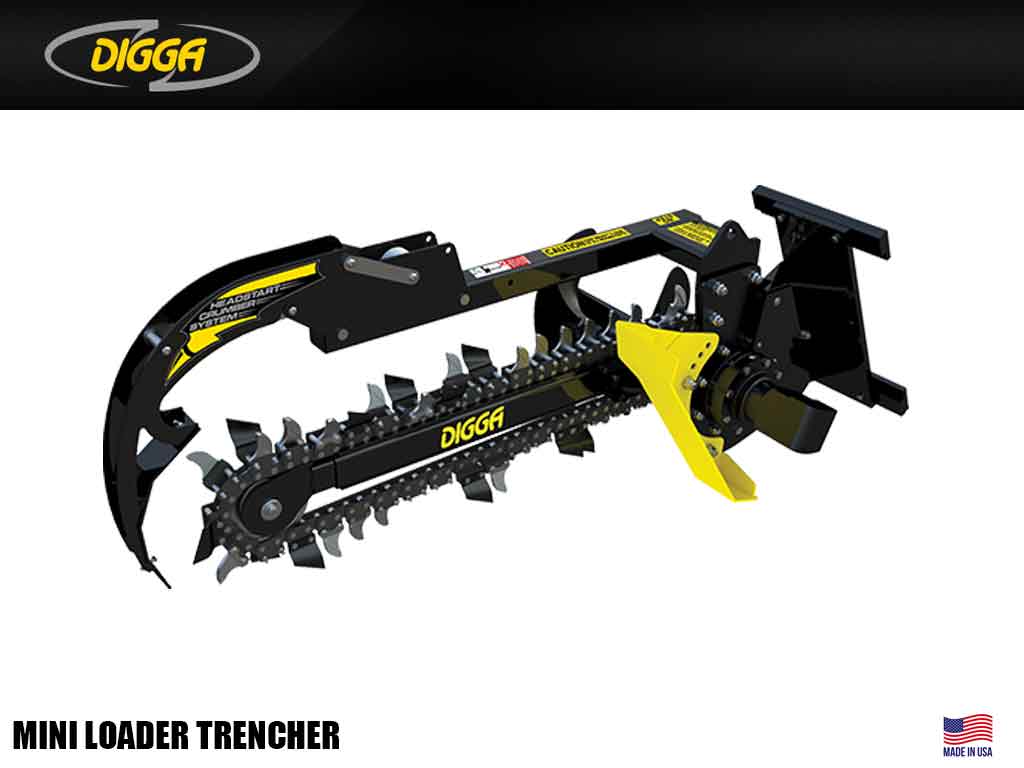

Bigfoot Trenchers for Mini Loaders and Walk Behind Machines

Digga's mini bigfoot trencher features an adjustable depth control foot which ensures the operator trenches at a set depth at all times. Three different chain options are also available for trenching in different ground conditions from general earth, to rocky ground, concrete, asphalt, and even frozen ground. Our trenchers are manufactured in-house to the highest industry quality, ensuring reliability and performance with the piece of mind you expect from a Digga product.

Our trenchers are the most user friendly on the market; allowing the crumber bar to start in the trench and eliminating the need for the operator to get out of the machine to reset the crumber bar (patent pending). Our unique design foot can be seen from the cab to allow the operator to see when the trencher is in the correct trenching position. A complete trenching solution for a cleaner trench helping you increase your efficiency and productivity.

Features

  • Head-start Crumber System (patent pending)
  • Adjustable Skid Foot to maintain constant digging depth
  • Frame can be side shifted for digging close to permanent structures
  • 3 different Chain options, Earth, Combo, and Diggatac
  • Industry Leading Warranty

IDEAL USE & MACHINE SUITABILITY

  • Pipe laying for irrigation, underground power and communications, road repairs, and general construction
  • Excavators up to 4.5 ton, skid steer loaders, mini machines

    SPECIFICATION 900
    CUTTING DEPTH UP TO 36"
    CUTTING WIDTHS 4" / 6" / 8"
    FOOT DEPTH PRESETS 18" / 24" / 30" / 36"
    RECOMMENDED FLOW 13-25 GPM
    MOTOR TYPE 2K BELL EATON
    MAX PRESSURE - DO NOT EXCEED 3500 PSI @ 16 GPM
    MAX FLOW - DO NOT EXCEED 25 GPM @ 2900 PSI
    MAX CONTINUOUS POWER 34 HP
    LENGTH 74"
    HORIZONTAL HEIGHT 32"
    WIDTH 38"
    WEIGHT 320 LBS

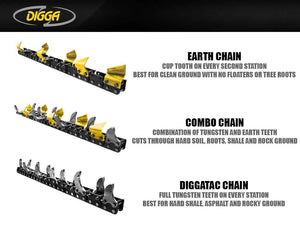

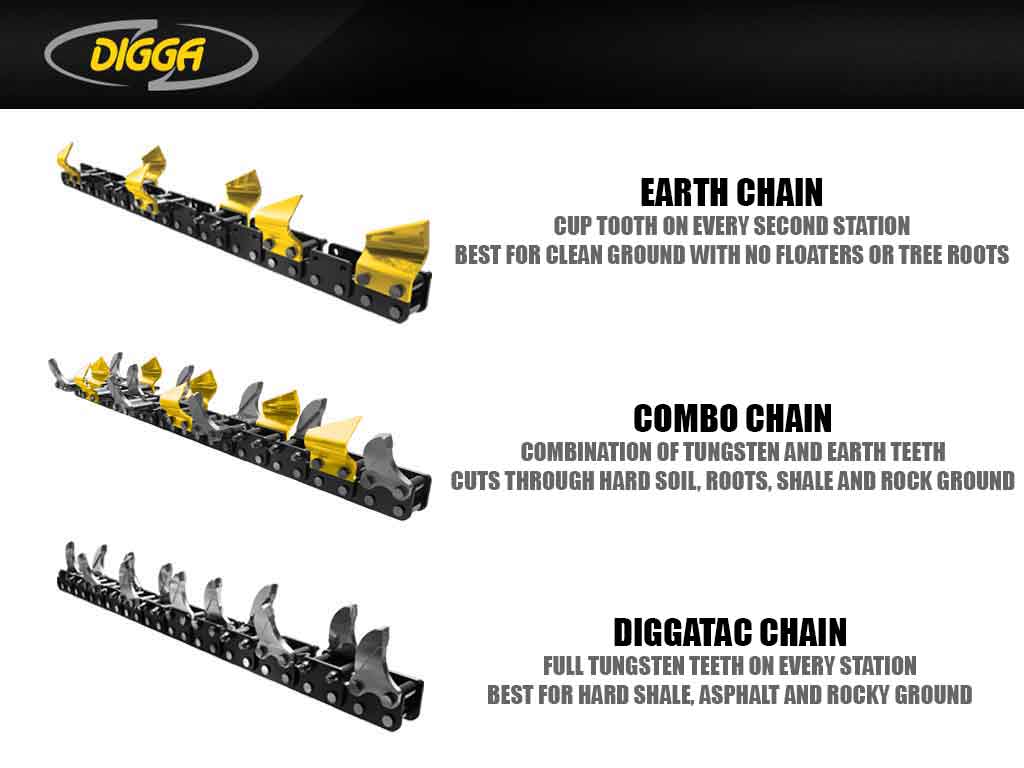

    CHAIN DESCRIPTION

    EARTH

    CHAIN

    CUP TOOTH ON EVERY SECOND STATION

    BEST FOR CLEAN GROUND WITH NO FLOATERS OR TREE ROOTS

    COMBO

    CHAIN

    COMBINATION OF TUNGSTEN AND EARTH TEETH

    CUTS THROUGH HARD SOIL, ROOTS, SHALE AND ROCK GROUND

    DIGGATAC

    CHAIN

    FULL TUNGSTEN TEETH ON EVERY STATION

    BEST FOR HARD SHALE, ASPHALT AND ROCKY GROUND
