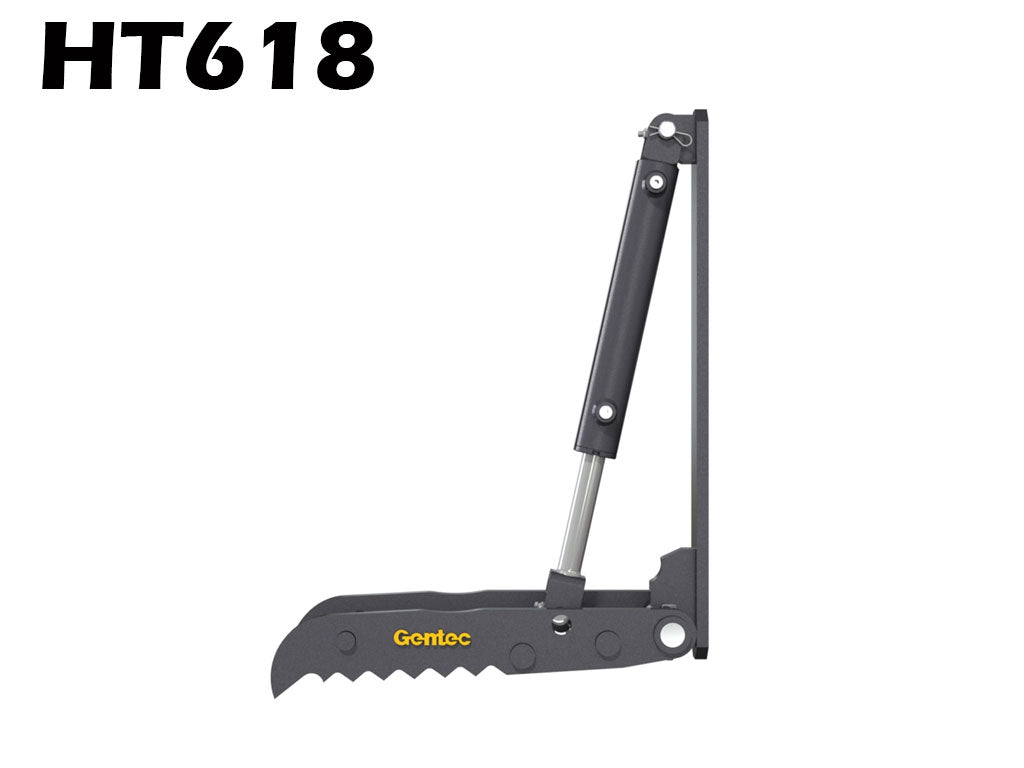

HT618

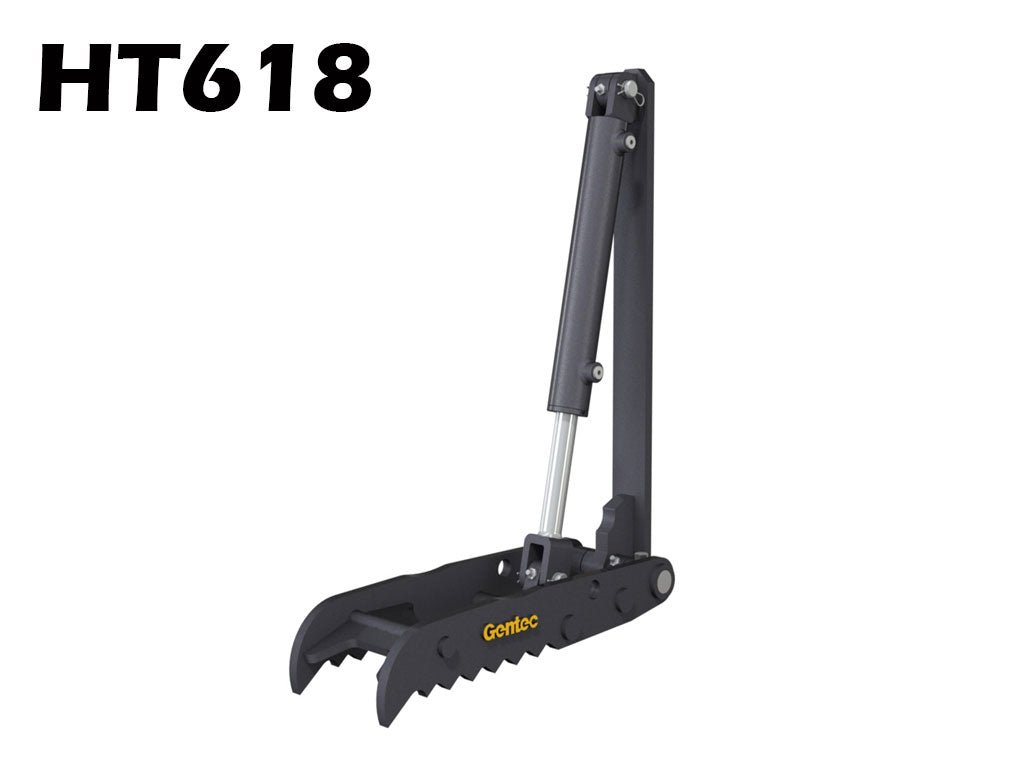

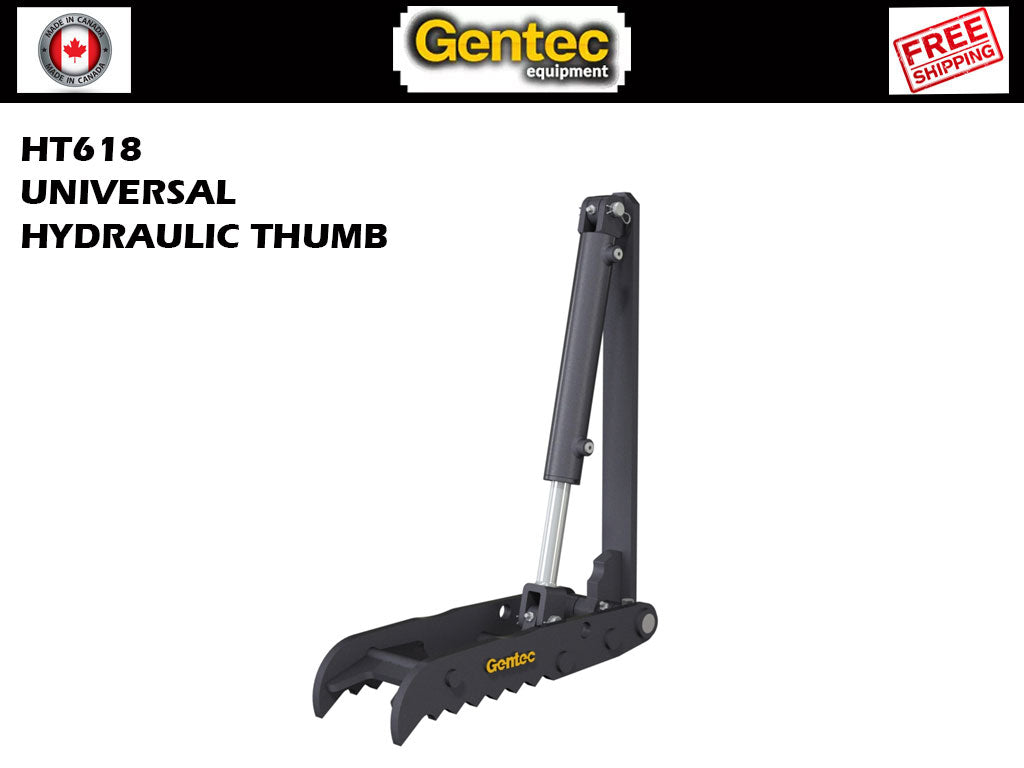

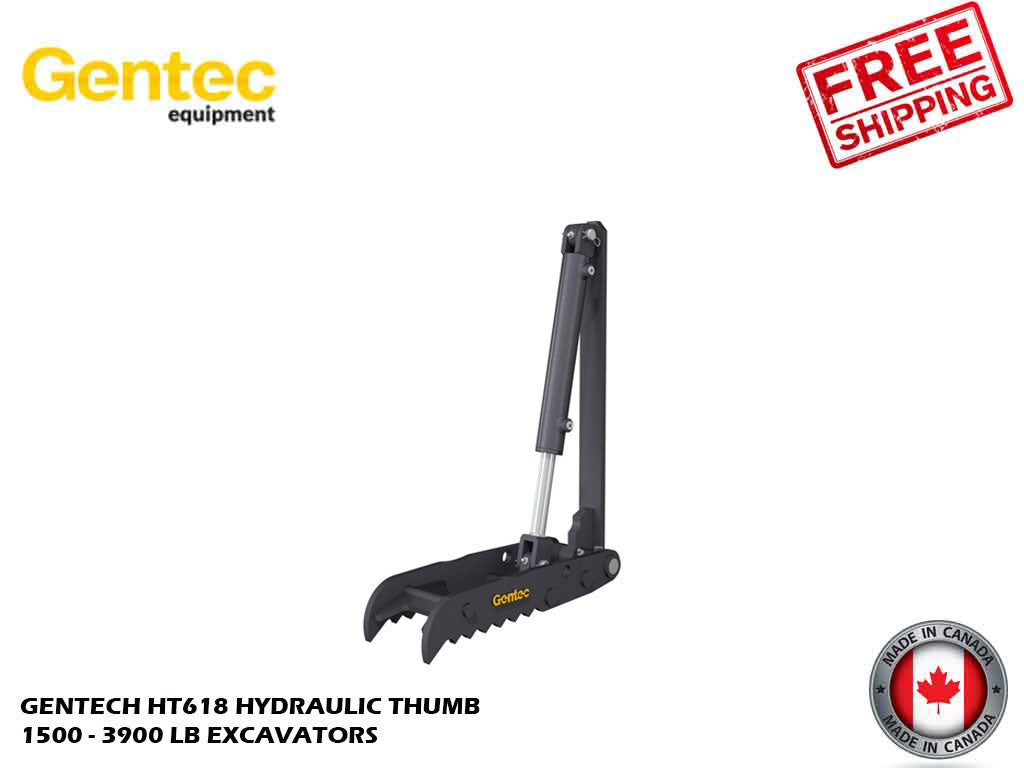

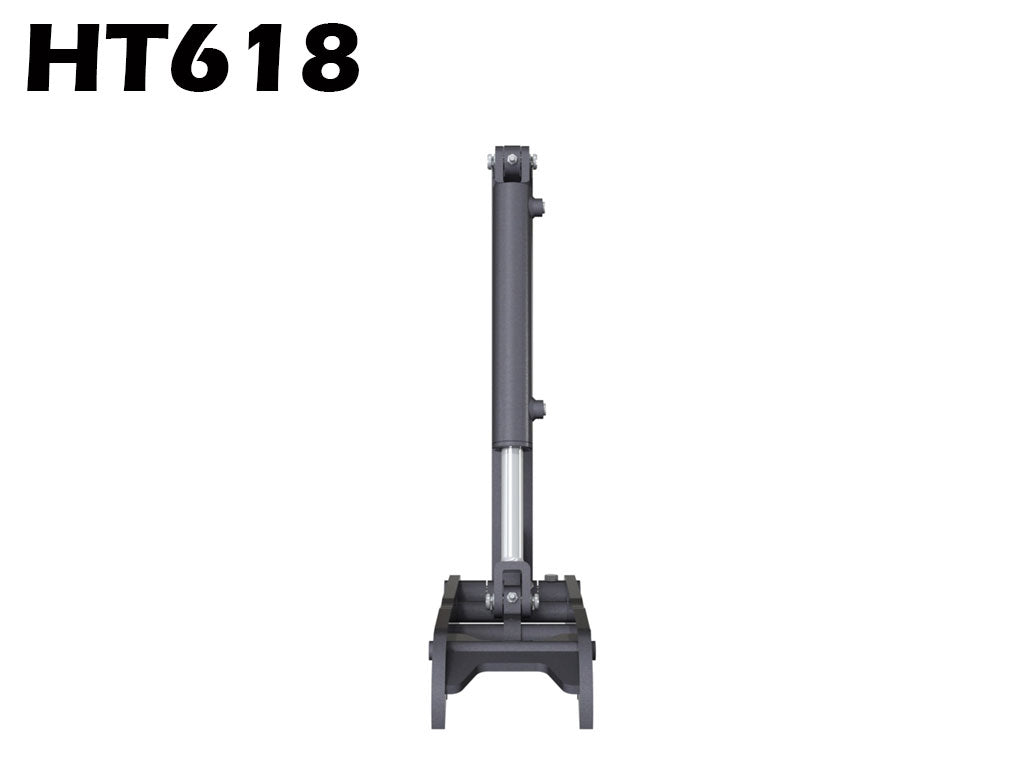

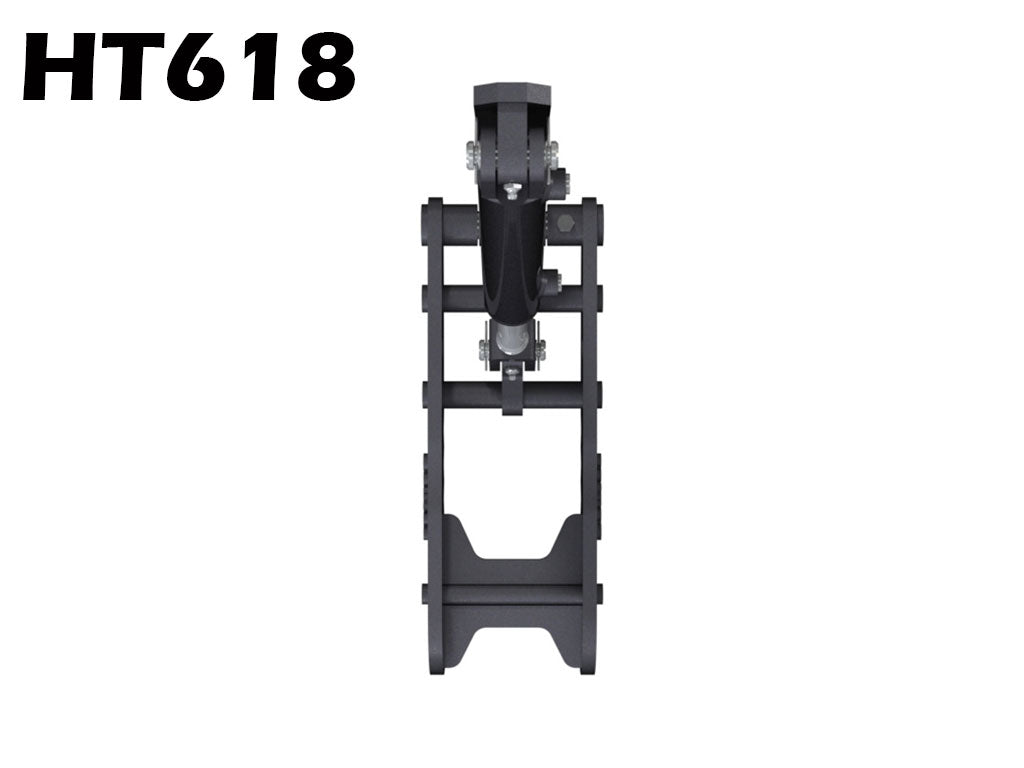

HT618 Gentec Universal Hydraulic excavator thumbs, 1500-3900 lbs excavators

Built-Tough

Introducing the HT618 Hydraulic Weld-On Thumb, built-tough for contractors, homeowners, and landscapers who demand reliability and durability. Our 6"x18" thumb is designed for machines under 3,900lbs and weighs just 38lbs. Constructed from 1/2" thick AR400 steel tines in a ladder frame construction with gussets, it's designed for increased strength and long-lasting durability. Trust in the HT618's double-sealed welded cylinder, ensuring increased reliability for years to come. Both the cylinder pins and main pin are greaseable, ensuring smooth operation and reduced wear.

Superior Geometry

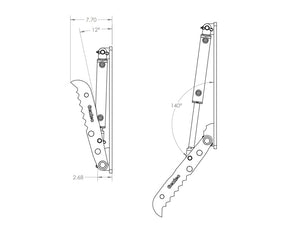

Experience the superior geometry of the HT618 Hydraulic Weld-On Thumb. With a maximum extension angle of 140 degrees, it outperforms the competition, offering greater versatility and ease of use. When fully retracted, the tines only extend 7.5" away from the edge of the excavator stick, ensuring minimal stowed dimensions and preventing interference when digging. The thumb's geometry is designed to mechanically stop the tine assembly from causing cylinder lock-out when retracted, protecting your equipment and guaranteeing a smooth operation.

Maximize Your Investment

Invest in the HT618 to maximize the capabilities of your excavator and get the job done faster and more efficiently. With 35 years of experience and a strong commitment to our company values, Gentec has become a trusted choice for more than 50,000 satisfied clients. As a family-owned business, we take pride in our products and prioritize your satisfaction. Choose the HT618 Hydraulic Weld-On Thumb for a lasting investment that will make a difference in your projects for years to come.

HT618 Features

  • 6" wide, 18" long
  • Ideal for machines smaller than 3,900lbs
  • 1/2" thick AR400 steel tines assembled in a ladder frame layout and with gussets
  • Double-sealed welded cylinder for increased reliability
  • Thumb geometry designed to mechanically prevent cylinder lock-out when retracted
  • Maximum extension angle of 140 degrees
  • Minimal stowed dimensions with tines extending only 7.5" from excavator stick when fully retracted
  • Greaseable cylinder pins and main pin
  • 23 3/8" backplate
  • Hydraulic cylinder included
  • Replacement parts readily available
  • 1 Year Warranty

      ** PLEASE CHECK YOUR MEASUREMENTS BEFORE ORDERING. (LOOK UNDER "BIG DAVE" TAB FOR INSTRUCTIONS) CALL WITH ANY QUESTIONS OR IF YOU NEED HELP THE THUMBS CAN BE TRICKY TO ORDER CORRECT.

      ⚠ Pro Tip! If your excavator is equipped with a Pin-Grabber quick coupler, choose a longer thumb to ensure a suitable fit with your bucket.

      MODEL HT618
      Mounting Weld-On
      Operation Hydraulic

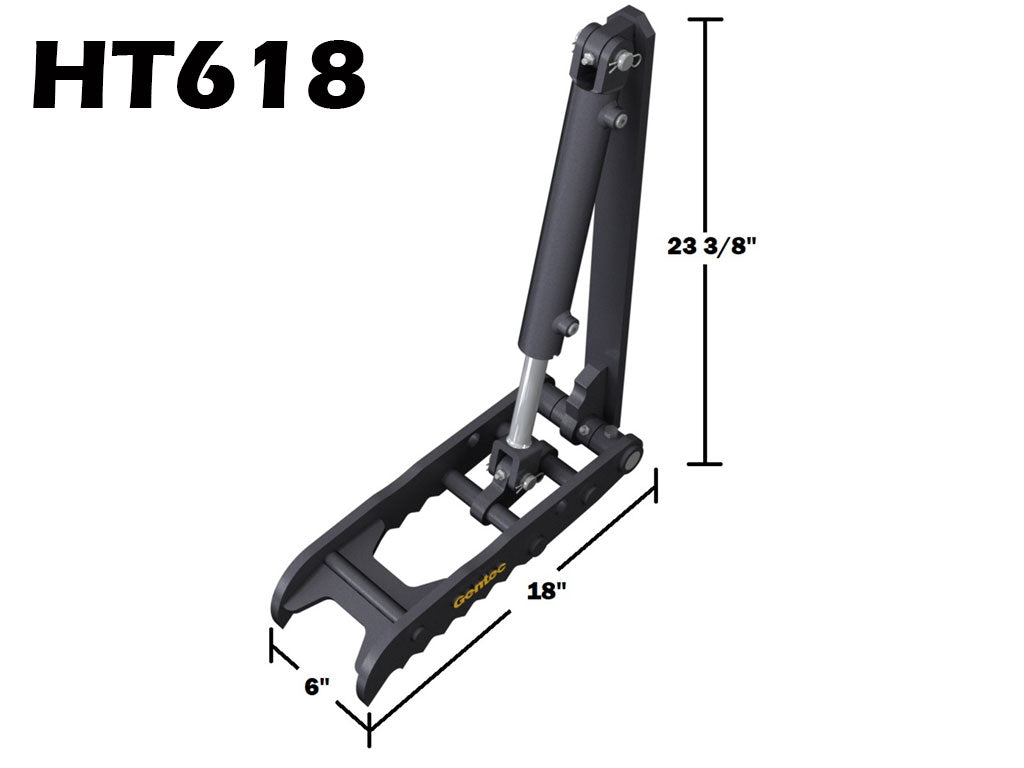

      Width 6"
      Length 18"
      Net Weight 38lbs
      Tine Thickness 1/2"
      Tine Material Hardox 400
      Stowed-Position Height 23 3/8"
      Max. Extension Angle 140 Degrees
      Max. Operating Weight 3,900lbs
      Min. Operating Weight 1,500lbs
      Main Pin Diameter 1"
      Excavator Weight Class 1,500lbs to 3,900lbs
      1500-2500 LBS
      MAKE MODEL
      BOBCAT 316,418
      DOOSAN 010
      IHI 9NX-2, 7J, 7GX
      KOMATSU PC09-1
      KUBOTA K008-3
      TAKEUCHI TB108,TB107,TB007
      YANMAR SV08-1A,SV08,B08



      2500-4000 LBS
      BRAND MODELS
      BOBCAT

       E14,E16,E20,323,324,325,328

      CASE

      CX25,CX27,CX27B,CX31,

      CX14,CX17,CX17B

      CAT



      301.5,301.6,301.8,301.6C,301.8C
      DEERE 17G, 17D, 17C
      DOOSAN

      015

      GEHL

      143,153,193,223,253,EC17,192,222

      HITACHI

       EX17-U

      HYUNDIA R15-7,R16-7,R22-7
      IHI



      17VXE,15VX,15NX,10G,12G,14G,15J,18J
      KOBELCO



      13SR,SK13SR,SK15SR
      KOMATSU



      PC18MR-2,PC20MR-2,PC15R-8,PC15MRX
      KUBOTA B20,B21,U15,KX41-3



      MUSTANG

      1403,1503,1903,2203,2503,1902,2202

      NEW HOLLAND

      EC15,E15

      TAKEUCHI



      TB216,TB016,TB014
      TEREX

      HR1.5,TC15,HR1.6,TC16

      VOLVO

      EC15B,EC20B

      WACKER

      1404,2503

      YANMAR

      VIO15-2,VIO17,VIO20-2,VIO15-3,VIO20-3,B15





      Thumbs usually ship out within (3) days

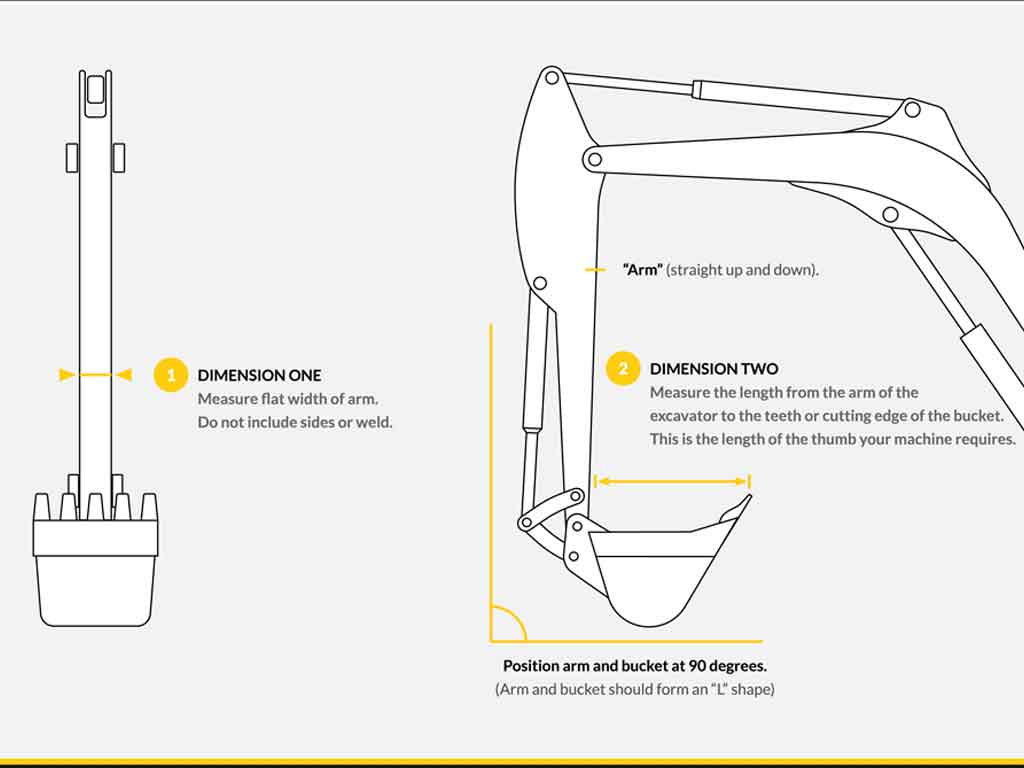

      MEASUREMENTS

      Please follow these instructions when measuring. You want your "stick to tip" measurement to be as close to the thumb tine length as possible. GENTEC's mounting plates are very narrow so typically there is no problems with the mounting plate (exception is the very smallest class of mini excavator)

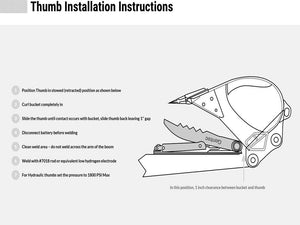

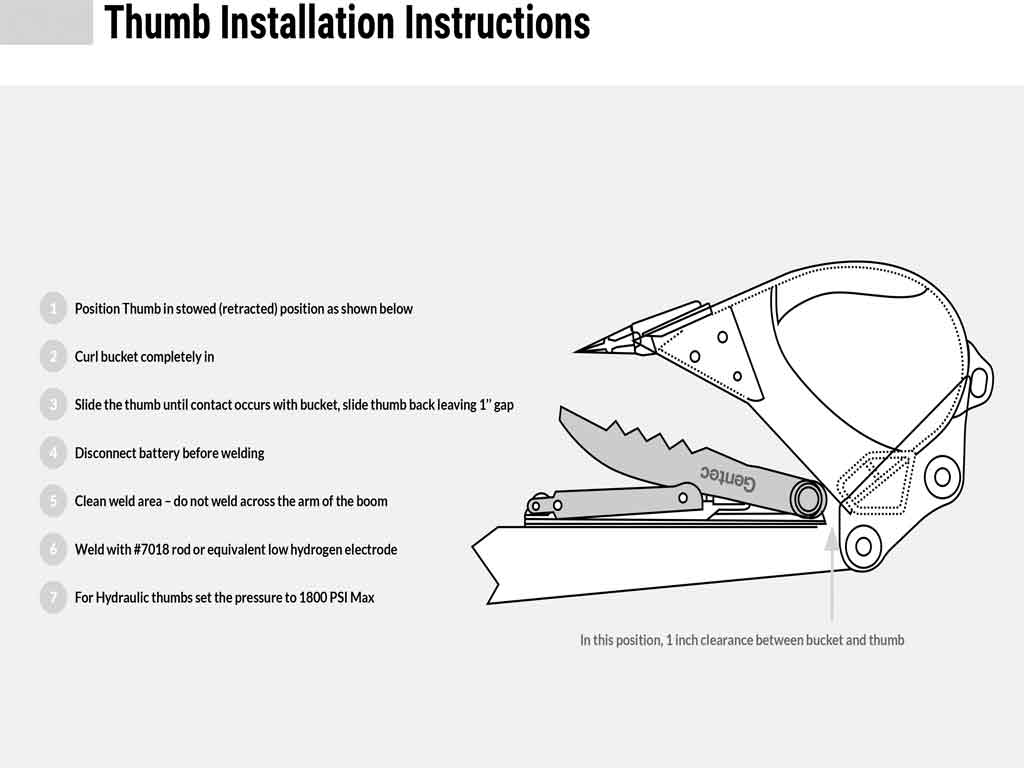

      INSTALLATION

      Please follow these instructions when installing your thumb.
