HT2466

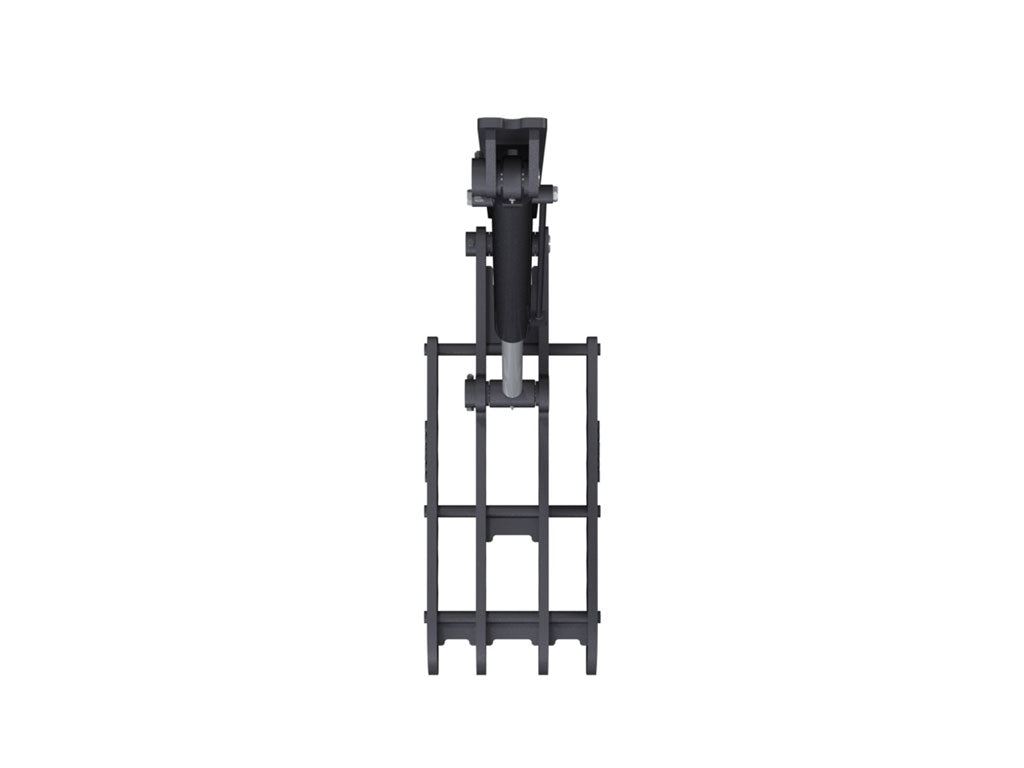

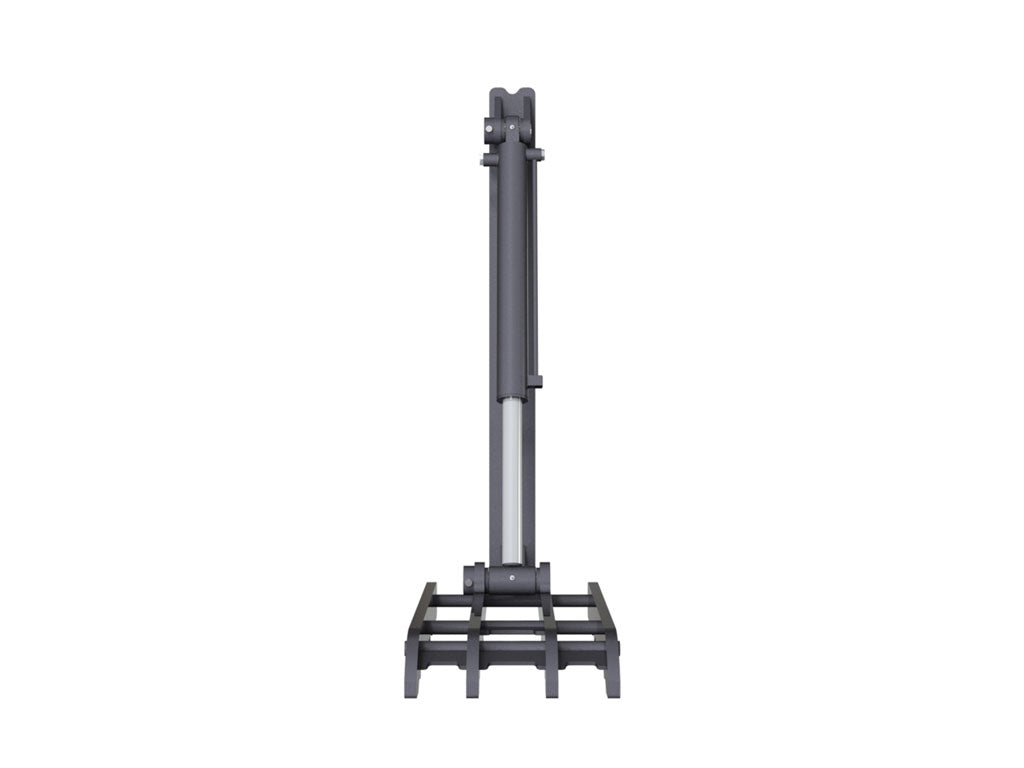

HT2466 Gentec Universal mechanical excavator thumbs, 40000-54000 lbs excavators

2/24

Gentec Equipment

Built-Tough

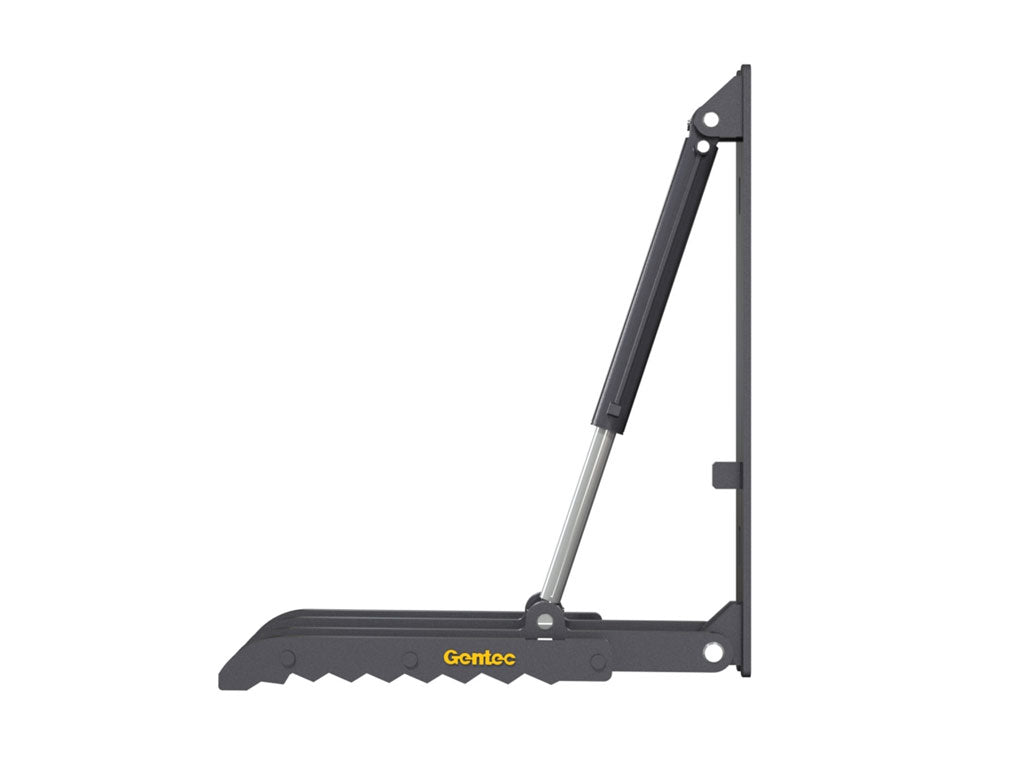

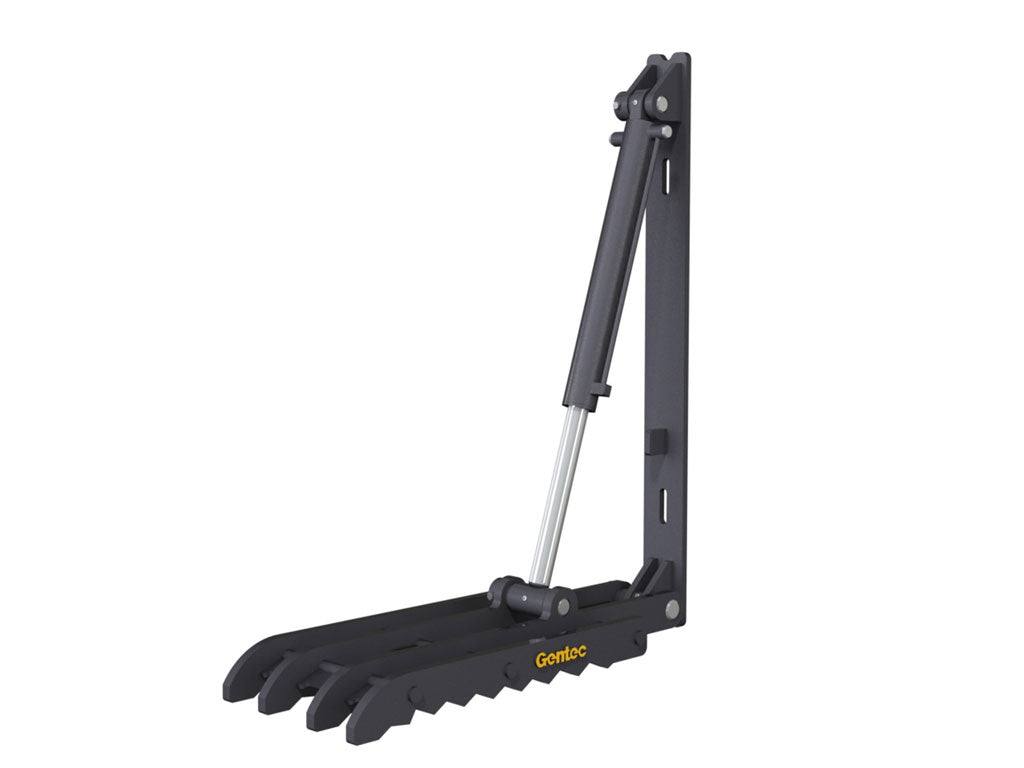

Introducing the HT2466 Hydraulic Weld-On Thumb by Gentec – built tough for large contractors. This 24" wide and 66" long thumb is designed for machines between 40,000lbs and 54,000lbs, and weighs 841lbs. Constructed with four 1 1/2" thick AR400 Steel Tines in a ladder frame layout and reinforced with gussets, our HT2458 thumb is designed for increased strength and long-lasting durability. The double-sealed welded cylinder further enhances reliability, and spherical bushings at the top of the cylinder protect it from side loading. The cylinder comes with a hydraulic cushion at the top of the stroke to protect it during retraction and has both hydraulic ports located at the top so your hydraulic hoses are safe and out of the way. Additionally, both cylinder pins and the thumb main pin are greaseable for easy maintenance. The main pin and main bushings are hardened for added durability.

Superior Geometry

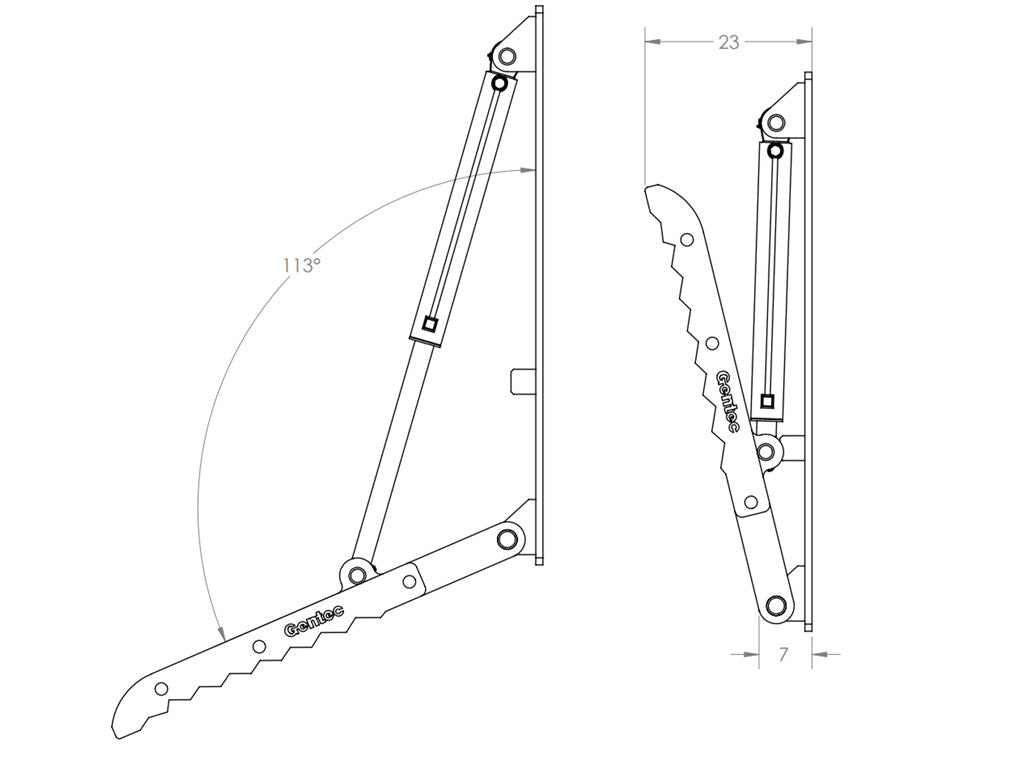

Experience superior geometry with the HT2466. The thumb boasts a maximum extension angle of 113 degrees. Designed to minimize stowed dimensions, when fully retracted, the tines only extend 23" away from the edge of the excavator stick – meaning it won't get in your way when digging. The backplate measures 78 5/8”, and the hydraulic cylinder is included. The port size on the cylinder is larger to allow for faster cycling.

Maximize your investment

Invest in the HT2466 to maximize the capabilities of your excavator and get the job done faster and more efficiently. With 35 years of experience and a strong commitment to our company values, Gentec has become a trusted choice for more than 50,000 satisfied clients. As a family-owned business, we take pride in our products and prioritize your satisfaction. Choose the HT2466 Hydraulic Weld-On Thumb for a lasting investment that will make a difference in your projects for years to come.

Features:

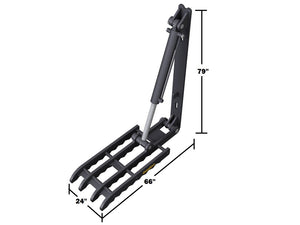

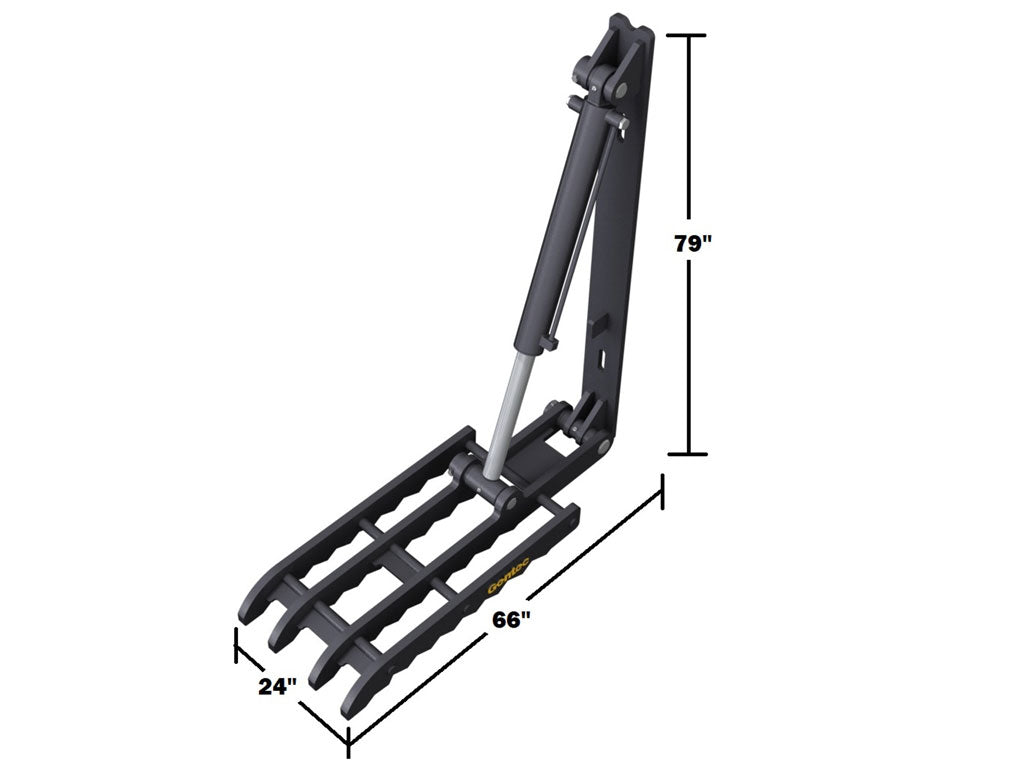

  • 24” wide, 66" long hydraulic thumb
  • Ideal for machines between 40,000lbs and 54,000lbs
  • Four 1 1/2” thick AR400 Steel Tines assembled in a ladder frame layout and with gussets
  • Double-sealed welded cylinder with spherical bushings for increased reliability
  • Both cylinder ports located at top of cylinder to prevent hose damage
  • Hydraulic cushion at the top of the stroke for cylinder protection
  • Greaseable pins and hardened main pin and main bushings for easy maintenance
  • 113-degree maximum extension angle
  • Minimized stowed dimensions for optimal digging performance
  • 78 5/8” backplate
  • Hydraulic cylinder included with larger port size for faster cycling
  • 1-year warranty
  • Replacement parts available
able

                                    ** PLEASE CHECK YOUR MEASUREMENTS BEFORE ORDERING. (LOOK UNDER "BIG DAVE" TAB FOR INSTRUCTIONS) CALL WITH ANY QUESTIONS OR IF YOU NEED HELP THE THUMBS CAN BE TRICKY TO ORDER CORRECT.

                                    ⚠ Pro Tip! If your excavator is equipped with a Pin-Grabber quick coupler, choose a longer thumb to ensure a suitable fit with your bucket.

                                    Mounting Weld-On
                                    Operation Hydraulic
                                    Width 24"
                                    Length 66"
                                    Net Weight 841lbs
                                    Tine Thickness 1 1/2"
                                    Tine Material Hardox 400
                                    Main Pin Diameter 2 3/4"
                                    Stowed-Position Height 78.625"
                                    Max. Extension Angle 113 Degrees
                                    Min. Operating Weight 40,000lbs
                                    Max. Operating Weight 54,000lbs
                                    Excavator Weight Class 40,000lbs to 54,000lbs


                                     SAMPLE LIST ONLY



                                    40000-45000 LBS
                                    BRAND MODELS
                                    CASE CX210, CX225, CX235, 9030B
                                    CAT 318C, 320C, E200B
                                    DAEWOO 200-3, 220-3, S225, S255
                                    DEERE

                                    180CW, 180G, 190GW, 200C, 200D

                                    225CRTS, 245G, 210G, 210CW, 690D/E

                                    DOOSAN S225-V, S225N-V, S225S-V
                                    HITACHI Z200LC, Z210LC, Z225US
                                    HYUNDAI
                                    R210LC7
                                    JCB JS220
                                    KOBELCO
                                    SK210, 200SR, 235SR,
                                    KOMATSU PC200LC-7, PC228
                                    LINK BELT X3, 235LX, 210LX, LS2800Q
                                    NEW HOLLAND
                                    EH215, EW200
                                    SANY SY215
                                    TEREX TXC225
                                    VOLVO EC210B





                                    45000-60000 LBS
                                    BRAND MODELS
                                    CASE

                                    9040, 9045, CX240, CX280

                                    CX240D, CX290, CX270

                                    CAT 322CL, 325C, 225B/D
                                    DEERE



                                    300G, 290G, 250G, 230G, 270C, 230C, 790D/E
                                    DOOSAN SOLAR255-V
                                    HITACHI ZX250, ZX290, ZX245, ZX240-3, ZX270-3, 270LCV
                                    HYUNDAI
                                    R220LC-9S, R250LC7
                                    JCB JS220, JS260
                                    KOBELCO
                                    SK250, SK220-IV, SK270-IV
                                    KOMATSU PC220, PC250, PC270-8, PC308
                                    LINK BELT 225MSR, 240LX, 290LX, 3400
                                    NEW HOLLAND
                                    EC215, EC240, E215
                                    SANY SY235
                                    SAMSUNG 280
                                    TEREX TXC255
                                    VOLVO EC240B, 290B



                                    Thumbs usually ship out within (3) days

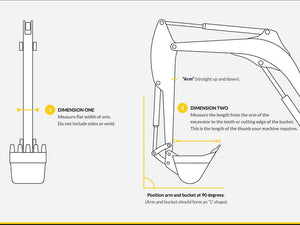

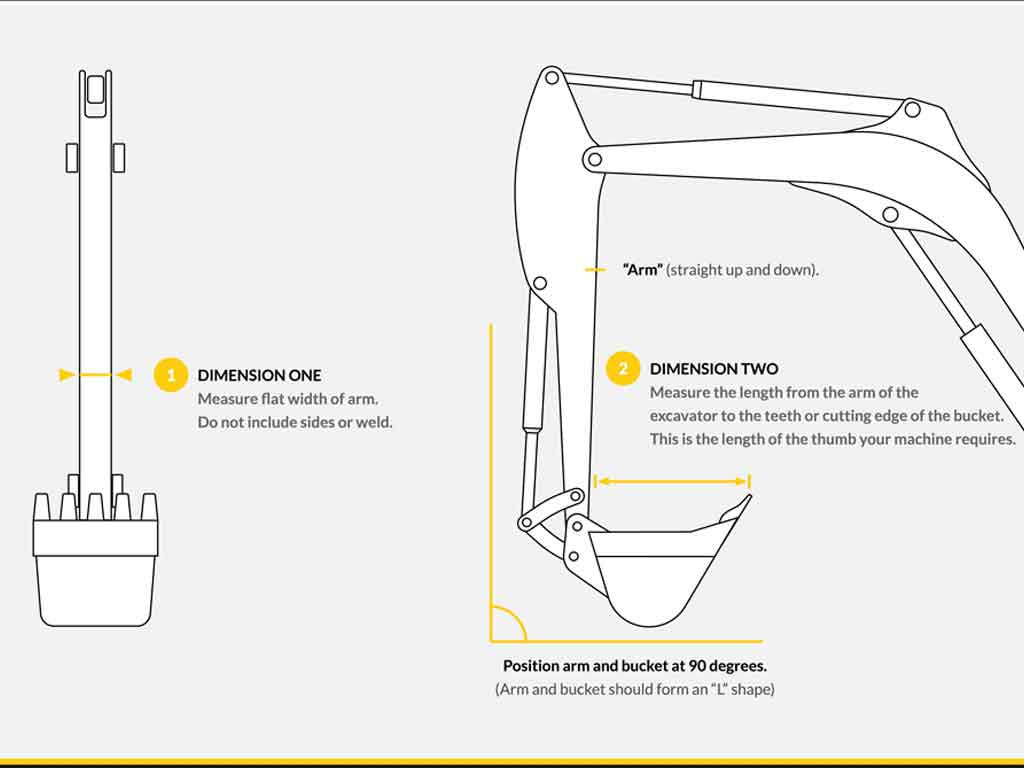

                                    MEASUREMENTS

                                    Please follow these instructions when measuring. You want your "stick to tip" measurement to be as close to the thumb tine length as possible. GENTEC's mounting plates are very narrow so typically there is no problems with the mounting plate (exception is the very smallest class of mini excavator)

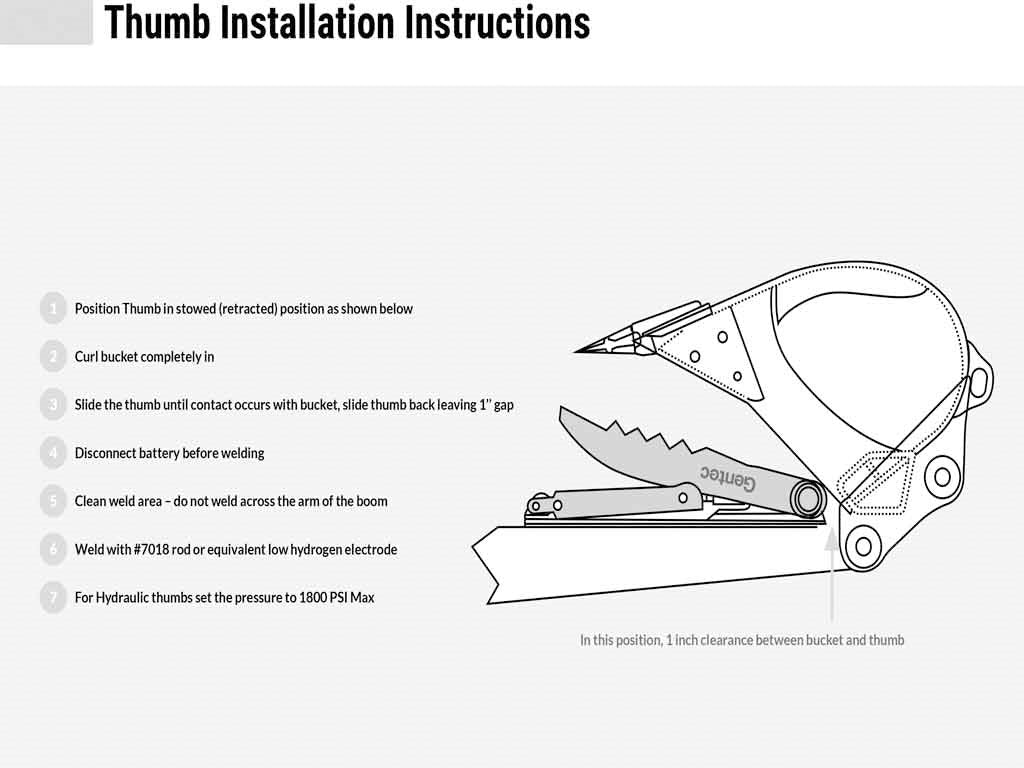

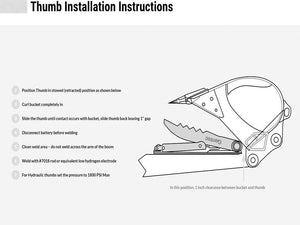

                                    INSTALLATION

                                    Please follow these instructions when installing your thumb.
