KATO 9VX-B Battery Electric Mini Excavator
$48,824.00$55,334.00
12/25

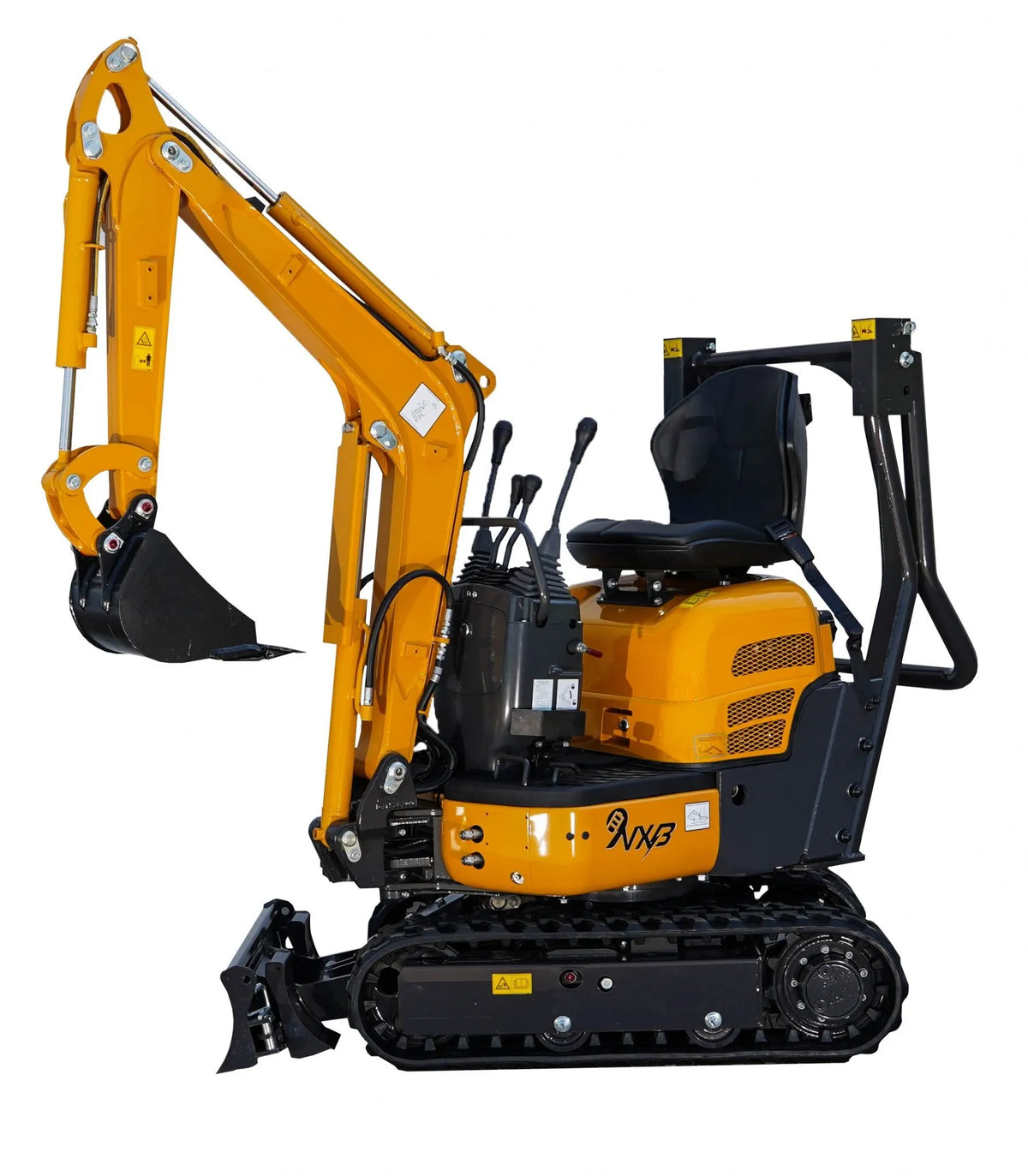

KATO 9VX-B BATTERY ELECTRIC MINI EXCAVATOR
COMPACT, ZERO TAIL SWING, AND BATTERY POWERED

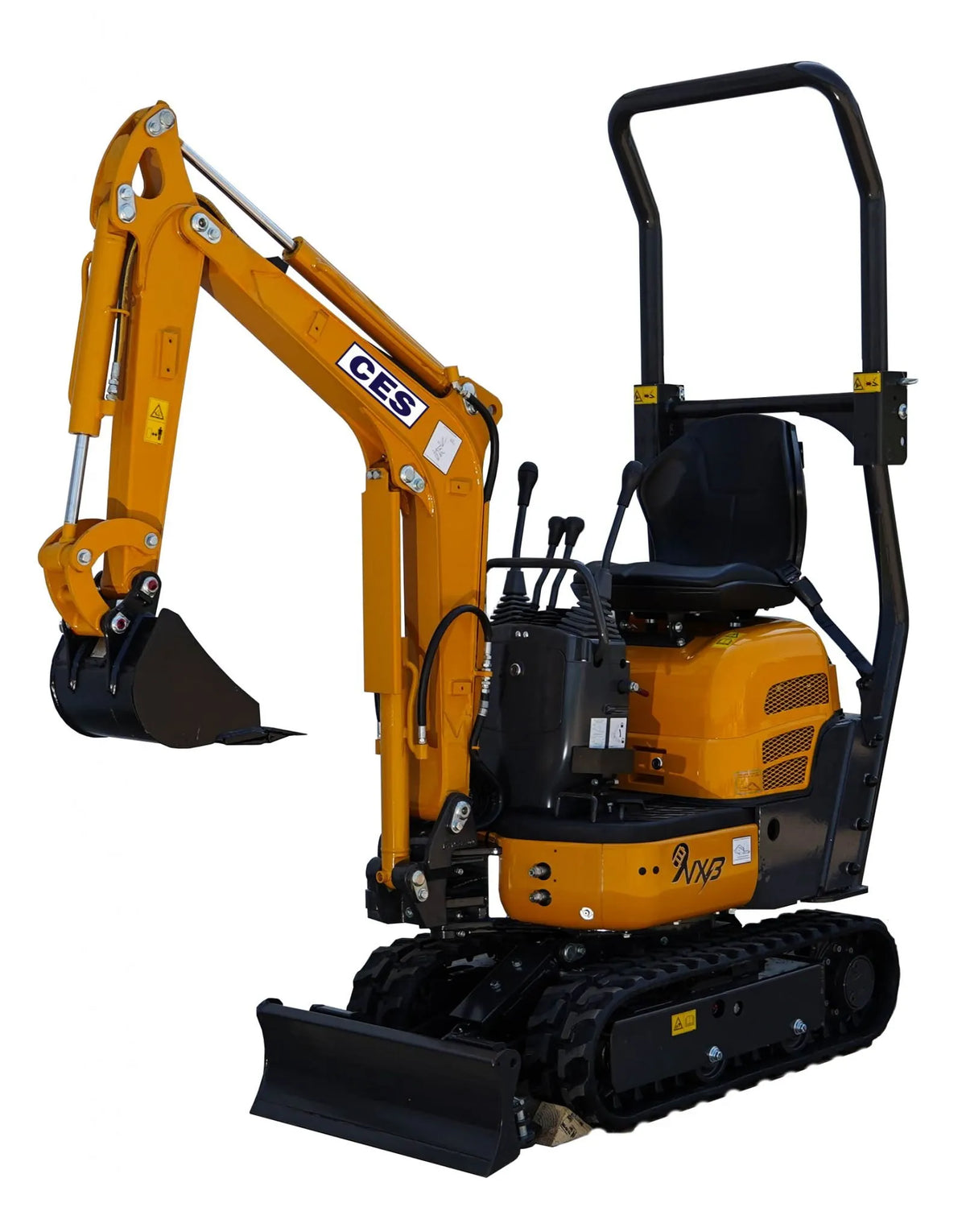

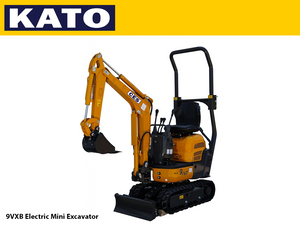

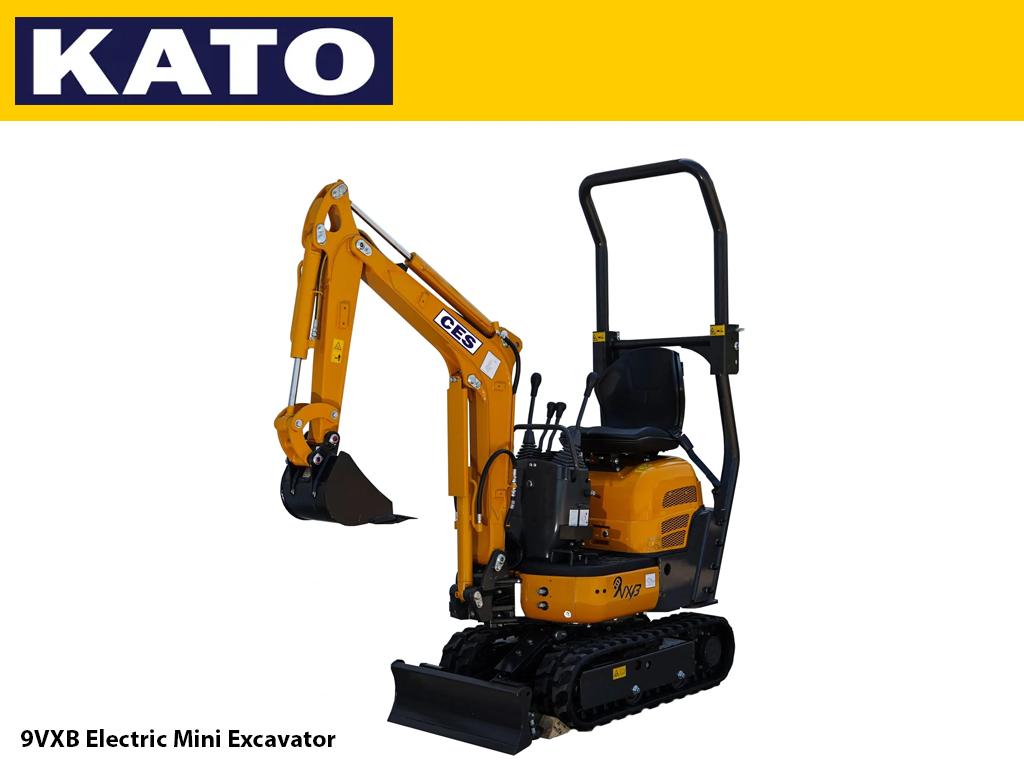

The KATO 9VXB Mini Excavator is an ultra-compact, zero tail swing excavator powered by a Li-ion battery, perfect for residential, indoor, or tight-space projects. Its expandable tracks, folding canopy, and push blade make it highly versatile, while auxiliary hydraulics and a standard recharging system provide convenience and efficiency on every jobsite.
With a 2,060 lb operating weight and digging depth of 5’2”, the 9VXB is a faster, easier alternative to shovels or wheelbarrows, capable of handling residential landscaping, utility work, and indoor excavation. The tracks retract to 27.5 inches for narrow passageways, and the machine delivers 2,360 lbs of bucket digging force for efficient material handling in confined spaces.
KEY FEATURES & BENEFITS
-
Operating weight: 2,060 lbs, transportation weight: 1,885 lbs
-
Bucket capacity: 8 cu. ft., width: 12"
-
Max bucket digging force: 2,360 lbs
-
Digging depth: 5’2”, max digging height: 9’0”, dumping height: 6’6”
-
Swing speed: 8.7 RPM, travel speed (low/high): 1.1 / 2.2 mph
-
Gradeability: 30°, ground pressure: 3.8 psi
-
Electric motor: Baldor 5 HP, 208–480V
-
Boom offset with hydraulic cylinder, boom swing angle: 50° left / 90° right
-
Gear-type hydraulic pump, auxiliary flow: 5 GPM
-

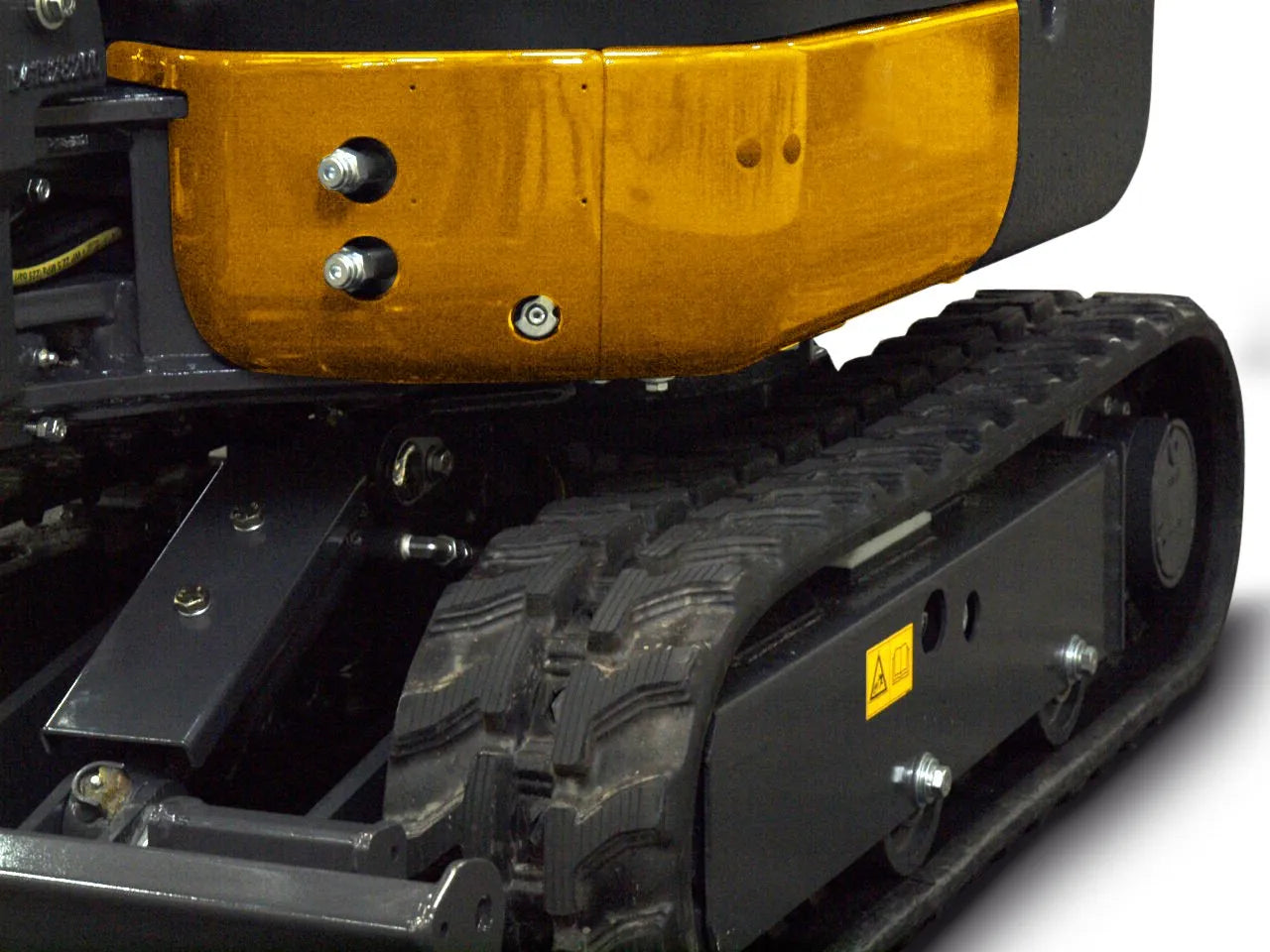

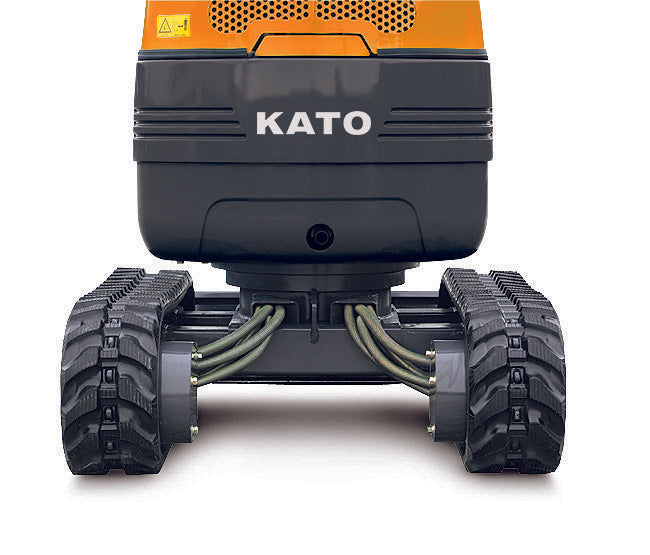

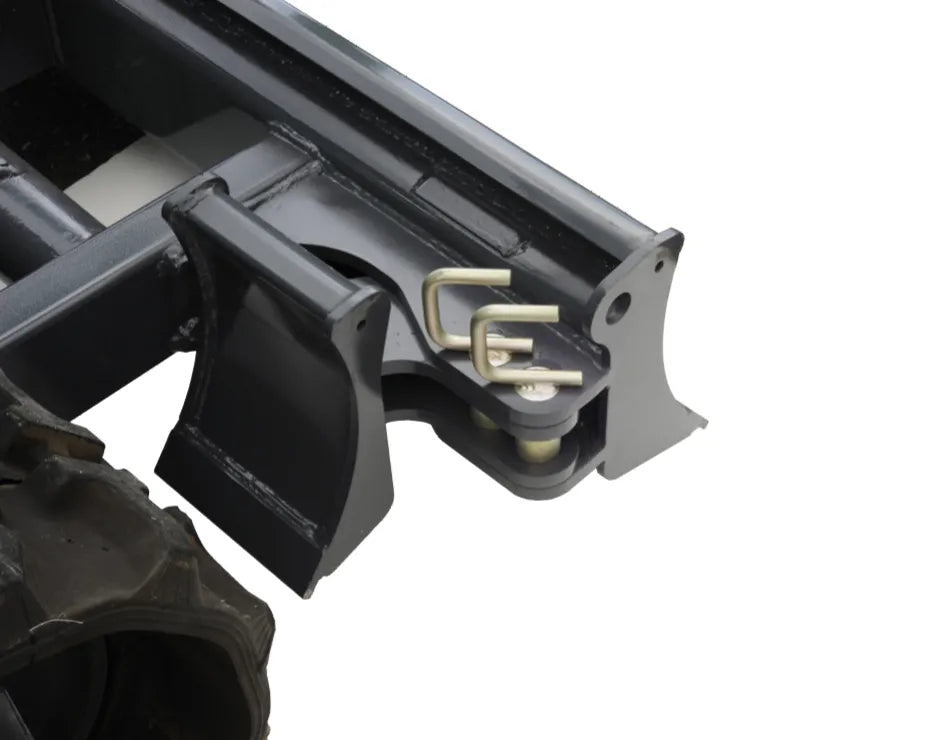

Expandable tracks: 27.5–37.5 in
-

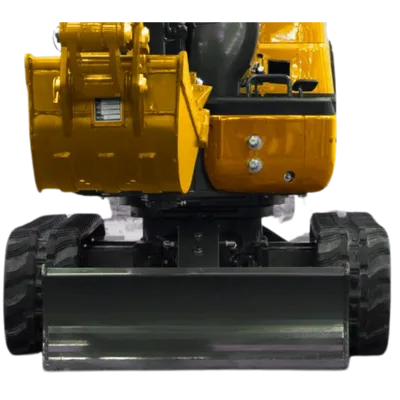

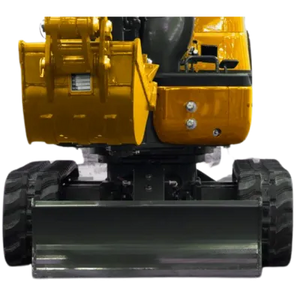

Standard backfill blade: 27.5” x 11”, lift/drop: 9” / 8”
-
Fold-down canopy for easy transport and storage
The KATO 9VXB Electric Mini Excavator delivers quiet, clean, and efficient performance with zero emissions, making it ideal for tight spaces, indoor use, and residential projects where traditional mini excavators may be too large or disruptive.
Specifications

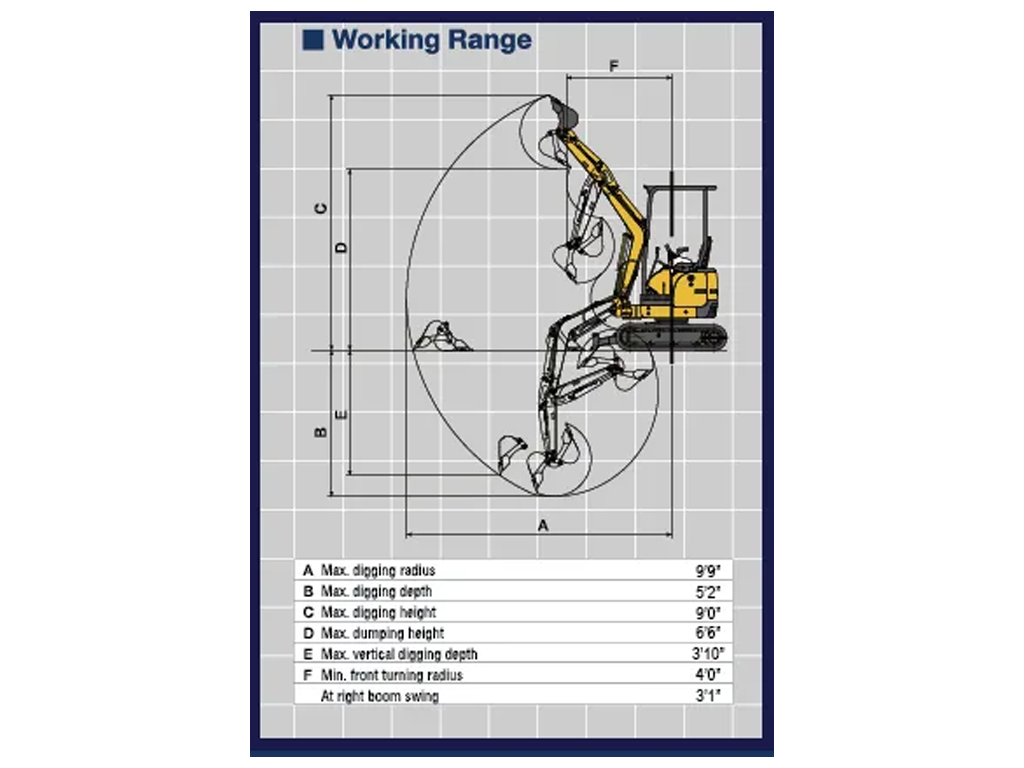

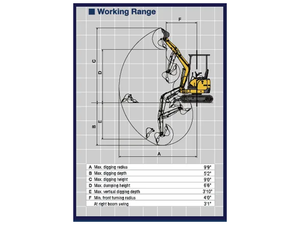

| Max. digging radius | 9’9’’ |
| Max. digging depth | 5’2’’ |
| Max. digging height | 9’0’’ |
| Max. dumping height | 6’6’’ |
| Max. vertical digging depth | 3’10’’ |
| Min. front turning radius | 4’0’’ |
| At right boom swing | 3’1’’ |
| Bucket capacity | 8 cu. ft. |
| Bucket width | 12’’ |
| Operating weight | 2,060 lbs |
| Transportation weight | 1,885 lbs |
| Swing speed | 8.7 rpm |
| Travel speed (low\hight) | 1.1\ 2.2 mph |
| Gradeability | 30o |
| Ground pressure | 3.8 psi |
| Max. bucket digging force | 2,360 lbs |
Motor
| Model | Baldor 5 hp |
| Rated output | 208-480 volt |
Boom Swing System
| Type | Boom offset with hydraulic cylinder |
| Swing angle (L\R) | 50° / 90° |
Hydraulic System
| Pressure | 2350 psi |
| Pump Type | Gear |
| Auxiliary Flow | 5 gpm |
Dozer Blade
| Size | 27.5″ x 11″ |
| Lift Above ground / Drop Below Ground | 9″ / 8″ |
