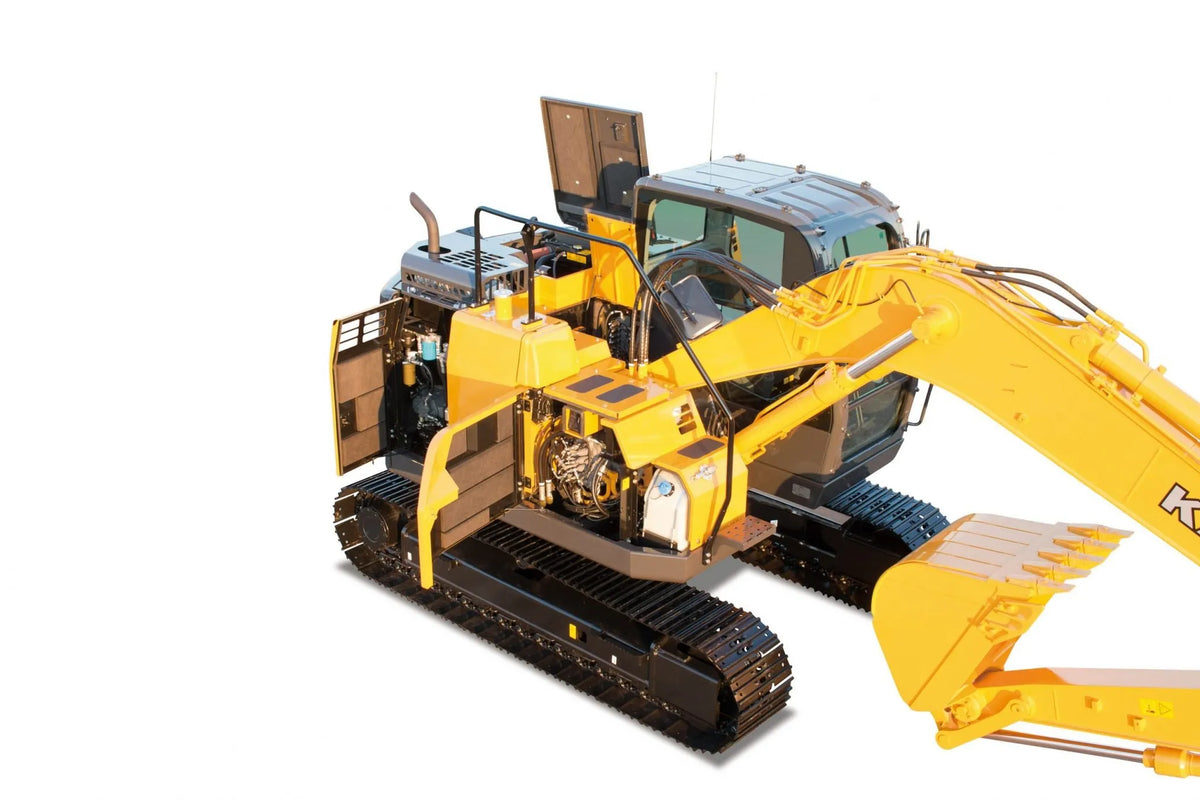

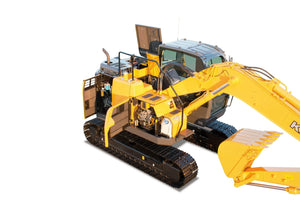

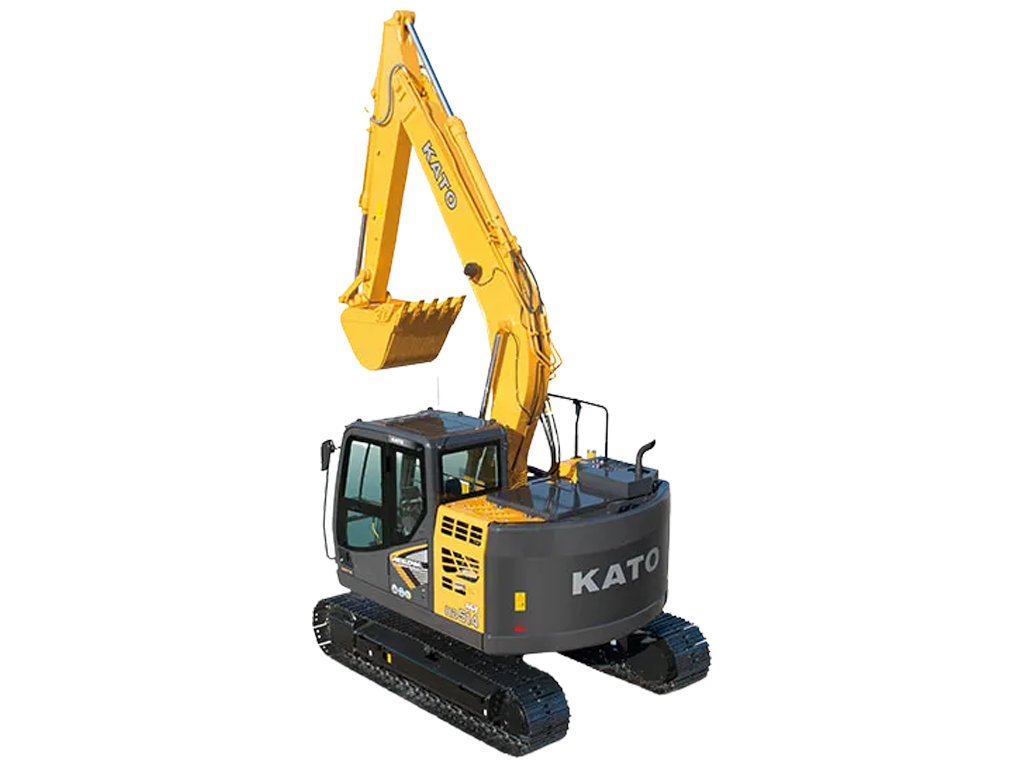

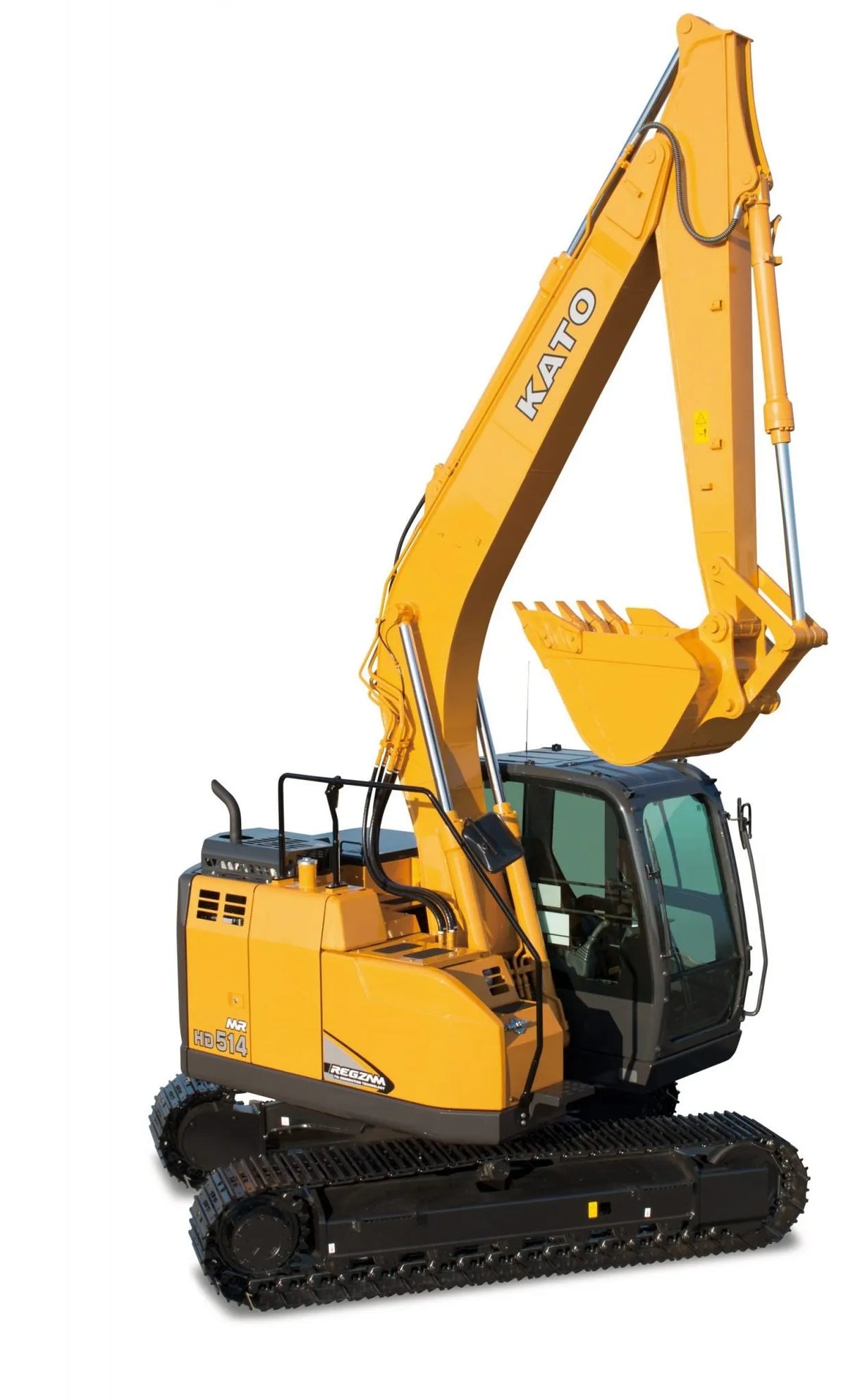

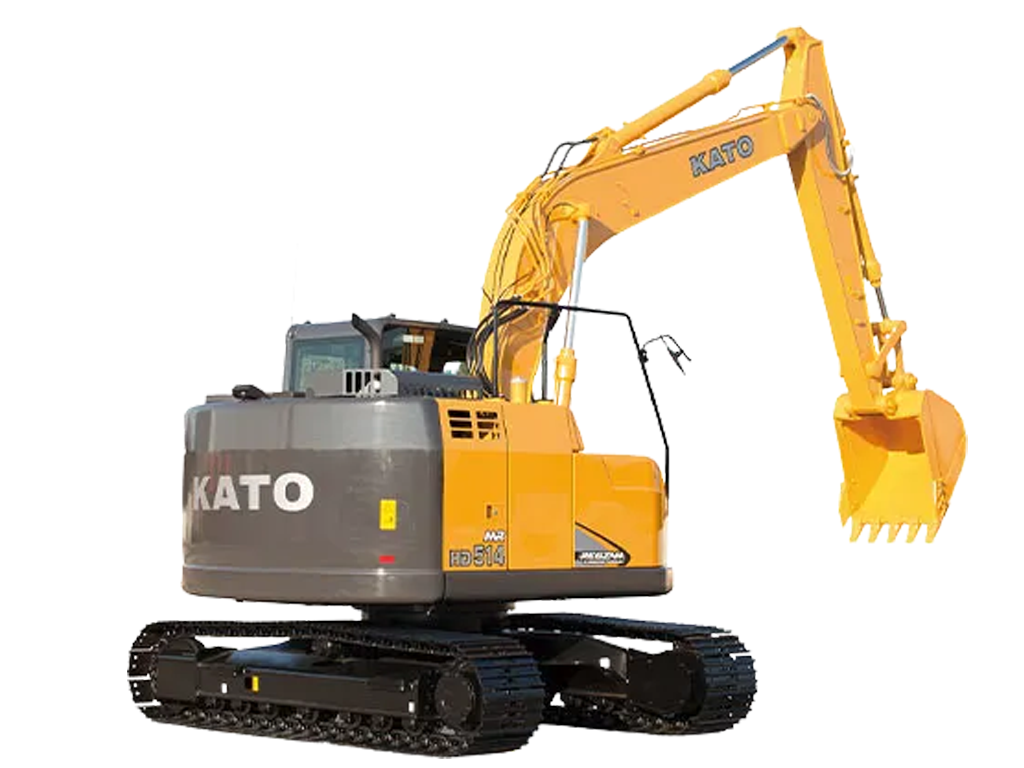

KATO HD514MR-7 Excavator

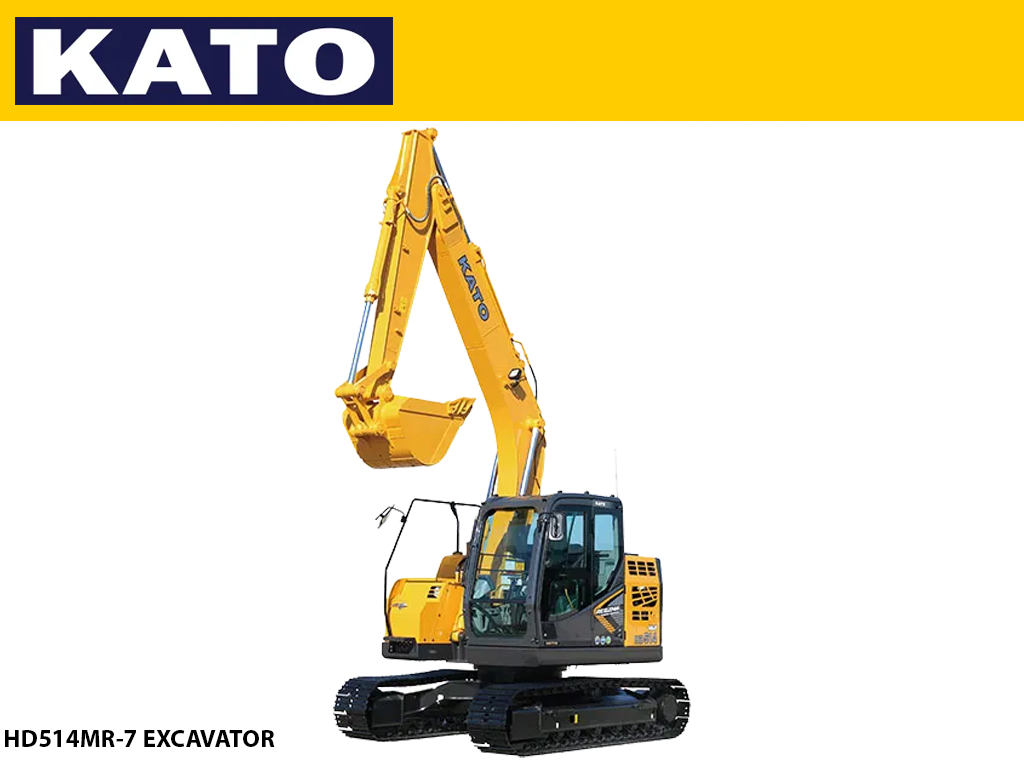

KATO HD514MR-7 EXCAVATOR

MINIMAL RADIUS PERFORMANCE WITH DOZER BLADE & ADVANCED OPERATOR FEATURES

The KATO HD514MR-7 is a compact, powerful minimal-radius tail swing excavator engineered for high productivity in tight job sites. Equipped with a factory-installed dozer blade, this versatile machine excels in trenching, grading, utility work, and urban construction where maneuverability and precision matter most.

Powered by an efficient 105 HP Isuzu 4JJ1X Tier 4 Final engine, the HD514MR-7 delivers strong digging performance with smooth, fast hydraulic response. Dual auxiliary hydraulics, a two-speed travel system, and steel tracks make this excavator ideal for running attachments and working across demanding terrain.

OPERATOR COMFORT & CONTROL

• Fully enclosed cab with heat and air conditioning

• Intuitive 7" touchscreen monitor for machine data and settings

• Pattern change valve for operator preference

• Side and rearview cameras for improved visibility and safety

• Ergonomic controls with smooth hydraulic response

POWER & PERFORMANCE

• Engine: Isuzu 4JJ1X Tier 4 Final – 105 HP

• Bucket digging force: 21,132 lbs

• Arm digging force: 15,511 lbs

• Max drawbar pull: 24,504 lbs

• Two-speed travel: 3.6 / 2.1 mph

• Gradeability: 35°

HYDRAULIC SYSTEM

• Dual pumps: 2 x 33.3 gpm

• Max system pressure: 4,554 psi

• Max digging pressure: 4,771 psi

• Completely enclosed, grease-bathed boom swing system

KEY SPECIFICATIONS

• Operating weight: 31,085 lbs

• Fuel tank: 73 gal

• Hydraulic oil tank: 41.7 gal

• DEF capacity: 14.5 gal

• Ground pressure: 6.38 psi

The KATO HD514MR-7 Excavator delivers the perfect balance of compact design, powerful hydraulics, and operator-focused features—making it an ideal solution for contractors working in confined spaces.

Specifications

Engine

Boom Swing System

Hydraulic System
