SPD-DPFRAME-S-DMT280036

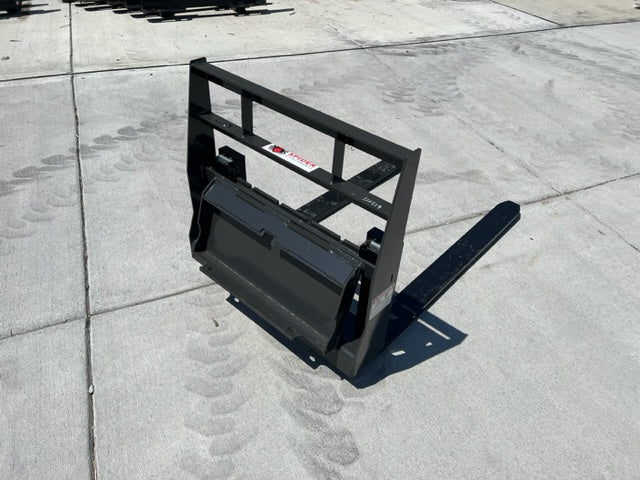

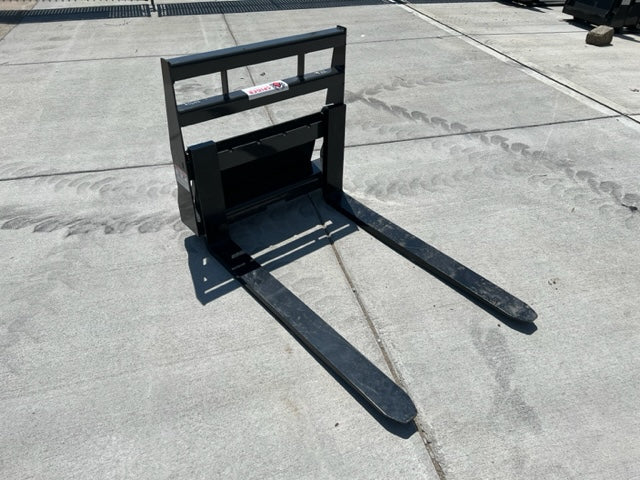

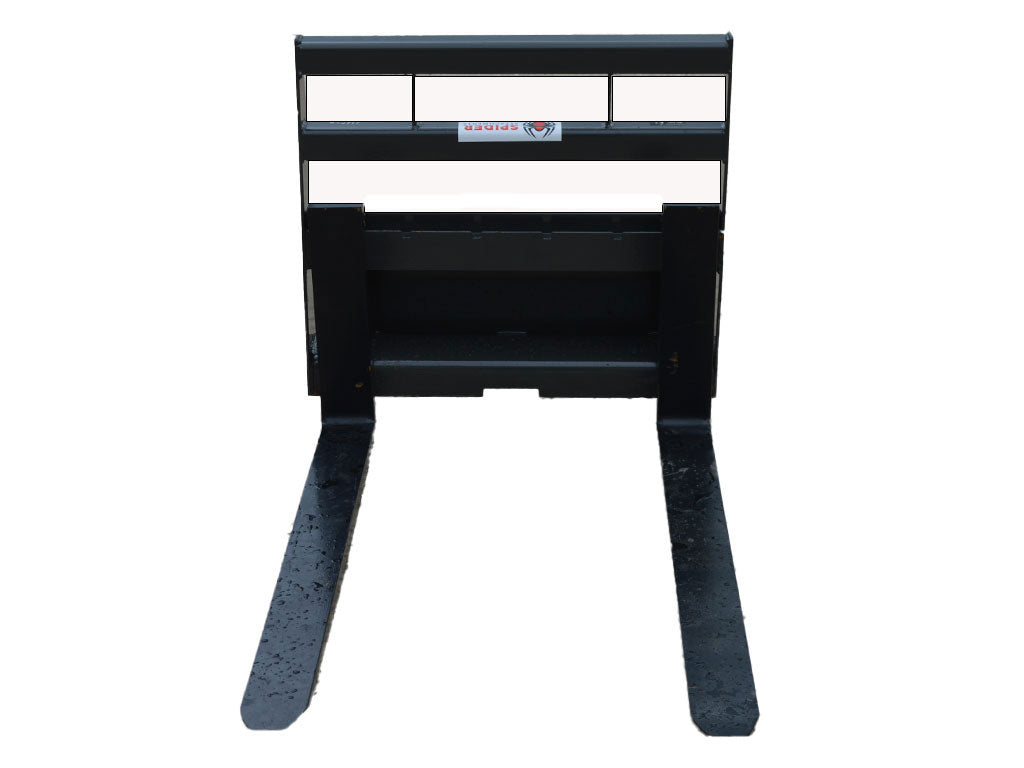

SPIDER pallet fork assemblies for mini loader
$800.00 - $1,200.00$1,149.00 - $1,570.00
Ideal for mini loaders with limited lifting capacities. Multiple tine lengths for different applications. Universal (Toro) mounting.
FEATURES
- HEAVY DUTY FRAME
- ADJUSTED MOUNT ANGLE IMPROVES MACHINES ROLL BACK CAPIBILITY
- MULTIPLE TINE SIZES: 36", 42", 48"
- ADJUSTIBLE FORK RAIL THAT HAS MULTIPLE LOCKING POSITIONS
| MODEL |
HD36 |
HD42 |
HD48 |
| WEIGHT (LBS) | 270 | 305 | 320 |
| HEIGHT | 31" | 31" | 31" |
| WIDTH | 30.5" | 30.5" | 30.5" |
| DEPTH | 6" | 6" | 6" |
| FRAME CAPACITY LBS. | 3000 | 3000 | 3000 |
| TINES | |||
| TINE LENGTH | 36" | 42" | 48" |
| TINE CLASS | CLASS 1 | CLASS 1 | CLASS 1 |
| TINE WIDTH | 4" | 4" | 4" |
| TINE THICKNESS | 1 3/8" | 1 3/8" | 1 3/18" |
| TINE LOAD CAPACITY | 2800 | 2800 | 2800 |
