STAR Wire Mesh Handlers

Carriage size

Wire Mesh Handlers

  • Lift & transport wire mesh with ease
  • Up to 7,000 lbs capacity
  • Suitable for forklift or crane

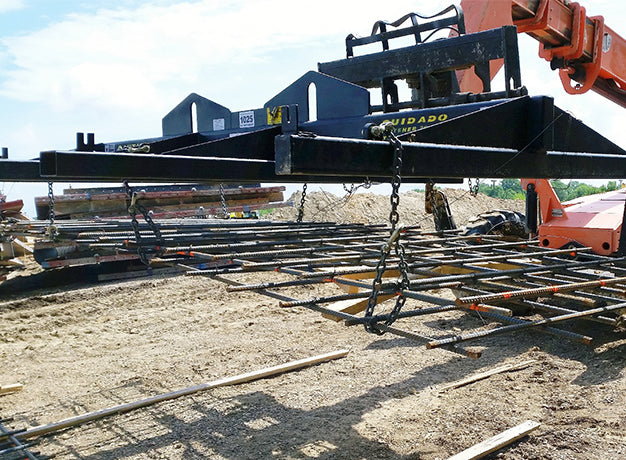

Take the hard work and hassle out of loading and moving wire mesh panels

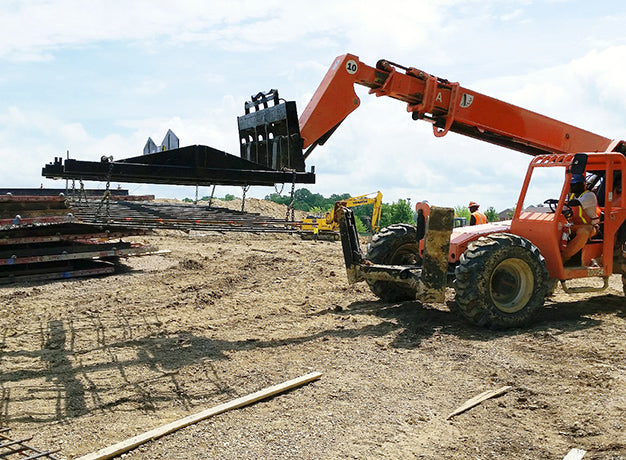

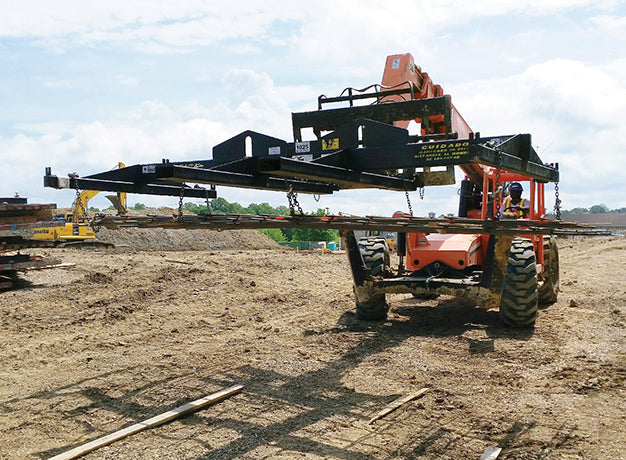

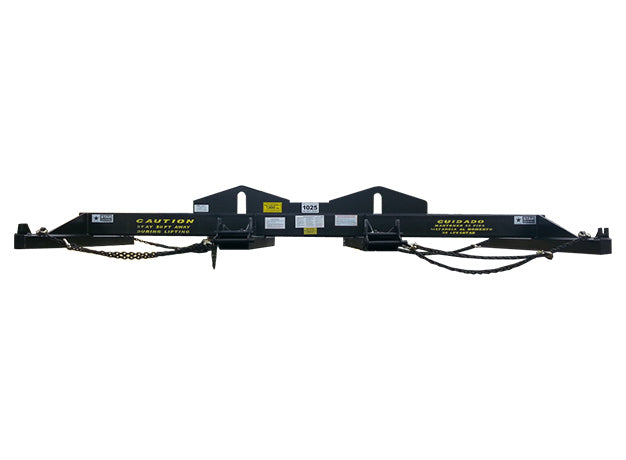

The Star Industries Wire Mesh Handler is primarily designed for use with a forklift; however, pick up points have been provided for use with a crane.

  • Empty weight — 1025 lbs.
  • Effective length — 13 ft
  • Effective width — 7 ft. 5 in.
  • Lifting chain — 5/16” grade 100 rated for lifting
  • Accepts forks up to 2-3/8 inches thick x 7 inches wide
  • Complies with ASME BTH-1-2008, design of below the hook lifting devices design category B service class 1
  • Designed to a safety factor of 3:1
     Model Description Size Capacity Weight
    1155
    • Fork Pockets 39″ OC.
    • Requires 48″ or wider Carriage.
    • Handles up to 8 ft. X 20 ft. wire mesh bundles.
    13' 7000 lbs 1025 lbs.
    1155-36CCFP
    • Fork Pockets 36″ OC.
    • Requires 44″ or wider Carriage.
    • Handles up to 8 ft. X 20 ft. wire mesh bundles
    13' 6500 lbs. 1025 lbs.
    1155-24CCFP
    • Fork Pockets 24″ OC.
    • Requires 32″ or wider Carriage.
    • Handles up to 8 ft. X 20 ft. wire mesh bundles.
    13' 6500 lbs. 1025 lbs.
