1440SD

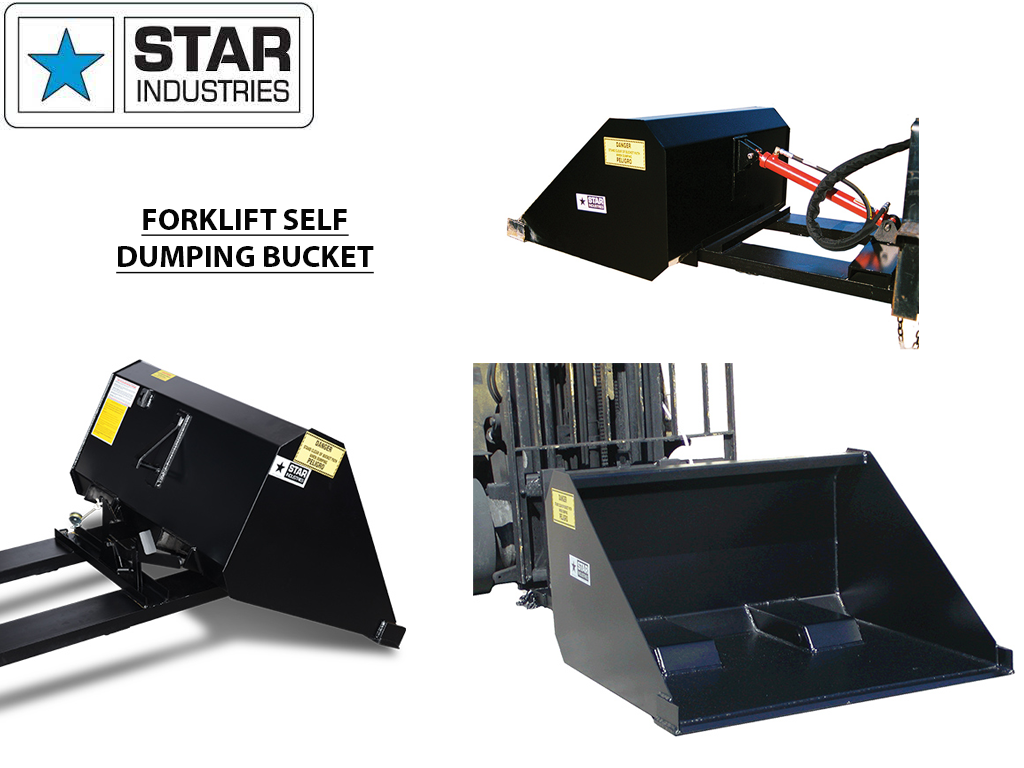

STAR forklift self dump bucket

Style
Size

Self-Dump Buckets

  • Load sand, gravel, mulch and most other material
  • Manual dump and hydraulic dump models available
  • Slips on the forks — installs in minutes

* THIS BUCKET WORKS WITH 4' LONG FORKS

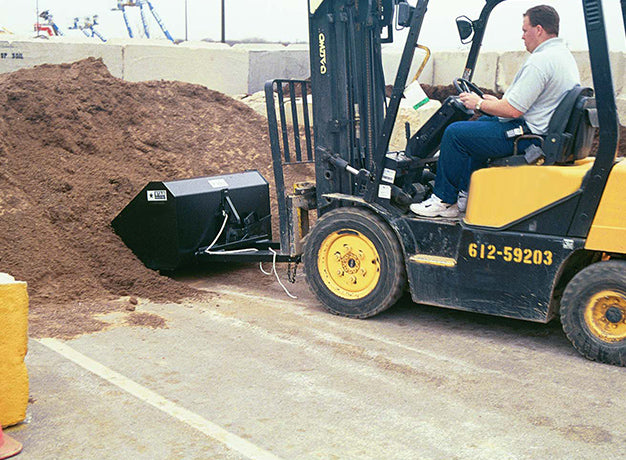

      Turn your forklift into a loader with the Star Industries Self-Dump bucket

      The bucket installs in minutes and is the perfect solution for loading loose material. No modification to the forklift is required. A hydraulic dump option is also available.

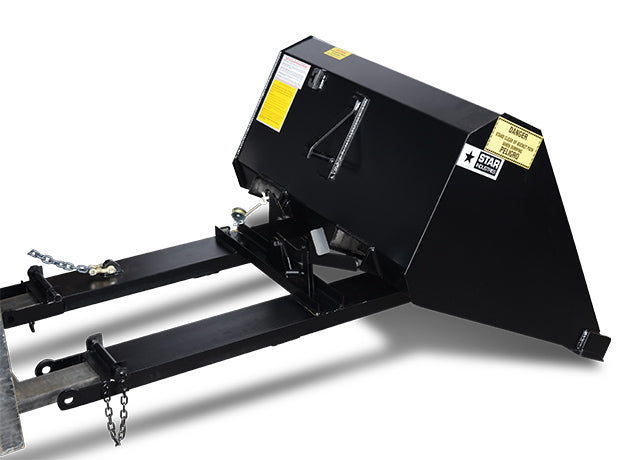

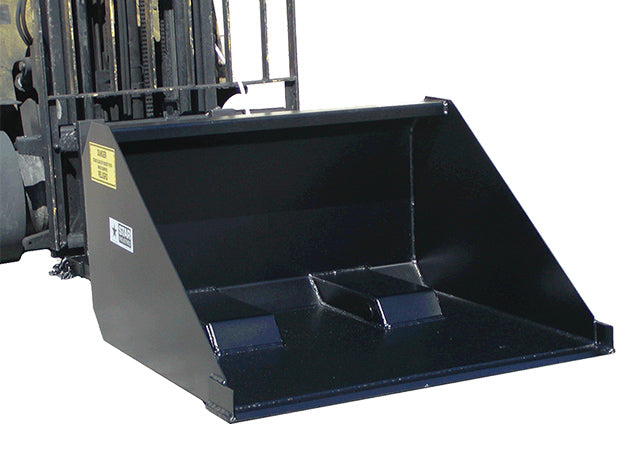

      Manual Self-Dump Buckets

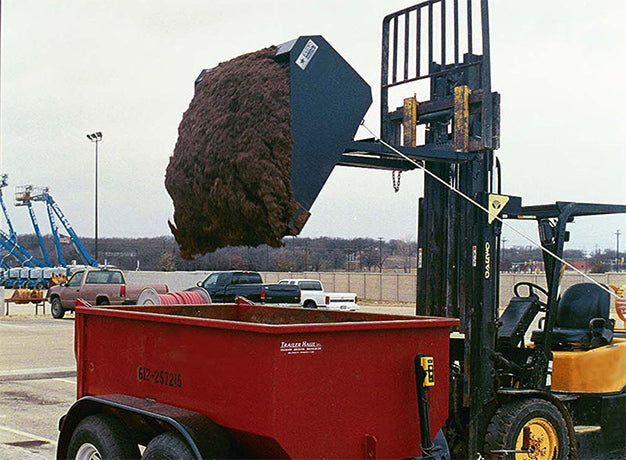

      No modifications or hydraulics required. Simply slide the bucket on the forks and insert the pins to lock it on. The bucket can be tripped with the handle at the back of the bucket or from the operator’s seat with the remote rope release. Lowering the bucket to the ground resets the bucket for the next load. The safety lock prevents accidental tripping of the bucket release during transport.

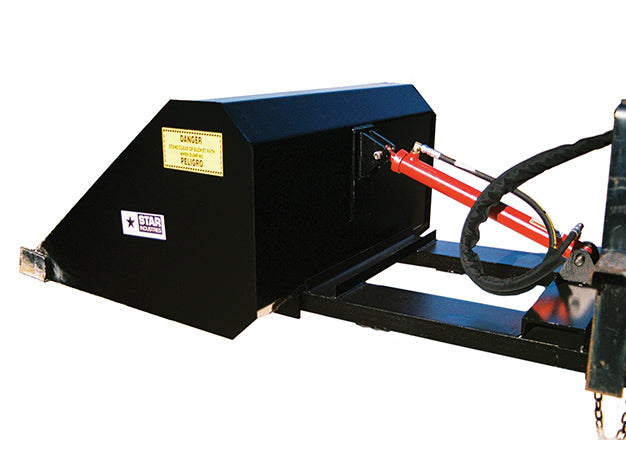

      Hydraulic Self-Dump Buckets

      The Hydraulic self-dump bucket provides precise control of the discharge. Hydraulic flow from the forklift is required (hydraulic control valve not included). If the forklift is equipped with a hydraulic side shift, flow from that valve can typically be diverted to the bucket cylinder.

      Manual Self-Dump Buckets

      Model Width Capacity Weight
      1440SD 45" 0.250 cubic yd. 420 lbs.
      1445SD 45" 0.500 cubic yd. 525 lbs.
      1472SD 72" 0.750 cubic yd. 668 lbs.
      1484SD 84" 1.000 cubic yd. 790 lbs.


      Hydraulic Self-Dump Buckets

      Model Width Capacity Weight
      1445SDH 45" 0.500 cubic yd. 600 lbs.
      1472SDH 72" 0.750 cubic yd. 760 lbs.
      1484SDH 84" 1.000 cubic yd. 860 lbs.





        Bucket in Dump Position Applies to Manual and Hydraulic

      dump position diagram

      Capacity A B C D
      0.250 cubic yd. 57" 18" 19" 60°
      0.500 cubic yd. 65" 25" 23" 52°
      0.750 cubic yd. 65" 25" 23" 52°
      1.000 cubic yd. 65" 25" 23" 52°
