0804WL2

TAG WEDGE LOCK DIRT BUCKETS FOR JOHN DEERE AND HITACHI, 2500 LB TO 14000 LB EXCAVATORS

$0.00 - $1,825.00

Business Financing Available

MACHINE CLASS
Size
1/26

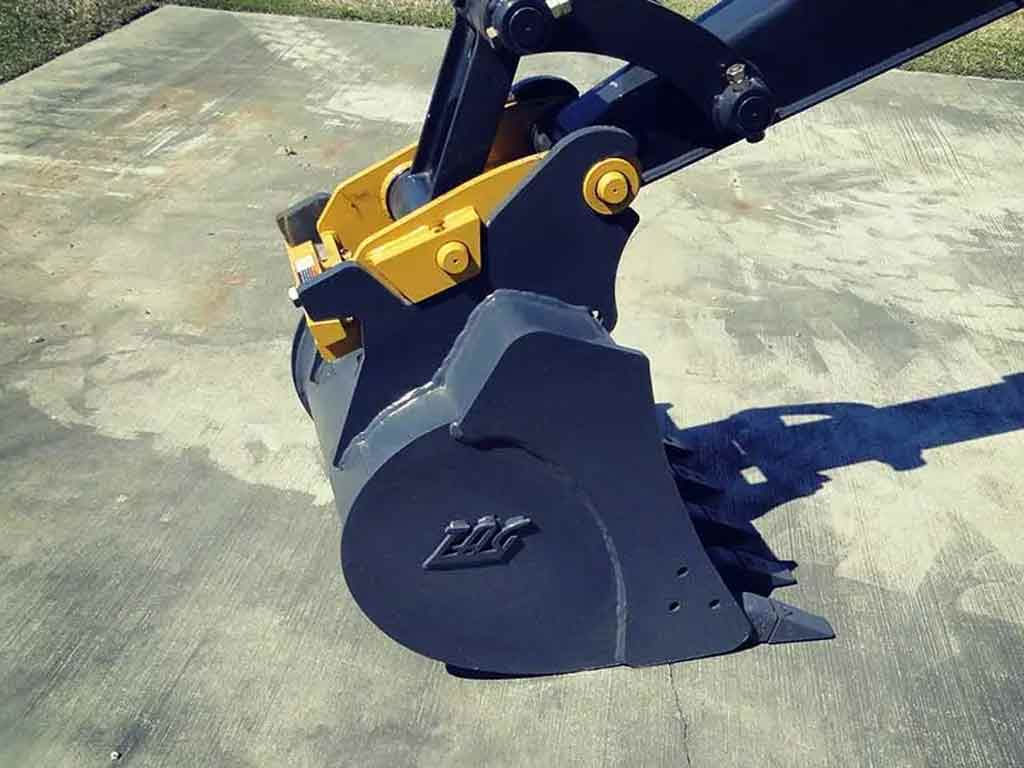

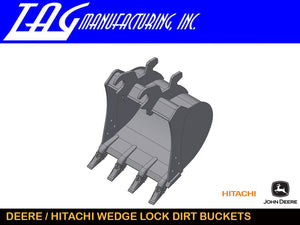

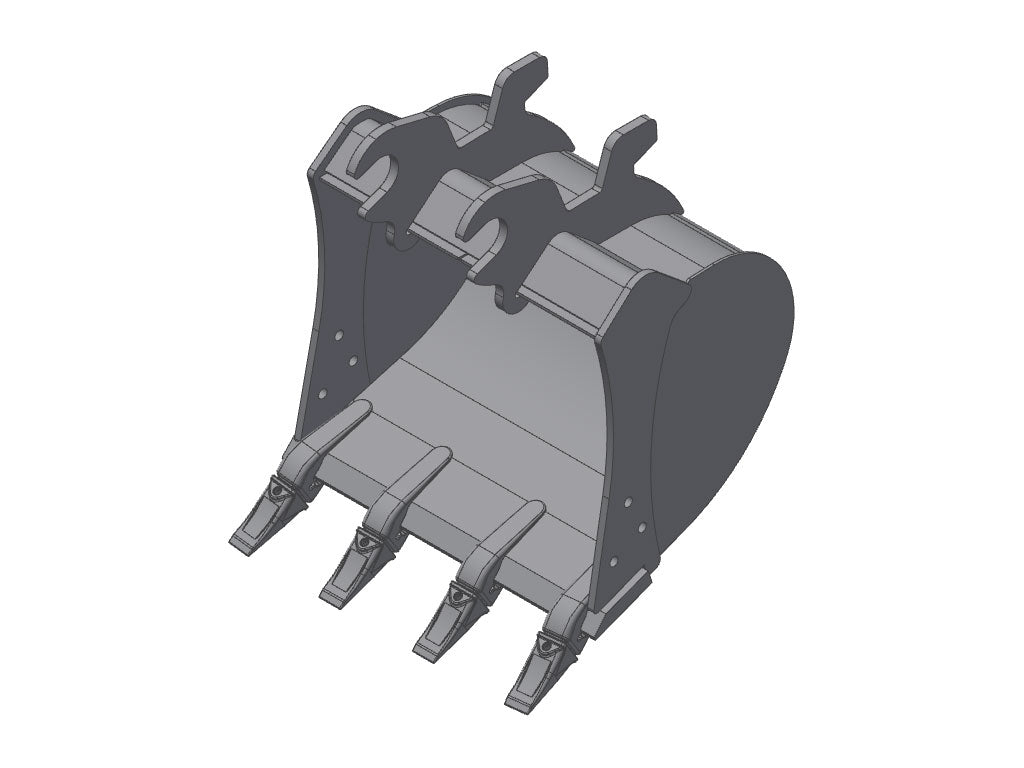

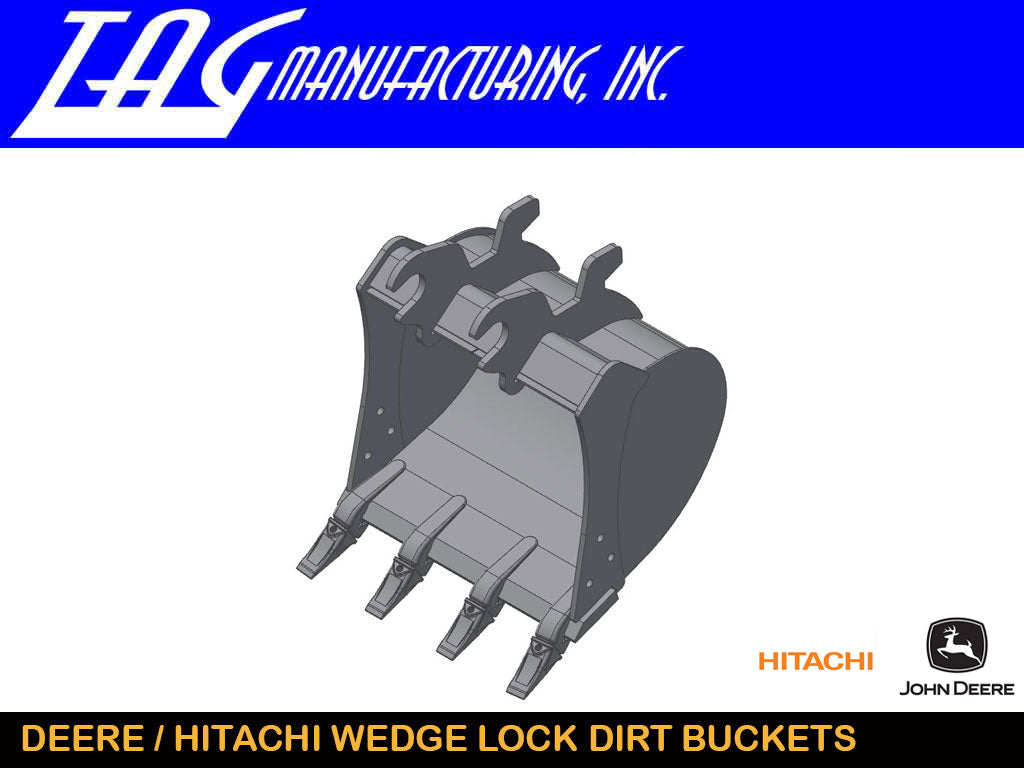

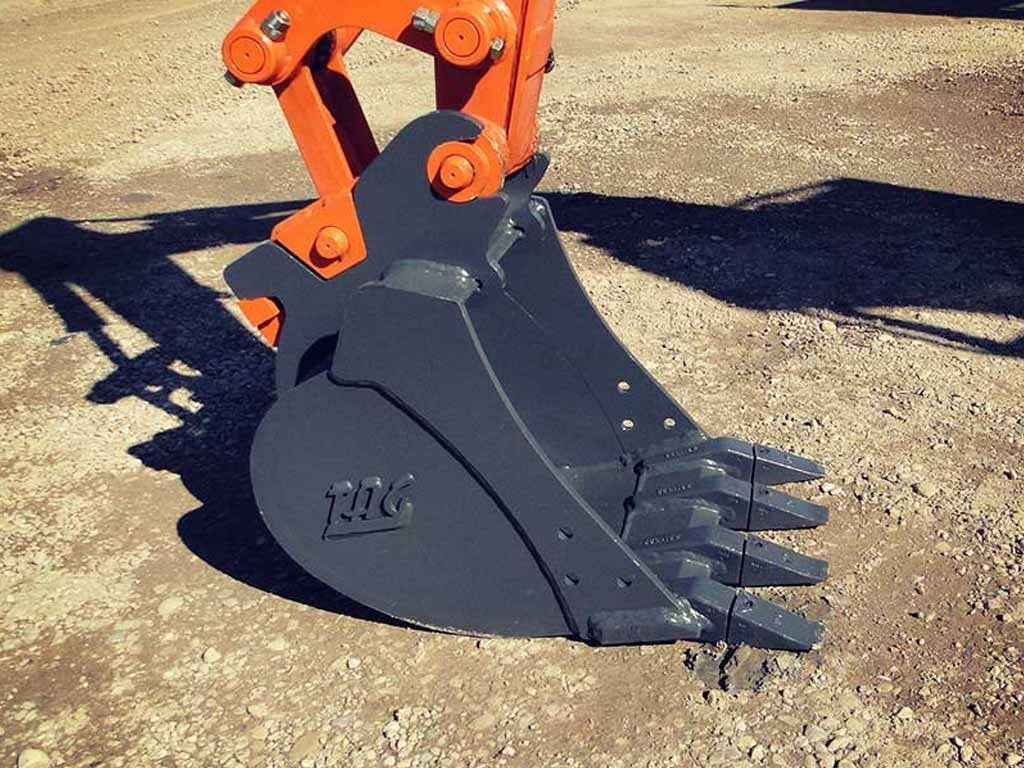

Deere / Hitachi Wedge Heavy Duty Buckets by TAG are built to deliver faster loading times, increased material capacity, and long-lasting durability in demanding excavation applications. Engineered for machines equipped with Deere and Hitachi wedge-style couplers, these buckets maximize productivity by moving more material per pass while reducing downtime caused by bucket failure.

TAG Heavy Duty Dirt Buckets feature double bottom bucket shells for added strength and extended service life. Smooth, unobstructed openings improve material flow for quicker cycle times, while internal triangle reinforcements add structural rigidity in high-stress areas to minimize cracking and wear.

The double radius, dual taper bucket profile enhances digging efficiency and material retention, allowing operators to load faster and carry more yardage with greater control. Designed for tough jobsite conditions, these heavy-duty buckets are ideal for construction, utility, and earthmoving work.

Key Features & Benefits

  • Designed for Deere / Hitachi wedge-style couplers

  • Heavy-duty construction for demanding excavation applications

  • Double bottom bucket shells for increased durability

  • Smooth, unobstructed openings for faster loading times

  • Internal triangle reinforcements to reduce failures

  • Double radius and dual taper profile for improved digging efficiency

  • Greater yardage per pass with improved bucket strength


 CLASS DEERE HITACHI
2500-4000 LBS 15, 17ZTS, 17C, 17D, 17G EX15, ZX15, ZX17
4000-8000 LBS

27ZTS, 27C, 27D, 26G, 30G

35ZTS, 35C, 35D, 35G

EX27, EX30, EX35, ZX26, ZX30,

ZX35
10000-12000 LBS 50ZTS, 50C, 50D, 50G EX50, ZX50,
12000-14000 LBS 60D, 60G ZX60


JD17 / ZX17 2500-4000 LBS
 WIDTH CAP TEETH WEIGHT
8" DIRT .04 3 80
10" DIRT .05 3 90
12" DIRT .055 3 100
16" DIRT .075 4 125
18" DIRT .085 4 135
20" DIRT .10 4 145
24" DIRT .12 5 160
30" DIRT .15 5 170
36" DIRT .18 6 180



JD27 / ZX27 JD35 / ZX35

4000-6000 LBS
 WIDTH CAP TEETH WEIGHT
10" DIRT .055 3 135
12" DIRT .070 3 150
16" DIRT .095 4 185
18" DIRT .105 4 195
20" DIRT .120 4 205
24" DIRT .145 4 225
30" DIRT .180 5 255
36" DIRT .220 6 290


JD50 / ZX50 10000-12000 LBS
 WIDTH CAP TEETH WEIGHT
12" DIRT .085 3 310
16" DIRT .125 4 320
18" DIRT .130 4 350
20" DIRT .145 4 385
24" DIRT .180 5 440
30" DIRT .230 5 485
36" DIRT .275 6 580


JD60 / ZX60 12000-14000 LBS
 WIDTH CAP TEETH WEIGHT
12" DIRT .100 3 315
16" DIRT .140 4 325
18" DIRT .155 4 355
20" DIRT .160 4 390
24" DIRT .200 5 445
30" DIRT .255 5 490
36" DIRT .300 6 585


JD60 / ZX60 12000-14000 LBS
 WIDTH - HIGH CAPACITY CAP TEETH WEIGHT
12" DIRT .150 3 350
16" DIRT .180 4 365
18" DIRT .210 4 375
20" DIRT .235 4 410
24" DIRT .290 5 470
30" DIRT .370 5 540
36" DIRT .450 6 635



These are great prices for wedge lock buckets. Please call with any questions.
