22972-22975-22480

TORO TRX-16 WALK BEHIND TRENCHER

TRENCHER BOOM
CHAINS AND CRUMBER
Revised 1/24

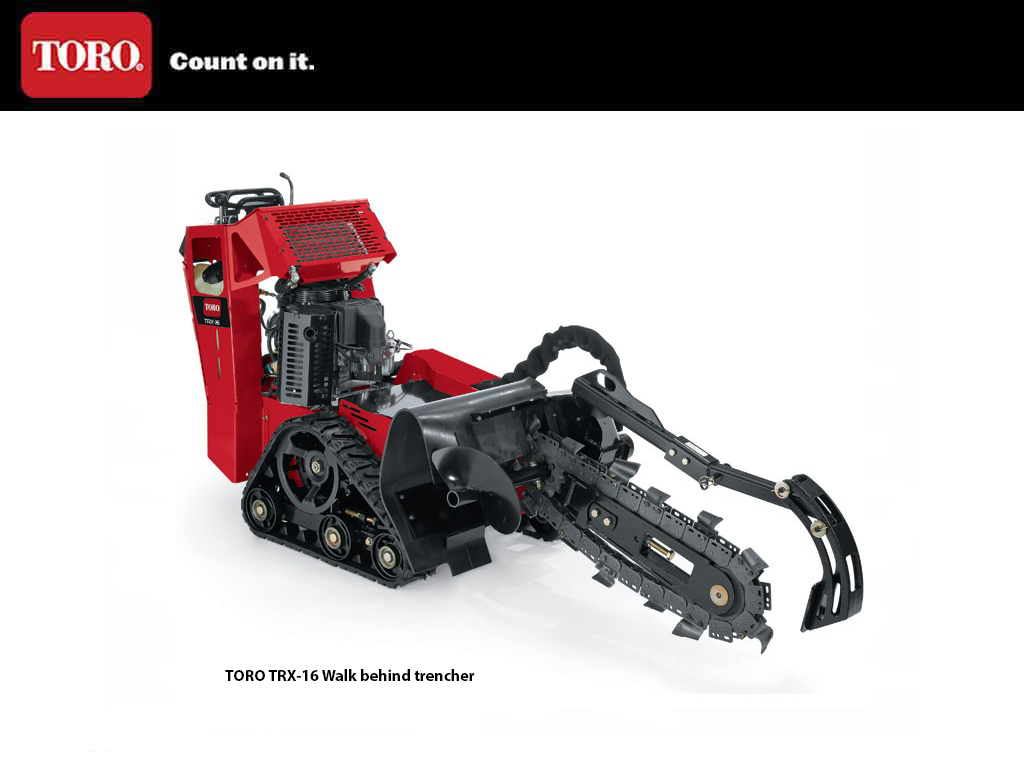

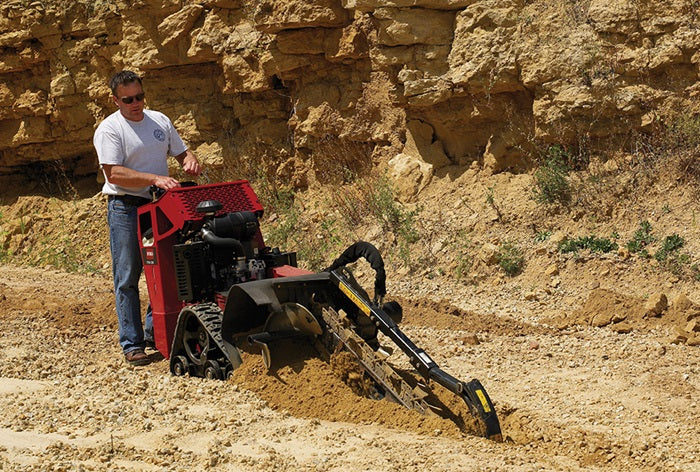

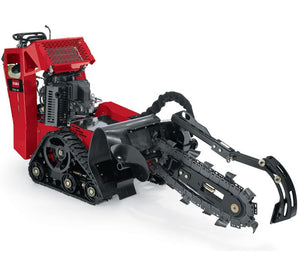

TORO TRX-16 TRENCHER

Tracks instead of wheels. Simplicity instead of complexity. The TRX trenchers are the first tracked, dedicated walk-behind trenchers that have it all. Tracks - combined with Toro's exclusive easy-to-use control system - provide unparalleled maneuverability, all while offering the ultimate in operational performance.

FEATURES

Track Design

• Allows for zero turn capability
• Provides a low center of gravity and large footprint
• Increased stability on side hills
• Eliminates tire ruts and flat tires
Operates in wet & soft ground conditions.

Exclusive Toro TRX Control System

Easy-to-use control system doesn't require jerk-style steering like handle bar trenchers. Three simple controls operate all traction and trenching functions. Simple controls are easy for beginners to learn quickly. Similar to Dingo TX and STX stump grinder.

Kawasaki Twin-Cylinder Engine

Powerful Kawasaki engines deliver the performance you have come to expect from Toro. The Kawasaki twin-cylinder engine means your trencher will be reliable and easy-to-start. The large oil reservoir maintains a cooler running engine while prolonging engine life.

Heavy-Duty Remote Air Cleaner

Reduces engine wear and improves performance. Heavy-duty remote air filter standard on TRX-26.

TRX Pivoting Trencher Head

Pivoting head provides high ground clearance during transport.

  • Engine
    14.5 HP (10 kW) Kawasaki® FS481V, V-Twin
  • Engine Oil Capacity
    1.8 quarts (1.7 liters)
  • Flow
    10 gpm (38 LPM) auxiliary. 9.5 gpm (36 LPM) each traction circuit
  • Fuel Capacity
    2.1 gallons (7.9 liters)
  • Headshaft Speed
    226 RPM w/385 ft/lbs (522 N) of torque
  • Hour Meter
    Standard
  • Hydraulic Oil Capacity
    6.3 gallons (23.8 L)
  • Hydraulic System Pressure
    2900 psi (200 BAR)
  • Pivoting Trencher Head
    Provides high ground clearance during transport
  • Track
    5.9" (15 cm) wide - endless nylon reinforced rubber track
  • Transport Speed
    3.1 mph (5 km/h) fwd, 1.2 mph (2.4 km/h) rev. 273 ft/min (83 m/min)/ 132/ft/min (40 m/min)
  • Wheelbase
    23" (58 cm)

Not available at this time.
