WPFHG4240

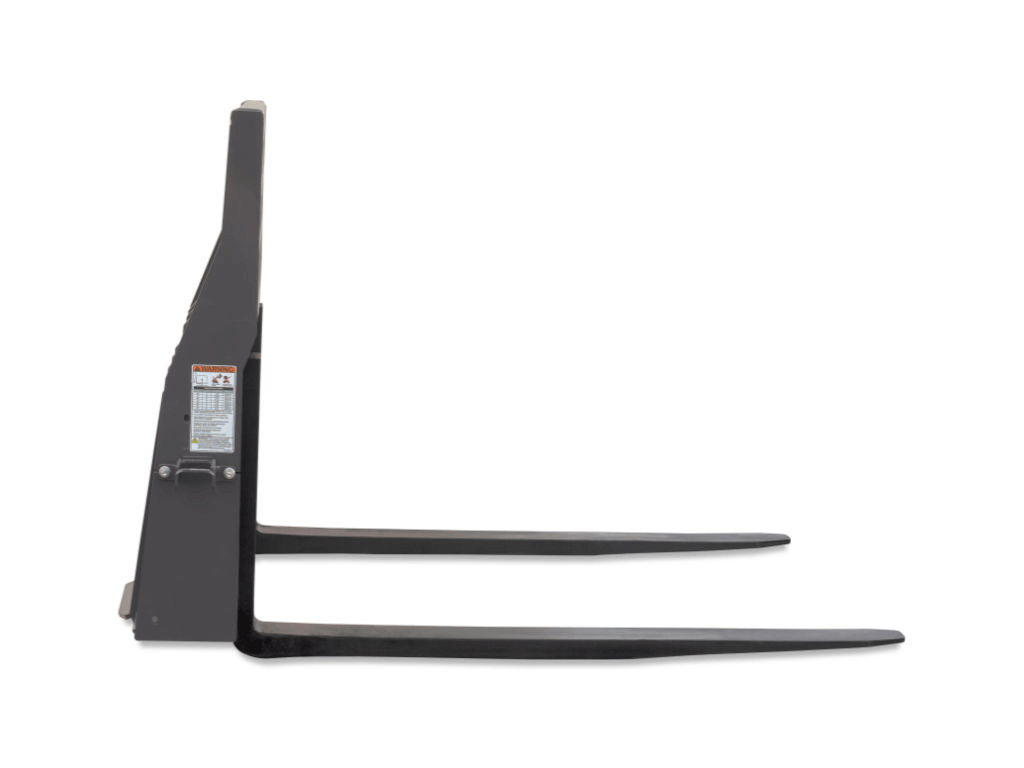

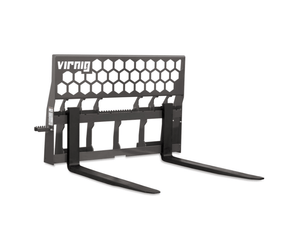

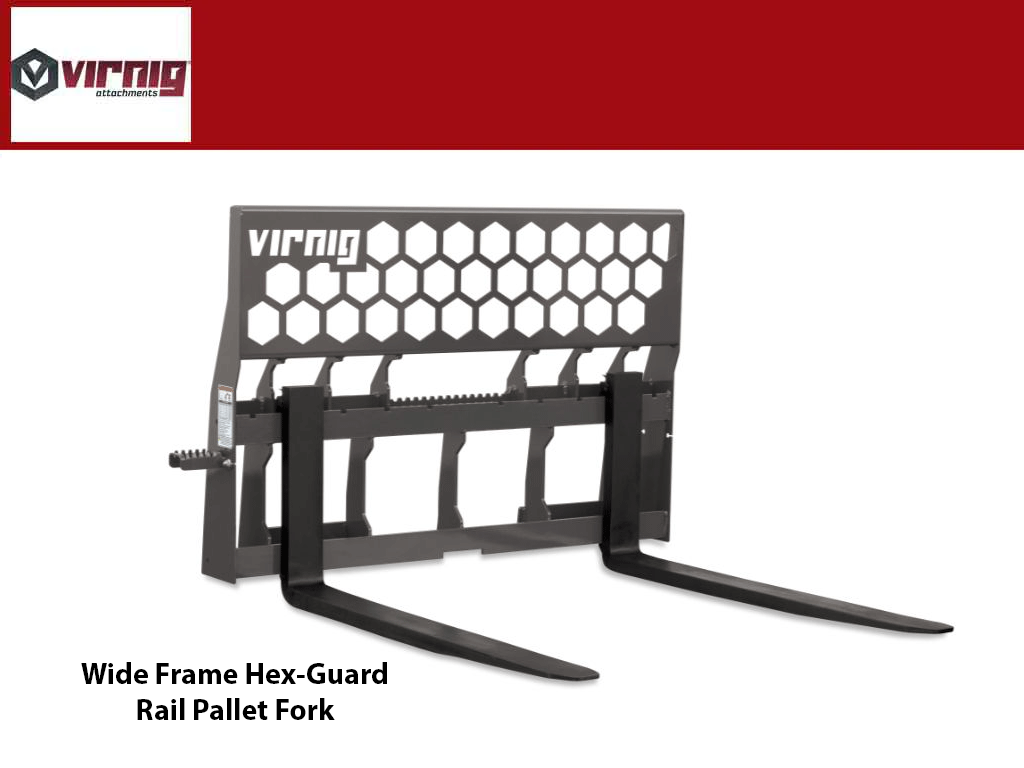

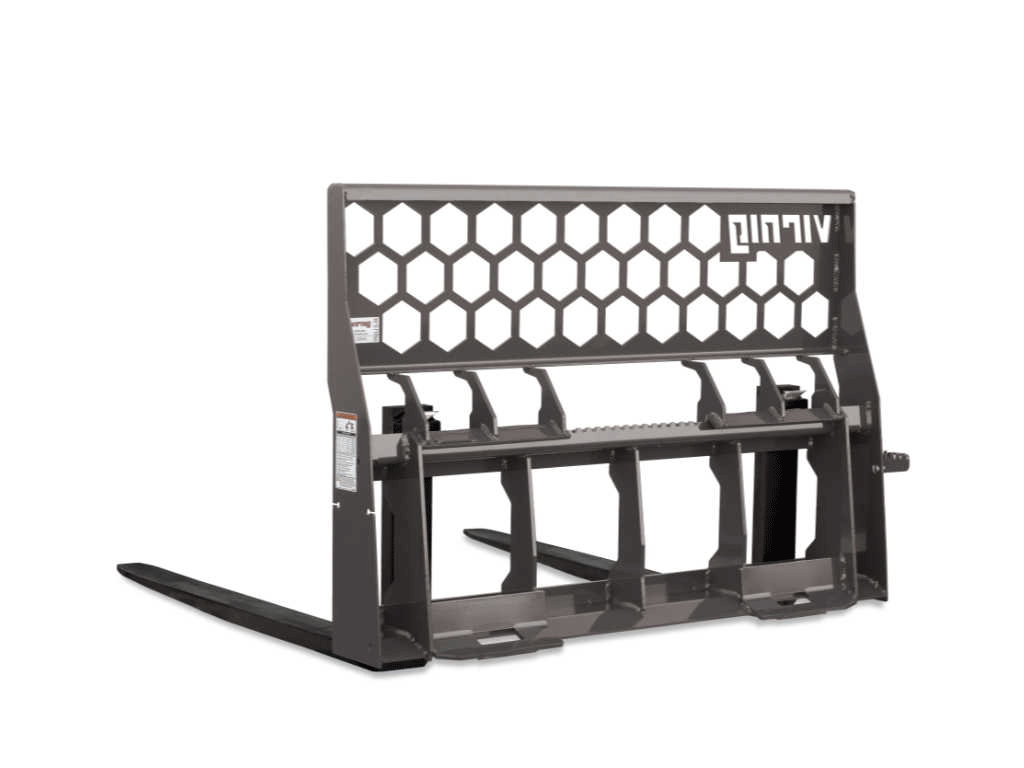

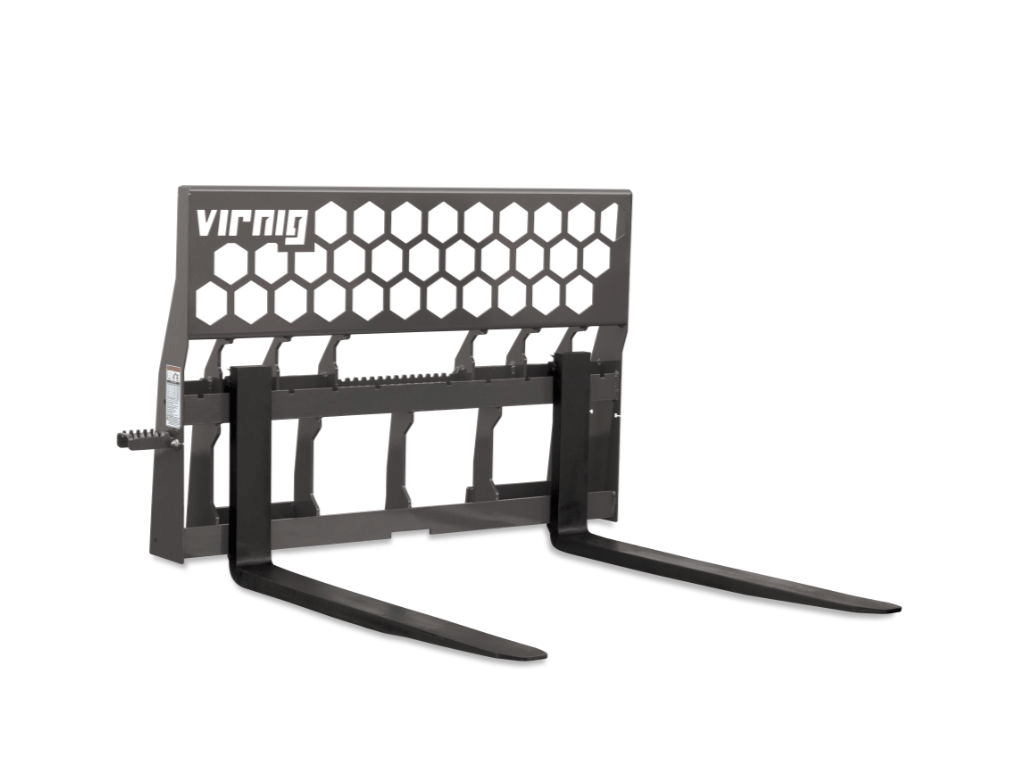

Virnig Wide Frame Hex-Guard Rail Pallet Fork (SSL)(CTL)

OPTIONS

Redesigned to be stronger and 20% lighter. Features a 3/4″ rail (was 1/2″” on discontinued V60 Pallet Fork).

  • Wider rail for better stability.
  • Choose from three tine lengths and capacities to match handling and lifting needs.
  • Brickguard flush with tines to keep loads secure.
  • 3/16” Grade 50 brickguard and 3/4″ beveled rail rated at 6,200 lbs
  • Standard with adjustable, ITA Class II forged tines. See table below for capacity.
  • Bolt-on step installs on either side and allows safer operator entry and exit.
  • Walk-Through, Hi-Vis and smaller version also available.
        Model 4240 4840 4255 4855 6055 4862
        Tine Length (in) 42 48 42 48 60 48
        Capacity (lbs) 4000 4000 5500 5500 5500 6200
        Frame Width (in) 54.5
        Overall Height (in) 37
        Tine Thickness (in) 1.375 1.375 1.5 1.5 1.5 1.5
        Approximate Weight (lbs) 415
        435
        435
        450
        455
        435



        In stock items usually ships 3-5 days

        Non stock items usually ship 4-6 weeks
