WPF4240

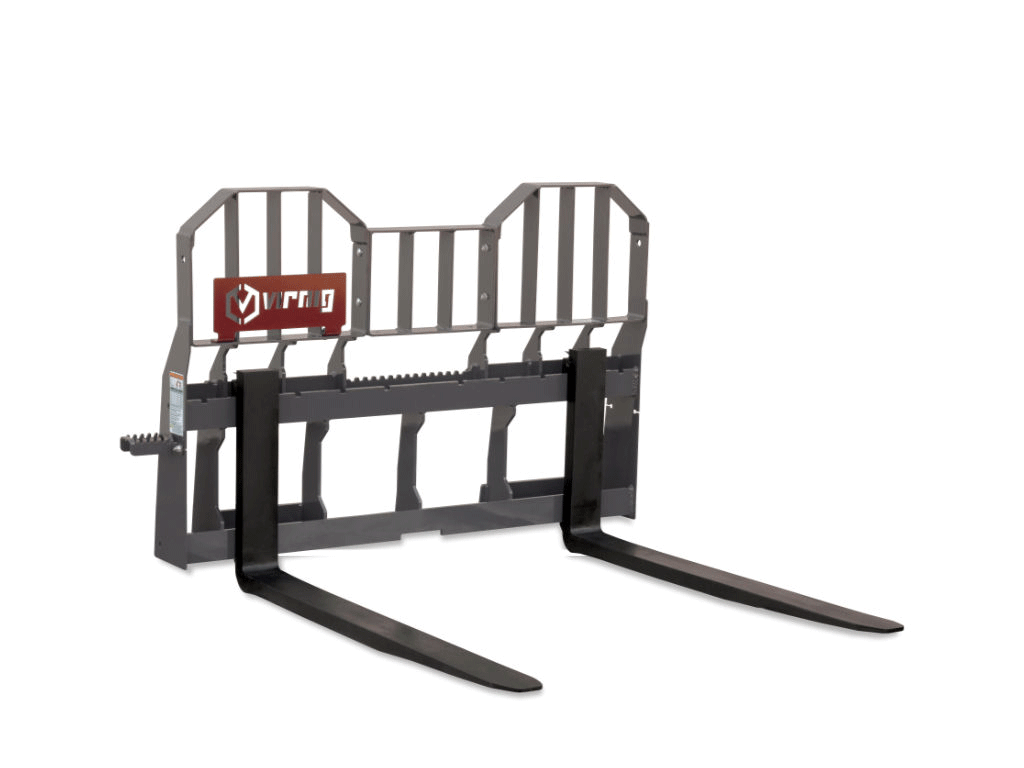

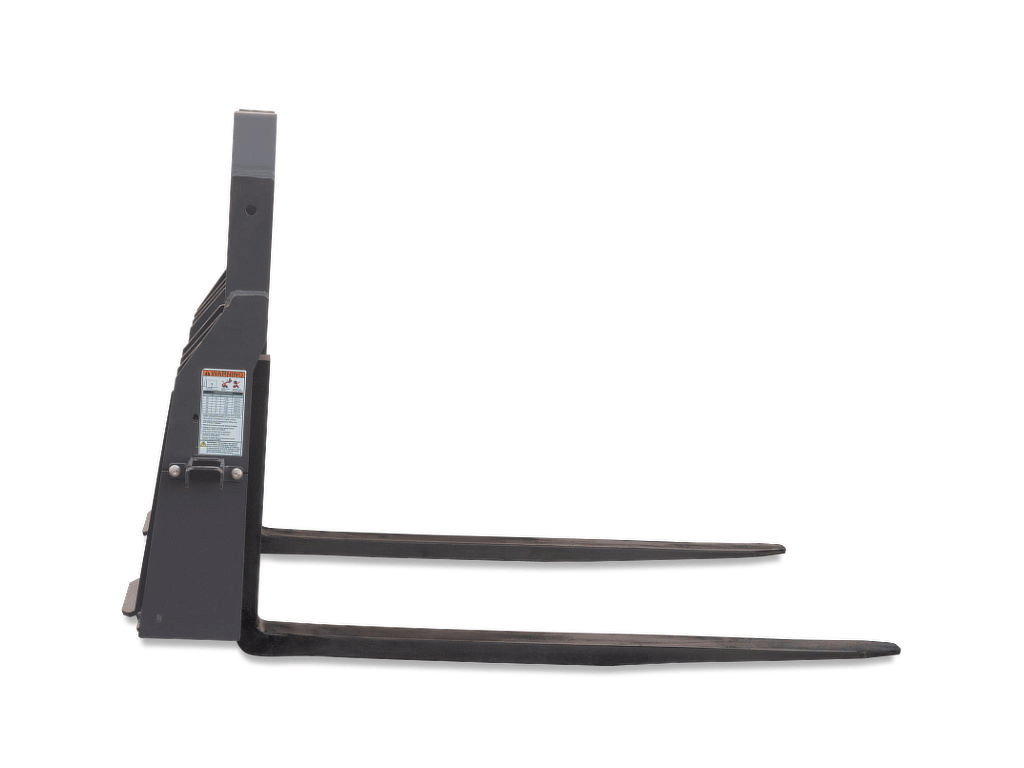

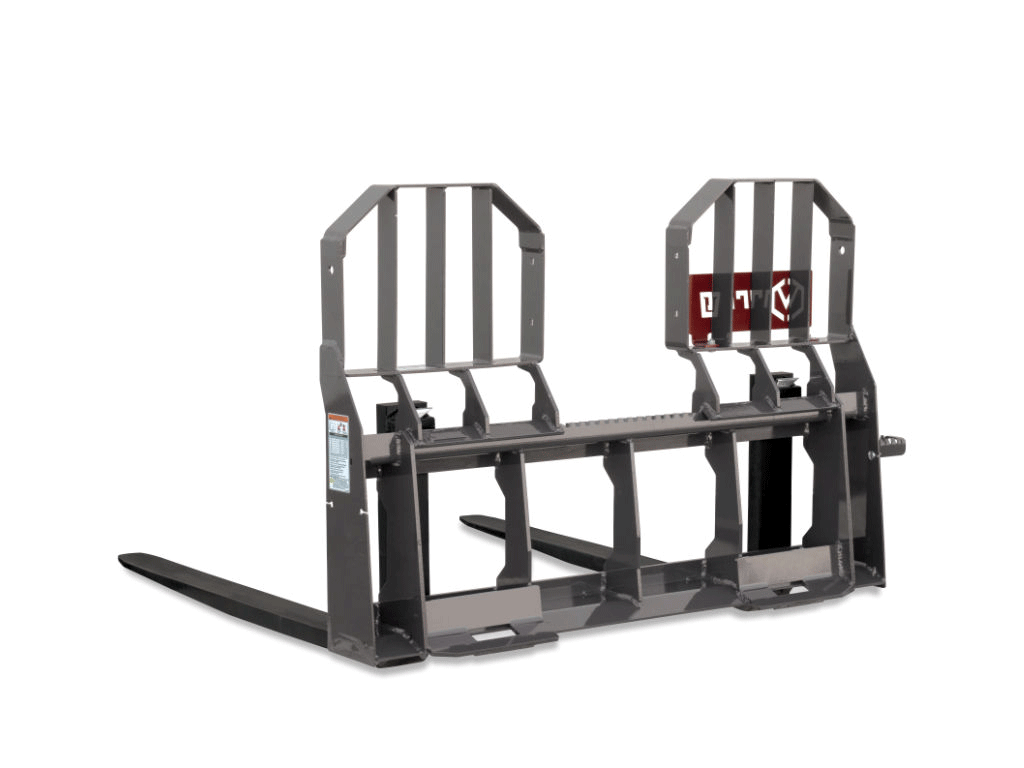

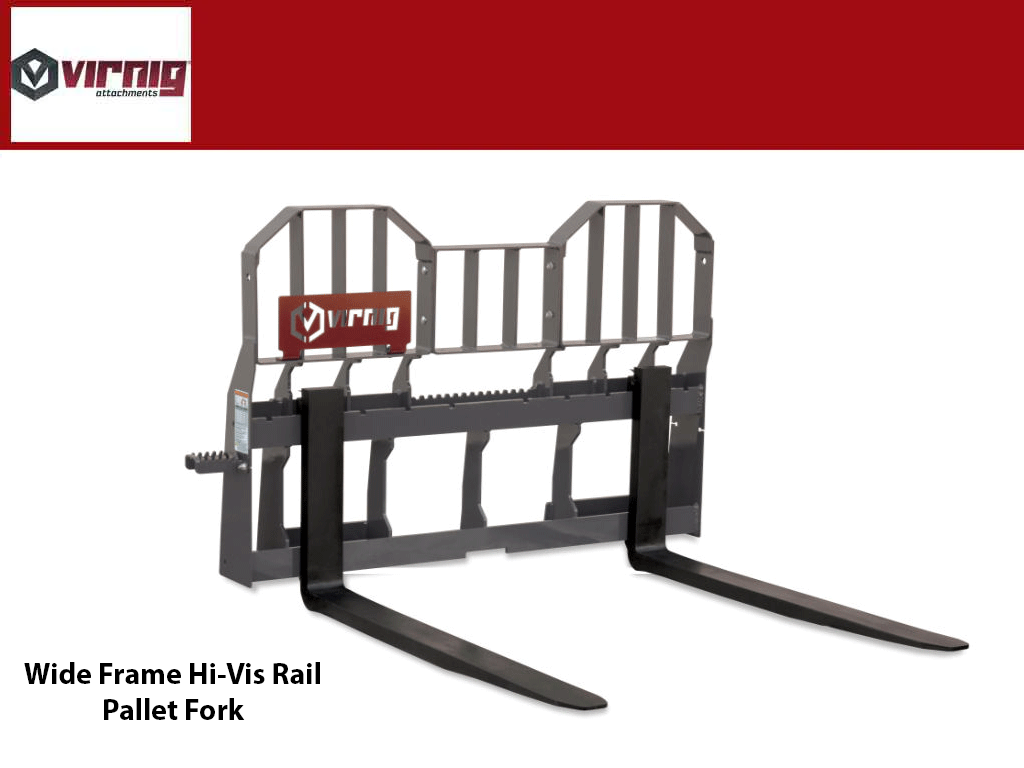

Virnig Wide Frame Hi-Vis Rail Pallet Fork (SSL)(CTL)

OPTIONS

Wider rail for better stability.

  • Remove center section to change to a walk-through brickguard.
  • Choose from three tine lengths and capacities to match handling and lifting needs.
  • Brickguard flush with tines to keep loads secure.
  • 1/4” Grade 50 brickguard and 3/4″ beveled rail rated at 6,200 lbs
  • Standard with adjustable, ITA Class II forged tines. See table below for capacity.
  • Bolt-on step installs on either side and allows safer operator entry and exit.
  • Walk-Through, Hex-Guard and smaller version also available.
          Model 4240 4840 4255 4855 6055 4862
          Tine Length (in) 42 48 42 48 60 48
          Capacity (lbs) 4000 4000 5500 5500 5500 6200
          Frame Width (in) 54.5
          Overall Height (in) 37
          Tine Thickness (in) 1.375 1.375 1.5 1.5 1.5 1.5
          Approximate Weight (lbs) 415
          435
          435
          450
          485
          465



          In stock items usually ships 3-5 days

          Non stock items usually ship 4-6 weeks
