Virnig

SRGV48-CT / 9332PP

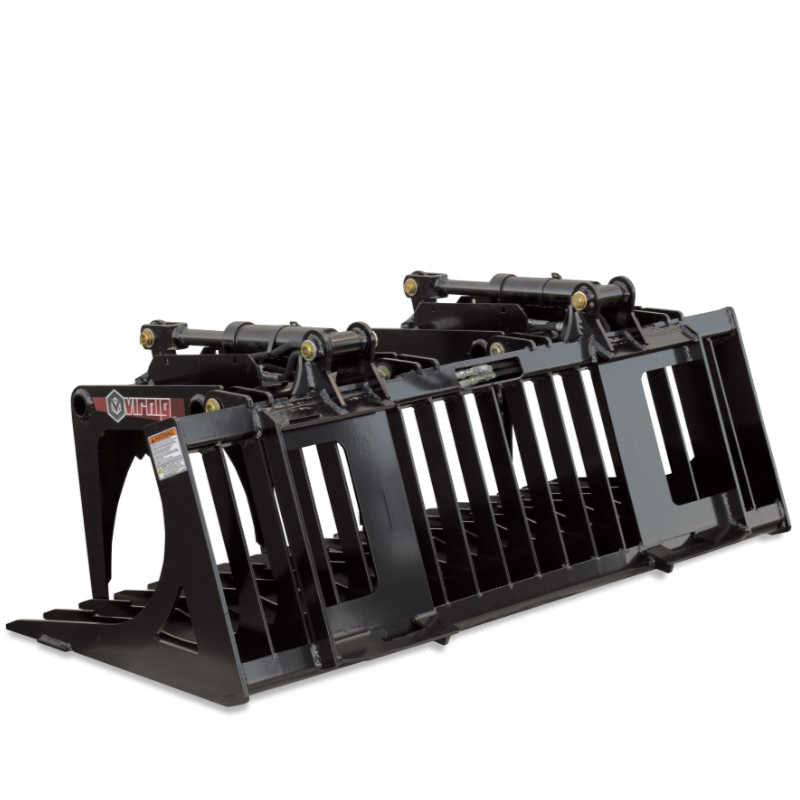

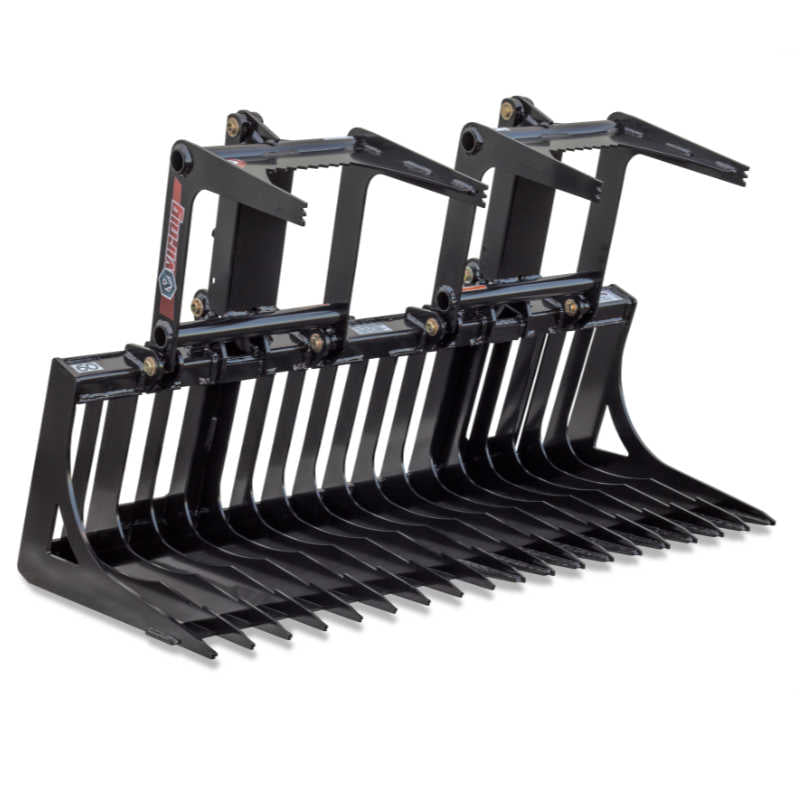

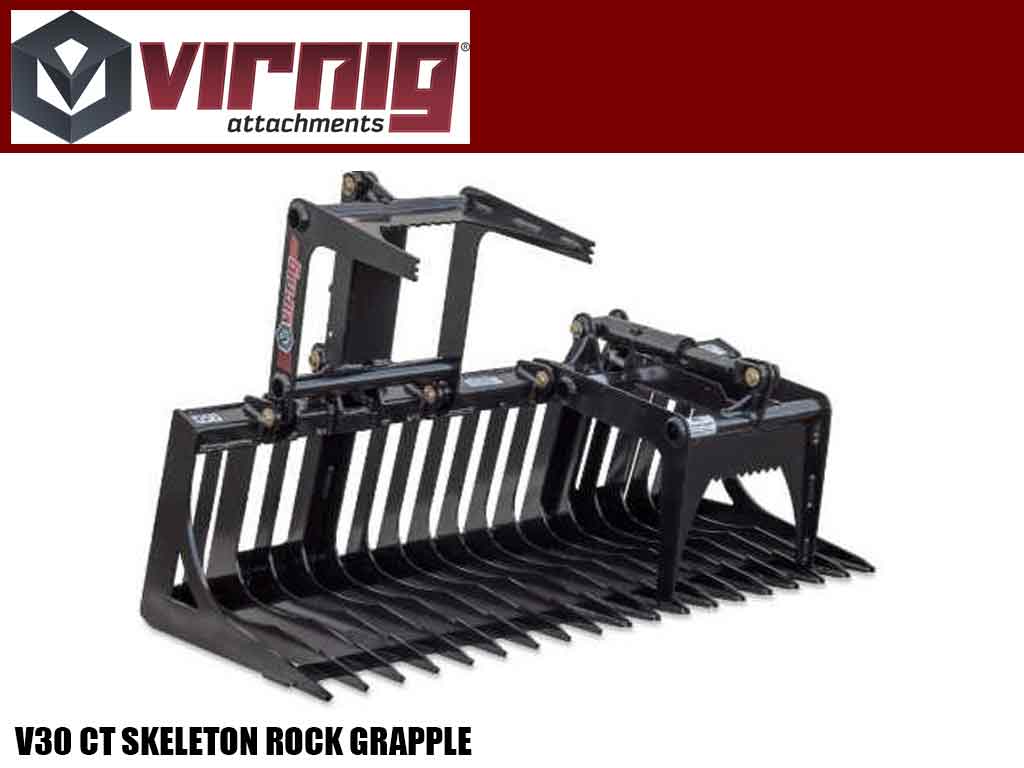

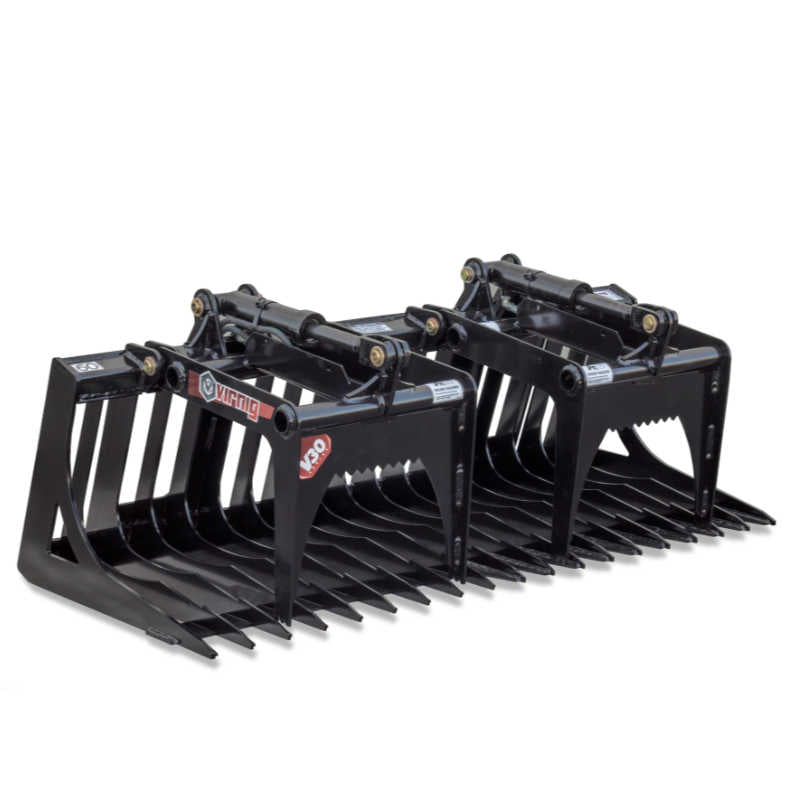

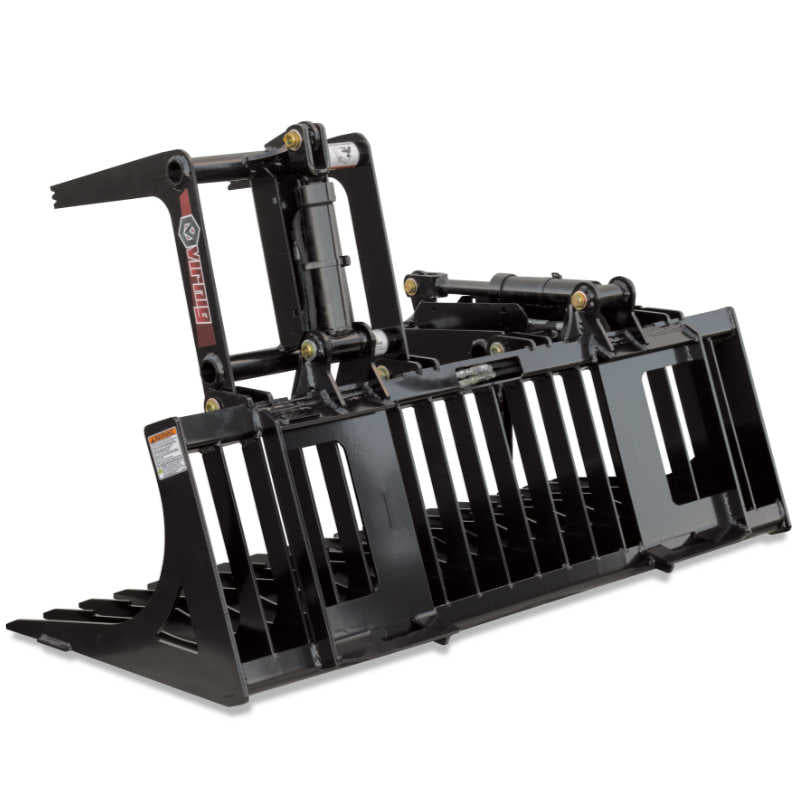

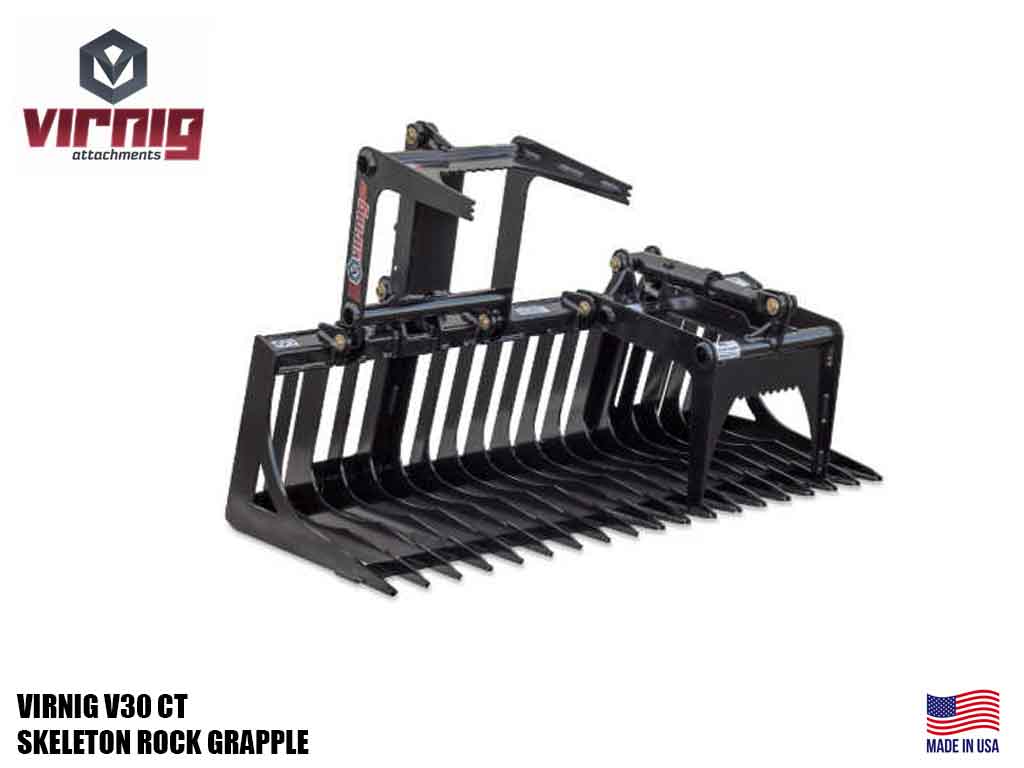

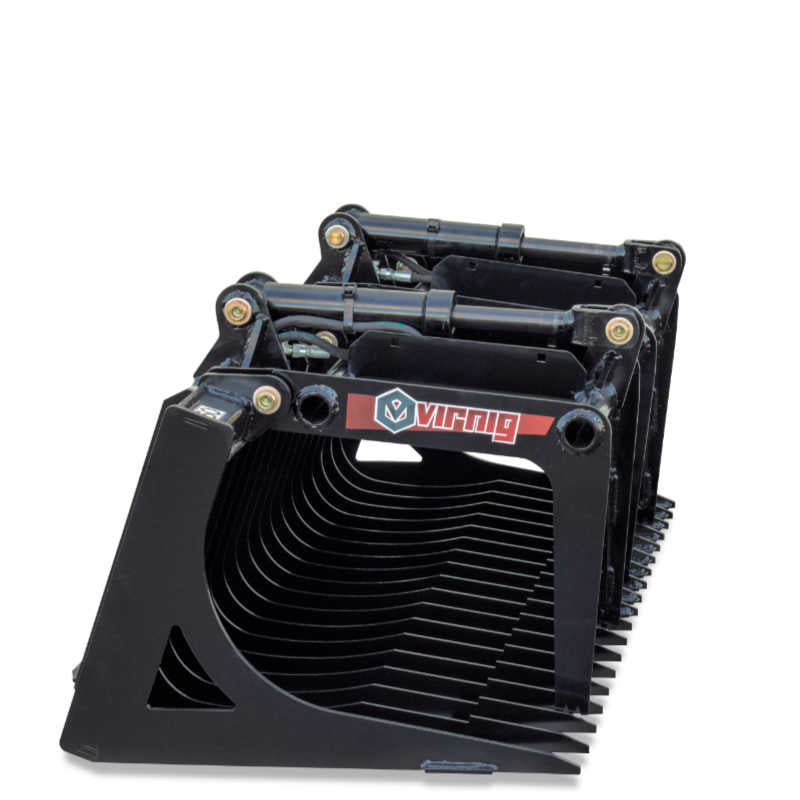

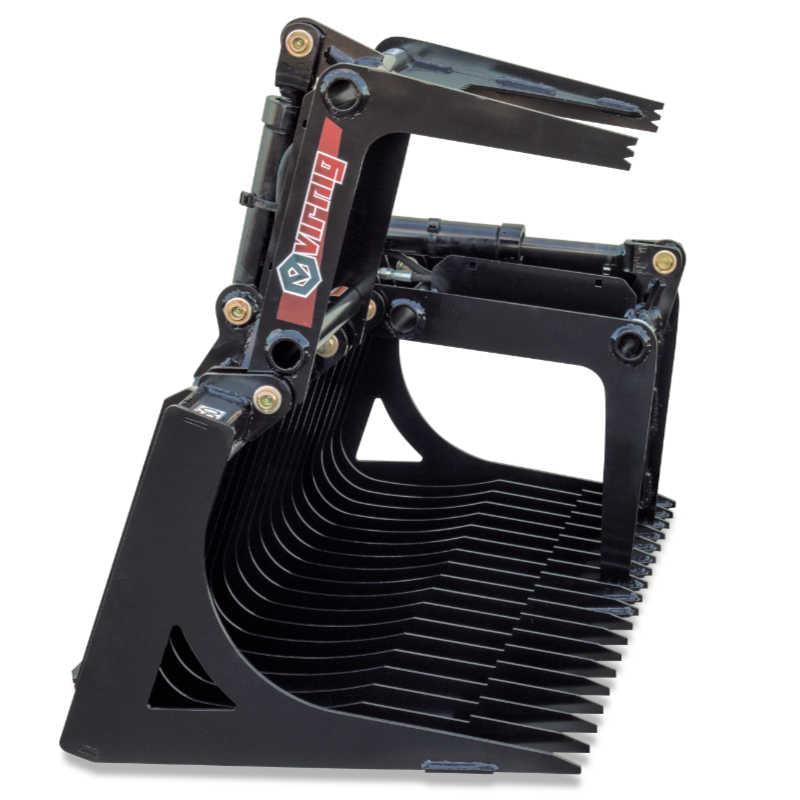

Virnig V30 Compact Tractor Skeleton Rock Grapple (SSL) (CTL)

Size

V30 COMPACT TRACTOR SKELETON ROCK GRAPPLE

THIS ATTACHMENT INCLUDES

  • UNIVERSAL SKID STEER MOUNTING
  • HOSES, COUPLERS & FITTING
  • GUARDS

    Redesigned as a two-cylinder independent grapple. 25% lighter than previous version to haul more material.

    • Every tine is constructed of one piece of 1/4” Grade 50 steel, from tip to top brace, to add rigidity.
    • Hybrid side plates keep rocks secure while still allowing handling material wider than the grapple possible.
    • Tight 3” tine spacing to pick rocks and leave dirt behind.
    • Raised ridge in center of tines (rock dam) and notch near tips secure rocks while digging. Fully gusseted tine tips for added strength.
    • NitroSteel® cylinder rod and Teflon® coated bushings on hinge.
    • Optional cylinder guards available.
      MODEL SRGV48-CT SRGV54-CT SRGV60-CT SRGV66-CT SRGV72-CT
      Overall Width (Inches) 47.9 54.3 60.9 67.5 74.1
      Height: Overall / Bucket (Inches) 22.9 / 19.0
      Depth: Overall / Inside (Inches) 29.0 / 23.5
      Number of  Tines (With Sides) 15 17 19 21 23
      Space Between Tines (Inches) 3.1
      Tine Thickness (Inches) 0.25*
      Side Plate Thickness (Inches) 0.375*
      Grapple Jaw Opening (Inches) 28.7
      Cylinder Bore / Stroke (Inches) 2.0 / 6.0
      Cylinder Pins / Hinge Pins Diameter (Inches) 1.0
      Approximate Weight (Pounds) 345 365 385 405 425
      Recommended Loader Capacity Less than 1,500 pounds

      *Material is Grade 50 Plate (50,000 PSI Minimum Yield Strength).



      In stock items usually ship in 3-5 days

      Non stock items usually ship in 4-6 weeks
