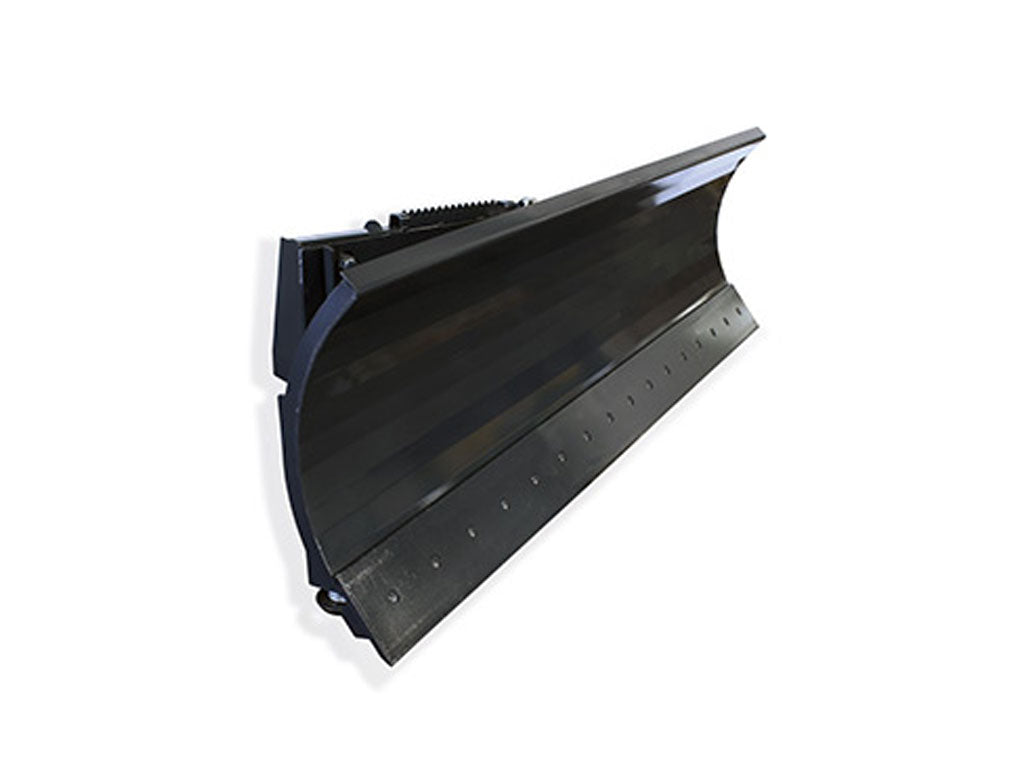

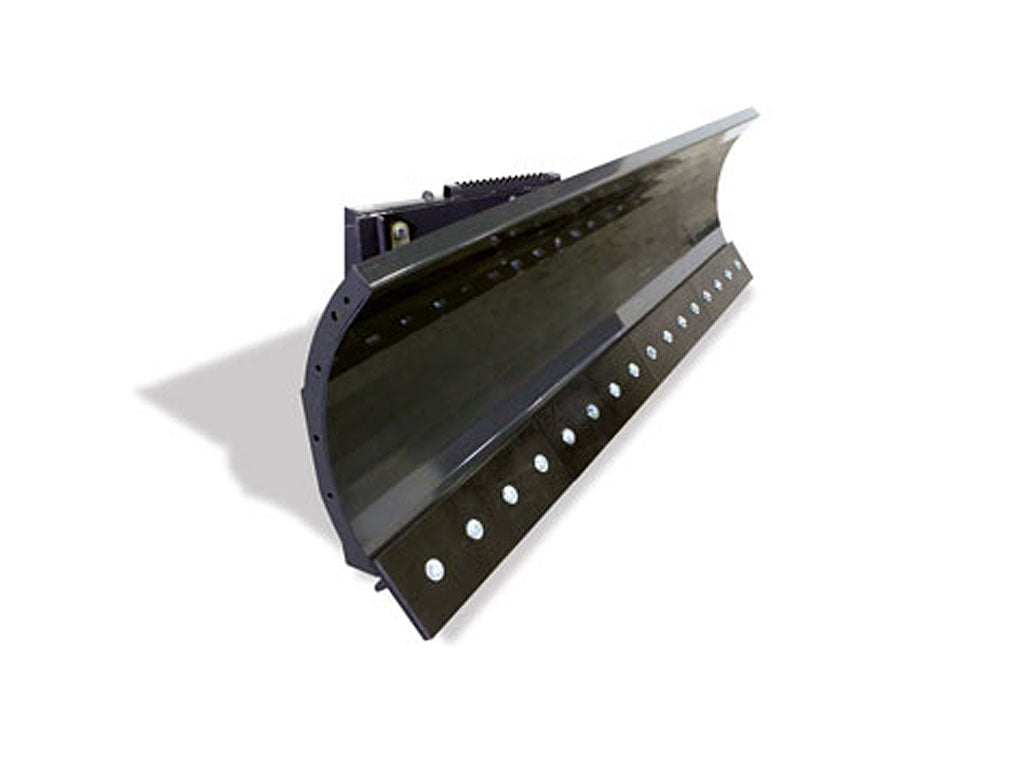

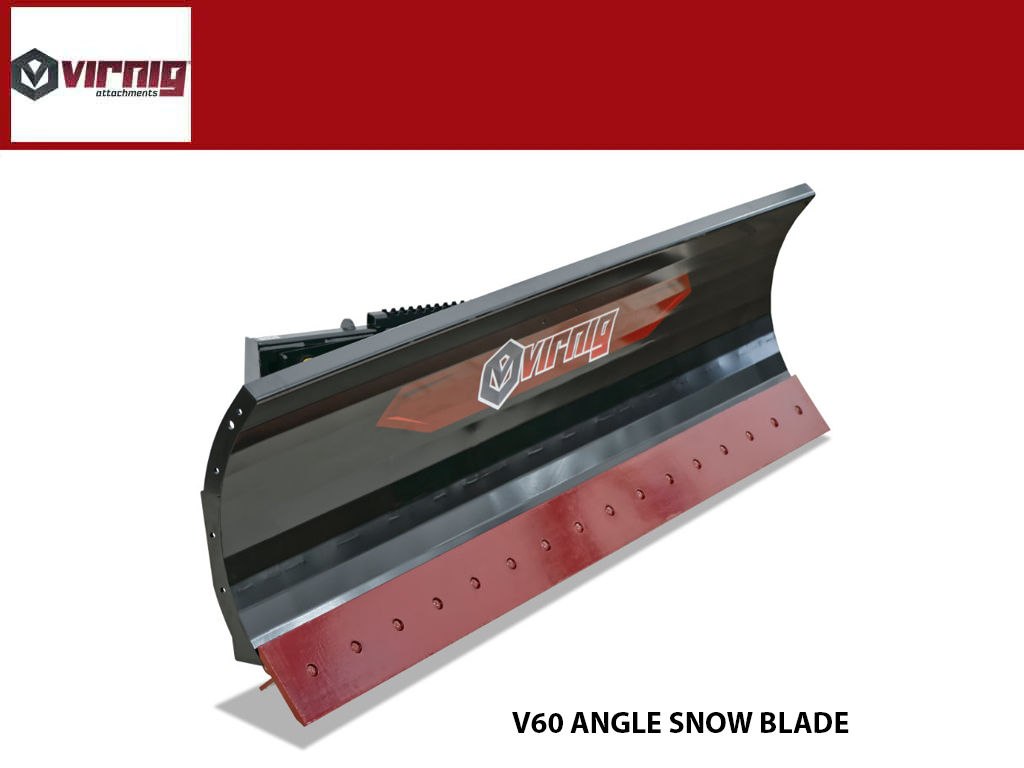

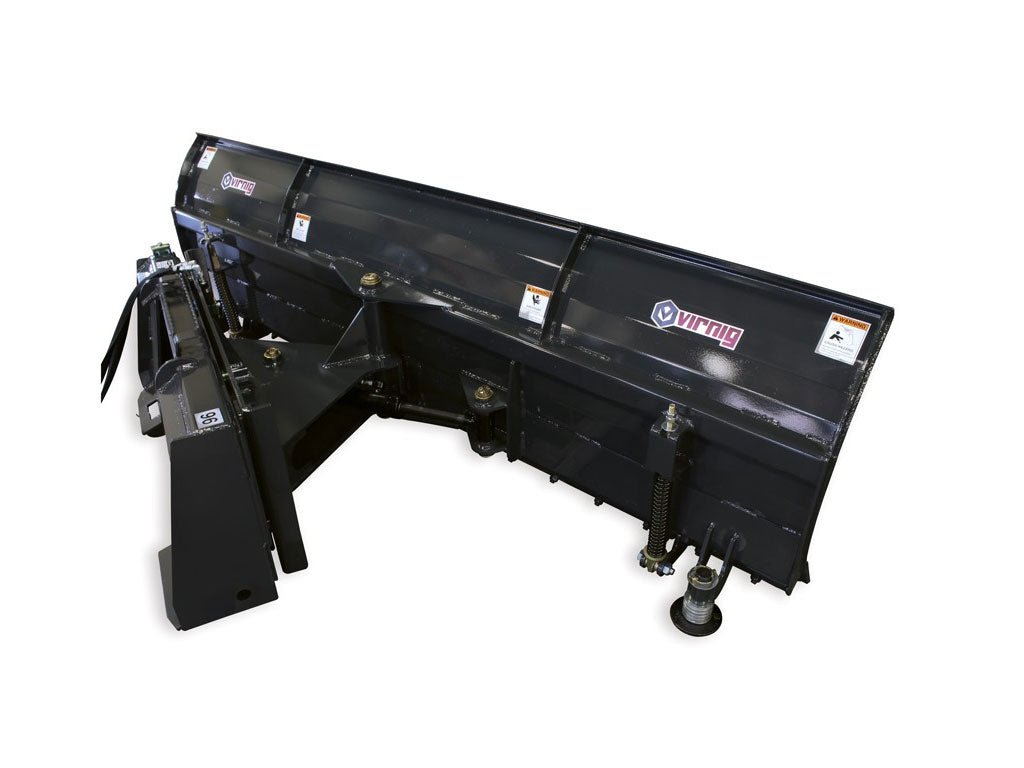

v60 Angle Snow Blade

4° SIDE-TO-SIDE OSCILLATION FOLLOWS UNEVEN SURFACES
HYDRAULIC CROSSOVER RELIEF VALVE PROTECTS THE ATTACHMENT BY ANGLING THE BLADE UPON IMPACT
ANGLE THE BLADE 30° LEFT OR RIGHT FROM INSIDE THE CAB

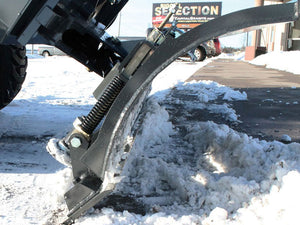

TRIP EDGE PROTECTS OPERATOR & EQUIPMENT
5/8″ x 8″ REVERSIBLE STEEL BOLT-ON EDGE ALLOWS 5 1/2″ OF WEAR

EDGE OPTIONS

POLY EDGE - 1” x 7 3/4” reversible, replaceable, reprocessed UHMW polyethylene allows 5 1/4” of total wear.
RUBBER EDGE - 1 1/2” x 10” reversible, replaceable rubber edge allows 7” of total wear.
PIN-ON WINGS - Two, 12” wide wings angled 20° forward from the moldboard to increase the blade’s width by 21 3/4”. (CALL FOR MORE INFO)

MODEL	SBS72	SBS84	SBS96	SBS108	SBS120
Width: Overall, Straight / Full Angle (Inches)	74.0 / 64.0	86.0 / 74.0	98.0 / 84.0	110.0 / 95.0	120.0 / 104.0
Overall Height (Inches)	31.0
Overall Depth, Straight (Inches)	37.5
Blade Angle (Degrees)	+/- 30
Moldboard Thickness (Inches)	0.19
Cutting Edge (Inches)	5/8 x 8 Bolt-on
Blade Oscillation (Degrees)	+/- 4
Cylinder Bore / Stroke (Inches)	2.0 / 8.375
Cylinder Pins / Hinge Pins Diameter (Inches)	1.25 / 1.563
Approximate Weight (Pounds)	1020*	1075*	1130*	1185*	1225*
Recommended Loader Capacity	Greater than 1500 pounds
