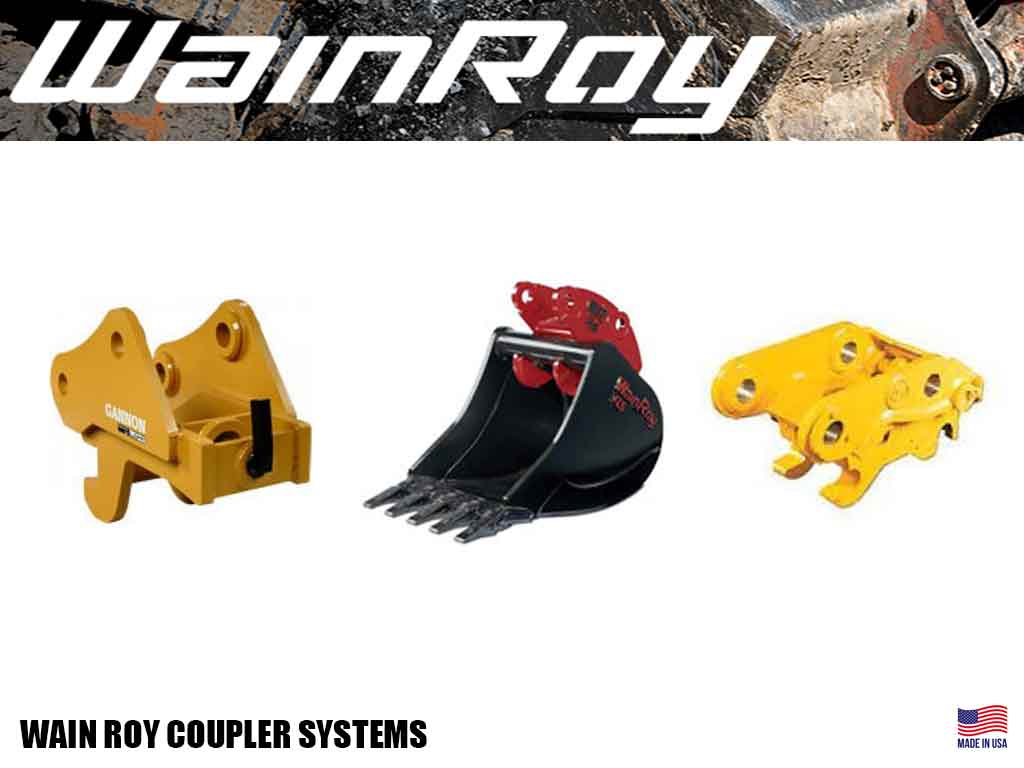

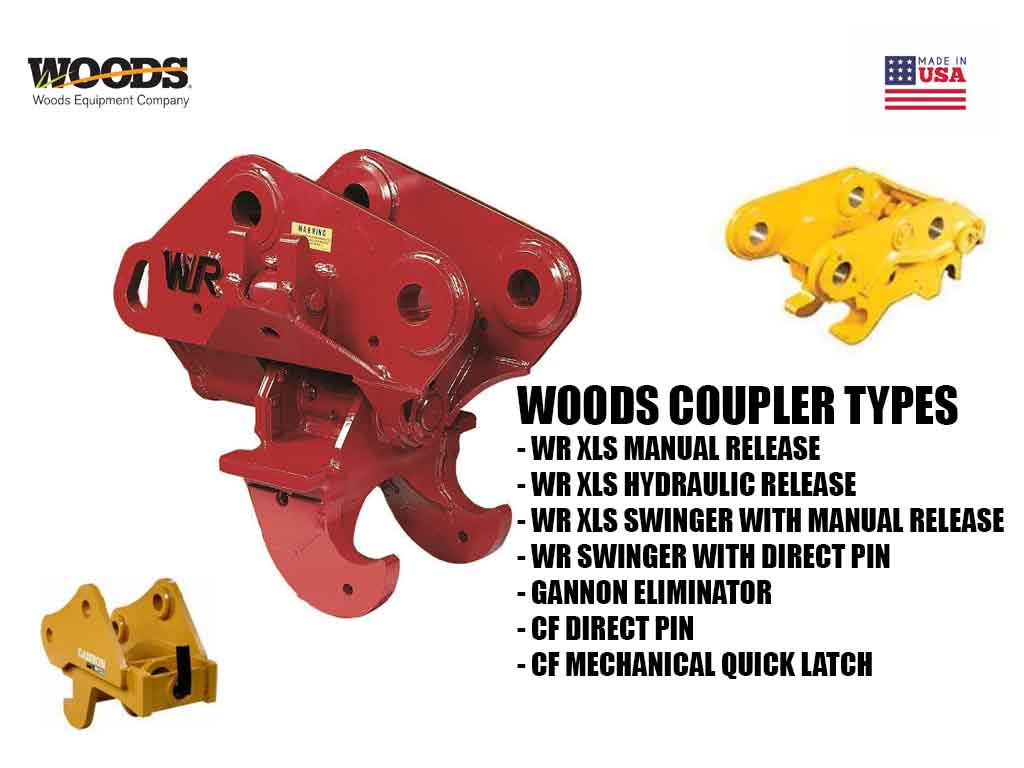

WAIN ROY 1/16 Yard Coupler Systems for excavators less than 4500 lbs., including Wain Roy, CF, Gannon, and Helac

Style

CF Mechanical Quick Latch Coupler The CF mechanical coupler offers a lightweight, yet durable design for your most demanding coupler requirements. The coupler design allows a simple method to quickly switch attachments on a machine. A manual locking pin securely locks the attachment to the coupler. Couplers are custom designed to fit Woods manufactured or OEM attachments. Optional jump latches allow machines to adapt to different manufacturers attachments and provide greater flexibility between machines and attachments on the job site.

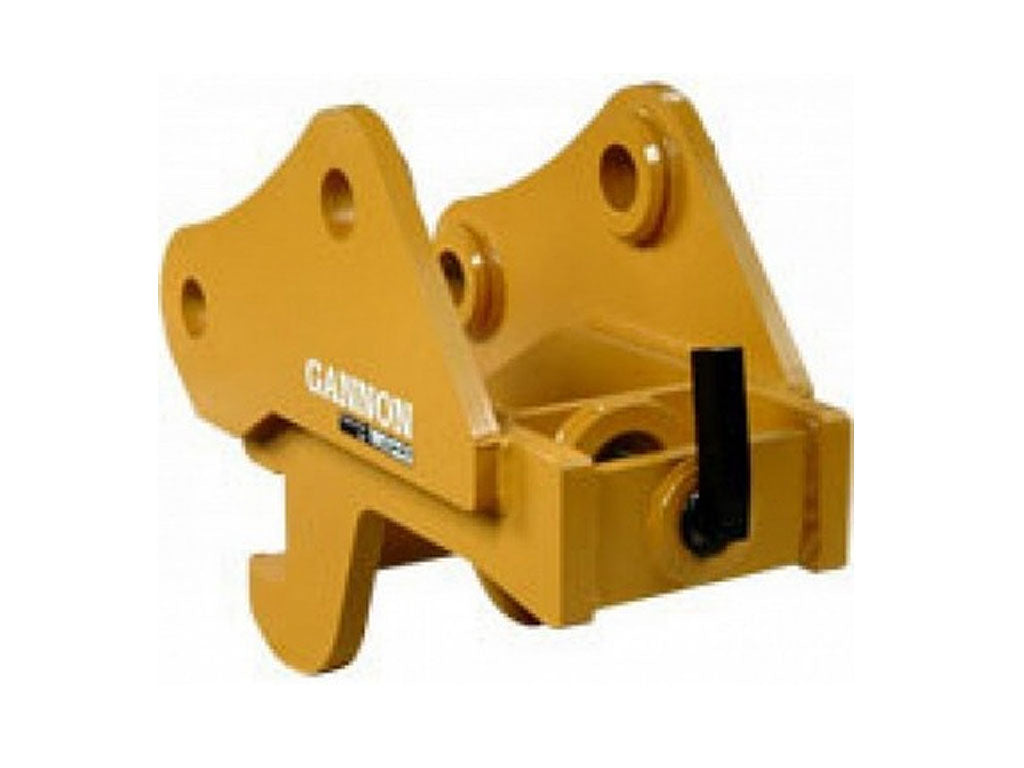

Gannon Eliminator Manual Quick Coupler The Eliminator manual quick coupler is designed for use with all Wain‑Roy Original buckets and attachments. The manual coupler provides a simple and quick method to change excavator buckets and attachments. Maintaining close to the manufacturers pin‑on performance specifications results in a near zero loss of breakout force. Eliminator coupler models are available to work with C&P, CAT, TAG and Original Wain‑Roy style buckets.

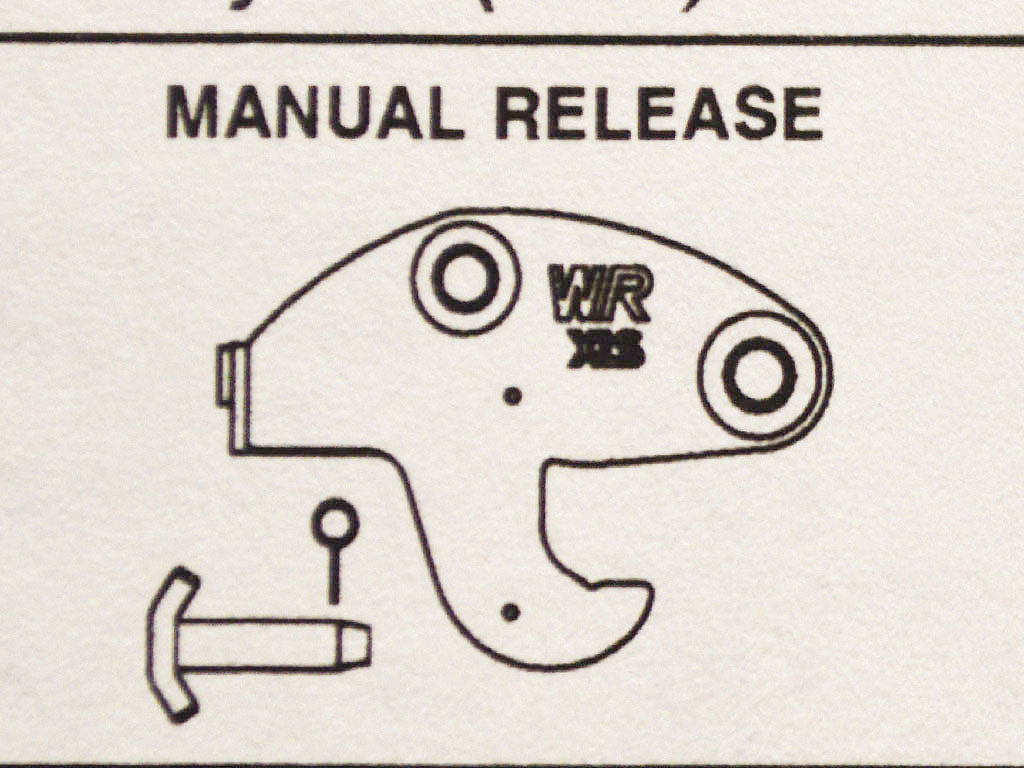

Wain‑Roy XLS Coupler System The Wain‑Roy XLS coupler system allows the benefit of fast and efficient changing of excavator buckets and attachments while maintaining close to the manufacturers pin‑on performance specifications. This results in a near zero loss of breakout force. The Wain‑Roy XLS coupler system design significantly reduces the free play between the coupler and attachments. The design provides the close fit between coupler and attachments to be maintained through simple adjustments with hand tools and periodic shimming. The XLS coupler system is designed for use with Wain‑Roy Original and XLS style buckets and attachments. The XLS coupler system is available in an easy‑to‑use manual or “operate from the seat” hydraulic release configuration.

* The WAIN ROY XLS will work with WAIN ROY Original, CP and TAG bucket in this size class.

  • HYDRAULIC RELEASE - Hydraulic components include valve, switch box & wiring, and hoses & connections between our valve & cylinder. Customer is responsible for hoses from valve to drain (tank) and to the bucket cylinder for power.

Wain‑Roy XLS Swinger Coupler System Wain-Roy Swinger Couplers rotate up to a total of 90 degrees, 45 degrees each side of center, for greater control and flexibility of any quick change attachment system. Buckets and specialty attachments such as rippers, jaws, grapples, compactors and hammers can be rotated to the desired position to achieve maximum production. Greater tool and attachment positioning flexibility increases efficiency in any work area. The hydraulic cylinder is positioned to minimize movement and provide protection from debris and excessive wear.

  • SWINGER MANUAL RELASE - Dealer or customer -supplied hydraulics. When providing the valve, controls & lines, be sure to use two 3450 PSI relief valves. The Hydraulic Swinger Coupler is 18 inches wide. Digging depth is limited when a narrower bucket is used



MAKE MODEL UNDER 4500 LB
BOBCAT 316,320,322,323,324,E14,E16,E20
CASE CX14,CX17B,CX17C
CAT

300.9D,301.4C,301.5, 301.6,301.6C,301.7D,

301.8,301.8C,HPU300

COYOTE CE08,CE08-1,CE15
DOOSAN S010,S015
DITCH WITCH MX9,MX15,MX182
DEERE 17C, 17D,17ZTS, 15,17G
GEHL/MUSTANG Z17,170Z
HITACHI EX17, ZX17
HYUNDAI R15-7, R16-7, R17Z
IHI

15NX-2,10G,12G,14G,15J,18J,7J,7JE,9VX,

17NE,17VX,18J

JCB

18Z,19Z

KOBELCO 13SR,SK13SR,SK15SR,17SR
KOMATSU

PC18MR-2, PC20MR-2, PC15MR-8, PC15MRX

PC02-1,PC15MRX,

KUBOTA

B20, B21, U15, KX41-3,13SR,K008-3,KX018-4

U17

NEW HOLLAND

E15, EC15,17SR,E9SR,E10SR,E17C,E18B,E18SR

E15B

TAKEUCHI

TB016, TB014,TB216,TB108,TB210R,TB216,

TB216H

TEREX

HR1.5,HR11,HR12,HR13,TC15,HR1.6, TC16,

HR2.0, TC20

THOMAS

T15,T15V

VERMEER

CX216,CX218,CX219

VOLVO EC15B,EC17C,EC18C,EC20B,EC20C,EC20D
YANMAR

B08-3,VIO15-2, VIO20-2, VIO20, VIO15-3,

VIO20-3,B15,SV08
