WAIN ROY dirt buckets for excavators 20,000-30,000 lbs.

Style
Mounting
Size

WAIN ROY DIRT BUCKETS

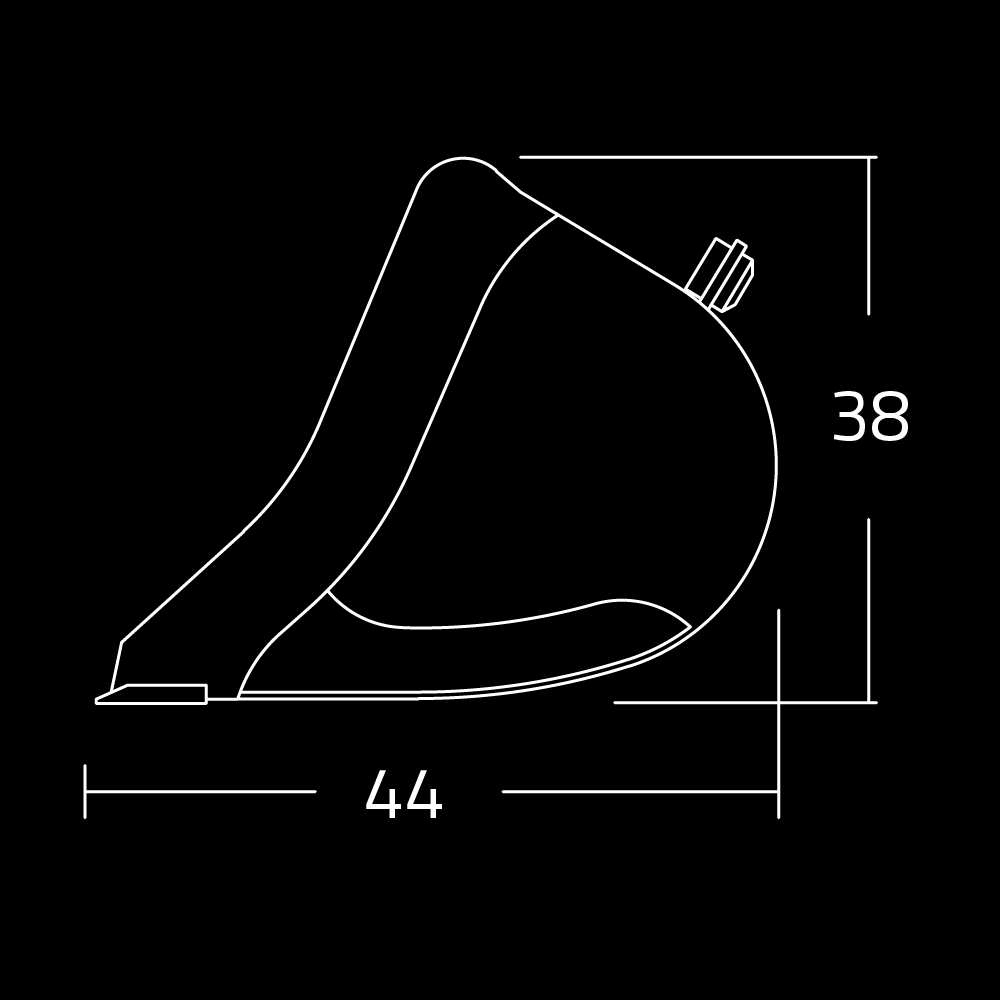

HDP3 / HD3

Heavy-Duty Buckets are designed to handle clay, gravel, compacted soils and loose rock applications. Each HD bucket is designed to meet or exceed OEM specifications while improving machine efficiency and productivity. They are designed to improve bucket life when used in a more abrasive material application. HD buckets contain additional material to increase bucket durability while maintaining productivity.

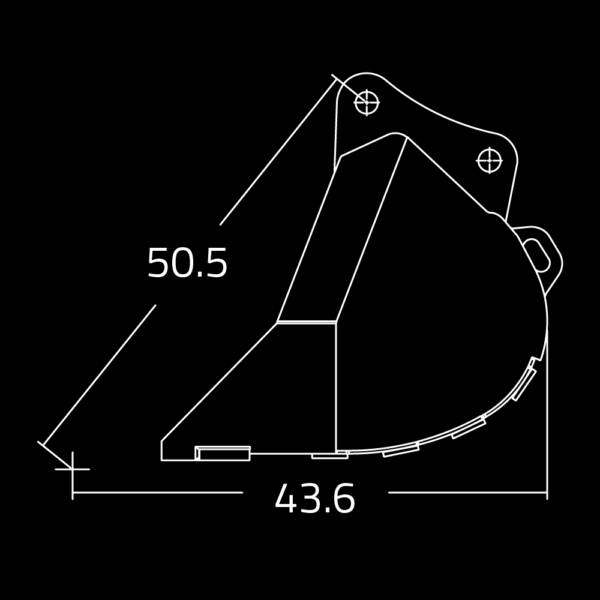

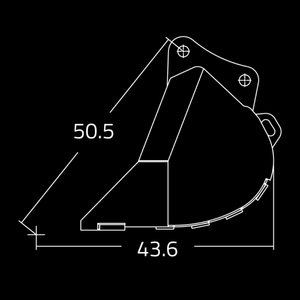

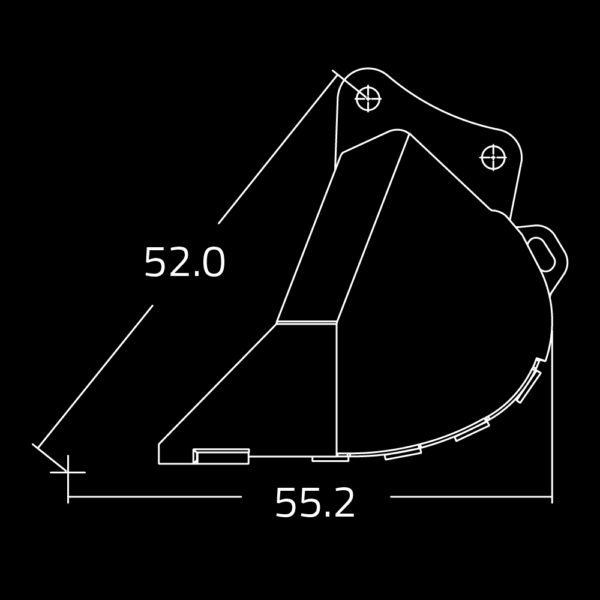

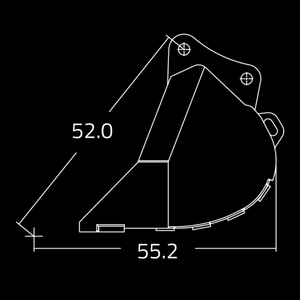

CF120X150 / CF125X150

Heavier design than most OEM standard buckets. For use in soils containing low percentages of rock, loam and sand.

Standard generic teeth included.

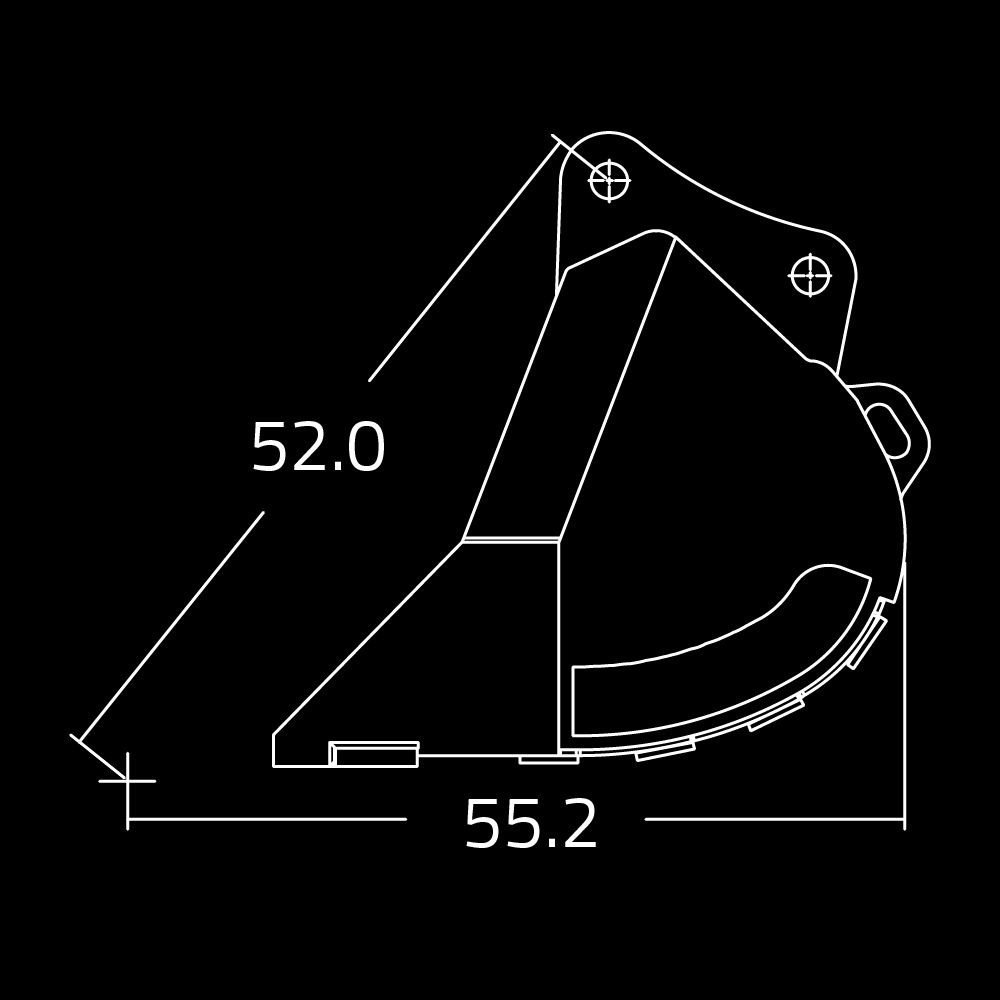

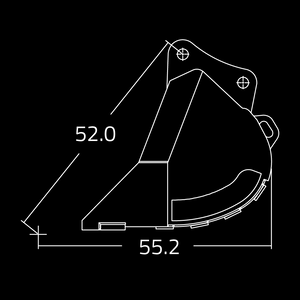

CF120X250 / CF125X250

For use in more demanding excavating conditions with high levels of clay, gravel, compacted soils and loose rock.

Standard generic teeth included.

AVAILABLE MOUNTS DESCRIPTION
OEM PIN ON TWO HORIZONTAL PINS
WAIN ROY XLS HOOK WITH VERTICAL PIN



GENERAL PURPOSE HDP3

OEM PIN ON



CAPACITY

CU. YARD

LBS NO. TEETH
18" 0.33 753 3
20" 0.41 780 3
24" 0.52 815 3
30" 0.69 915 4
36" 0.87 1015 5
42" 1.05 1130 5
48" 1.18 1213 6
GENERAL PURPOSE HD3

WAIN ROY XLS

WAIN ROY QC ORIGINAL

CAPACITY LBS NO. TEETH
18"
0.33 698 3
24" 0.49 813 4
30" 0.66 901 4
36" 0.83 1011 5
42" 1.00 1129 6
48" 1.18 1213 6


STD. CAPACITY HD



OEM PIN ON
CAPACITY LBS NO. TEETH
18"
0.29
714 3
20" 0.33 792 3
24" 0.42
893
4
30" 0.57 1066 4
36" 0.73 1081 5
42" 0.88 1230 5
48" 1.04 1213 6
HIGH CAPACITY HD
OEM PIN ON  CAPACITY LBS NO. TEETH
18" 0.33 980 3
20" 0.38 1025 3
24" 0.49 1114 4
30" 0.66 1151 4
36" 0.83 1261 5
42" 1.01 1390 5
48" 1.19 1499 6



STD. CAPACITY EXTRA HD



OEM PIN ON
CAPACITY LBS NO. TEETH
18"
0.29
792 3
20" 0.33 835 3
24" 0.42
938 4
30" 0.57 1059 4
36" 0.73 1141 5
42" 0.88 1299 5
48" 1.04 1441 6
HIGH CAPACITY EXTRA HD
OEM PIN ON  CAPACITY LBS NO. TEETH
18" 0.33 993
3
20" 0.38 1055 3
24" 0.49 1364 4
30" 0.66 1472 4
36" 0.83 1570 5
42" 1.01 1651 5
48" 1.19 1689 6


MAKE MODELS: 12 TON 20,000 - 30,000 LBS
CASE
  • 9010B, CX130B, CX130D, CX135 MSR, CX145
CAT
  • 311 D LRR, 311C, 311F LRR (2017), 312C L, 312D, 312D L, 313F L GC (2017), 314D, 315F, A-link, M313C
DOOSAN
  • 1202, DX140, S140LCV
HITACHI
  • ZX120, ZX120-3, ZX130-6, ZX135, ZX135US-3
HYUNDIA
  • HW140, HX130LCR, HX140L, HX145LCR, R110D-7, R125LCR09A, R140LC-7, R140LC-9, R140LC-9A, R140LCD-7, R140W-9, R140W-9A, R145LCR-9, R145LCR-9A
JCB
  • HYDRADIG 110W, JS130LC, JS131, JS145, JZ141
JOHN DEERE
  • 110, 120C, 120D, 130G, 135C RTS, 135D, 135G, 490D, 490E
KOBELCO
  • 115SRDZ, 135SRLCOSB, 140SR
KOMATSU
  • PC100-6, PC120-6, PC128UU-2, PC130-8, PC138USLC-11, PC138USLC-2, PC158USLC-2, PC20LC-6
LIEBHERR
  • A309, A311, A312
LINK BELT
  • 130 X2, 130 X3, 130 X4, 130LX, 135MSR, 145 X3 Spin Ace (Tier 4a), 145 X4 Spin Ace, 210LX-LF, 240LX-LF
MECALAC
  • 11MWR
NEW HOLLAND
  • E135B, EH130LC
SANY
  • SY135C-Tier 2
TEREX
  • TC125 (hr42), TC140LC-1, TW110, TW130
VERMEER
  • CX224, CX229, CX234
VOLVO
  • EC140B-LC, EC140C, EC140E, ECR145C, ECR145E
WACKER NEUSON
  • GE1202, ME12002
