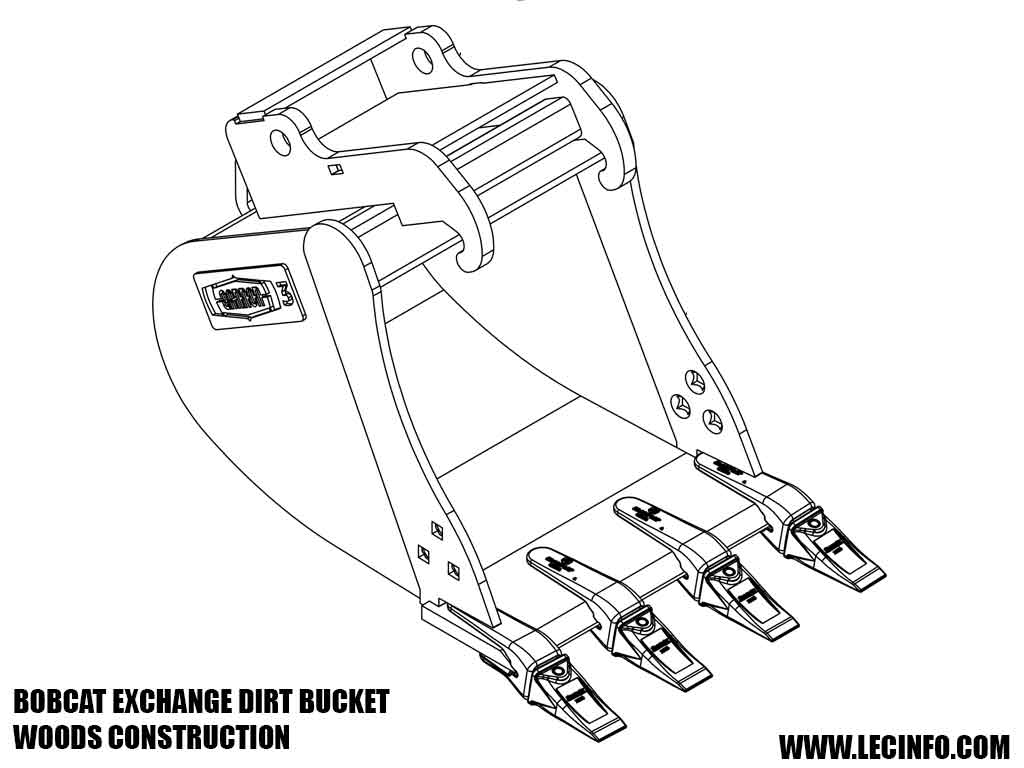

WAIN ROY dirt buckets for excavators 30,000 - 41,000 lbs.

Style
Mounting
Size

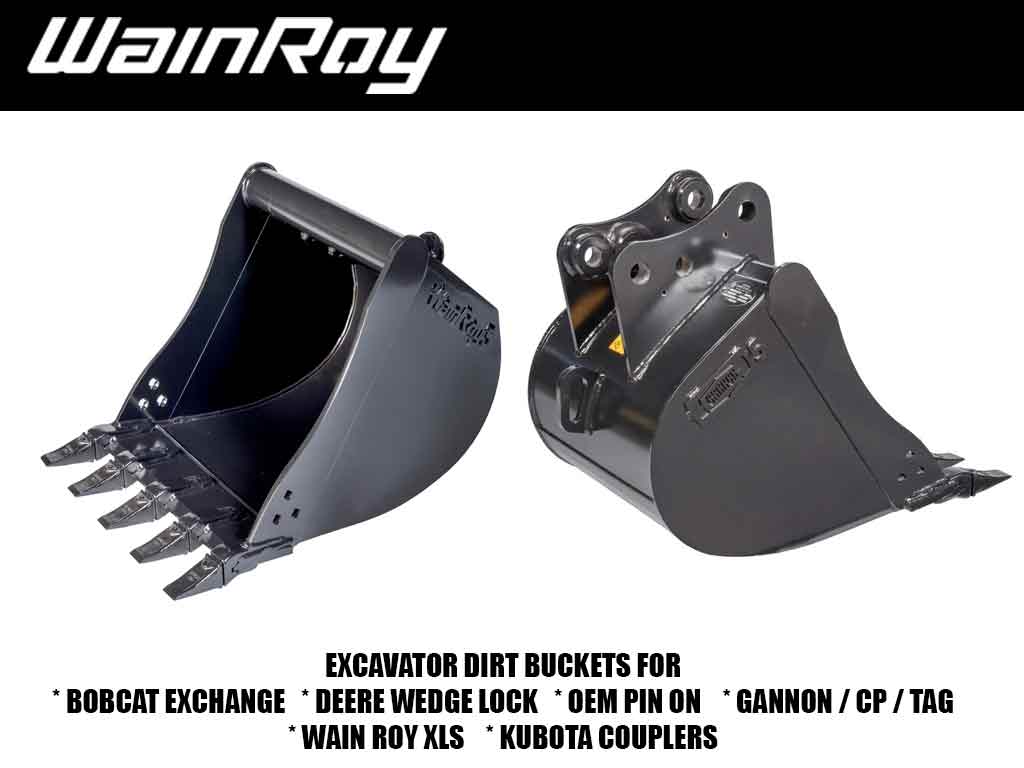

WAIN ROY DIRT BUCKETS

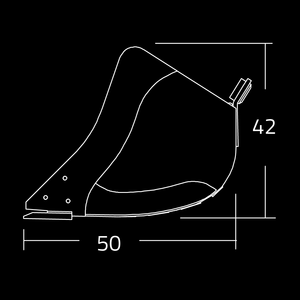

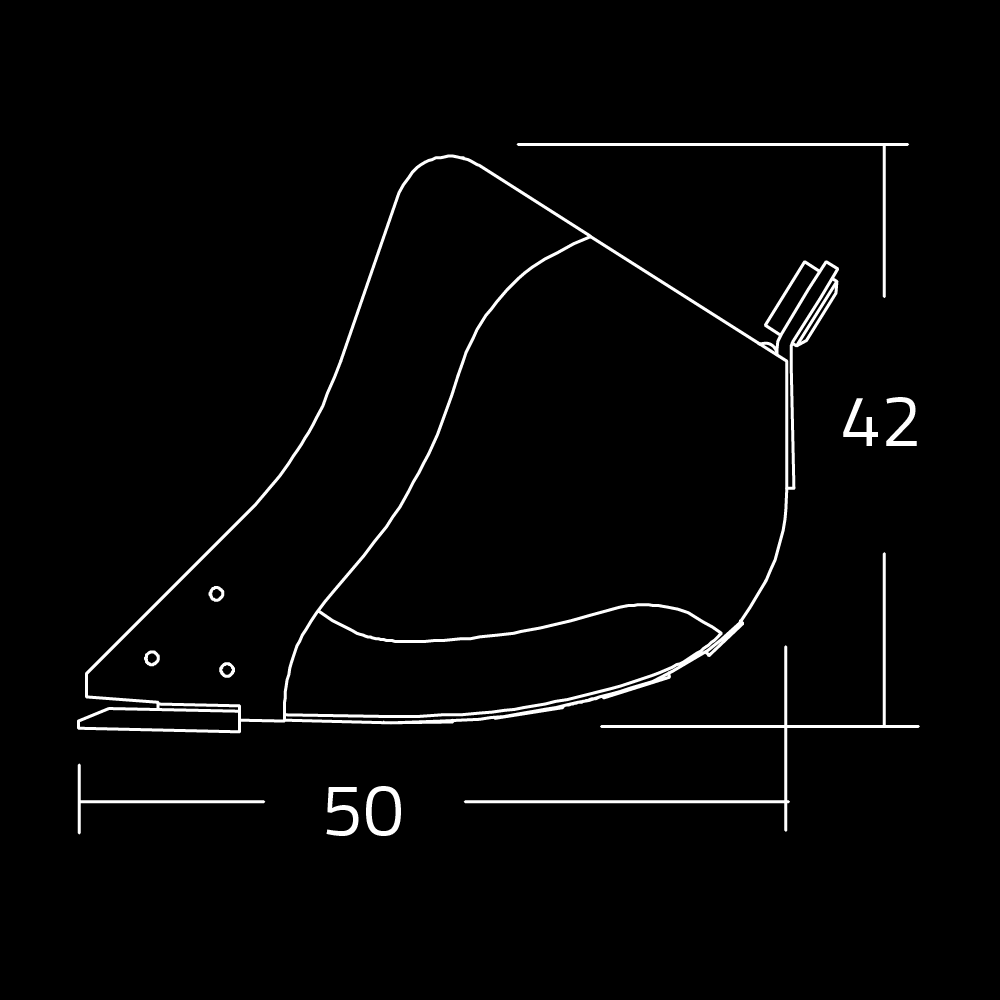

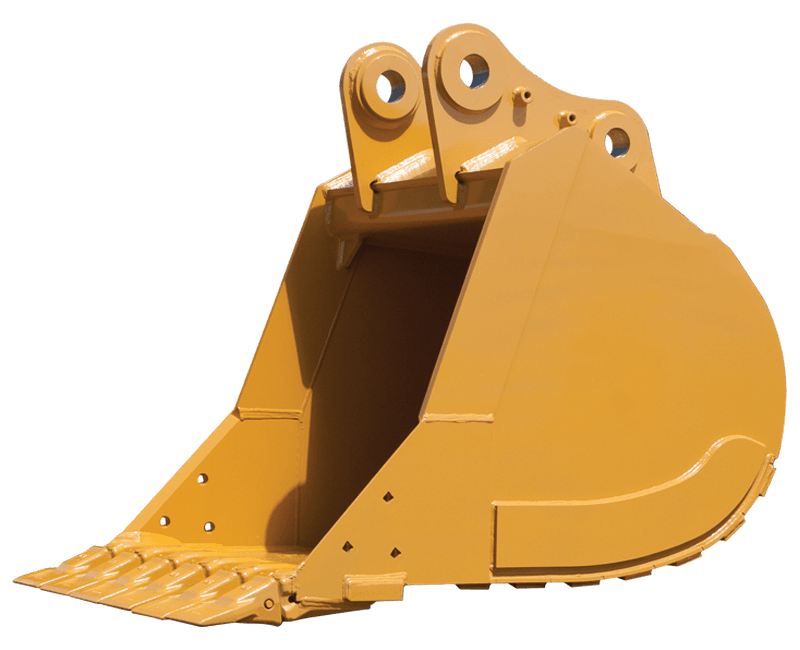

HDP4/HD4

Heavy-Duty Buckets are designed to handle clay, gravel, compacted soils and loose rock applications. Each HD bucket is designed to meet or exceed OEM specifications while improving machine efficiency and productivity. They are designed to improve bucket life when used in a more abrasive material application. HD buckets contain additional material to increase bucket durability while maintaining productivity.

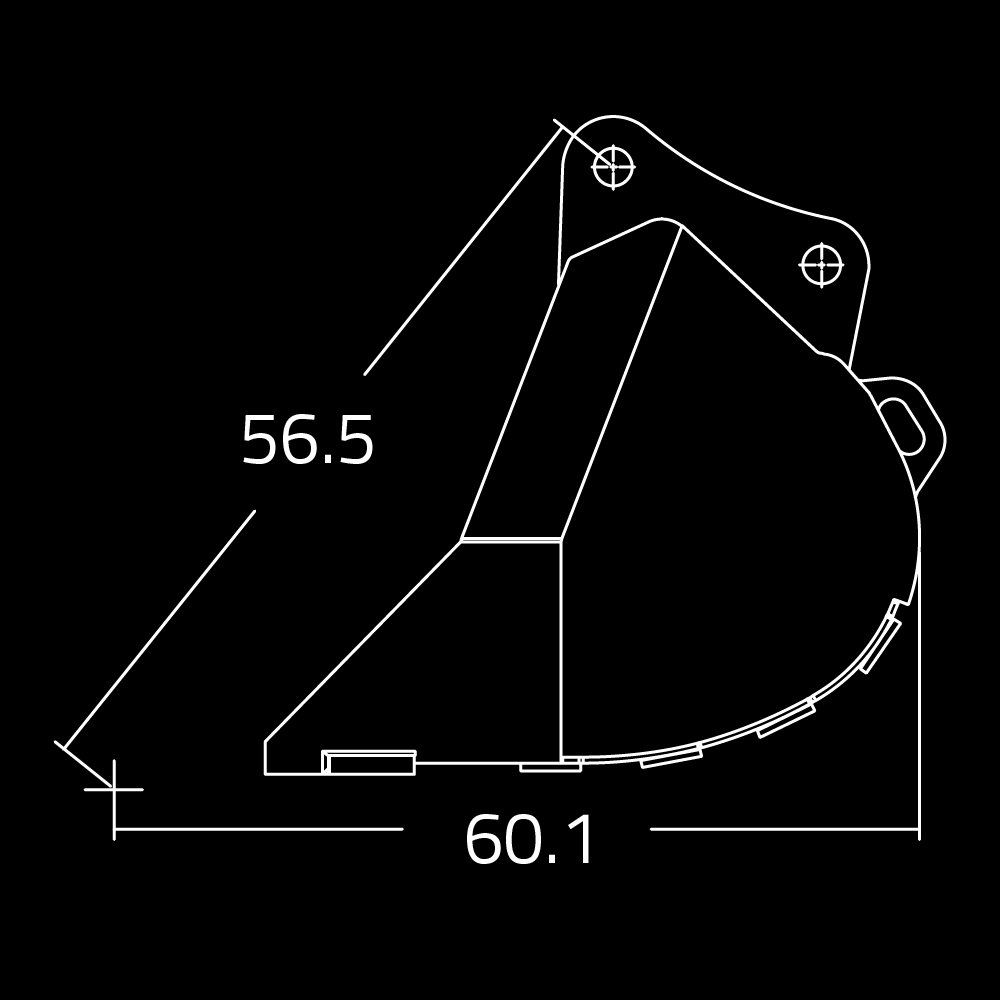

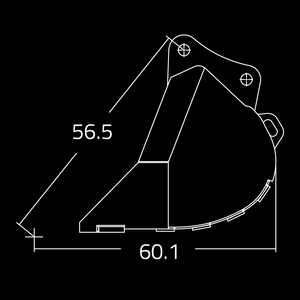

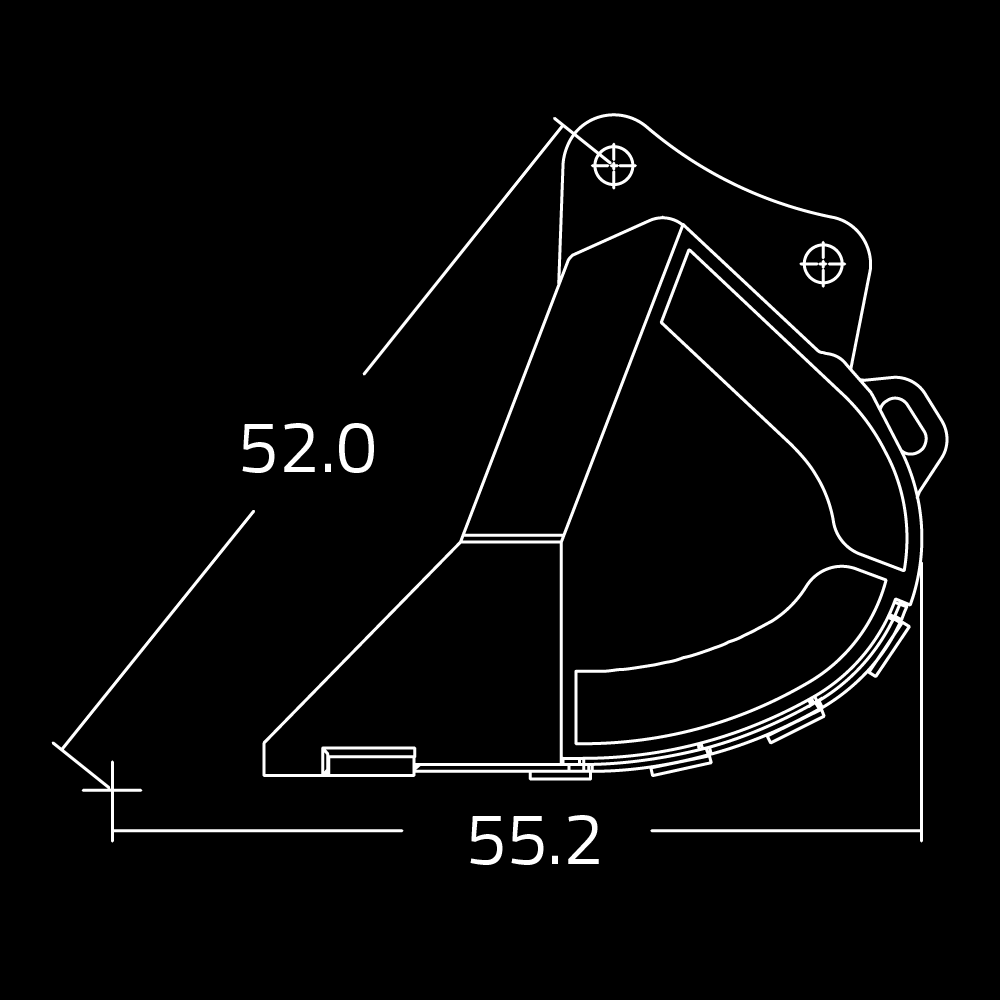

CF150X150 / CF155X150

“X” Series buckets are designed for easy material flow when loading and unloading the bucket. The low profile bridge design allows excellent operator visibility. Internal struts and the back side of the ears attached to the double thickness bridge / moldboard provide superior strength and rigidity. Corner gussets provide strength and rigidity to the upper corners of the bucket with minimal interference to material flow. The front corners of the buckets feature a unique interlocking welded joint between the cutting edge and replaceable side cutter insert. The side cutter insert and cutting edge are notched to provide a larger, stronger, and more rigid attaching joint.

Heavier design than most OEM standard buckets. For use in soils containing low percentages of rock, loam and sand.

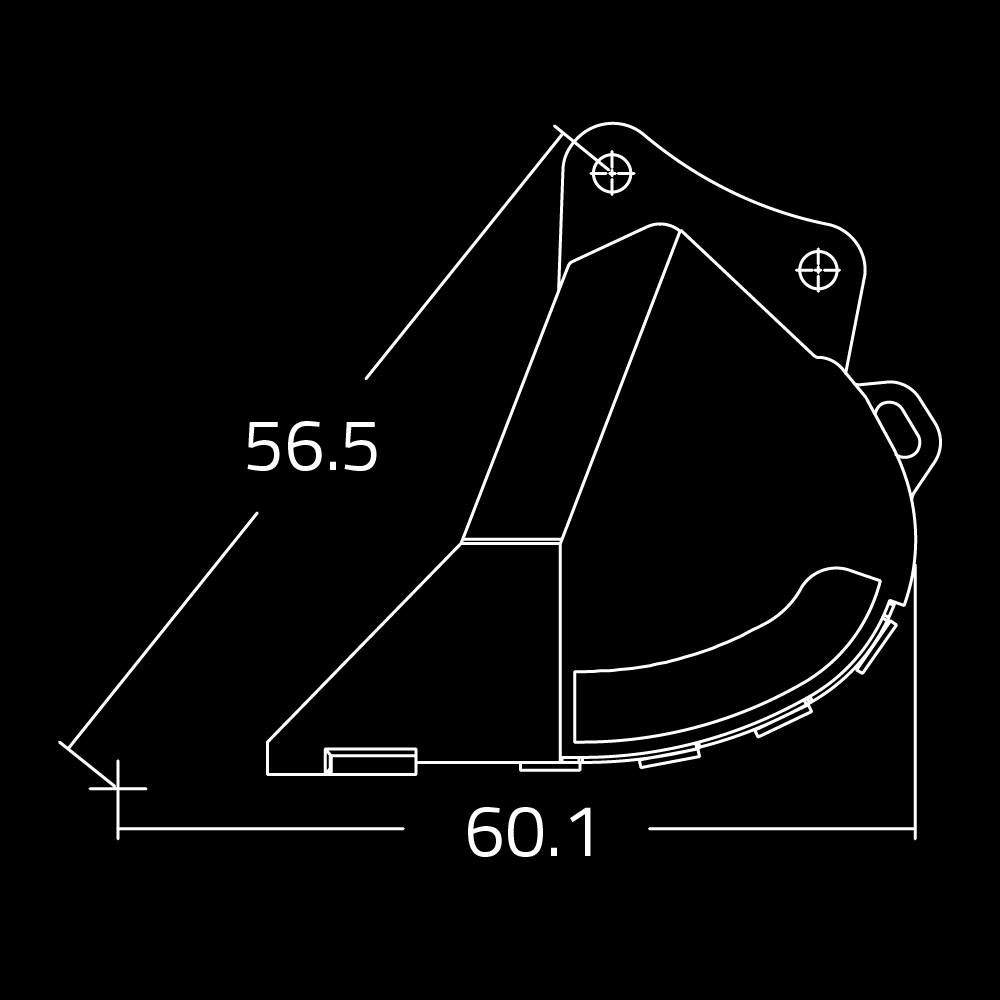

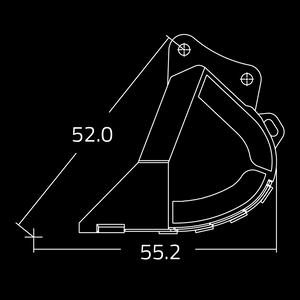

CF150X250 / CF155X250

For use in more demanding excavating conditions with high levels of clay, gravel, compacted soils and loose rock.

AVAILABLE MOUNTS DESCRIPTION
OEM PIN ON TWO HORIZONTAL PINS
WAIN ROY XLS HOOK WITH VERTICAL PIN



GENERAL PURPOSE HDP4

OEM PIN ON



CAPACITY

CU. YARD

LBS NO. TEETH
24" 0.58
1140 3
30" 0.79 1325 4
36" 1.00 1435
5
42" 1.21 1630
5
48" 1.41 1805
6
GENERAL PURPOSE HD4

WAIN ROY XLS

WAIN ROY QC ORIGINAL

CAPACITY LBS NO. TEETH
24" 0.55 1139 3
30" 0.75 1315 4
36" 0.95 1435 5
42" 1.16 1629 5
48" 1.34 1805 6


STD. CAPACITY HD



OEM PIN ON
CAPACITY LBS NO. TEETH
18"
0.34
732
3
20" 0.42 816 3
24" 0.50
900 4
30" 0.66 1068 4
36" 0.83 1096 5
42" 1.01 1238 5
48" 1.18 1387 6
HIGH CAPACITY HD
OEM PIN ON  CAPACITY LBS NO. TEETH
18" 0.37 1005 4
20" 0.45 1045 4
24" 0.54 1101 4
30" 0.73 1182 4
36" 0.92 1276 5
42" 1.12 1411 5
48" 1.31 1499 6



STD. CAPACITY EXTRA HD



OEM PIN ON
CAPACITY LBS NO. TEETH
18"
0.34
787 3
20" 0.42 842 3
24" 0.50
942 4
30" 0.66 1097 4
36" 0.83 1198 5
42" 1.01 1312 5
48" 1.18 1490 6
HIGH CAPACITY EXTRA HD
OEM PIN ON  CAPACITY LBS NO. TEETH
18" 0.37 1270 3
20" 0.45 1320 3
24" 0.54 1390 4
30" 0.73 1471 4
36" 0.92 1574 5
42" 1.12 1687 5
48" 1.31 1869 6


MAKE MODELS: 15 TON 30,000 - 41,000 LBS
CASE
  • 9020B, CX160, CX160B, CX160D
CAT
  • 315C L, 315D L, 316F L (2017), 318F, DX160, M315C, M316C, M318C
DOOSAN
  • DX180LC-5, DX18LC, DX190-W, S175LCV
HITACHI
  • EX150, ZX160LC, ZX160LC-3, ZX160LC-6, ZX180
HYUNDIA
  • HX160L, HX180, R160LC-9, R160LC-9A, R170W, R180LC-9
JCB
  • JS160, JS160LC, JS180, JS190
JOHN DEERE
  • 160C LC, 160D LC, 160G-LC, 180G-LC, 590D, 595D
KOBELCO
  • ED150BR, ED160-3 BLADE RUNNER, ED160-5 BLADE RUNNER, ED190BR, SK140SRLC-5, SK160LC, SK170LC, SK170LC-10
KOMATSU
  • PC138USLC-11, PC138USLC-8, PC160LC-7, PC160LC-8
LIEBHERR
  • A314, A316, A914 Litronic, R313, R317, R914 Compact Litronic
LINK BELT
  • 160 X2, 160 X3, 160 X4, 160X
LIUGONG
  • CLG915D, CLG915E
MECALAC
  • 15MC, 15MWR
NEW HOLLAND
  • E175B, EH160LC
TEREX
  • TS180SR, TW150, TW160, TW160SR, TW170, TW190, TW220, TXC140LC-2, TXC180LC-2
VERMEER
  • CX254
VOLVO
  • EC160B, EC160C, EC160C-LC, EC160E, EW160C, EW160E, EW180C, EWR150E, EWR170E
