HC1PO-12

WAIN ROY High Capacity Dirt Buckets for Tractor Loader Backhoes up to 16000 lbs.

Style
MOUNTING
Size

WAIN ROY HIGH CAPACITY DIRT BUCKETS

Wain-Roy CEX Series Heavy-Duty Buckets “We Are The Original” when it comes to heavy-duty buckets for excavators and backhoes. The CEX Series buckets have a rugged, full-length double bottom design and side wear bars for uniform strength and durability. They are tapered to ensure maximum fill and quick, easy dumping and are available in pin-on and quick-change versions. A lifting lug is included on all pin-on buckets and straight or saw-tooth replaceable bolt-on side cutters are a great option.



AVAILABLE MOUNTS DESCRIPTION
OEM PIN ON TWO HORIZONTAL PINS
WAIN ROY XLS HOOK WITH VERTICAL PIN

GANNON ELIMINATOR /

TAG / CP / WR ORIGINAL

HOOK WITH VERTICAL PIN

HIGH CAPACITY EXTRA HD

OEM PIN ON

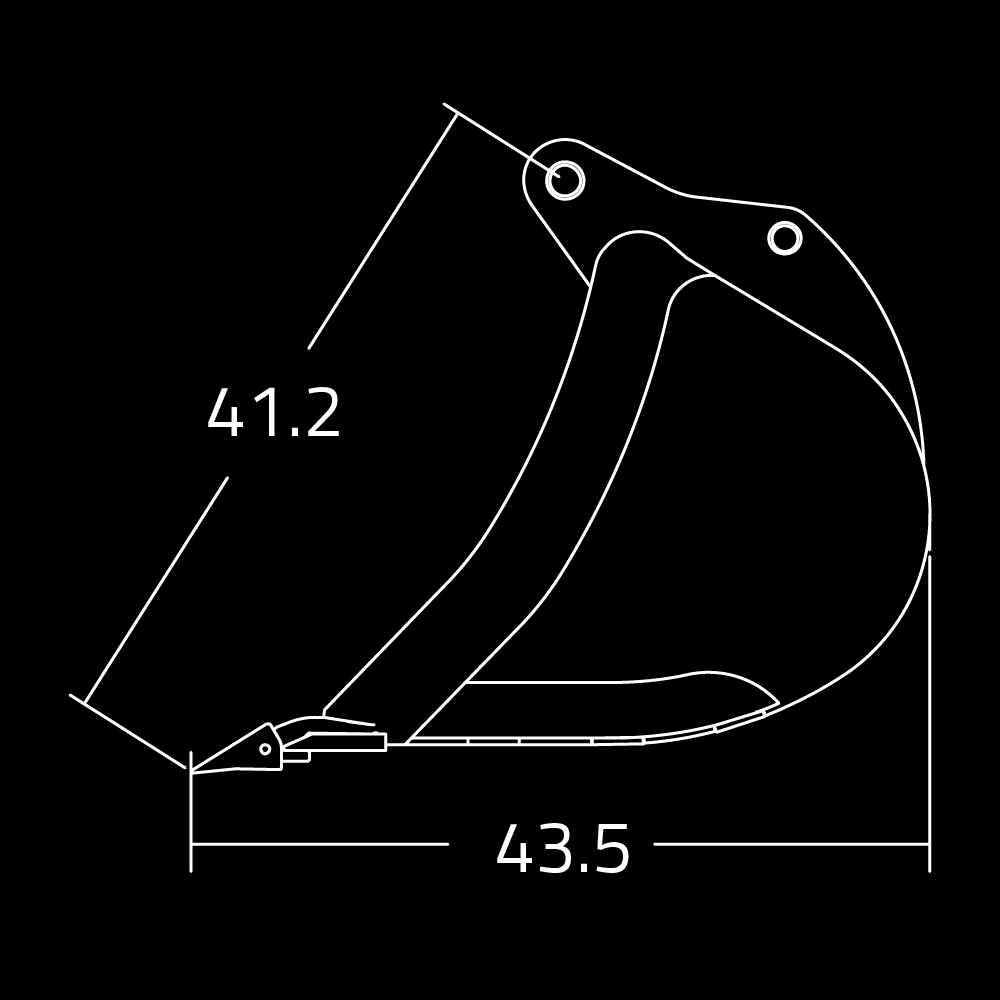

CAPACITY LBS NO. TEETH MOUTH OPENING  LENGTH
HC1PO-12 4.2
300
3
41.2" 43.5"
HC1PO-16 5.6
319
3
41.2" 43.5"
HC1PO-18 6.5
360
4
41.2" 43.5"
HC1PO-24 9.5
418
5
41.2" 43.5"
HC1PO-30 12.5
445
5
41.2" 43.5"
HC1PO-36 15.6
527
6
41.2" 43.5"

HIGH CAPAITY EXTRA HD

WAIN ROY XLS, ORIGINAL

GANNON , TAG, CP

CAPACITY LBS NO. TEETH MOUTH OPENING  LENGTH
HC1QC-12 4.2
262
3
44.1" 42.2"
HC1QC-16 5.6
289
3
44.1" 42.2"
HC1QC-18 6.5
313
4
44.1" 42.2"
HC1QC-24 9.5
371
5
44.1" 42.2"
HC1QC-30 12.5
397
5
44.1" 42.2"
HC1QC-36 15.6 479 6 44.1" 42.2"
HC1QC-42 44.1" 42.2"
HC1QC-48 44.1" 42.2"
MAKE 8 TON, <16000 LB BACKHOE
CASE
  • 580 Series 3, 580 Super M Series 2, 580 Super M Series 3, 580 Super M+ Series 2, 580 Super M+ Series 3, 580 Super N, 580 Super N WT, 580 Turbo Series 2, 580L, 580M, 580M Series 2, 580N, 580N EP, 580SL, 580SM, 590 SL, 590 Super M Series 3, 590 Super M+ Series 3, 590 Super N, 590M Super M+ Series 3, 590SM
CAT
  • 415F2, 415F2 IL, 416B, 416C, 416D, 416E, 416F2, 420D, 420D-IT, 420E, 420E-IT, 420FX/420FX IT, 426B, 426C, 428, 430D, 430E, 430E-IT, 430FX/430FX IT, 436B, 436C, 4630D-IT
JCB
  • 3C 14, 3C LL, 3CX, 3CX-14, 3CX-14 SUPER
JOHN DEERE
  • 310J, 310L Backhoe, 310L EP Backhoe, 310SJ, 310SJ TMC, 310SJ TMC Tool Carrier, 310SL Backhoe, 310SL HL Backhoe, 315SJ, 315SL Backhoe, 410J, 410J TMC Tool Carrier, 410L Backhoe, 410SJ TMC
KOMATSU
  • W70A, WB140, WB142-5, WB146-5, WB146PS-5, WB150, WB156PS-5, WB91, WB93, WB93R-5, WB93R-8, WB93S-5, WB97, WB97R-5, WB97S-5, WB98
NEW HOLLAND
  • 555B, 555C, 555E, 575E, 655A, 655C, 655E, 675E, B110, B110B, B110C, B115B, B90B, B95, B95B, B95B LR, B95B TC, B95C, B95C LR, B95C TC, B95LR, B95TC, BL110B, LB110, LB1156, LB115B, LB75, LB75B, LB90, LB90B
VOLVO
  • BL60, BL60B, BL61, BL61 Plus, BL61B, BL70B, BL71, BL71 Plus, BL71B, PL70
