Wain-Roy CEX Series Heavy-Duty Buckets “We Are The Original” when it comes to heavy-duty buckets for excavators and backhoes. The CEX Series buckets have a rugged, full-length double bottom design and side wear bars for uniform strength and durability. They are tapered to ensure maximum fill and quick, easy dumping and are available in pin-on and quick-change versions. A lifting lug is included on all pin-on buckets and straight or saw-tooth replaceable bolt-on side cutters are a great option.
AVAILABLE MOUNTS | DESCRIPTION | |
OEM PIN ON | TWO HORIZONTAL PINS | ![]() |
WAIN ROY XLS | HOOK WITH VERTICAL PIN | ![]() |
GANNON ELIMINATOR / TAG / CP / WR ORIGINAL |
HOOK WITH VERTICAL PIN | ![]() |

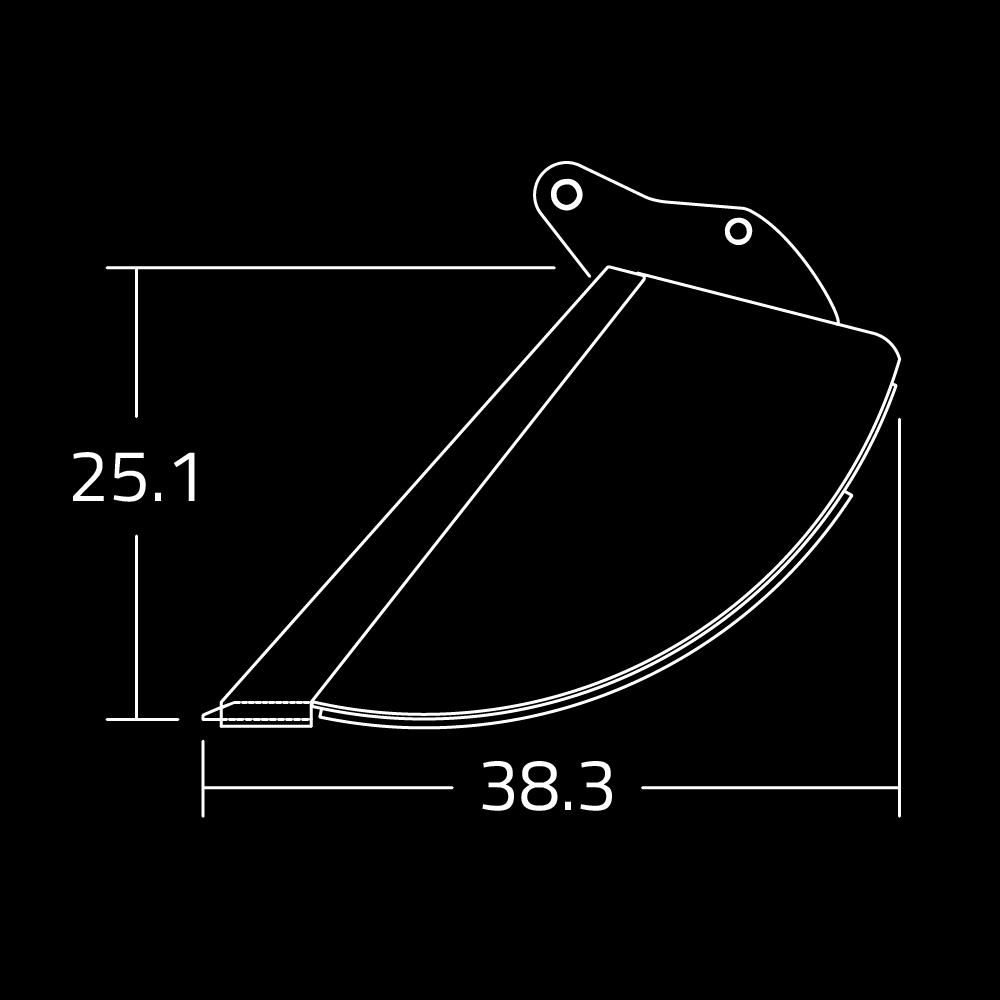

STRAIGHT WALL OEM PIN ON |
CAPACITY | LBS | NO. TEETH | HEIGHT | LENGTH |
8" | 3.1 | 305 | 3 | 25.1" | 38.9" |
12” | 3.1 |
305 |
3 |
25.1" | 38.9" |
16” | 4.1 |
340 | 4 |
25.1" | 38.9" |
18” | 4.7 |
353 |
4 |
25.1" | 38.9" |
24” | 7.0 |
418 |
5 |
25.1" | 38.9" |
30" | 9.5 |
485 |
6 |
25.1" | 38.9" |
36" | 12.0 |
535 |
7 |
25.1" | 38.9" |

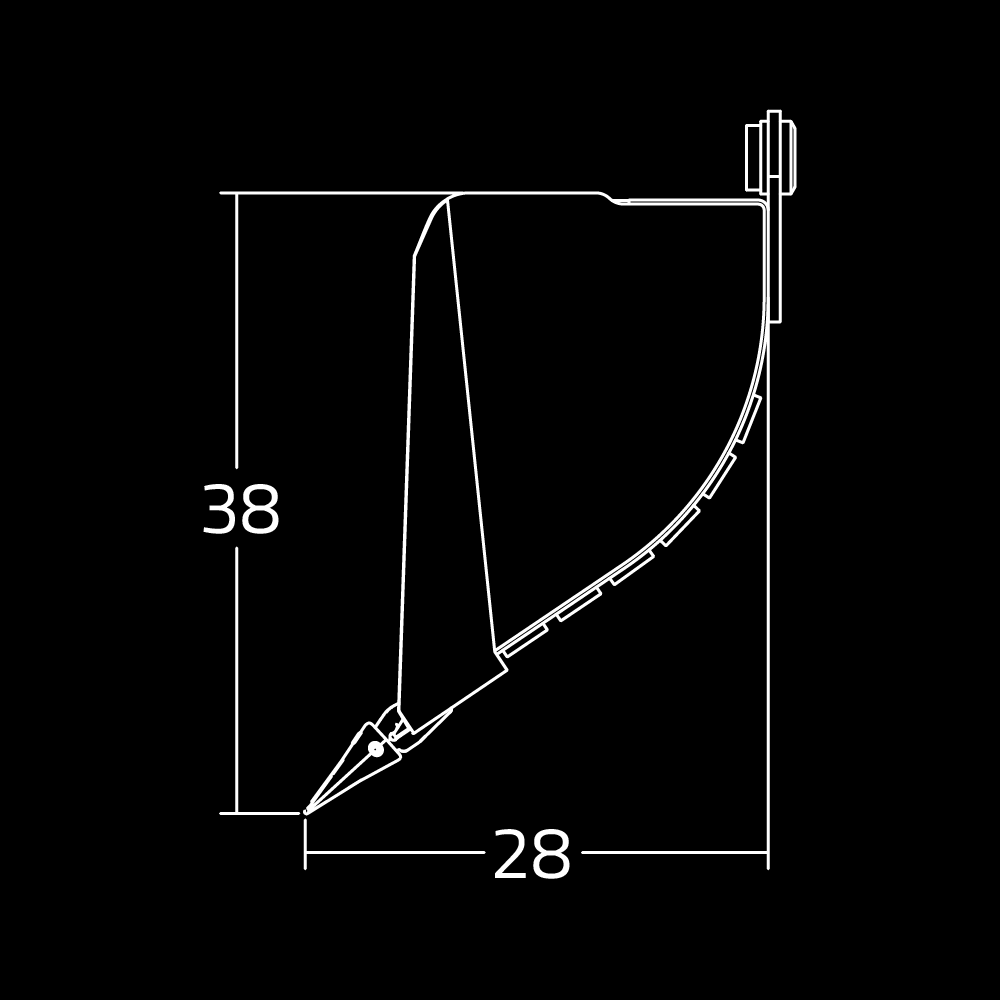

STRAIGHT WALL WAIN ROY XLS, WAIN ROY ORIGINAL GANNON ELIMINATOR, TAG, CP |
CAPACITY | LBS | NO. TEETH |
HEIGHT |
LENGTH |
12” | 38" | 28" | |||
16” | 38" | 28" | |||
18” | 280 | 38" | 28" | ||
24” | 340 | 38" | 28" | ||
30" | 405 |
38" | 28" | ||
36" | 440 |
38" | 28" |
MAKE | UP TO 16000 LB BACKHOE |
CASE |
|
CAT |
|
JCB |
|
JOHN DEERE |
|
KOMATSU |
|
NEW HOLLAND |
|
VOLVO |
|
