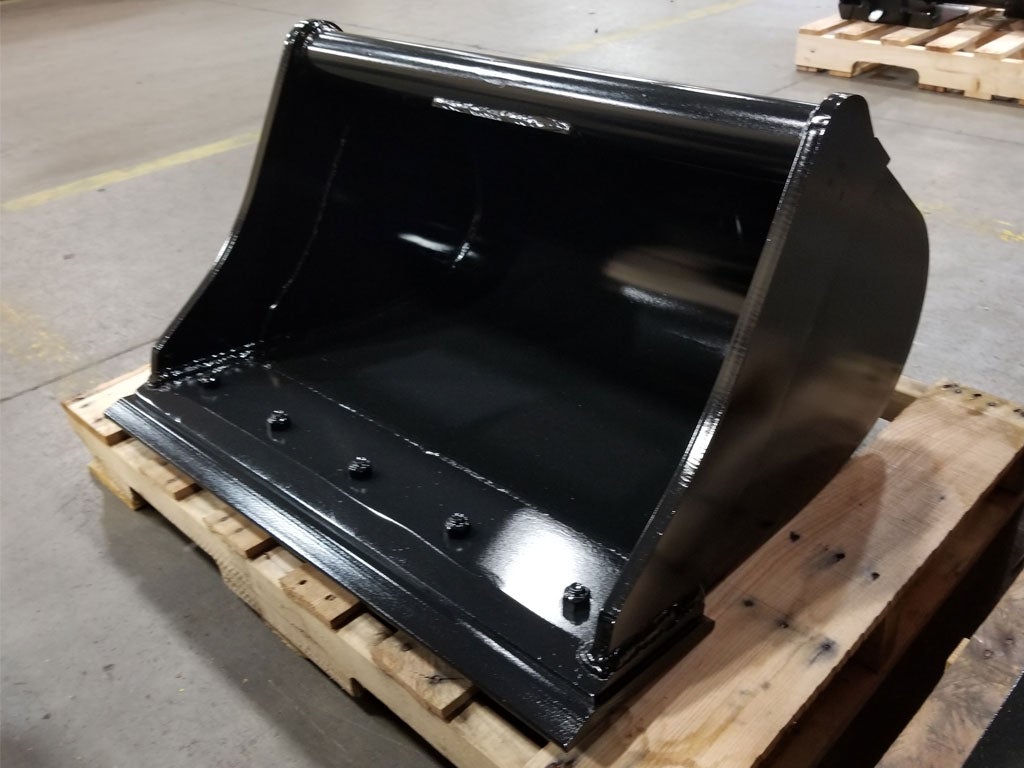

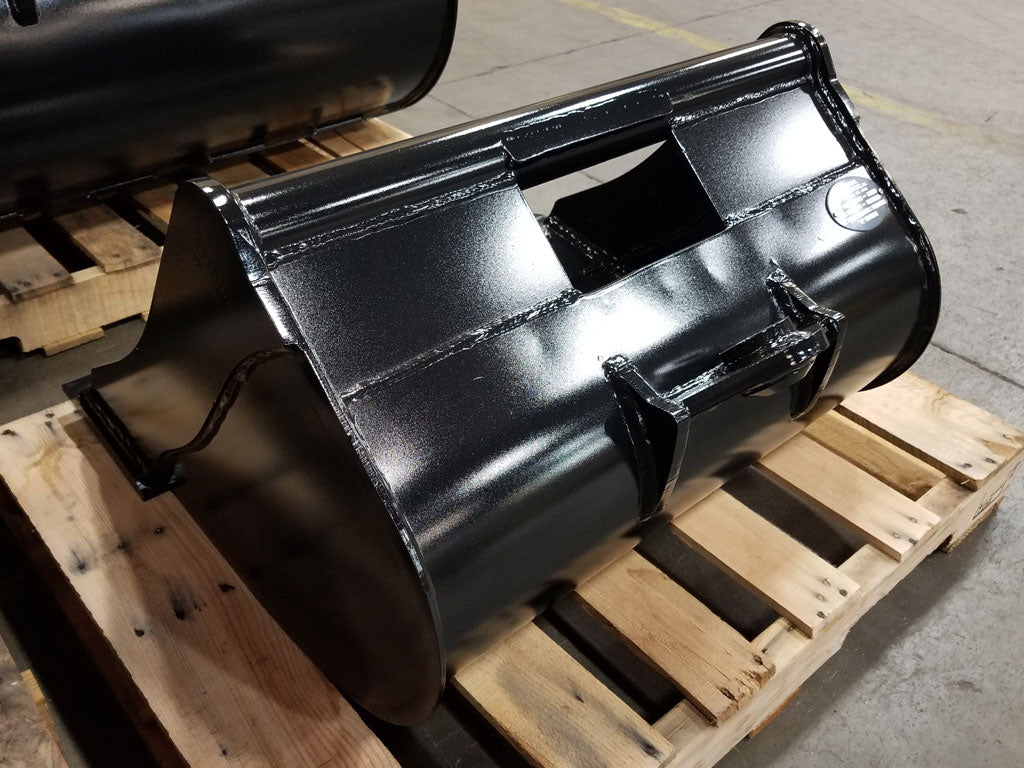

Ditching & Grading Buckets are used for ditch cleaning, grading, backfilling and loose material loading applications. They feature a wide and shallow tub design that offers a shorter tip radius allowing for the increased width without losing material penetration. Ditching & Grading buckets are ideal for use in sand, topsoil, and other loose or soft materials.
| AVAILABLE MOUNTS | DESCRIPTION | |
| OEM PIN ON | TWO HORIZONTAL PINS |  |
| WAIN ROY XLS | HOOK WITH VERTICAL PIN |  |
|
GANNON ELIMINATOR / TAG / CP / WR ORIGINAL |
HOOK WITH VERTICAL PIN |  |
|

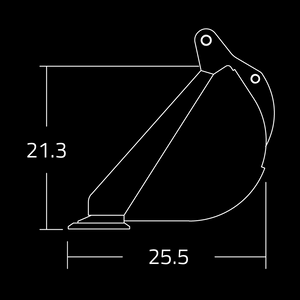

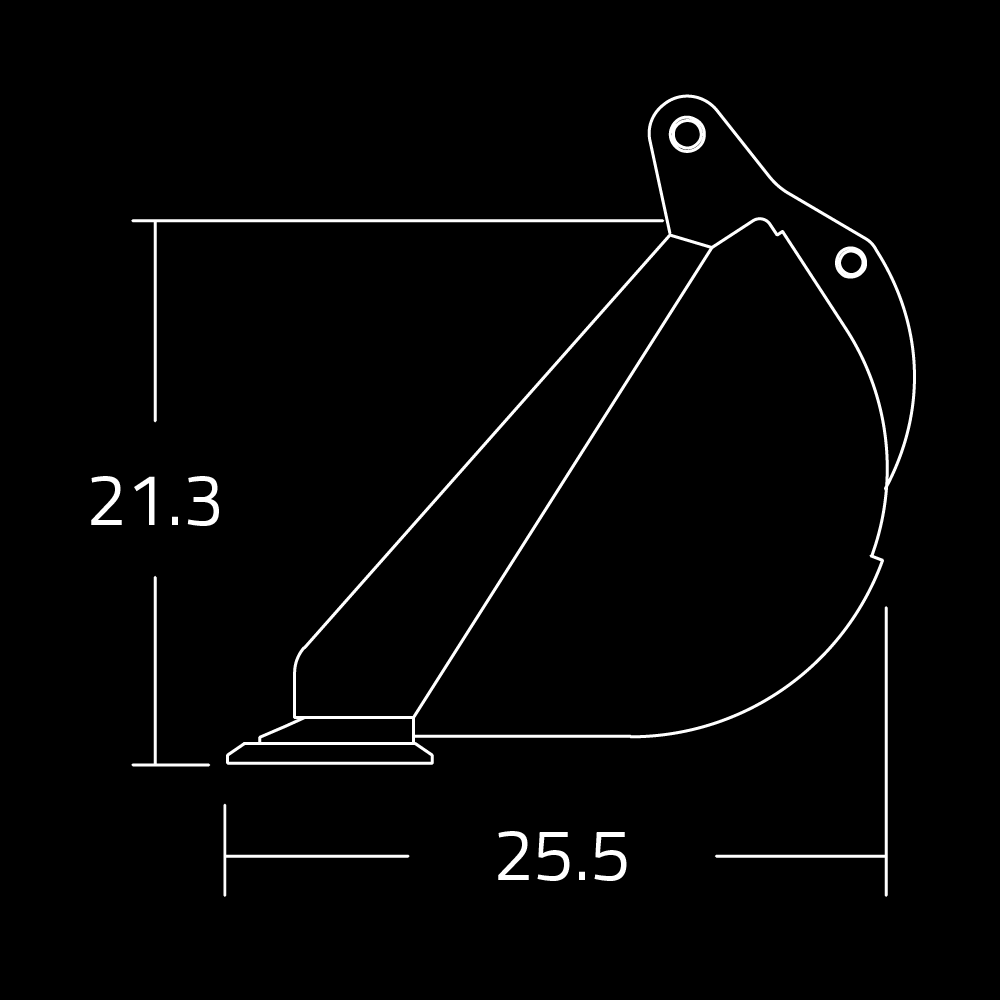

DITCHING & GRADING OEM PIN ON |
CAPACITY |
LBS. |
BUCKET HEIGHT |
BUCKET LENGTH |
| 72N-48 |
10.3 |
476 | 21.3" | 25.5" |
| 72N-54 |
11.7 |
530 |
21.3" | 25.5" |
| 72N-60 |
13.2 |
565 |
21.3" | 25.5" |
| 72N-72 | 16.1 | 648 |
21.3" | 25.5" |
|

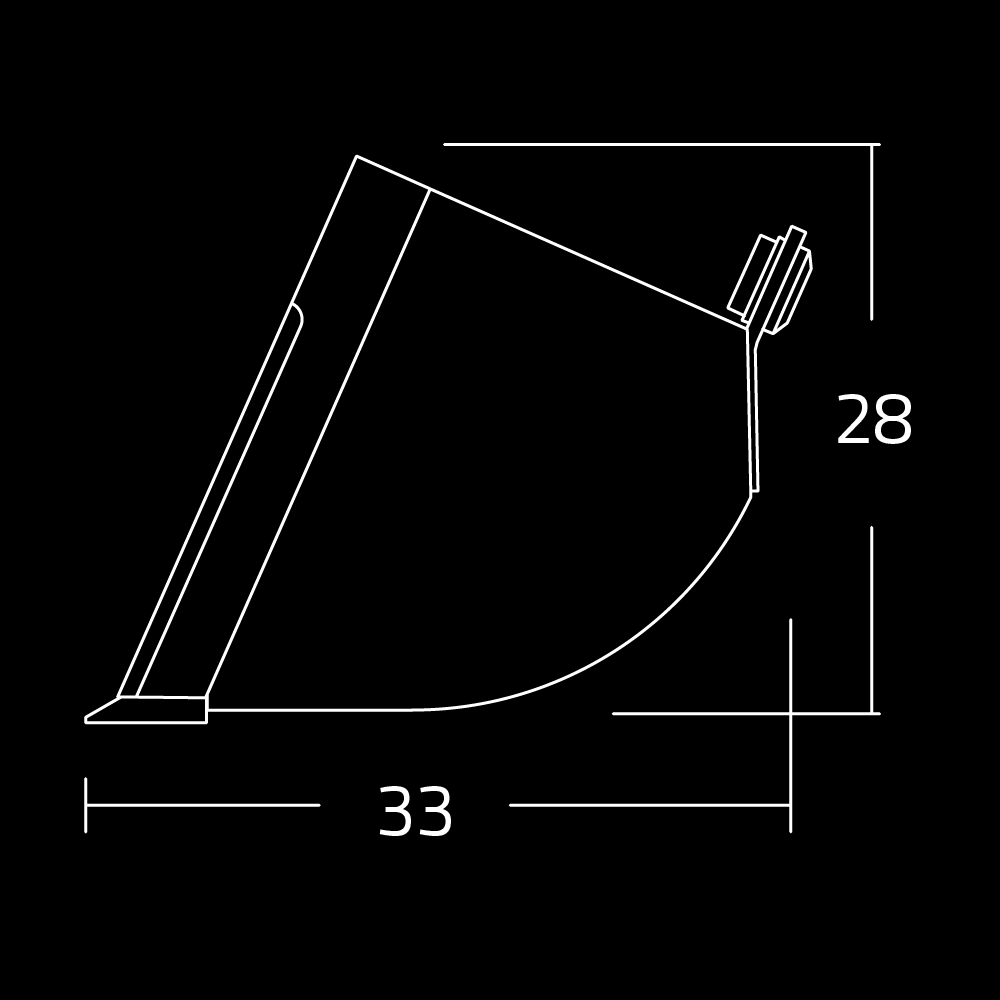

DITCHING & GRADING WAIN ROY XLS, ORIGINAL GANNON, TAG, CP |
CAPACITY | LBS | MOUTH OPENING | LENGTH |
| DG2-36 |
13.2 |
710 |
28" | 33" |
| DG2-48 |
18.1 | 740 |
28" | 33" |
| DG2-60 |
21.9 |
820 |
28" | 33" |
| MAKE | OVER 16,000 LBS |
| CAT |
|
| JCB |
|
| JOHN DEERE |
|
| MECALAC |
|
