CFX150DB36

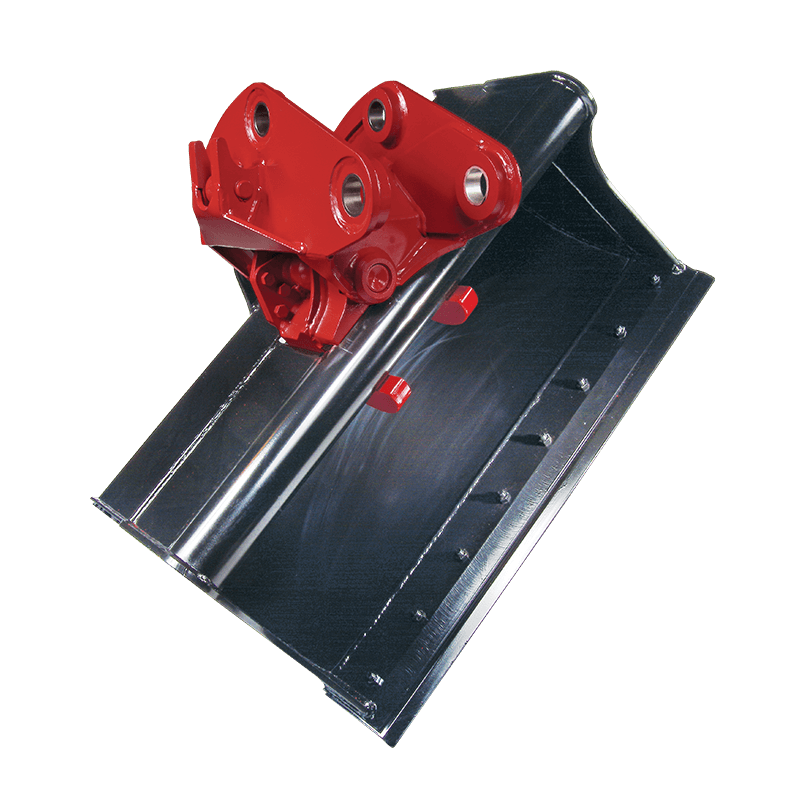

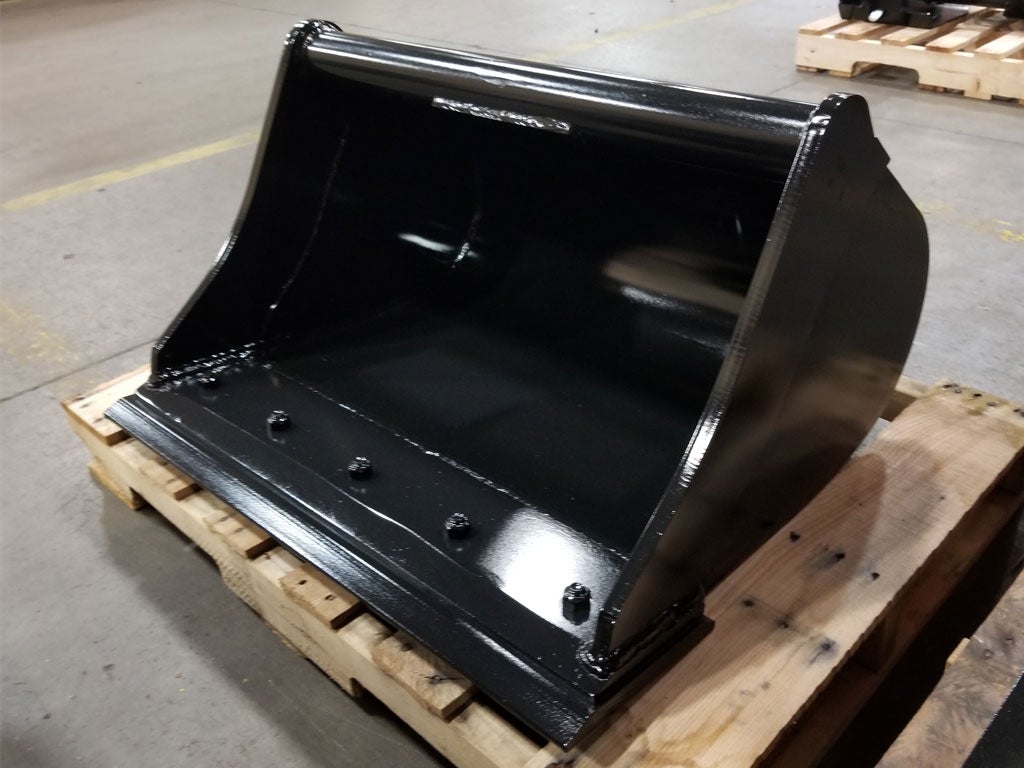

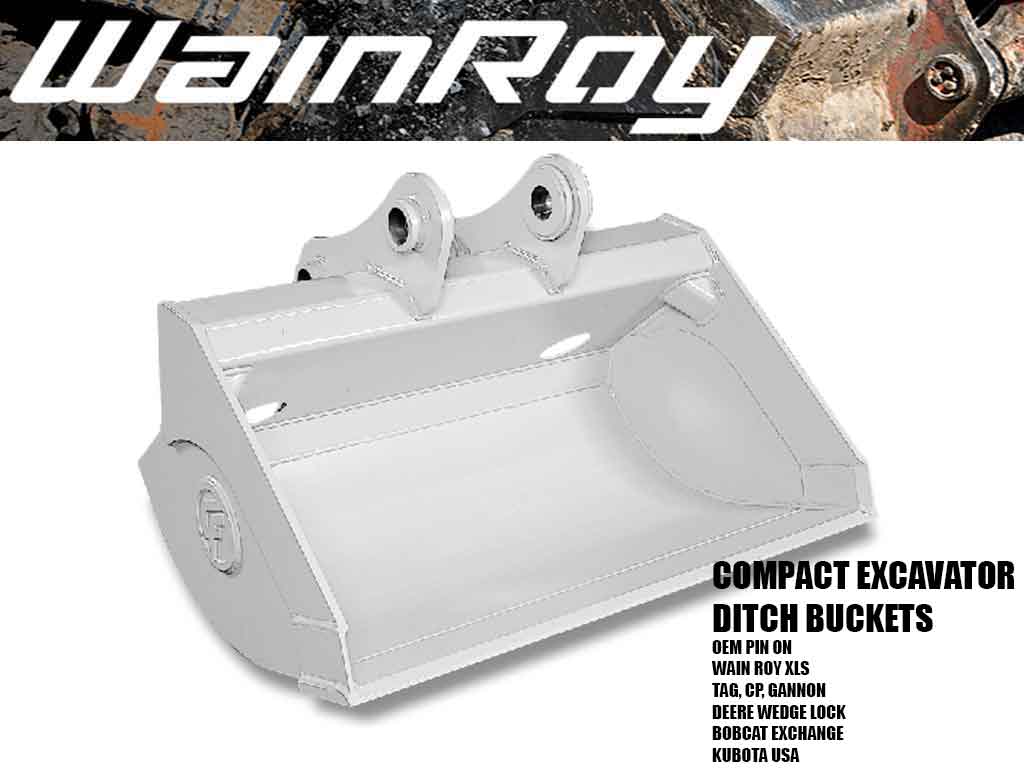

WAIN ROY ditching & grading buckets for excavators 30,000-41,000 lbs.

STYLE
MOUNTING
SIZE

4/24

WAIN ROY CFX150DB / CFX155DB

“X” Series buckets are designed for easy material flow when loading and unloading the bucket. The low profile bridge design allows excellent operator visibility. Internal struts and the back side of the ears attached to the double thickness bridge / moldboard provide superior strength and rigidity. Corner gussets provide strength and rigidity to the upper corners of the bucket with minimal interference to material flow. The front corners of the buckets feature a unique interlocking welded joint between the cutting edge and replaceable side cutter insert. The side cutter insert and cutting edge are notched to provide a larger, stronger, and more rigid attaching joint.

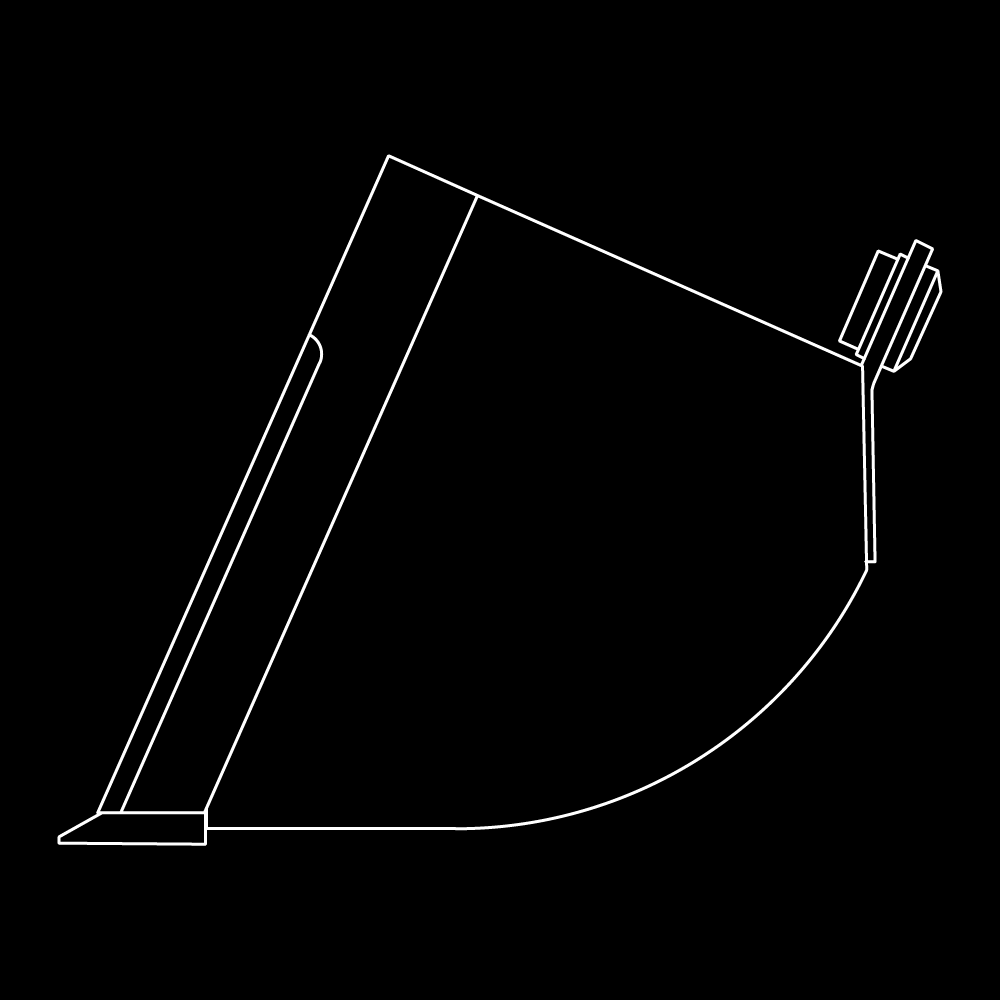

DG4

Ditching & Grading Buckets are used for ditch cleaning, grading, backfilling and loose material loading applications. They feature a wide and shallow tub design that offers a shorter tip radius allowing for the increased width without losing material penetration. Ditching & Grading buckets are ideal for use in sand, topsoil, and other loose or soft materials.



AVAILABLE MOUNTS DESCRIPTION
OEM PIN ON TWO HORIZONTAL PINS
WAIN ROY XLS HOOK WITH VERTICAL PIN



 DITCH CLEANING STD. CAPACITY CFX150DB
OEM PIN ON  CAPACITY (CU. YARD) LBS
36" .70 1100
42" .83 1232
48" .97 1354
54" 1.10 1475
60" 1.24 1595
66" 1.38 1719
72" 1.52 1840
84" 1.80 2390
DITCH CLEANING HIGH CAPACITY CFX155DB
OEM PIN ON  CAPACITY
LBS
42" .98 1379
48" 1.14 1513
54" 1.31 1649
60" 1.47 1783
66" 1.63 1918
72" 1.80 2050
78" 1.96 2188
84" 2.01 2421
DITCHING & GRADING DG4
WAIN ROY QC CAPACITY LBS
36" 0.50 1025
42" 0.60 1050
48" 0.75 1080
54" 0.87 1095
60" 1.00 1110
72" 1.13 1220


MAKE MODELS: 15 TON 30,000 - 41,000 LBS
CASE
  • 9020B, CX160, CX160B, CX160D
CAT
  • 315C L, 315D L, 316F L (2017), 318F, DX160, M315C, M316C, M318C
DOOSAN
  • DX180LC-5, DX18LC, DX190-W, S175LCV
HITACHI
  • EX150, ZX160LC, ZX160LC-3, ZX160LC-6, ZX180
HYUNDIA
  • HX160L, HX180, R160LC-9, R160LC-9A, R170W, R180LC-9
JCB
  • JS160, JS160LC, JS180, JS190
JOHN DEERE
  • 160C LC, 160D LC, 160G-LC, 180G-LC, 590D, 595D
KOBELCO
  • ED150BR, ED160-3 BLADE RUNNER, ED160-5 BLADE RUNNER, ED190BR, SK140SRLC-5, SK160LC, SK170LC, SK170LC-10
KOMATSU
  • PC138USLC-11, PC138USLC-8, PC160LC-7, PC160LC-8
LIEBHERR
  • A314, A316, A914 Litronic, R313, R317, R914 Compact Litronic
LINK BELT
  • 160 X2, 160 X3, 160 X4, 160X
LIUGONG
  • CLG915D, CLG915E
MECALAC
  • 15MC, 15MWR
NEW HOLLAND
  • E175B, EH160LC
TEREX
  • TS180SR, TW150, TW160, TW160SR, TW170, TW190, TW220, TXC140LC-2, TXC180LC-2
VERMEER
  • CX254
VOLVO
  • EC160B, EC160C, EC160C-LC, EC160E, EW160C, EW160E, EW180C, EWR150E, EWR170E
