WAIN ROY ditching & grading buckets for excavators 41,000-52,000 lbs.
WAIN ROY ditching & grading buckets for excavators 41,000-52,000 lbs.
WAIN ROY ditching & grading buckets for excavators 41,000-52,000 lbs.
WAIN ROY ditching & grading buckets for excavators 41,000-52,000 lbs.
WAIN ROY ditching & grading buckets for excavators 41,000-52,000 lbs.
WAIN ROY ditching & grading buckets for excavators 41,000-52,000 lbs.
WAIN ROY ditching & grading buckets for excavators 41,000-52,000 lbs.
WAIN ROY ditching & grading buckets for excavators 41,000-52,000 lbs.
WAIN ROY ditching & grading buckets for excavators 41,000-52,000 lbs.
WAIN ROY ditching & grading buckets for excavators 41,000-52,000 lbs.

CFX200DB35

WAIN ROY ditching & grading buckets for excavators 41,000-52,000 lbs.

$6,263.00 - $12,145.00

Business Financing Available

STYLE
MOUNTING
SIZE

4/24

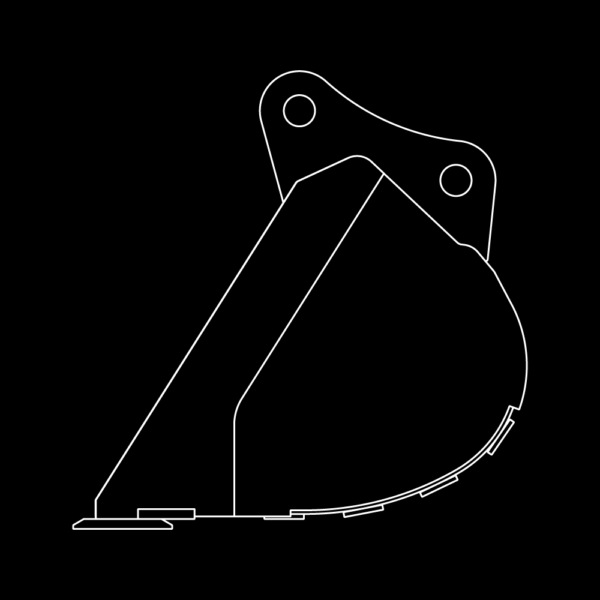

CFX200DB / CFX205DB

STANDARD/HIGH CAPACITY DITCH CLEANING PIN-ON EXCAVATOR BUCKET

Ditching & Grading Buckets are used for ditch cleaning, grading, backfilling and loose material loading applications. They feature a wide and shallow tub design that offers a shorter tip radius allowing for the increased width without losing material penetration. Ditching & Grading buckets are ideal for use in sand, topsoil, and other loose or soft materials.

DG5

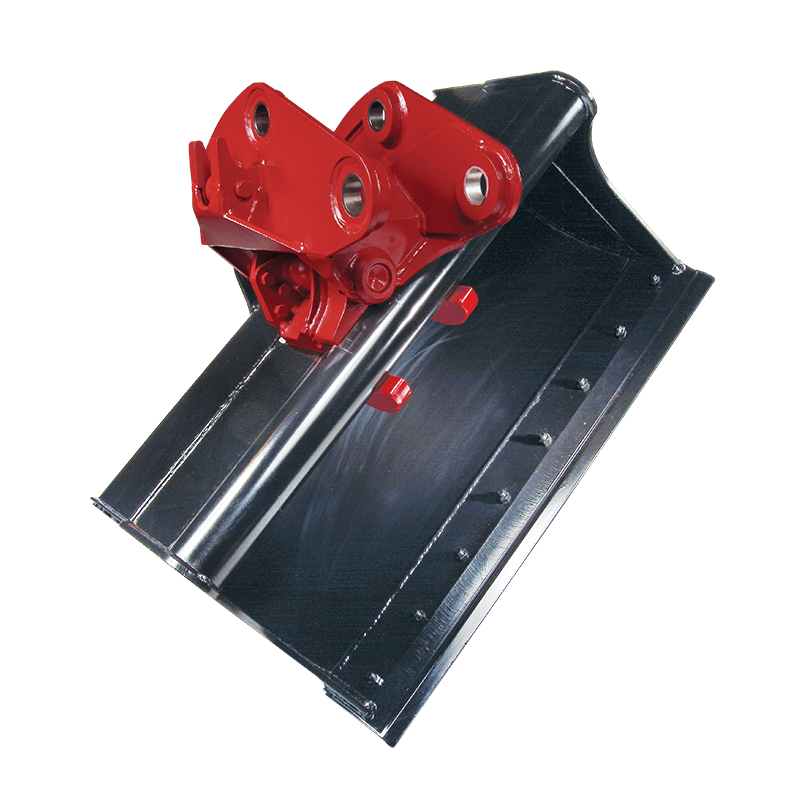

WAIN-ROY® QUICK CHANGE XLS AND ORIGINAL DITCHING AND GRADING EXCAVATOR BUCKET

Ditching & Grading Buckets are used for ditch cleaning, grading, backfilling and loose material loading applications. They feature a wide and shallow tub design that offers a shorter tip radius allowing for the increased width without losing material penetration. Ditching & Grading buckets are ideal for use in sand, topsoil, and other loose or soft materials.



AVAILABLE MOUNTS DESCRIPTION
OEM PIN ON TWO HORIZONTAL PINS
WAIN ROY XLS HOOK WITH VERTICAL PIN



 DITCH CLEANING STD. CAPACITY CFX200DB
OEM PIN ON  CAPACITY (CU. YARD) LBS
36" .70 1117
42" .83 1239
48" .97 1360
54" 1.10 1482
60" 1.24 1601
66" 1.38 1725
72" 1.52 1846
84" 1.80 2180
DITCH CLEANING HIGH CAPACITY CFX205DB
OEM PIN ON  CAPACITY
 LBS
42" .98 1397
48" 1.14 1532
54" 1.31 1667
60" 1.47 1801
66" 1.63 1936
72" 1.80 2068
78" 1.96 2206
84" 2.01 2440
DITCHING & GRADING DG5
WAIN ROY QC CAPACITY LBS
42" 0.60 1050
48" 0.75 1080
54" 0.87 1095
60" 1.00 1110
72" 1.13 1220


MAKE MODELS: 20 TON 41,000 - 52,000 LBS
CASE
  • 9030B, CX210B, CX210D, CX225 MSR
CAT
  • 319D L, 319D LN, 320, 320 GC, 320 UTIL, 320C, 320C L ME, 320CL SLR, 320D L, 320D LRR, 321D LCR, 323, B-link, M322C
DOOSAN
  • DX190W-5, DX210W, DX210W-5, DX210WMH-5, DX225LC, DX235
HITACHI
  • ZX190W-3, ZX190W-6, ZX200LC, ZX200LC-3, ZX210-6, ZX210LC-6, ZX220W-3, ZX225USLC, ZX225USLC-3, ZX245
HYUNDIA
  • HW210, HX220L, R210C-7LR, R210LC-7, R210LC-9, R210W-9, R210W-9A, R220LC-9A, R235
JCB
  • JS220, JS220LC, JS220LR, JS220XD
JOHN DEERE
  • 180CW, 180DW, 190D W, 190G W, 200C LC, 200D, 200D LC, 210CW, 210G LC, 220D W, 225C LCRTS, 225D LC, 245G LC, 690D, 690E
KOBELCO
  • ED195BR, SK210LC, SK210LC-10, SK210LC-LR
KOMATSU
  • PC170LC-11, PC200-7, PC200LC HD, PC200LC-7, PC200LC-8, PC228USLC-3, PC228USLC-8
LIEBHERR
  • A 918 Compact Litronic, A900C, A900C-ZW, A904C, A914C, A918 Litronic, A924C, R317, R900C, R906-A/C, R916 AC, R918 Litronic, R920 Compact Litronic
LINK BELT
  • 210 X2, 210 X2 Long Front, 210 X3, 210 X4, 210LX, 225MSR
LIUGONG
  • CLG922D
NEW HOLLAND
  • E215B, EH215LC
SANY
  • SY215CLC
TEREX
  • TC210C, TC225LC, TC240LC, TW220, TXC225LC-2
VOLVO
  • EC210B, EC210B-LC, EC210B-NLC, EC210C, EC210C-LR, ECR235C, EW180C, EW180E, EW210D, EW230C, EX210C
