CFX250DB42

WAIN ROY ditching & grading buckets for excavators 52,000-65,000 lbs.

STYLE
MOUNTING
SIZE

CFX250DB / CFX255DB

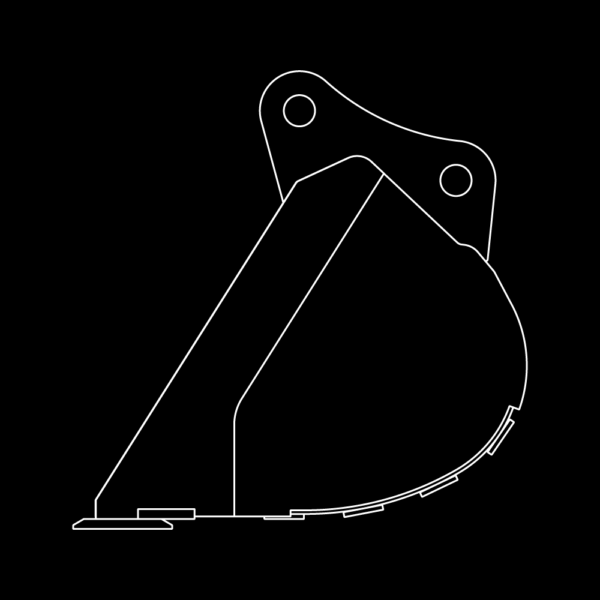

STANDARD/HIGH CAPACITY DITCH CLEANING PIN-ON EXCAVATOR BUCKET

Ditching & Grading Buckets are used for ditch cleaning, grading, backfilling and loose material loading applications. They feature a wide and shallow tub design that offers a shorter tip radius allowing for the increased width without losing material penetration. Ditching & Grading buckets are ideal for use in sand, topsoil, and other loose or soft materials.

DG6

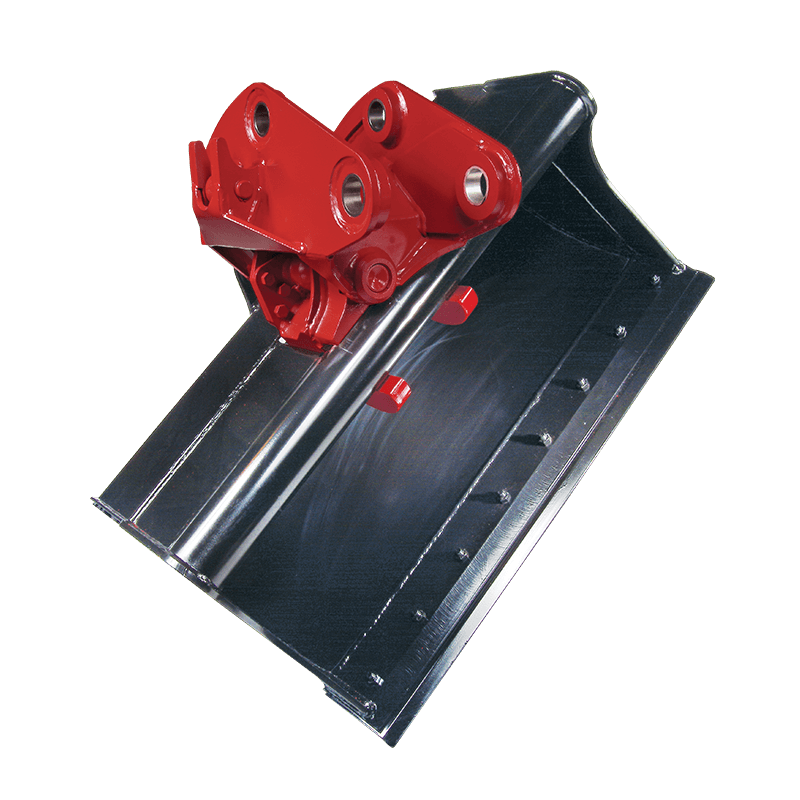

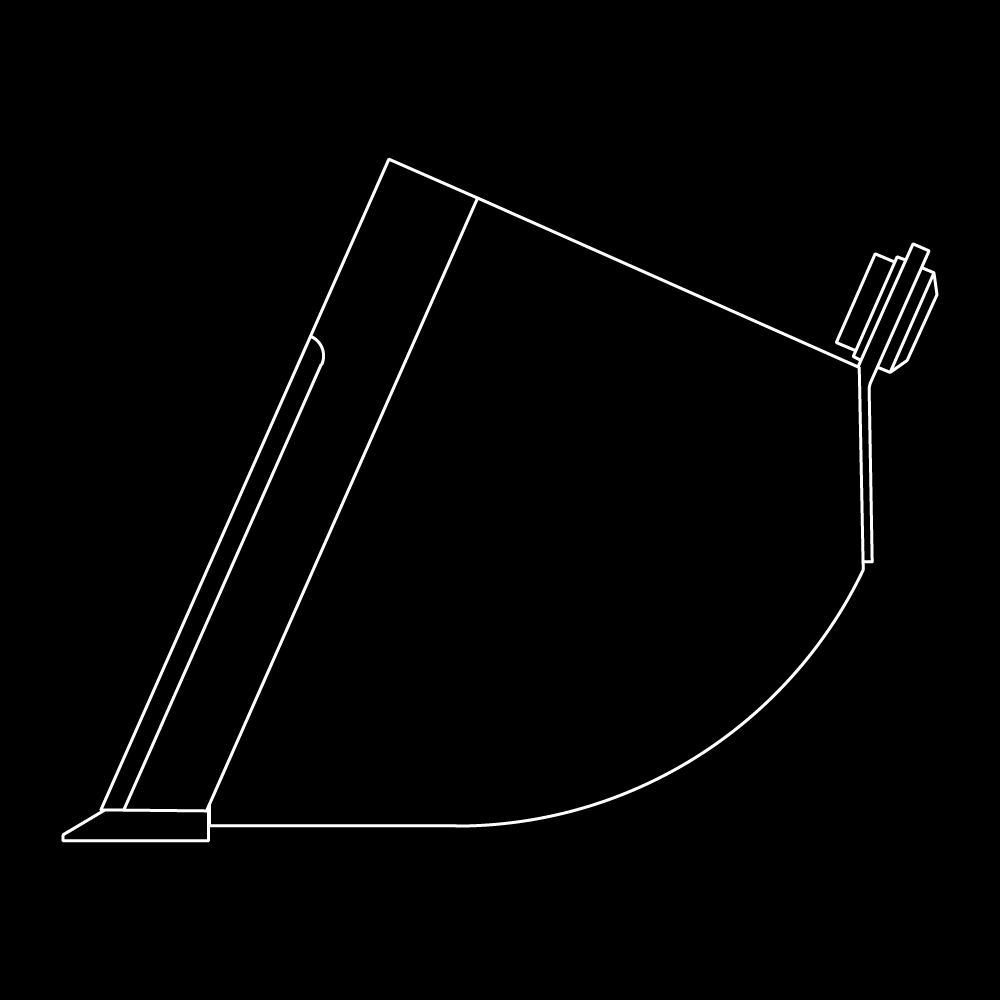

WAIN-ROY® QUICK CHANGE XLS AND ORIGINAL DITCHING AND GRADING EXCAVATOR BUCKET

Ditching & Grading Buckets are used for ditch cleaning, grading, backfilling and loose material loading applications. They feature a wide and shallow tub design that offers a shorter tip radius allowing for the increased width without losing material penetration. Ditching & Grading buckets are ideal for use in sand, topsoil, and other loose or soft materials.

*** CALL FOR PRICING ON DG6 MODEL

AVAILABLE MOUNTS DESCRIPTION
OEM PIN ON TWO HORIZONTAL PINS
WAIN ROY XLS HOOK WITH VERTICAL PIN



 DITCH CLEANING STD. CAPACITY CFX250DB
OEM PIN ON  CAPACITY (CU. YARD) LBS
42" .98 1431
48" 1.14
1566
54" 1.31
1701
60" 1.47
1835
66" 1.63
1971
72" 1.80
2102
78" 1.96 2240
84" 2.01
2474
DITCH CLEANING HIGH CAPACITY CFX255DB
OEM PIN ON  CAPACITY
LBS
48" 1.28
1725
54" 1.47
1875
60" 1.65
2024
66" 1.84
2175
72" 2.02
2324
78" 2.21
2474
84" 2.39
2741
96" 2.57 3050
DITCHING & GRADING DG6
WAIN ROY QC CAPACITY LBS
48" 0.75 1080
60" 1.00 1110
66" 1.15
1165
72" 1.23
1220
84" 1.45 1340
MAKE MODELS: 25 TON 52,000 - 65,000 LBS
CASE
  • 9040B, CX235C SR, CX240B, CX245D SR, CX250D, CX290B, CX300D
CAT
  • 321C LCR, 322C L, 322C L ME, 322C L SLR, 324D L, 325C, 325C L ME, 325D L, 325F L (2017), 328, 329D L, CB-link
DOOSAN
  • DX225LC, DX255LC-5
HITACHI
  • ZX230LC, ZX240LC-3, ZX250LC-3, ZX250LC-6, ZX270LC-3, ZX300LC-6, ZX345USLC-6
HYUNDIA
  • HX260L, R250LC-7, R260LC-9A, R290LC-7A, R290LC-7LR, R290LC-9, RC250LC-7A, RC250LC-9
JCB
  • JS240, JS260, JS260LC, JS260XD, JS290
JOHN DEERE
  • 230C LC, 240D LC, 250G LC, 270C LC, 270C SLF, 270D LC, 290G, 300G LC, 345GC, 790D, 790E
KOBELCO
  • 215SR, 235SR, 235SRLC, SK230RLC-5, SK240, SK250LC-DA, SK250LC-LR, SK260LC, SK260LC-10, SK270SRLC-5
KOMATSU
  • PC210LC-10 SLF, PC210LC-11, PC220LC-7, PC220LC-8, PC240LC-10 SLF, PC240LC-11, PC270LC-7, PC270LC-8, PC308USLC-3
LIEBHERR
  • A924 Heavy Lift Litronic, A924 Litronic, A924 Plus, A924C, R906 A/C, R914C, R916 A/C, R924 Compact, R926, R926 A/C, R926 Compact Litronic, R926 Litronic
LIUGONG
  • CLG922E, CLG925D, CLG925E, CLG925LL
SANY
  • SY235C
TEREX
  • TC260LC, TXC255LC, TXC255LC-2
VOLVO
  • EC220E, EC240B-LC, EC240B-LR, EC240C, EC250E, EC290B-LC, EC290B-LR, EC290C, ECR235E, EW220E, EW230C, EW240E
