WAIN ROY

HA15E

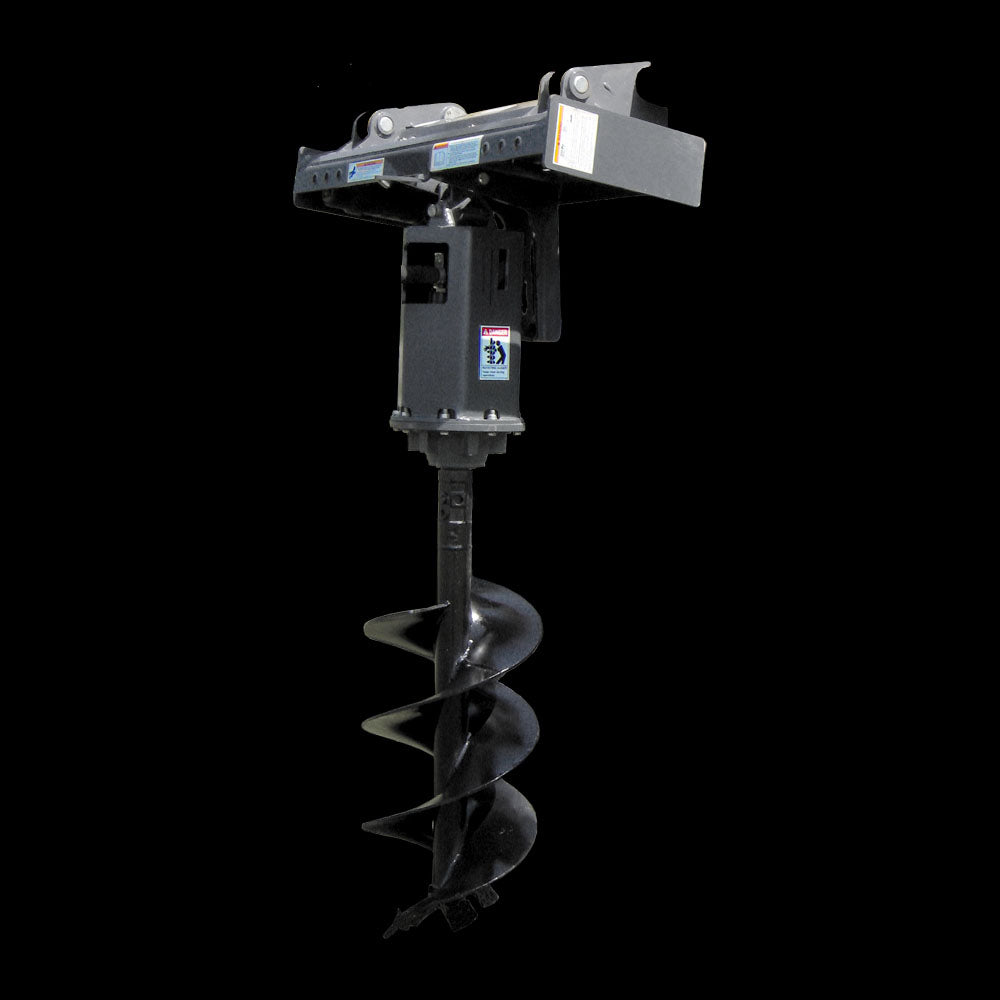

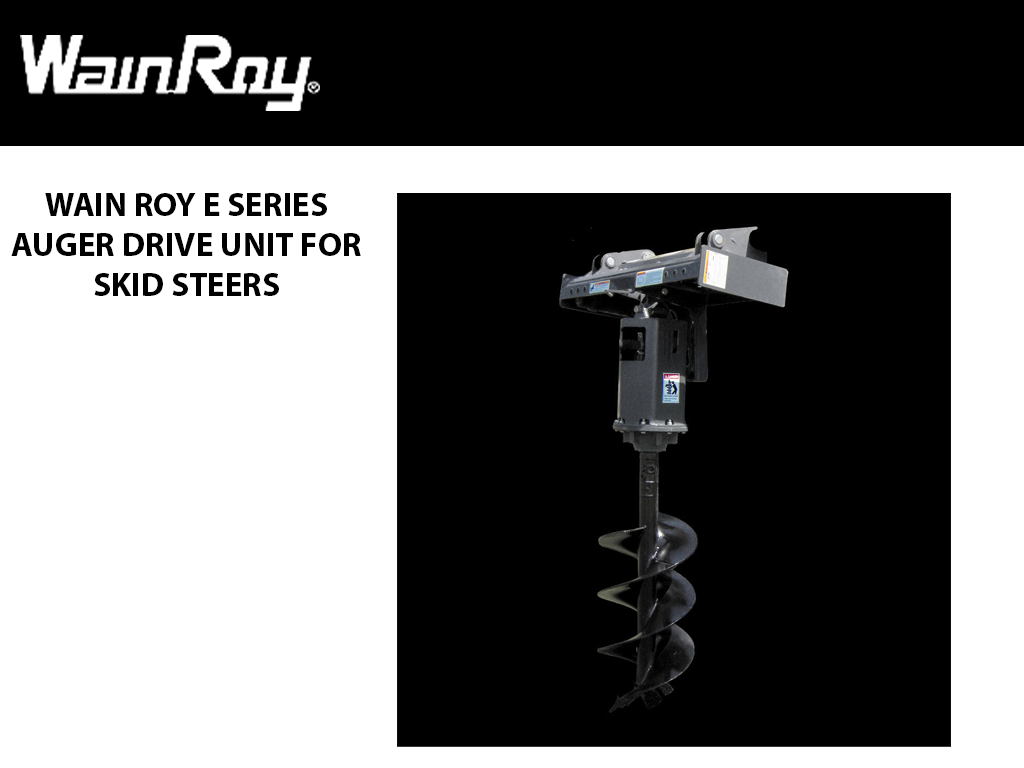

WAIN ROY E-Series Auger drive unit for Skid steers

MODEL

E-SERIES AUGER DRIVE UNIT

PLANETARY DRIVE – SKID STEER MOUNTED

FEATURES

  • Skid Steer (SAE J2513) Quick Attach System
  • Hydraulic drive unit
  • 2-inch hex output shaft
  • 2-9/16-inch round output shaft
  • Hydraulic hoses and QD couplers (per ISO standard 16028) included on HA15 & HA20 models
  • Hydraulic hoses included on HA30 & HA35 models
  • All auger bit diameters are suitable for each auger model
  • Welded to American Welding Society standards
  • Shipped fully assembled
    MODEL  CASE DRAIN OUTPUT FLOW RANGE (GPM) PRESSURE RANGE (PSI) LBS
    HA15E NO HEX 15-25 1500-3750 329
    HA20E NO HEX 20-30 1500-3750 344
    HA20ER NO ROUND 20-30 1500-3750 337
    HA30E YES HEX 30-40 1500-5000 490
    HA35E YES HEX 35-45 1500-5000 495
