WAIN ROY Trenching / Straight Wall Buckets for Tractor Loader Backhoes Over 16000 lbs.
$2,858.00 - $3,538.00
WAIN ROY TRENCHING / STRAIGHT WALL BUCKETS

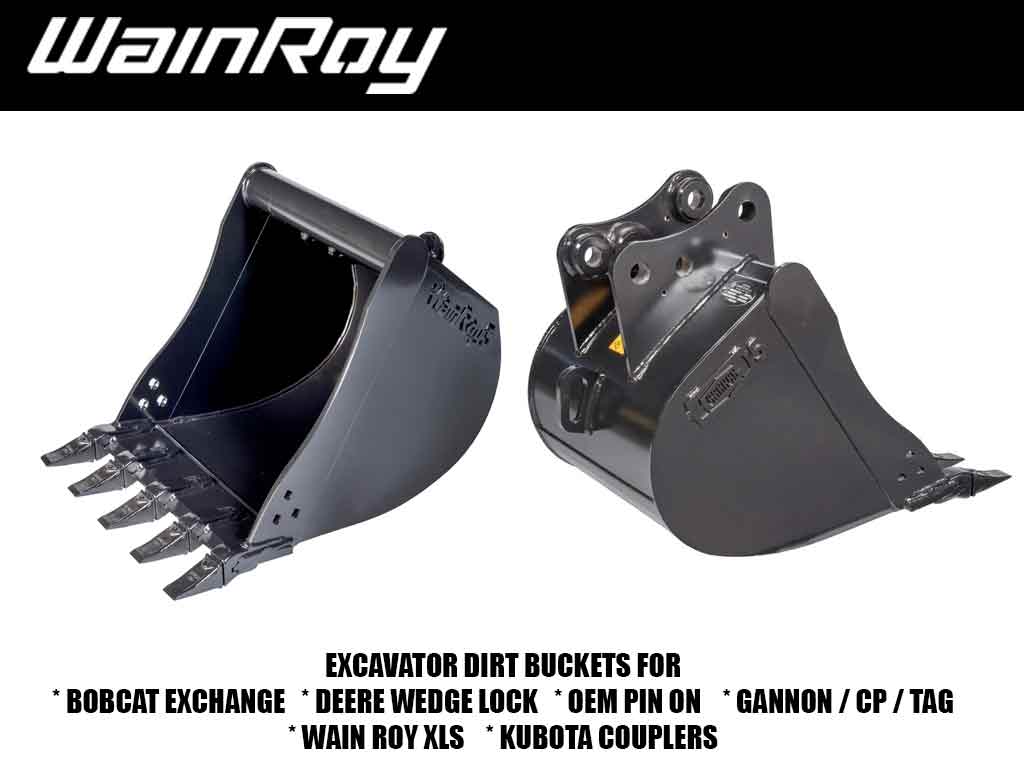

Wain-Roy CEX Series Heavy-Duty Buckets “We Are The Original” when it comes to heavy-duty buckets for excavators and backhoes. The CEX Series buckets have a rugged, full-length double bottom design and side wear bars for uniform strength and durability. They are tapered to ensure maximum fill and quick, easy dumping and are available in pin-on and quick-change versions. A lifting lug is included on all pin-on buckets and straight or saw-tooth replaceable bolt-on side cutters are a great option.
| AVAILABLE MOUNTS | DESCRIPTION | |
| OEM PIN ON | TWO HORIZONTAL PINS |  |
| WAIN ROY XLS | HOOK WITH VERTICAL PIN |  |
|
GANNON ELIMINATOR / TAG / CP / WR ORIGINAL |
HOOK WITH VERTICAL PIN |  |
|
HEAVY-DUTY OEM PIN ON |

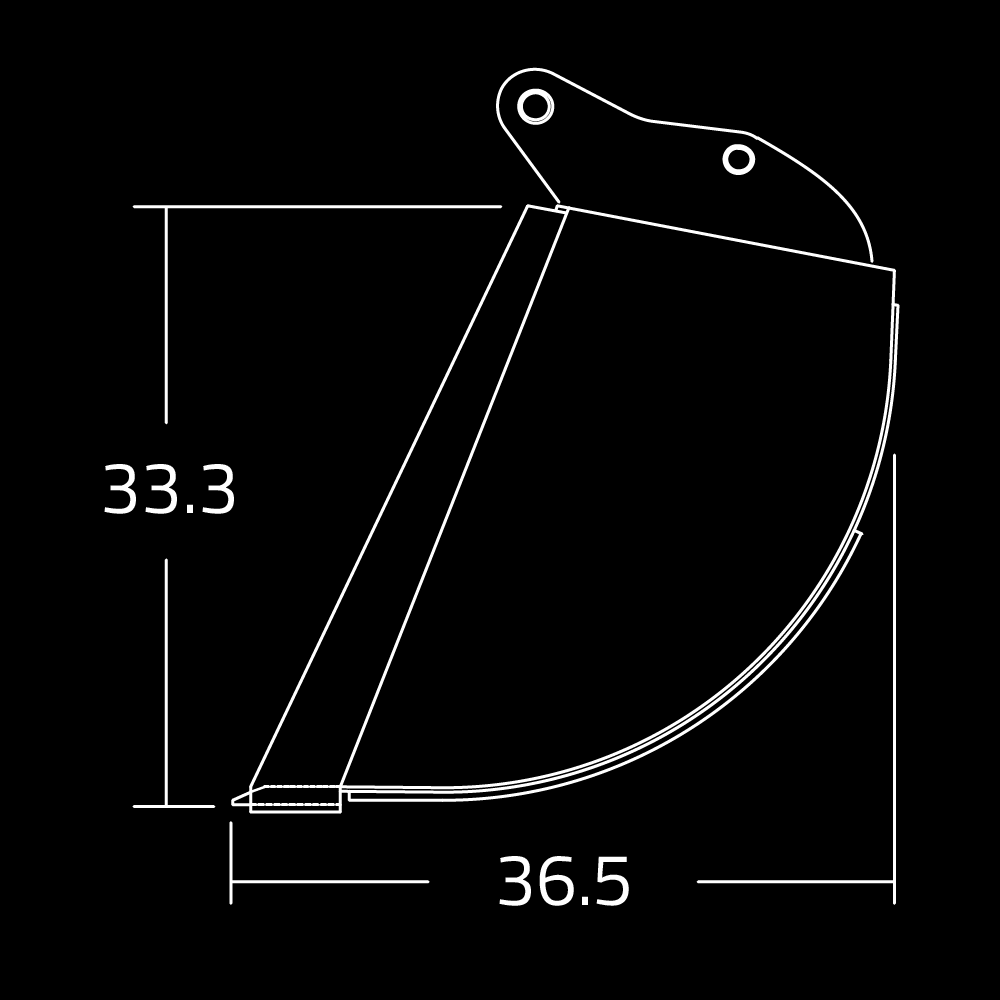

CAPACITY | LBS | NO. TEETH | HEIGHT | LENGTH |
| 28-12 |
4.5 |
410 |
3 |
33.3" |
36.5" |
| 28-16 |
5.9 |
450 |
3 |
33.3" | 36.5" |
| 28-18 | 6.7 |
470 |
3 |
33.3" | 36.5" |
| 28-24 | 10.0 |
530 |
4 | 33.3" | 36.5" |
| 28-30 | 13.4 |
610 |
5 |
33.3" | 36.5" |
| 28-36 | 16.9 |
675 |
6 |
33.3" | 36.5" |
| MAKE | OVER 16,000 LBS |
| CAT |
|
| JCB |
|
| JOHN DEERE |
|
| MECALAC |
|
