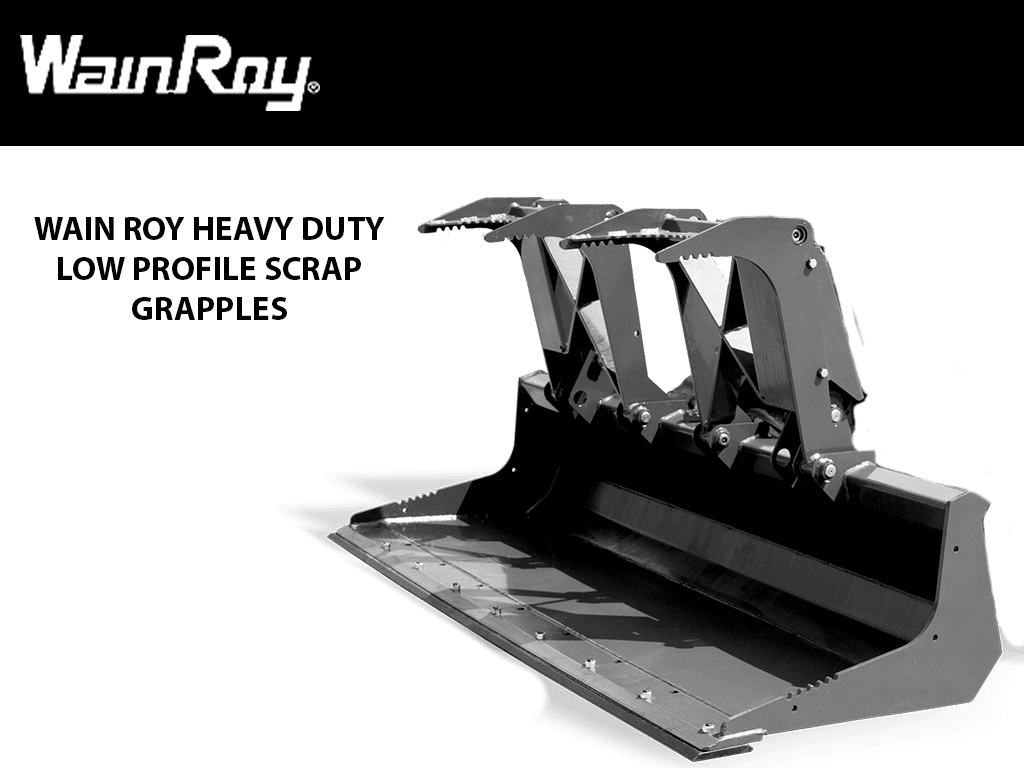

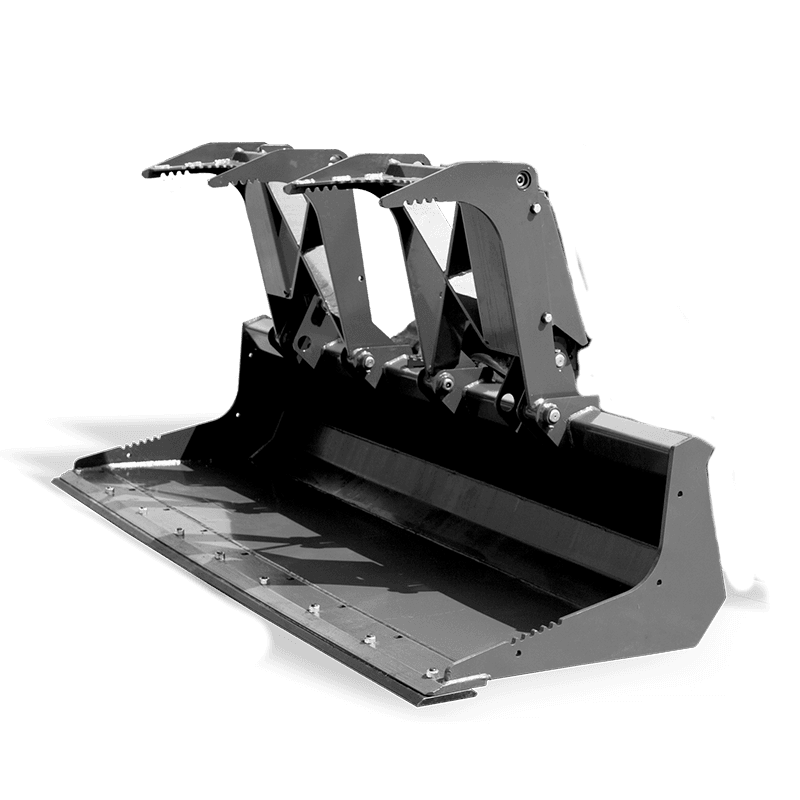

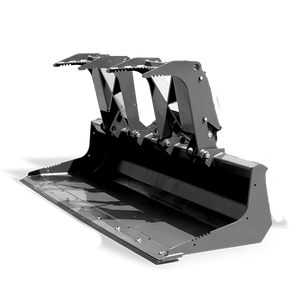

WAIN ROY Heavy Duty Low Profile Scrap Grapples for skid steers

SIZE

HLSG-SERIES

HEAVY-DUTY, LOW-PROFILE QUICK ATTACH SCRAP GRAPPLE

FEATURES

  • Skid Steer (SAE J2513) Quick Attach System
  • Made with grade 80 steel – 2x stronger than mild steel – reducing the weight but maintaining the strength required for any skid steer or tractor application
  • Single, beveled cutting edge with back-up bar
  • Twin hydraulic cylinders allow for independent clamping on uneven material while cylinder placement improves visibility
  • Cylinder stroke control standard for long cylinder life
  • Cylinder guards standard, protecting rods and hoses for longer life
  • Optional bolt-on, double beveled edge and end plate extensions enhance versatility
  • Greasable Pivots
  • Hydraulic hoses and QD couplers (per ISO 16028) included
  • SAE Rated Operating Capacity: up to 4800 lbs.
  • Length: 35”; Height: 27”
  • Grapple Opening: 39”; Grapple Width: 19”
  • Cylinder Bore: 2.76”; Cylinder Rod: 1.38”
  • Pivot Pins: 1.25”
  • Clamping Force per Grapple: 3,000 lbs. @ 3,000 psi
    ROOT GRAPPLE WIDTH HEAPED CAPAITY CU. FT.) LBS
    HLSG66 66" 15.1
    773
    HLSG73 73" 16.9
    823
    HLSG78 78" 18.1
    873
    HLRG84 84" 19.5
    923
