Wain-Roy CEX Series Heavy-Duty Buckets “We Are The Original” when it comes to heavy-duty buckets for excavators and backhoes. The CEX Series buckets have a rugged, full-length double bottom design and side wear bars for uniform strength and durability. They are tapered to ensure maximum fill and quick, easy dumping and are available in pin-on and quick-change versions. A lifting lug is included on all pin-on buckets and straight or saw-tooth replaceable bolt-on side cutters are a great option.
| AVAILABLE MOUNTS | DESCRIPTION | |
| OEM PIN ON | TWO HORIZONTAL PINS |  |
| WAIN ROY XLS | HOOK WITH VERTICAL PIN |  |
|
GANNON ELIMINATOR / TAG / CP / WR ORIGINAL |
HOOK WITH VERTICAL PIN |  |
|

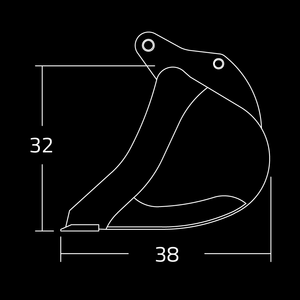

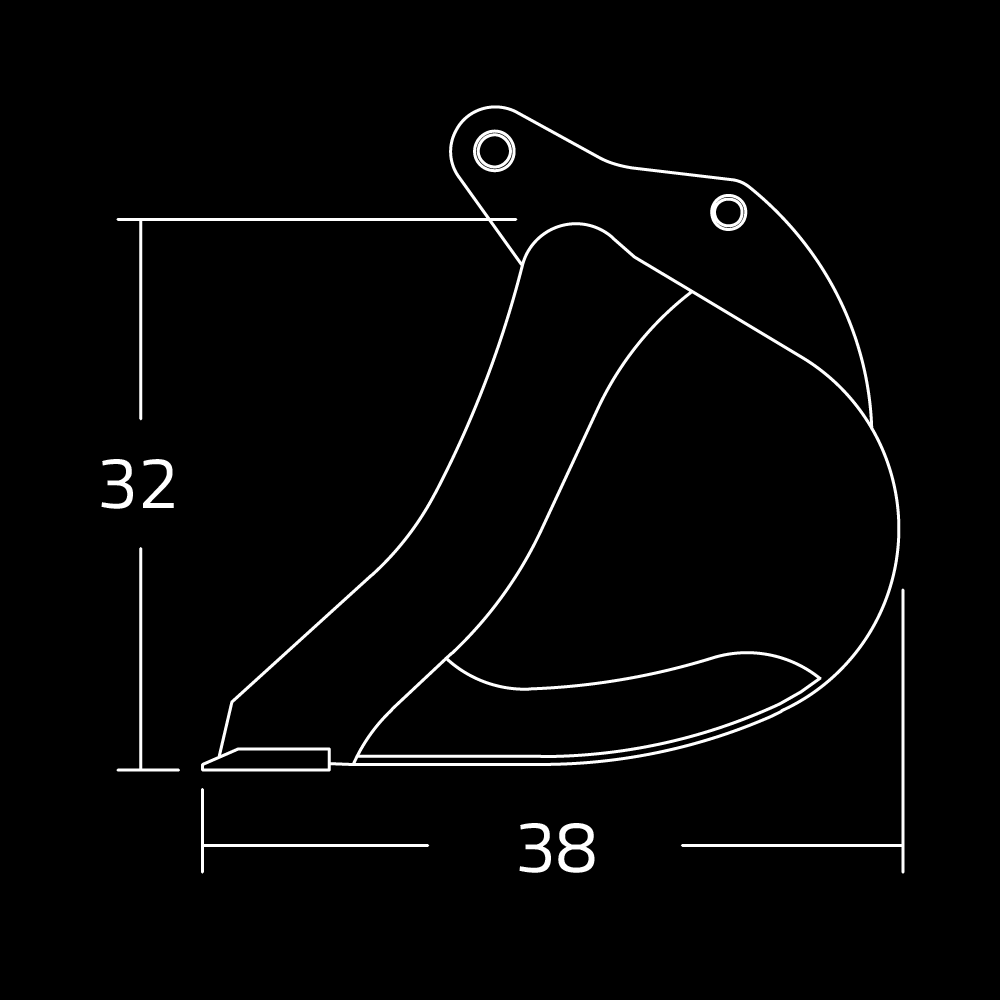

HEAVY-DUTY OEM PIN ON |
CAPACITY | LBS | NO. TEETH | HEIGHT | LENGTH |
| HD2PO-16 |
7.3 |
547 |
3 |
32" |
38" |
| HD2PO-18 |
8.1 |
592 |
3 |
32" | 38" |
| HD2PO-24 | 12.4 |
708 |
4 |
32" | 38" |
| HD2PO-30 | 15.9 |
819 |
5 |
32" | 38" |
| HD2PO-36 | 19.4 |
896 |
6 |
32" | 38" |
| HD2PO-42 | 23.2 |
1058 |
6 |
32" | 38" |
| HD2PO-48 | 27.3 | 1086 | 8 | 32" | 38" |
|

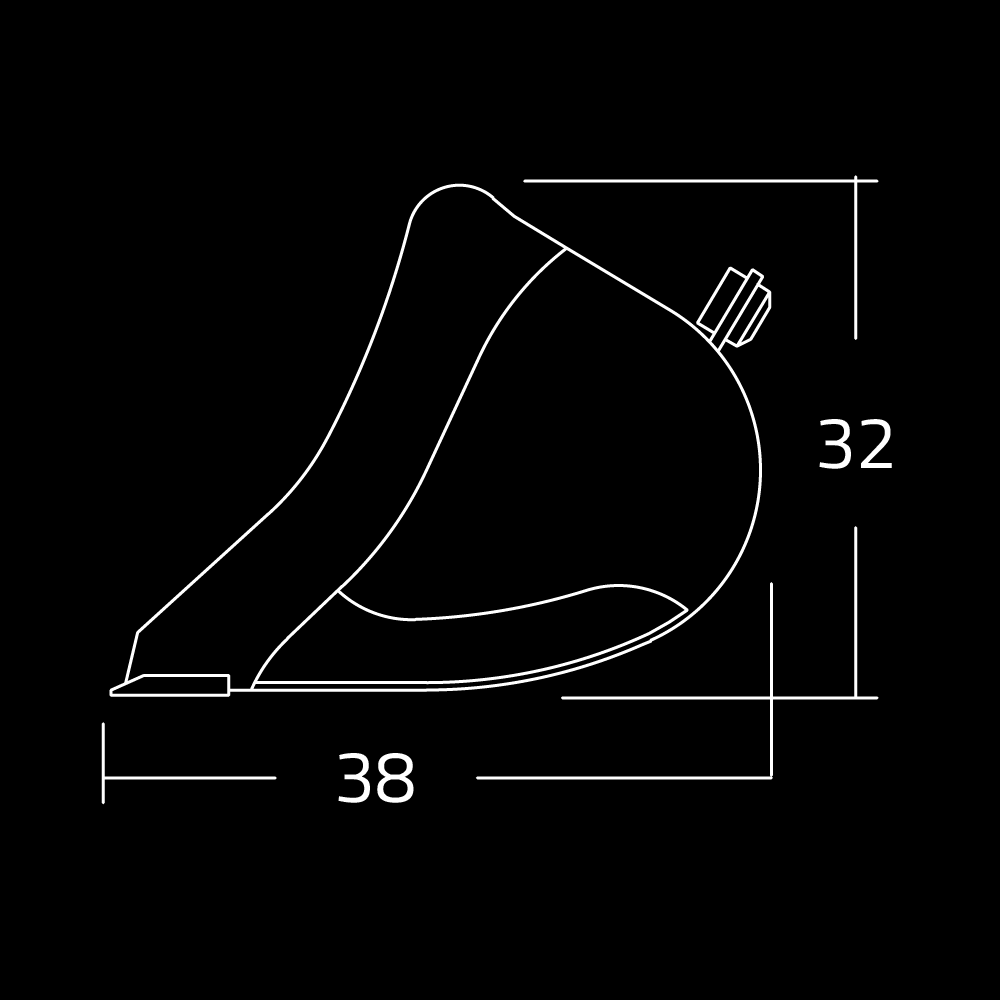

HEAVY-DUTY WAIN ROY XLS, ORIGINAL, GANNON, TAG, CP |
CAPACITY | LBS | NO. TEETH | HEIGHT | LENGTH |
| HD2QC-16 | 7.3 |
535 |
3 |
32" | 38" |
| HD2QC-18 | 8.1 |
575 |
3 |
32" | 38" |
| HD2QC-24 | 12.4 |
685 |
4 |
32" | 38" |
| HD2QC-30 | 15.9 |
785 |
5 |
32" | 38" |
| HD2QC-36 | 19.4 |
860 |
6 |
32" | 38" |
| HD2QC-42 | 23.2 | 939 | 6 | 32" | 38" |
| HD2QC-48 | 27.3 | 1015 | 8 | 32" | 38" |
| MAKE | OVER 16,000 LBS |
| CAT |
|
| JCB |
|
| JOHN DEERE |
|
| MECALAC |
|
