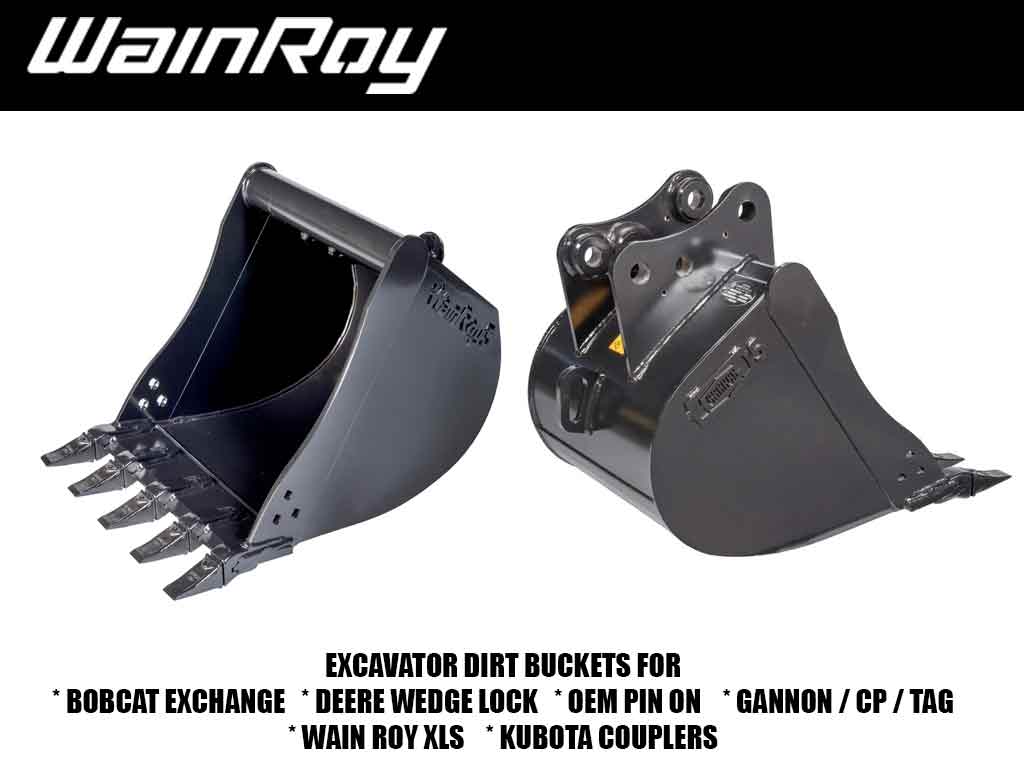

WAIN ROY Severe Duty Dirt Buckets for Tractor Loader Backhoes up to 16000 lbs.

Style
MOUNTING
Size

SEVERE DUTY PIN-ON TRACTOR LOADER BACKHOE BUCKETS

Wain Roy Severe-Duty Buckets are specially designed for durability in severe abrasion applications and high impact conditions. SD buckets incorporate high strength materials and heavier material thickness for extended bucket life, structural strength and durability. SD buckets are also available in high capacity versions.



AVAILABLE MOUNTS DESCRIPTION
OEM PIN ON TWO HORIZONTAL PINS
WAIN ROY XLS HOOK WITH VERTICAL PIN

GANNON ELIMINATOR /

TAG / CP / WR ORIGINAL

HOOK WITH VERTICAL PIN

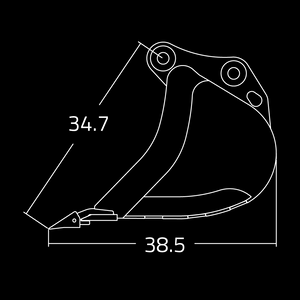

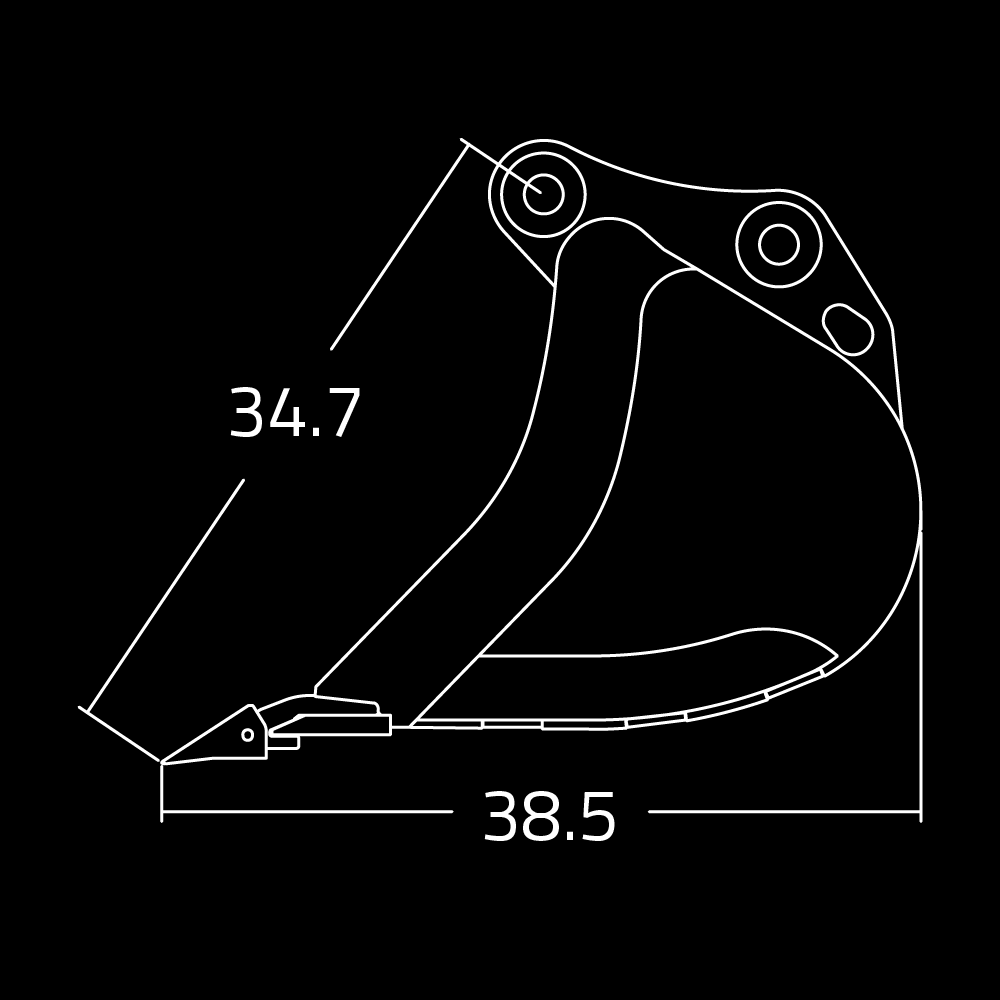

SEVERE DUTY

OEM PIN ON

CAPACITY LBS NO. TEETH MOUTH OPENING  LENGTH
SD1PO-12 3.3
321
3
34.7" 38.5"
SD1PO-16 4.2
357
4 34.7" 38.5"
SD1PO-18 5.0
375
4
34.7" 38.5"
SD1PO-24 7.2 434
5
34.7" 38.5"
SD1PO-30 9.5 483
5
34.7" 38.5"
SD1PO-36 11.8
547
6
34.7" 38.5"

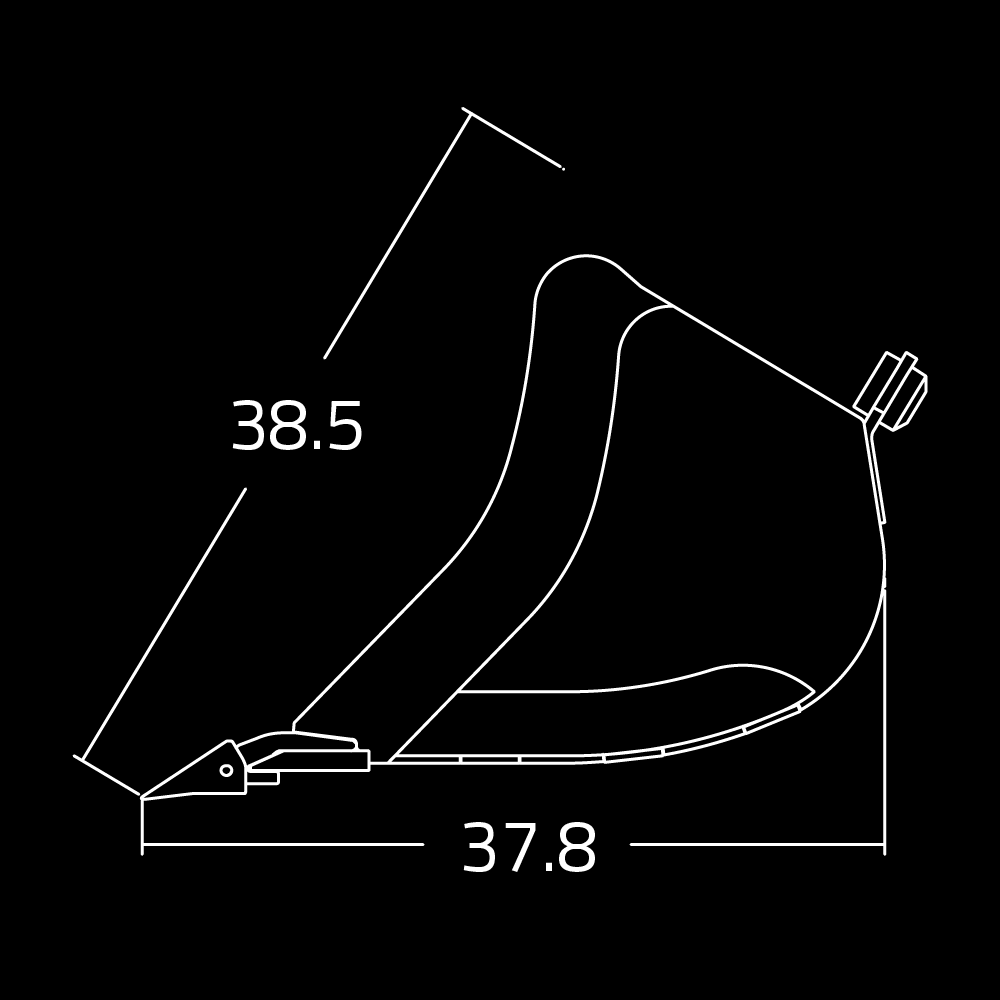

SEVERE DUTY

WAIN ROY XLS, ORIGINAL

GANNON , TAG, CP

CAPACITY LBS NO. TEETH MOUTH OPENING LENGTH
SD1QC-12 3.3
281
3
38.5" 37.8"
SD1QC-16 4.2
317
3
38.5" 37.8"
SD1QC-18 5.0
335
4
38.5" 37.8"
SD1QC-24 7.2
389
5
38.5" 37.8"
SD1QC-30 9.5
443
5
38.5" 37.8"
SD1QC-36 11.8
497
6
38.5" 37.8"

SEVERE DUTY

DEERE STYLE

CAPACITY
LBS. NO. TEETH MOUTH OPENING  LENGTH
81M-12 3.5 367 3 27.1" 34.5"
81M-16 4.5 415 4 27.1" 34.5"
81M-18 4.9 437 4 27.1" 34.5"
81M-24 7.4 488 5 27.1" 34.5"
81M-30 9.8 555 6 27.1" 34.5"
81M-36 12.3 605 7 27.1" 34.5"
MAKE UP TO 16,000 LBS.
CASE
  • 580 Series 3, 580 Super M Series 2, 580 Super M Series 3, 580 Super M+ Series 2, 580 Super M+ Series 3, 580 Super N, 580 Super N WT, 580 Turbo Series 2, 580L, 580M, 580M Series 2, 580N, 580N EP, 580SL, 580SM, 590 SL, 590 Super M Series 3, 590 Super M+ Series 3, 590 Super N, 590M Super M+ Series 3, 590SM
CAT
  • 415F2, 415F2 IL, 416B, 416C, 416D, 416E, 416F2, 420D, 420D-IT, 420E, 420E-IT, 420FX/420FX IT, 426B, 426C, 428, 430D, 430E, 430E-IT, 430FX/430FX IT, 436B, 436C, 4630D-IT
JCB
  • 3C 14, 3C LL, 3CX, 3CX-14, 3CX-14 SUPER
JOHN DEERE
  • 310J, 310L Backhoe, 310L EP Backhoe, 310SJ, 310SJ TMC, 310SJ TMC Tool Carrier, 310SL Backhoe, 310SL HL Backhoe, 315SJ, 315SL Backhoe, 410J, 410J TMC Tool Carrier, 410L Backhoe, 410SJ TMC
KOMATSU
  • W70A, WB140, WB142-5, WB146-5, WB146PS-5, WB150, WB156PS-5, WB91, WB93, WB93R-5, WB93R-8, WB93S-5, WB97, WB97R-5, WB97S-5, WB98
NEW HOLLAND
  • 555B, 555C, 555E, 575E, 655A, 655C, 655E, 675E, B110, B110B, B110C, B115B, B90B, B95, B95B, B95B LR, B95B TC, B95C, B95C LR, B95C TC, B95LR, B95TC, BL110B, LB110, LB1156, LB115B, LB75, LB75B, LB90, LB90B
VOLVO
  • BL60, BL60B, BL61, BL61 Plus, BL61B, BL70B, BL71, BL71 Plus, BL71B, PL70
