WAIN ROY High Capacity Dirt Buckets for Tractor Loader Backhoes Over 16000 lbs.

Style
MOUNTING
Size

WAIN ROY HIGH CAPCITY DIRT BUCKETS

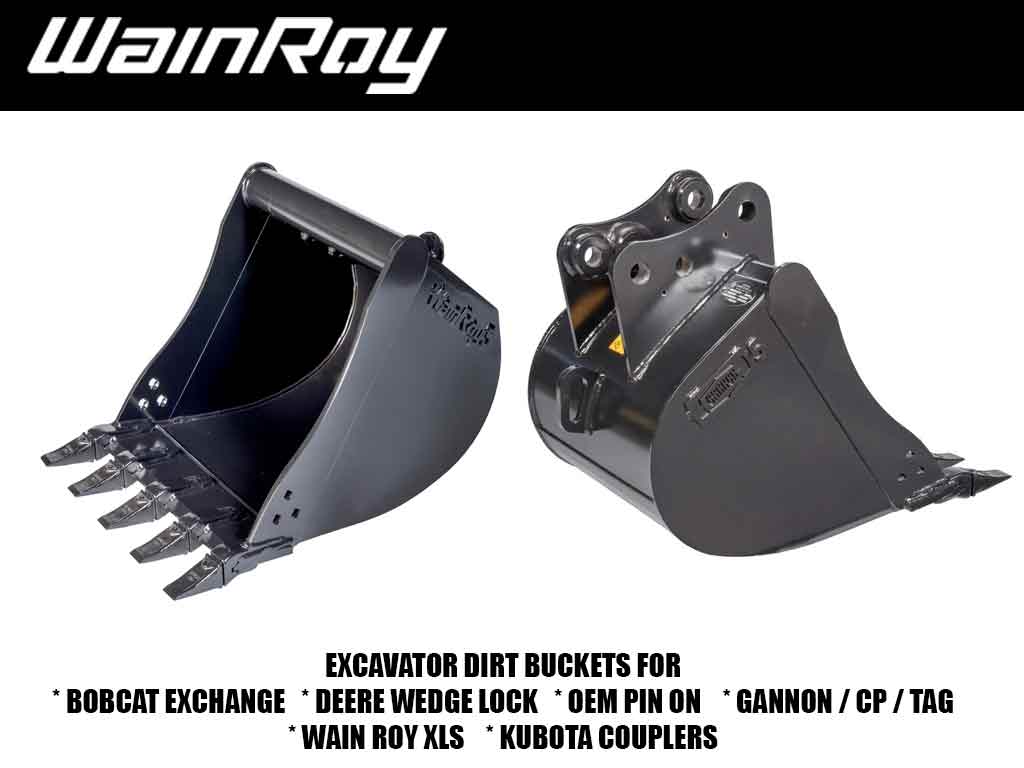

Wain-Roy CEX Series Heavy-Duty Buckets “We Are The Original” when it comes to heavy-duty buckets for excavators and backhoes. The CEX Series buckets have a rugged, full-length double bottom design and side wear bars for uniform strength and durability. They are tapered to ensure maximum fill and quick, easy dumping and are available in pin-on and quick-change versions. A lifting lug is included on all pin-on buckets and straight or saw-tooth replaceable bolt-on side cutters are a great option.



AVAILABLE MOUNTS DESCRIPTION
OEM PIN ON TWO HORIZONTAL PINS
WAIN ROY XLS HOOK WITH VERTICAL PIN

GANNON ELIMINATOR /

TAG / CP / WR ORIGINAL

HOOK WITH VERTICAL PIN

HIGH CAPACITY

OEM PIN ON

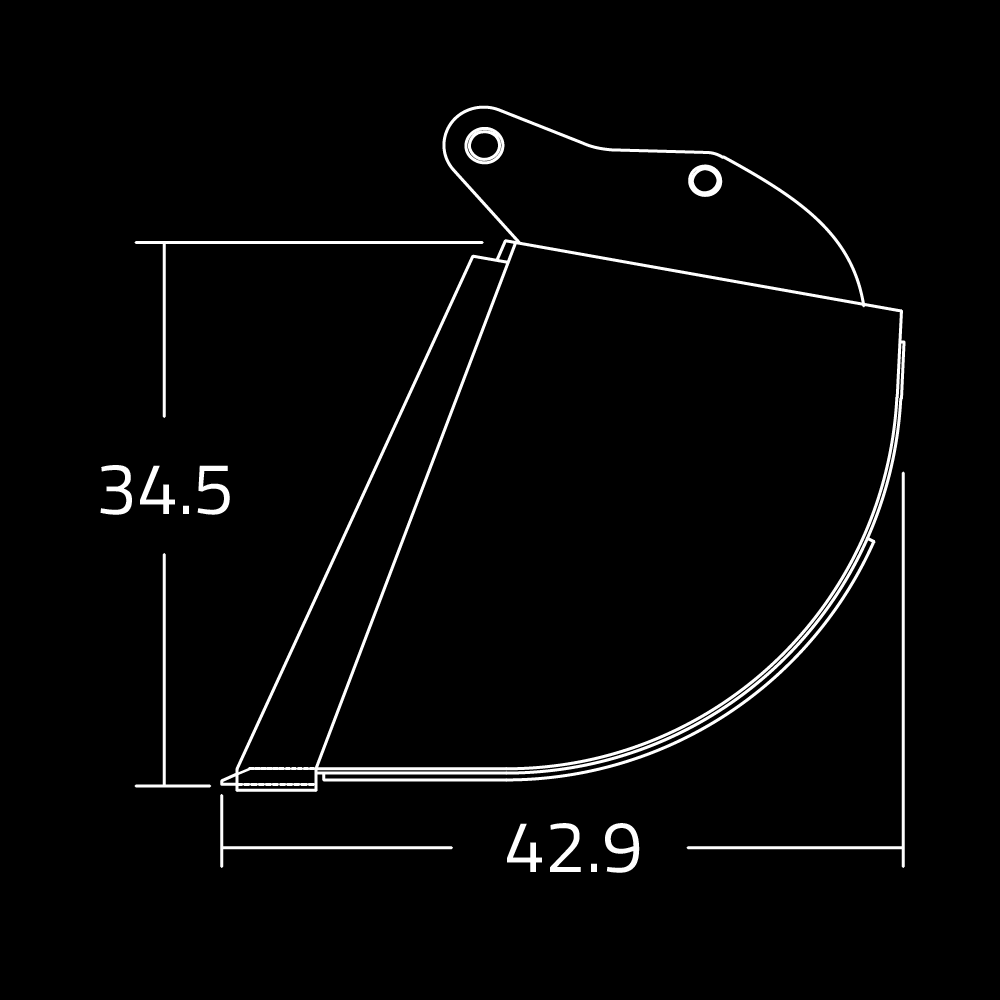

CAPACITY LBS NO. TEETH HEIGHT LENGTH
32-12 5.6
475
3
34.5"
42.9
32-16 8.4 514
3
41.2" 43.5"
32-18 9.4
596
3
41.2" 43.5"
32-24 12.4
685
4
41.2" 43.5"
32-30 16.5 749
5
41.2" 43.5"
32-36 20.7
890
6
41.2" 43.5"

HIGH CAPAITY SEVERE-DUTY

OEM PIN ON

CAPACITY LBS NO. TEETH HEIGHT  LENGTH
32G-12 5.6 550
3
34.5"
43.2"
32G-16 8.4 589
3
34.5" 43.2"
32G-18 9.4
671
3
34.5" 43.2"
32G-24 12.4
760
4
34.5" 43.2"
32G-30 16.5
824
5
34.5" 43.2"
32G-36 20.7
965
6
34.5" 43.2"

HIGH CAP. SEVERE DUTY

QC, WAIN ROY XLS, ORIGINAL, GANNON, TAG, CP

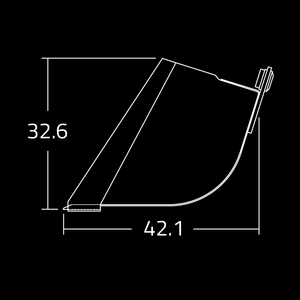

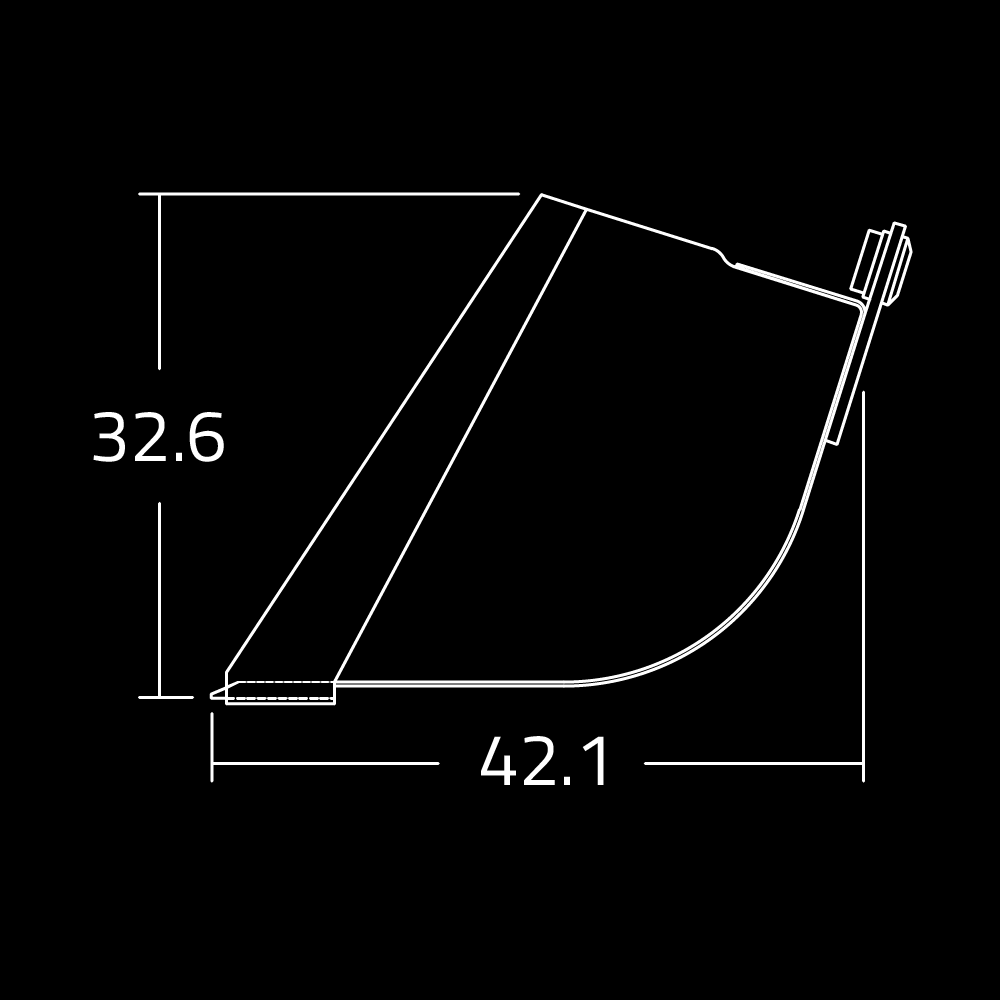

CAPACITY LBS. NO TEETH HEIGHT  LENGTH
97W-16 6.8 360 4 32.6" 42.1"
97W-18 8.0 390 4 32.6" 42.1"
97W-24 11.6 470 5 32.6" 42.1"
97W-30 15.3 560 6 32.6" 42.1"
97W-36 79.2 671 7 32.6" 42.1"
MAKE OVER 16,000 LBS
CAT
  • 446B, 446C, 446D, 450E, 450F
JCB
  • 3C 15, 3CX 17, 3CX-15, 3CX-15 SUPER, 4CX 14, 4CX 15, 4CX 17, 4CX-14 SUPER, 4CX-15 SUPER, DYMAX RAIL SYSTEM
JOHN DEERE
  • 710J Backhoe, 710K Backhoe, 710L Backhoe
MECALAC
  • TLB830, TLB840R, TLB850, TLB870, TLB890, TLB990
