BERLON low profile extended lip bucket for skid steers

Size
Edge
Options

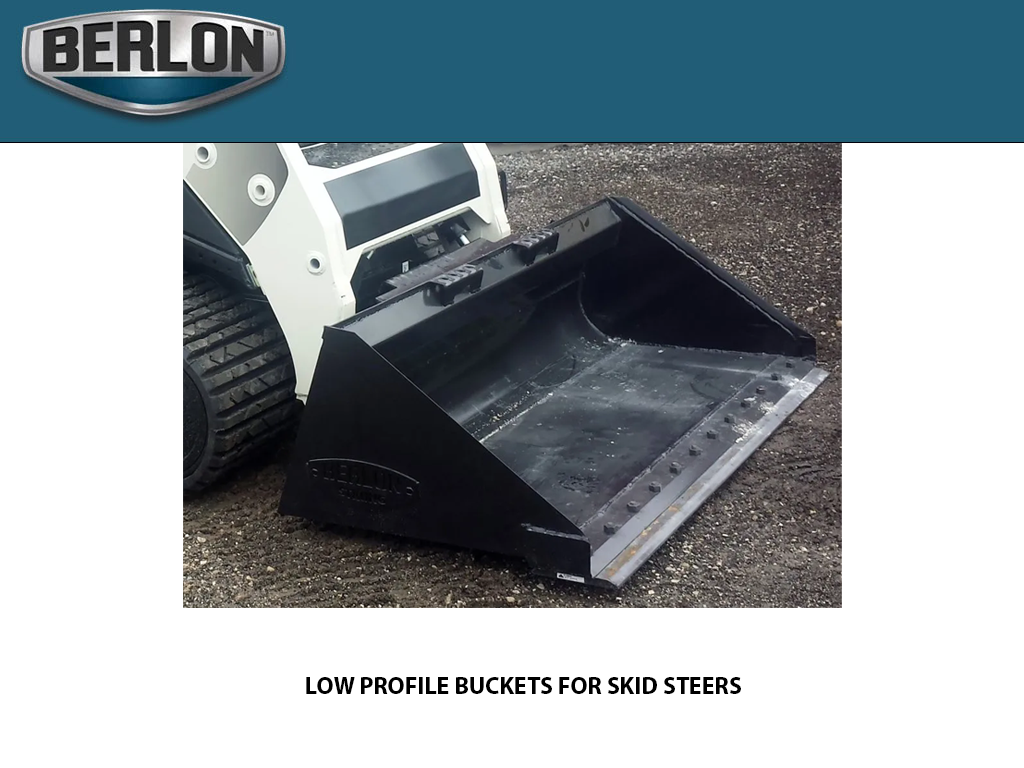

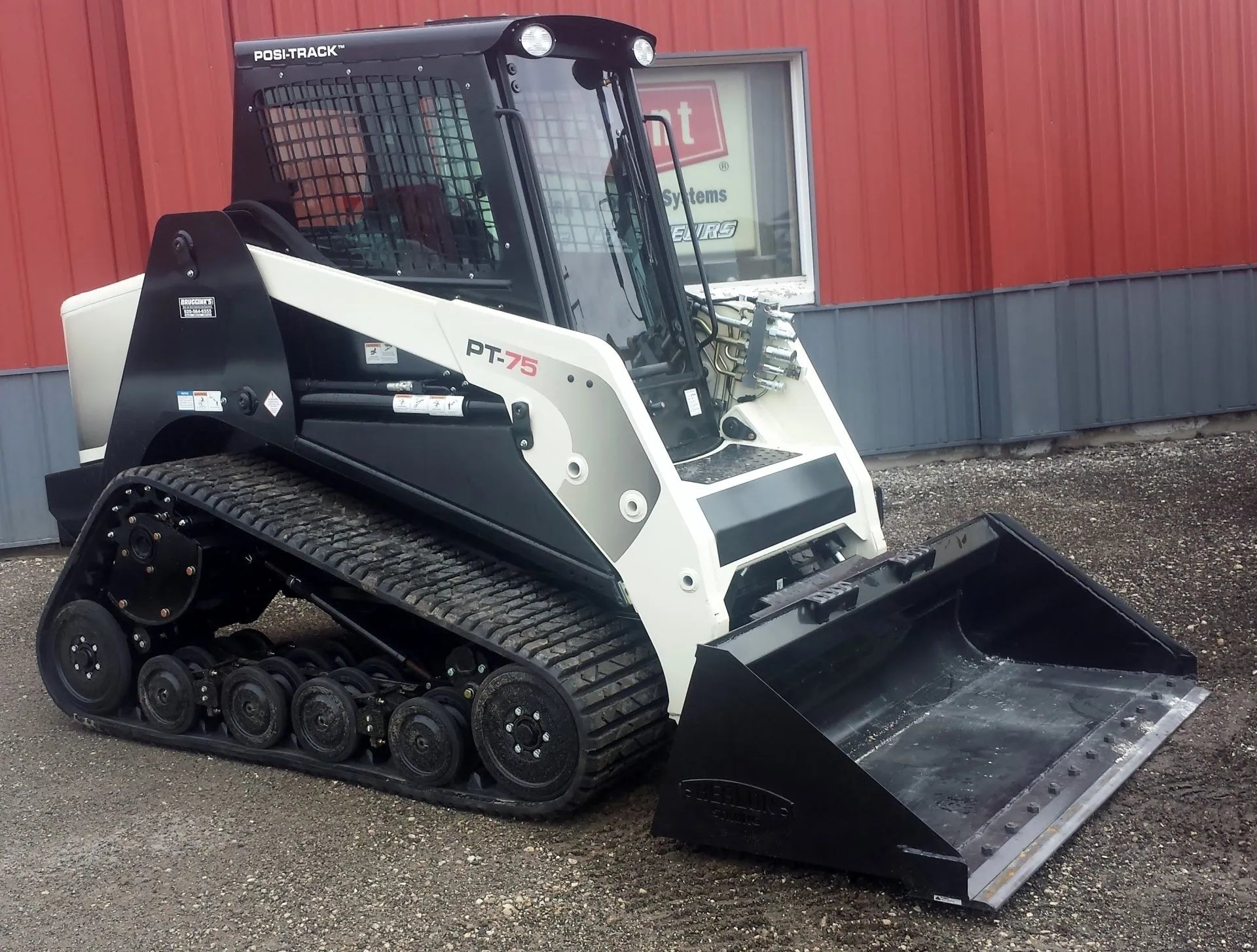

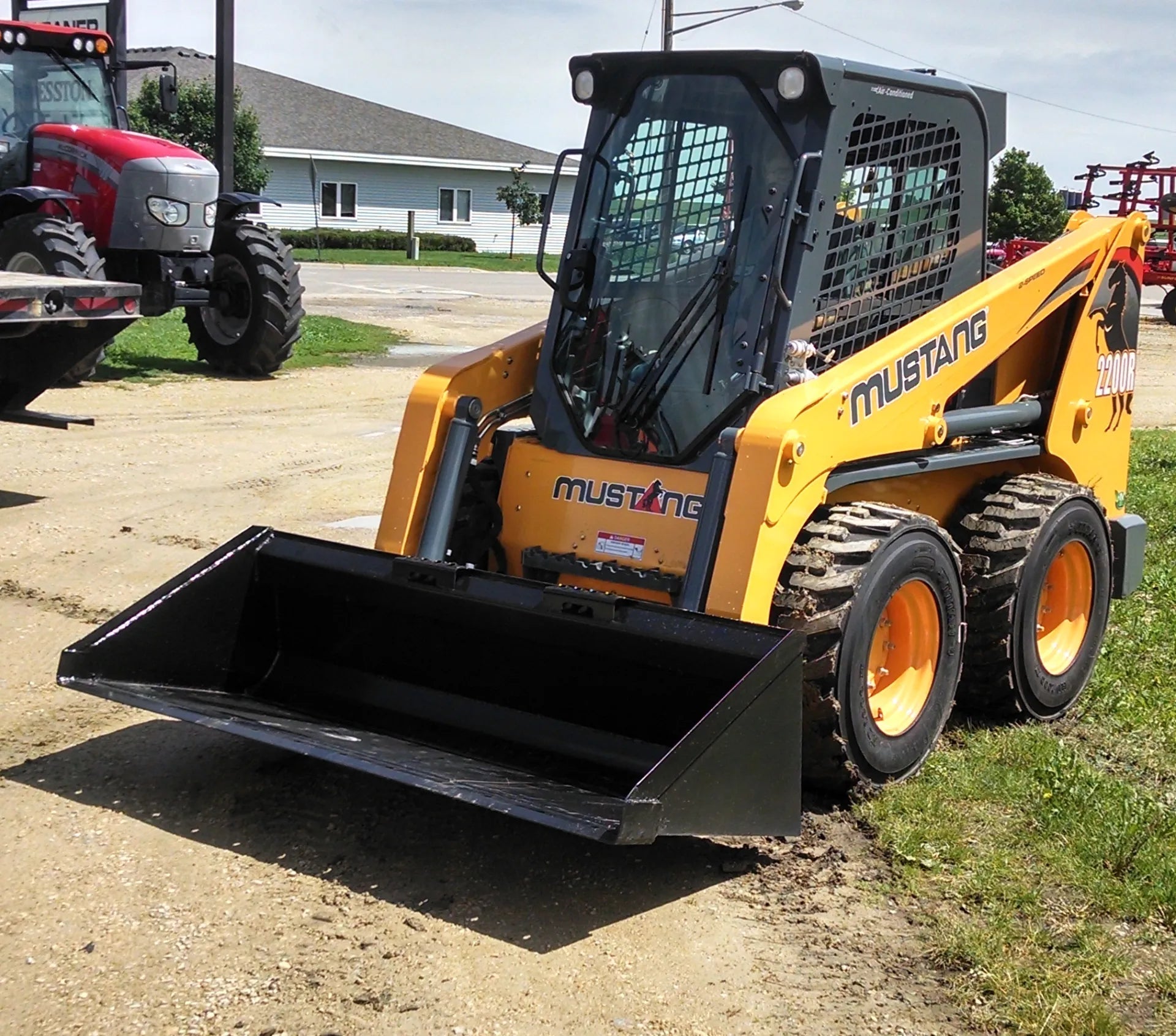

Low Profile Extended Lip Bucket

Berlon’s Low Profile Extended Lip bucket provides greater cutting edge visibility and increased capacity. This is our most popular bucket and is recommended for New Holland and John Deere skid steers.

 Common uses include: Excavating, landscaping, construction, and general purpose.

  • 3” deeper than our B series bucket, for even greater cutting edge visibility
  • Radius kick-out plate for added strength and easy clean-out
  • 3/16” thick steel body
  • Reinforcement tube across back of bucket for added strength
  • 3/4” x 6” weld-on cutting edge with holes

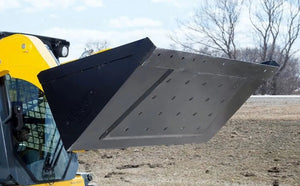

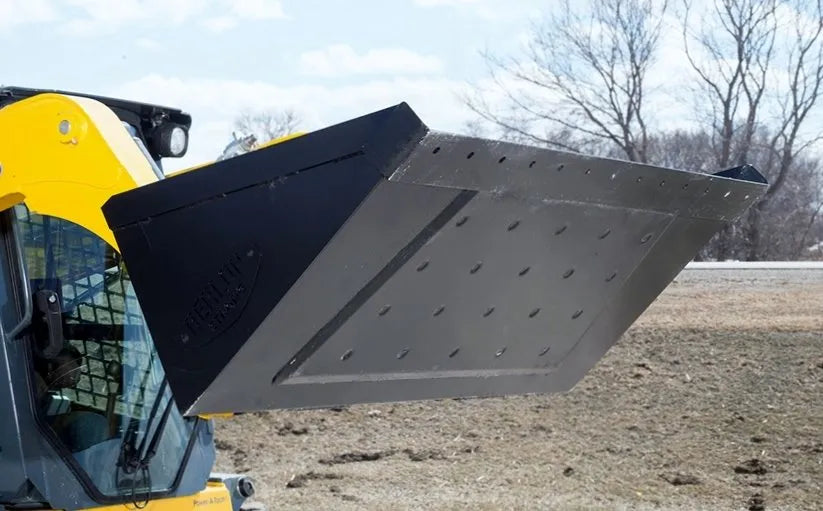

  • Bucket bottom includes a heavy-duty dimple plate *A Berlon Exclusive*

      B SERIES INSIDE DIMENSION (IN.) OUTSIDE DIMENSION "A" HEIGHT "B" DEPTH "C" ANGLE WEIGHT
      BEL-60 60.0" 61.5" 21.0" 33.0"
      70° 405
      BEL-66 66.0" 67.5" 21.0" 36.0"
      70° 486
      BEL-72 72.0" 73.5" 21.0" 36.0" 70° 539
      BEL-78 78.0" 79.5" 21.0" 36.0" 70° 566
      BEL-84 84.0" 85.5" 21.0" 36.0" 70° 619



      How to Determine Bucket Capacity

      The amount of material a bucket can carry is determined as struck (level) capacity and heaped capacity. The heaped capacity is the actual cubic feet. The following formulas are used to determine capacities and will help you compare the capacity of various buckets.


      To calculate cubic feet of a bucket:

      1: Measure from the top of the bucket straight down to the bottom in inches = Height

      2: Measure from the front of the floor to the back in inches = Depth

      3: Height x Depth ÷ 2 x Width = Cubic Inches ÷ 1,728 = Struck Capacity (Cubic Feet)


      To calculate heaped capacity of a bucket:

      For B, BEL, BELHD, UT, CCT, BEC, MIB, & MIBEL series buckets: Cubic Feet ÷ 3 = Heaped Amount + Cubic Feet = Heaped Capacity

      For UTHB, FMX, HCSB, HVMB, CAL, & MISLMB series buckets: Cubic Feet ÷ 2.5 = Heaped Amount + Cubic Feet = Heaped Capacity
