WAIN ROY Pavement Slab Removal buckets for Compact Excavators 12,500 - 20,000 lbs.

MOUNTING
SIZE

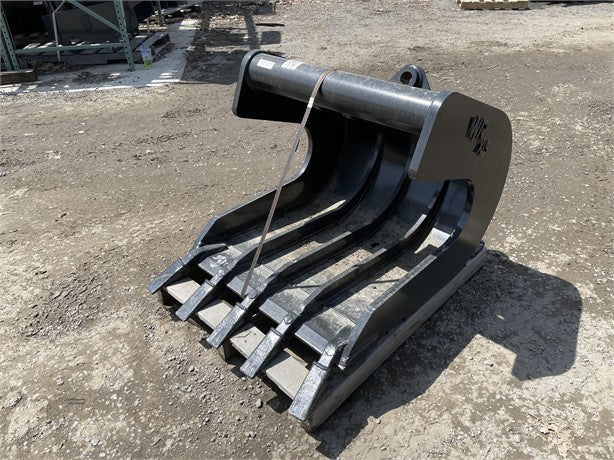

 PAVEMENT SLAB REMOVAL BUCKETS

Wain-Roy pavement removal buckets are made from high-quality US steel, with T1-grade steel used in high-wear areas for exceptional strength and durability. Larger models have five teeth (versus competitors’ four), to disperse the weight and provide greater stability when prying up pavement. The bucket profile is a bit wider and deeper than others on the market, with a unique opening design, to make it easier to get in there and under the pavement, then hold material in the bucket. Sizes range from 18 to 60 inches wide, with depths up to 42 inches. Stronger, longer-lasting, more productive – it’s measurably better than cheap imitations. Add a thumb for even greater versatility and productivity.

PAVEMENT BUCKET

OEM PIN ON

WIDTH NO. TEETH  LBS.
PSR6-18 18" 3 560
PSR6-24 24"
4
596
PSR6-30 30" 5
634

PAVEMENT BUCKET

WAIN ROY XLS, WR ORIGINAL

WIDTH NO. TEETH LBS.
PSR1-18 18" 4 540
PSR1-24 24" 4 575
PSR1-30 30" 5 610
MAKE MODELS: 8 TON, 12500-20000 LB EXCAVATOR
BOBCAT 442, 442S, E85
CASE CX75C SR, CX75SR, CX80C
CAT 307D, 307EX, 308D CR, 308D CR-SB
COYOTE DX80, DX85R-3
DOOSAN DX80, DX85R-3, S075-V, S70-V, S75-V
DITCH WITCH

GEHL

MUSTANG

Z80 GEN: 2 | 800Z NXT2

HITACHI ZX75US‑5, ZX85USB‑5
HYUNDIA R80CR-9, R80CR-9A
IHI KATO 70Z
JCB 67C-1, 86C-1, 85Z
JOHN DEERE 70, 70D, 75C,80, 80C, 85, 190E
KOBELCO

70SR, 80CS

KOMATSU

PC78MR-6, PC78US-6, PC78US-8, PC78US-10,

PC78UU-6

KUBOTA

KX057‑4

LIUGONG CLG906D
MECALAC 6MCR, 8MCR, 8MCR RR
NEW HOLLAND

EH70, EH80

SANY

SY75C‑TIER 2, SY75C‑TIER 3, SY75C‑TIER 3 (EU),

SY75C‑TIER 3 (US), SY75C‑TIER 4F, SY80C-9S

TAKEUCHI

TB68S, TB070

TEREX TC75 (HR32)
THOMAS T75
VERMEER
VOLVO ERC88
YANMAR

B7 5A, SV100-2A, Vi08
