RB2PO-16

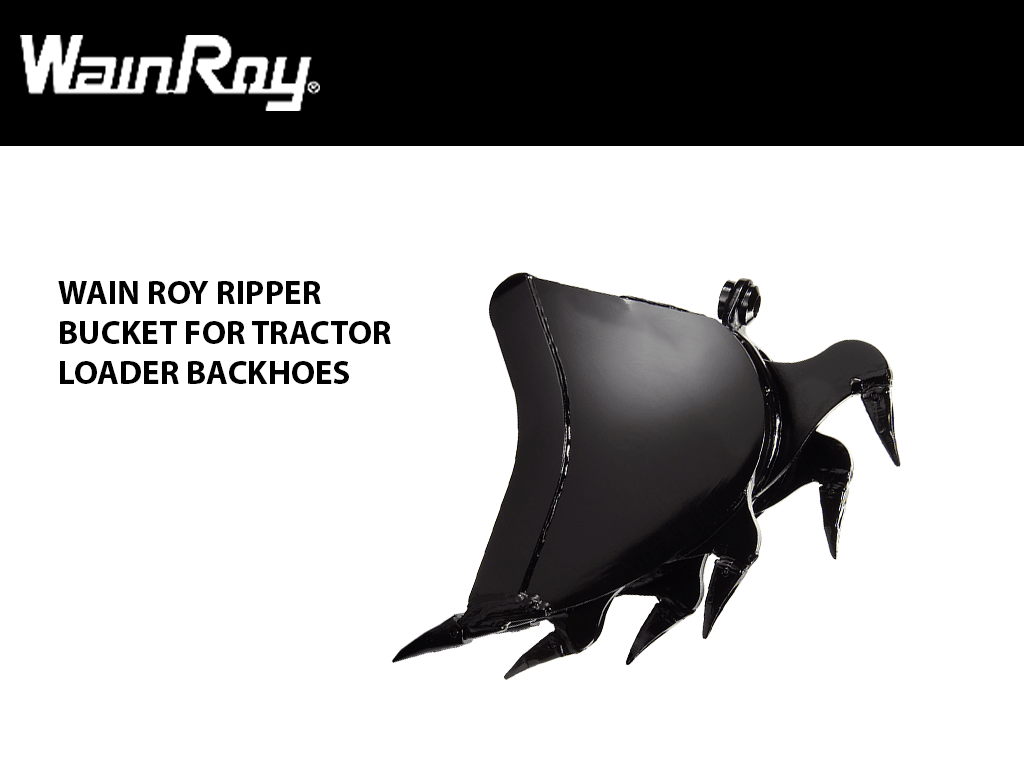

WAIN ROY Ripper Buckets For 1/2 Yard Tractor Loader Backhoes over 16,000 lbs.

Mounting
Size

WAIN ROY RIPPER BUCKETS

Ripper Buckets are used in wide variety of severe applications where material is being both ripped and removed. Rip and dig with one attachment to increase performance and efficiency. As the current pass is dug and removed, the next pass is ripped and prepared. Standard applications for Ripper Buckets would include: frozen ground, sandstone, limestone, caliche, shale, coral, and other severe materials.

Bucket sizes shown are nominal. The Ripper Bucket will cut approximately 2 inches more than the nominal advertised width.

Tractor Loader Backhoes over 16,000 lbs.

RIPPER BUCKET

OEM PIN ON

WIDTH CAPACITY (CU. FT.) LBS CUTTING EDGE TEETH
RB2PO-16 16" 6.8 650
3
RB2PO-18 18" 7.3
690
3
RB2PO-24 24" 8.9
800
5
RB2PO-30 30" 11.1 910 5
RB2PO-36 36" 13.2 1020 5

RIPPER BUCKET

WAIN ROY XLS, ORIGINAL

GANNNON, CP, TAG

WIDTH CAPACITY (CU. FT) LBS CUTTING EDGE TEETH
RB2QC-18 18" 7.3 625
3
RB2QC-24 24" 8.9
735
5
RB2QC-30 30" 11.1 850 5
RB2QC-36 36" 13.2 960 5



MAKE OVER 16,000 LBS
CAT
  • 446B, 446C, 446D, 450E, 450F
JCB
  • 3C 15, 3CX 17, 3CX-15, 3CX-15 SUPER, 4CX 14, 4CX 15, 4CX 17, 4CX-14 SUPER, 4CX-15 SUPER, DYMAX RAIL SYSTEM
JOHN DEERE
  • 710J Backhoe, 710K Backhoe, 710L Backhoe
MECALAC
  • TLB830, TLB840R, TLB850, TLB870, TLB890, TLB990
