RB15PO-18

WAIN ROY Ripper Buckets for 15MT Excavators 30,000 - 41,000 lbs.

Mounting
Size

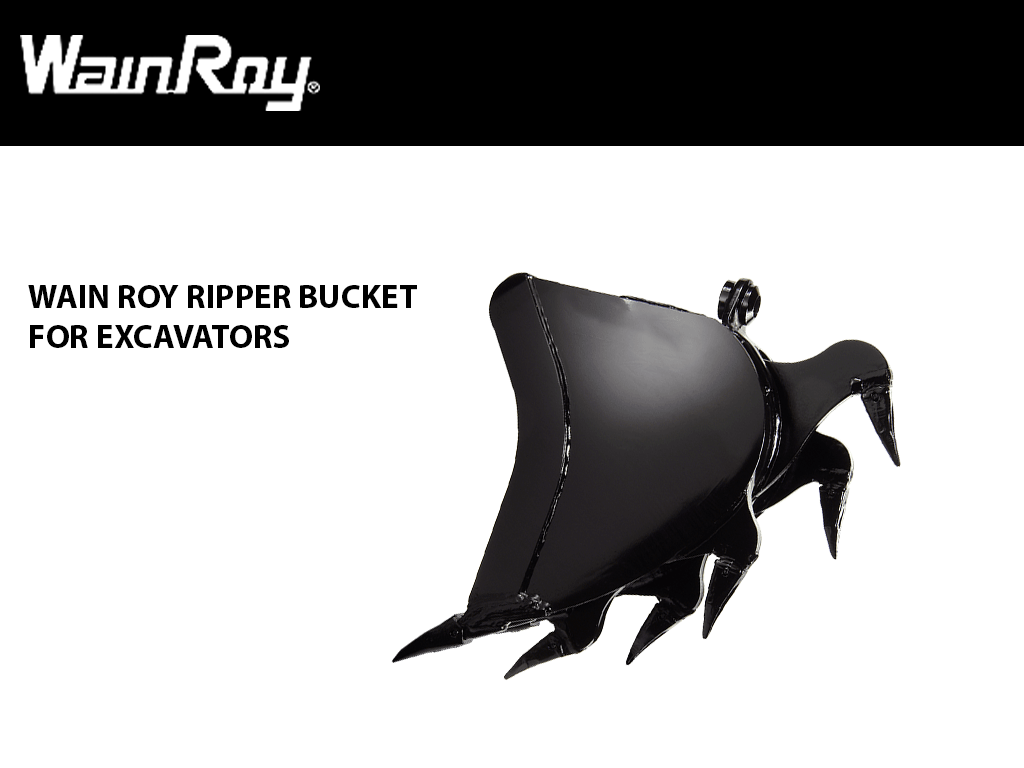

WAIN ROY RIPPER BUCKETS

Ripper Buckets are used in wide variety of severe applications where material is being both ripped and removed. Rip and dig with one attachment to increase performance and efficiency. As the current pass is dug and removed, the next pass is ripped and prepared. Standard applications for Ripper Buckets would include: frozen ground, sandstone, limestone, caliche, shale, coral, and other severe materials.

Bucket sizes shown are nominal. The Ripper Bucket will cut approximately 2 inches more than the nominal advertised width.

EXCAVATORS 30,000 - 41,000 LBS.

RIPPER BUCKET

OEM PIN ON

WIDTH CAPACITY (CU. YD.)  LBS CUTTING EDGE TEETH
RB15PO-18 18" 0.30 1760 3
RB15PO-20 20" 0.37 1865 3
RB15PO-24 24" 0.44
1975
3
RB15PO-30 30" 0.58
2245
4
RB15PO-36 36" 0.73
2465
5
RB15PO-42 42"
0.89 2680 5

RIPPER BUCKET

WAIN ROY XLS, ORIGINAL

GANNON / CP / TAG

WIDTH CAPACITY (CU. YD.) LBS CUTTING EDGE TEETH
RB15QC-24 24"
0.50 950 3
RB15QC-30 30" 0.63
1245 5
RB15QC-36 36"
0.75
1580 5
RB15QC-42 42" 0.89 1800 5
MAKE MODELS: 15 TON 30,000 - 41,000 LBS
CASE
  • 9020B, CX160, CX160B, CX160D
CAT
  • 315C L, 315D L, 316F L (2017), 318F, DX160, M315C, M316C, M318C
DOOSAN
  • DX180LC-5, DX18LC, DX190-W, S175LCV
HITACHI
  • EX150, ZX160LC, ZX160LC-3, ZX160LC-6, ZX180
HYUNDIA
  • HX160L, HX180, R160LC-9, R160LC-9A, R170W, R180LC-9
JCB
  • JS160, JS160LC, JS180, JS190
JOHN DEERE
  • 160C LC, 160D LC, 160G-LC, 180G-LC, 590D, 595D
KOBELCO
  • ED150BR, ED160-3 BLADE RUNNER, ED160-5 BLADE RUNNER, ED190BR, SK140SRLC-5, SK160LC, SK170LC, SK170LC-10
KOMATSU
  • PC138USLC-11, PC138USLC-8, PC160LC-7, PC160LC-8
LIEBHERR
  • A314, A316, A914 Litronic, R313, R317, R914 Compact Litronic
LINK BELT
  • 160 X2, 160 X3, 160 X4, 160X
LIUGONG
  • CLG915D, CLG915E
MECALAC
  • 15MC, 15MWR
NEW HOLLAND
  • E175B, EH160LC
TEREX
  • TS180SR, TW150, TW160, TW160SR, TW170, TW190, TW220, TXC140LC-2, TXC180LC-2
VERMEER
  • CX254
VOLVO
  • EC160B, EC160C, EC160C-LC, EC160E, EW160C, EW160E, EW180C, EWR150E, EWR170E
