RB20PO-20

WAIN ROY Ripper Buckets for 20MT Excavators 41,000 - 52,000 lbs.

Mounting
Size

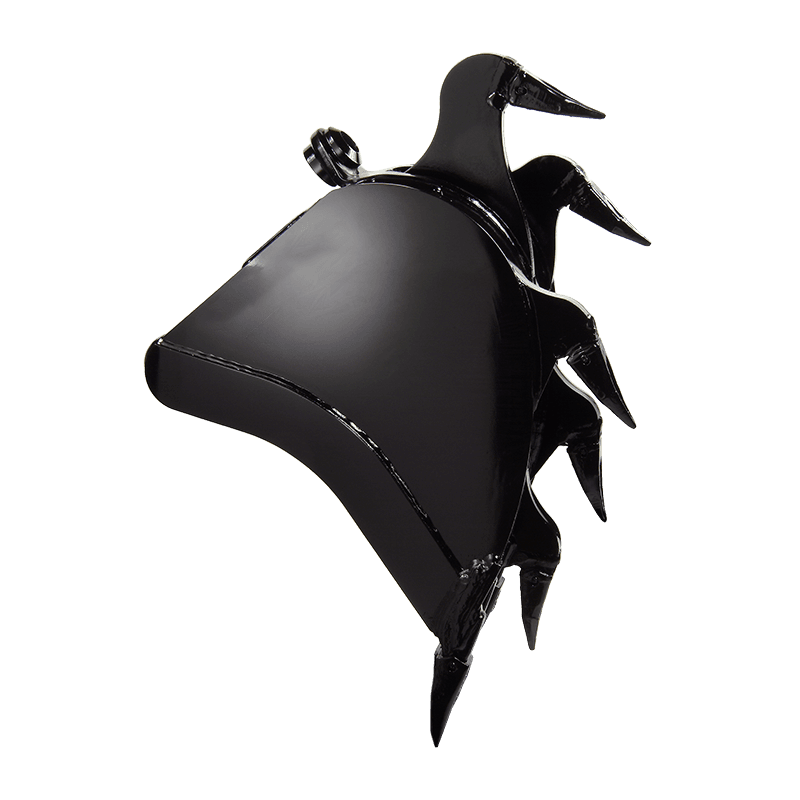

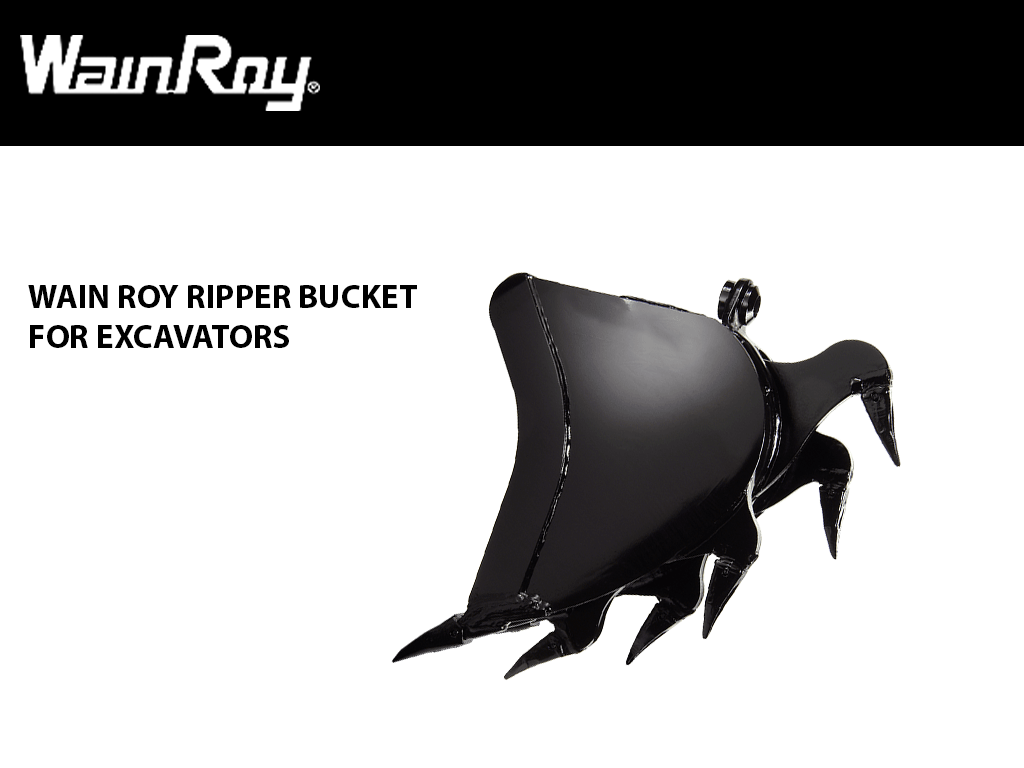

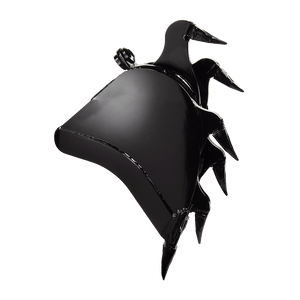

WAIN ROY RIPPER BUCKETS

Ripper Buckets are used in wide variety of severe applications where material is being both ripped and removed. Rip and dig with one attachment to increase performance and efficiency. As the current pass is dug and removed, the next pass is ripped and prepared. Standard applications for Ripper Buckets would include: frozen ground, sandstone, limestone, caliche, shale, coral, and other severe materials.

Bucket sizes shown are nominal. The Ripper Bucket will cut approximately 2 inches more than the nominal advertised width.

EXCAVATORS 41,000 - 52,000 LBS.

RIPPER BUCKET

OEM PIN ON

WIDTH CAPACITY (CU. YD.)  LBS CUTTING EDGE TEETH
RB20PO-20 20" 0.44 1820
3
RB20PO-24 24" 0.50
1925
3
RB20PO-30 30" 0.61
2083
4
RB20PO-36 36" 0.78
2183
5
RB20PO-42 42"
0.94
2309
5

RIPPER BUCKET

WAIN ROY XLS, ORIGINAL

GANNON / CP / TAG

WIDTH CAPACITY (CU. YD.) LBS CUTTING EDGE TEETH
RB20QC-24 24"
0.50
1385
3
RB20QC-30 30" 0.63
1600
5
RB20QC-36 36"
0.75
1700
5
RB20QC-42 42" 0.89
1800 5
MAKE MODELS: 20 TON 41,000 - 52,000 LBS
CASE
  • 9030B, CX210B, CX210D, CX225 MSR
CAT
  • 319D L, 319D LN, 320, 320 GC, 320 UTIL, 320C, 320C L ME, 320CL SLR, 320D L, 320D LRR, 321D LCR, 323, B-link, M322C
DOOSAN
  • DX190W-5, DX210W, DX210W-5, DX210WMH-5, DX225LC, DX235
HITACHI
  • ZX190W-3, ZX190W-6, ZX200LC, ZX200LC-3, ZX210-6, ZX210LC-6, ZX220W-3, ZX225USLC, ZX225USLC-3, ZX245
HYUNDIA
  • HW210, HX220L, R210C-7LR, R210LC-7, R210LC-9, R210W-9, R210W-9A, R220LC-9A, R235
JCB
  • JS220, JS220LC, JS220LR, JS220XD
JOHN DEERE
  • 180CW, 180DW, 190D W, 190G W, 200C LC, 200D, 200D LC, 210CW, 210G LC, 220D W, 225C LCRTS, 225D LC, 245G LC, 690D, 690E
KOBELCO
  • ED195BR, SK210LC, SK210LC-10, SK210LC-LR
KOMATSU
  • PC170LC-11, PC200-7, PC200LC HD, PC200LC-7, PC200LC-8, PC228USLC-3, PC228USLC-8
LIEBHERR
  • A 918 Compact Litronic, A900C, A900C-ZW, A904C, A914C, A918 Litronic, A924C, R317, R900C, R906-A/C, R916 AC, R918 Litronic, R920 Compact Litronic
LINK BELT
  • 210 X2, 210 X2 Long Front, 210 X3, 210 X4, 210LX, 225MSR
LIUGONG
  • CLG922D
NEW HOLLAND
  • E215B, EH215LC
SANY
  • SY215CLC
TEREX
  • TC210C, TC225LC, TC240LC, TW220, TXC225LC-2
VOLVO
  • EC210B, EC210B-LC, EC210B-NLC, EC210C, EC210C-LR, ECR235C, EW180C, EW180E, EW210D, EW230C, EX210C
