WAIN ROY Ripper Buckets for 30MT Excavators 65,000 - 95,000 lbs.

Mounting
Size

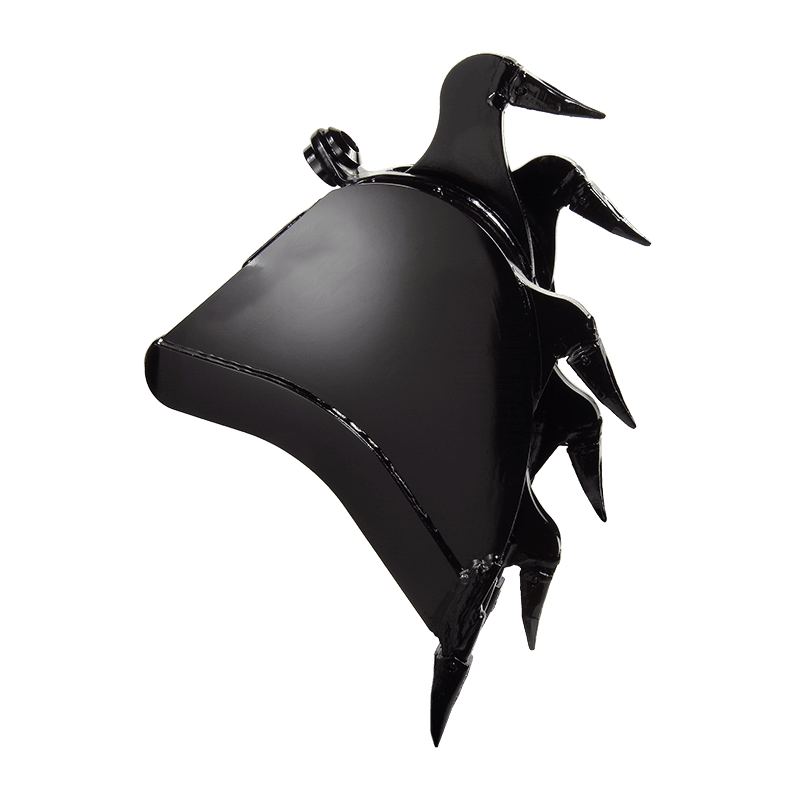

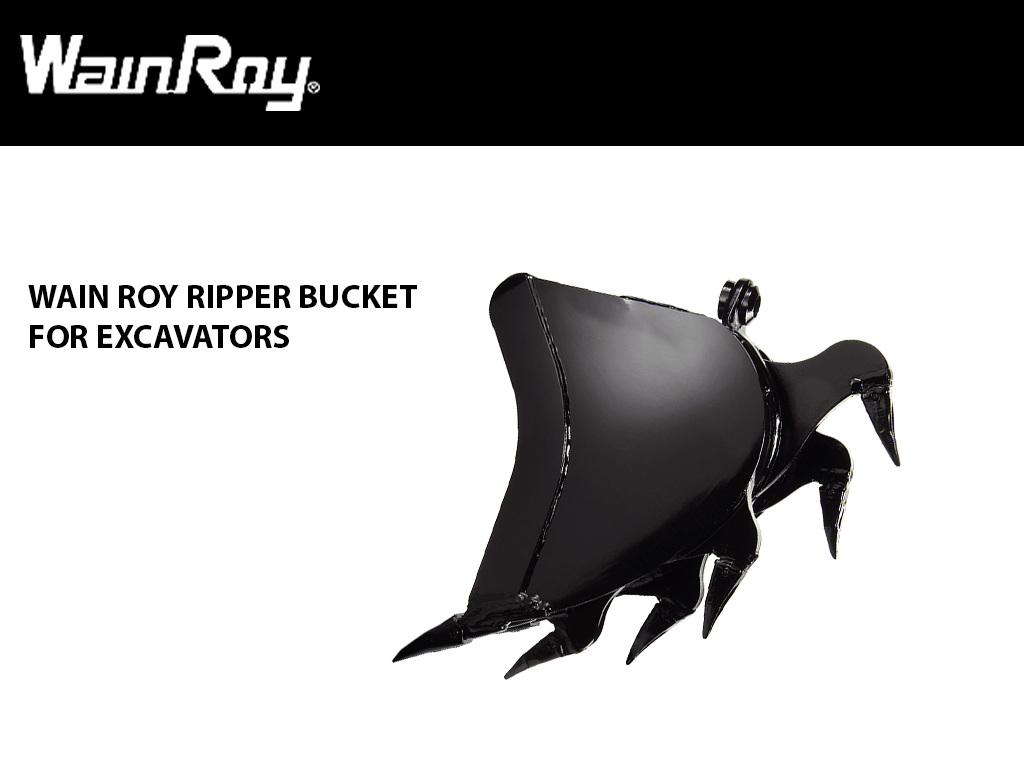

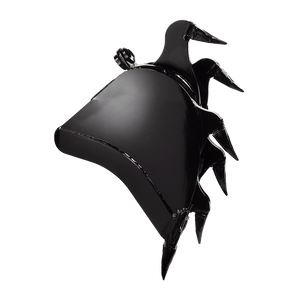

WAIN ROY RIPPER BUCKETS

Ripper Buckets are used in wide variety of severe applications where material is being both ripped and removed. Rip and dig with one attachment to increase performance and efficiency. As the current pass is dug and removed, the next pass is ripped and prepared. Standard applications for Ripper Buckets would include: frozen ground, sandstone, limestone, caliche, shale, coral, and other severe materials.

Bucket sizes shown are nominal. The Ripper Bucket will cut approximately 2 inches more than the nominal advertised width.

EXCAVATORS 65,000 - 95,000 LBS.

RIPPER BUCKET

OEM PIN ON

WIDTH CAPACITY (CU. YD.)  LBS CUTTING EDGE TEETH
RB30PO-24 24"


RB30PO-30 30" 1.00 2750
3
RB30PO-36 36" 1.25 3300 3
RB30PO-42 42"
1.50 3810 4
MAKE MODELS: 30 TON 65,000 - 95,000 LBS
CASE
  • 9050B, CX330, CX330LR, CX350B, CX350D
CAT
  • 326F L (2017), 328D LCR, 330C, 330C L ME, 330D L, 330F I (2017), 335F L (2017), 336 GC, 336D L, 336F L (2017), 336F L XE (2017), 340F, DB-link
DOOSAN
  • DX300, DX300LC, DX300LC SLR, DX300LC-5, DX300LL, DX300SLR, DX340, DX350LC, DX350LC-5, S300LCV, S340LCV
HITACHI
  • ZX2330LC, ZX330, ZX350LC-6, ZX370, ZX380LC-6
HYUNDIA
  • HX330L, HX380L, R320LC-7, R320LC-7A, R330LC-9A, R360LC-7, R360LC-7A, R380LC-9, R380LC9A
JCB
  • JS290, JS300, JS330, JS330L, JS330NL, JS330XD, JX360
JOHN DEERE
  • 330C LC, 330C LCSF, 350D LC, 350G LC, 370C, 380G LC, 892D, 892E
KOBELCO
  • SK260LC-10, SK290LC-DA, SK290LC-LR, SK295LC, SK300LC-10, SK330LC-ME, SK350LC, SK350LC-10, SK350LC-9E, SL330LC-DA
KOMATSU
  • HB365LC-3, PC290LC-10 SLF, PC290LC-11, PC3000HD-8, PC300HD-7 MH, PC300LC-7, PC300LC-8, PC30LC-11, PC350HD-8, PC350LC-7, PC350LC-8, PC360LC-10 SLF, PC360LCi-11, PC380LC-10 SLF, PC380LCi-11, PC390LC-11
LIEBHERR
  • A934C, R924 Compact Tunnel Litronic, R934B, R934C, R936 Compact Litronic, R936 Litronic, R944B, R944C
LINK-BELT
  • 300 X3, 300 X4, 330LX, 350 X2, 350 X3, 350 X4, 350 XF Long Front
LIUGONG
  • CLG930E, CLG936D, CLG936E
SANY
  • SY365C
TEREX
  • TXC300LC, TXC300LC-2, TXC340LC, TXC340LC-2, TXC400LC, TXC400LC-2, TXC420LC-2
VOLVO
  • EC300E, EC330B-icme, EC330B-LC, EC350E, EC360B-icme, EC360B-LC, EC380E, ECR305C, ECR355E
