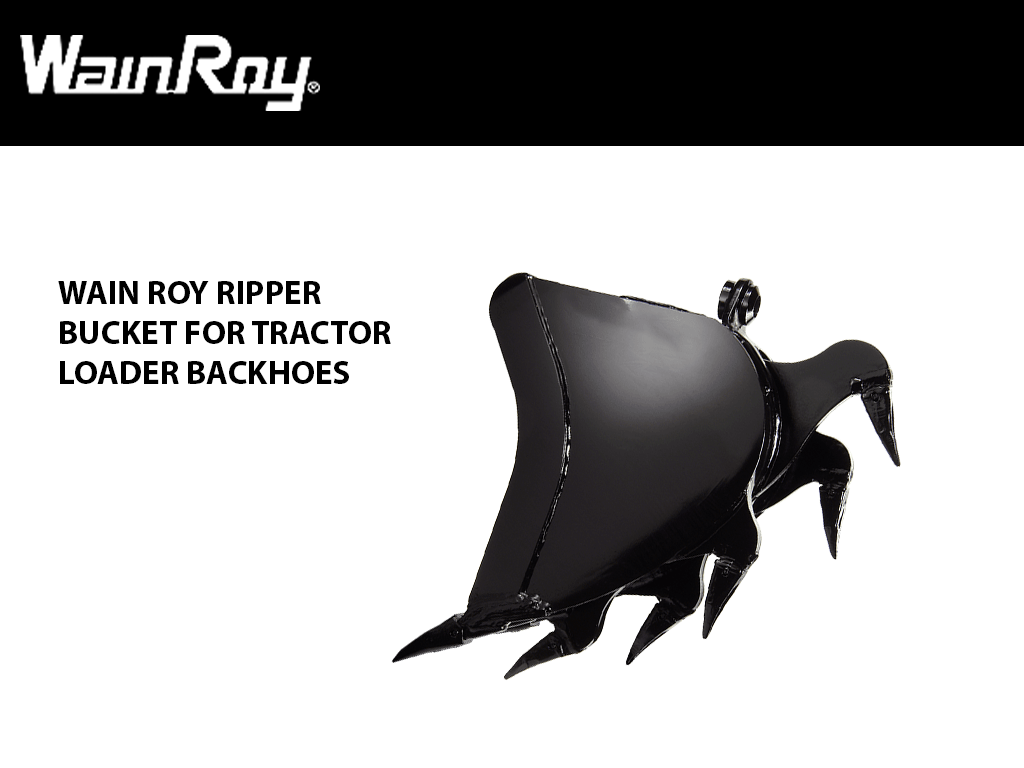

WAIN ROY Ripper Buckets For 1/4 Yard Tractor Loader Backhoes up to 16,000 lbs.

Mounting
Size

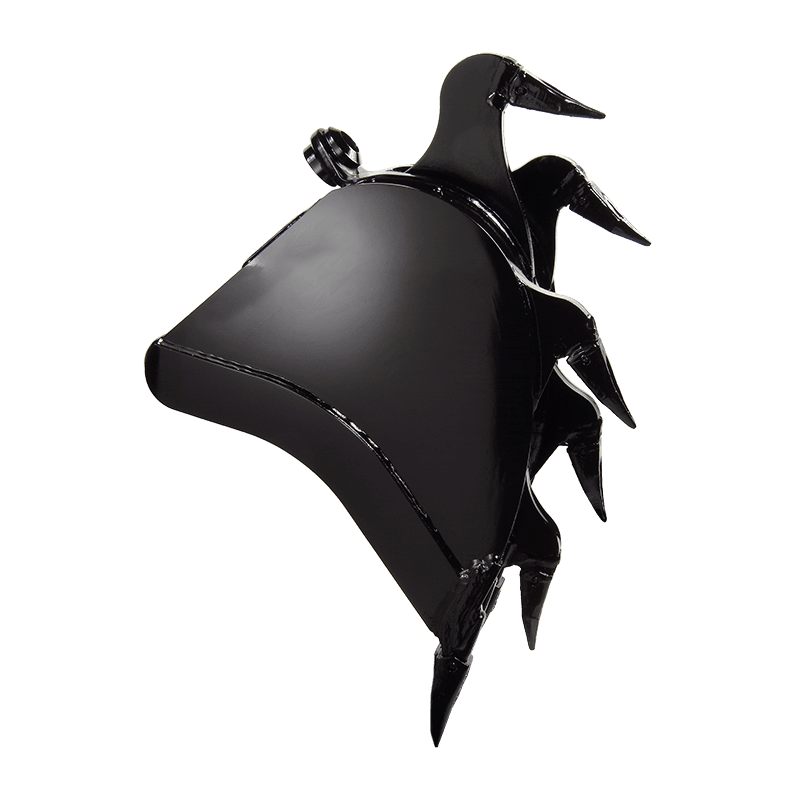

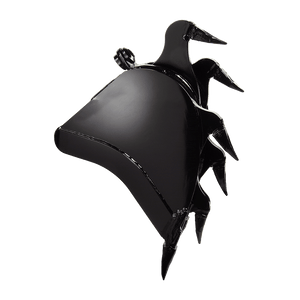

WAIN ROY RIPPER BUCKETS

Ripper Buckets are used in wide variety of severe applications where material is being both ripped and removed. Rip and dig with one attachment to increase performance and efficiency. As the current pass is dug and removed, the next pass is ripped and prepared. Standard applications for Ripper Buckets would include: frozen ground, sandstone, limestone, caliche, shale, coral, and other severe materials.

Bucket sizes shown are nominal. The Ripper Bucket will cut approximately 2 inches more than the nominal advertised width.

Tractor Loader Backhoes up to 16,000 lbs.

RIPPER BUCKET

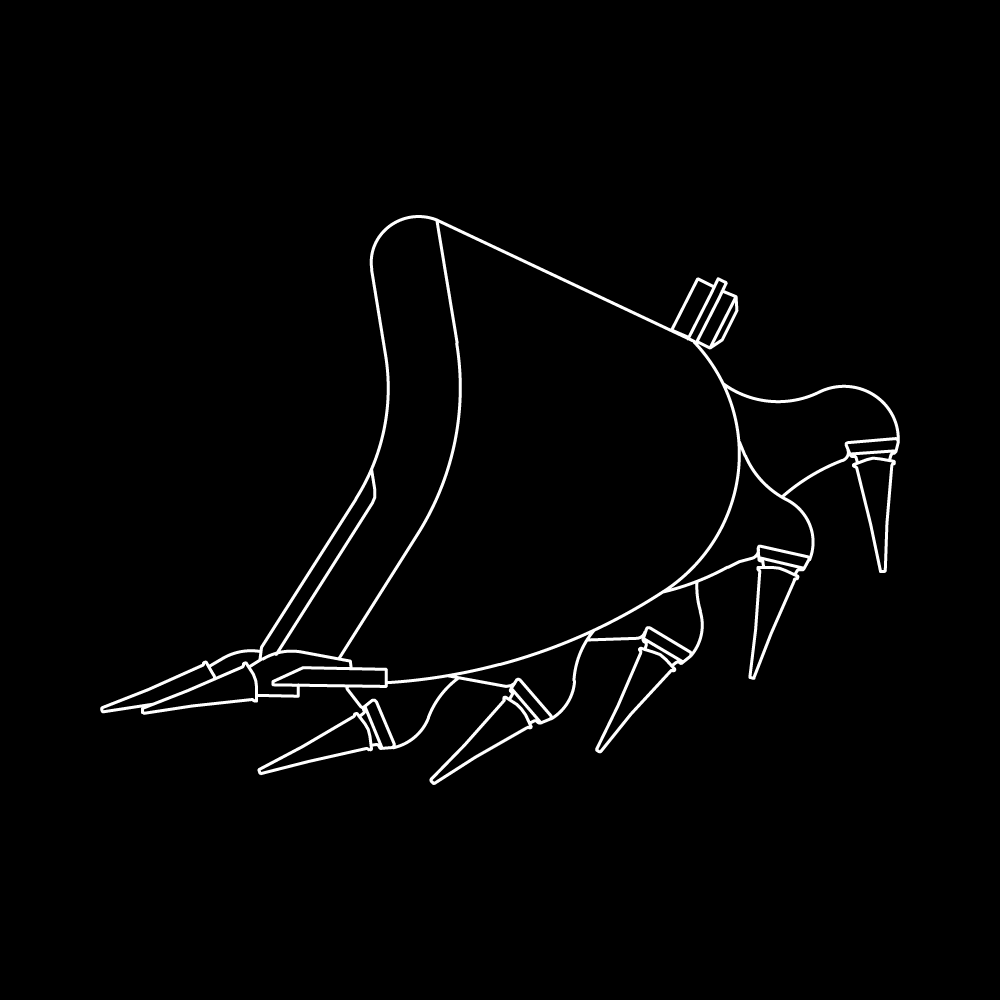

OEM PIN ON

WIDTH CAPACITY (CU. FT.) LBS CUTTING EDGE TEETH
RB1PO-12 12" 3.2 365 3
RB1PO-16 16" 4.3 445 5
RB1PO-18 18" 4.9 460 5
RB1PO-24 24" 6.5 520 5

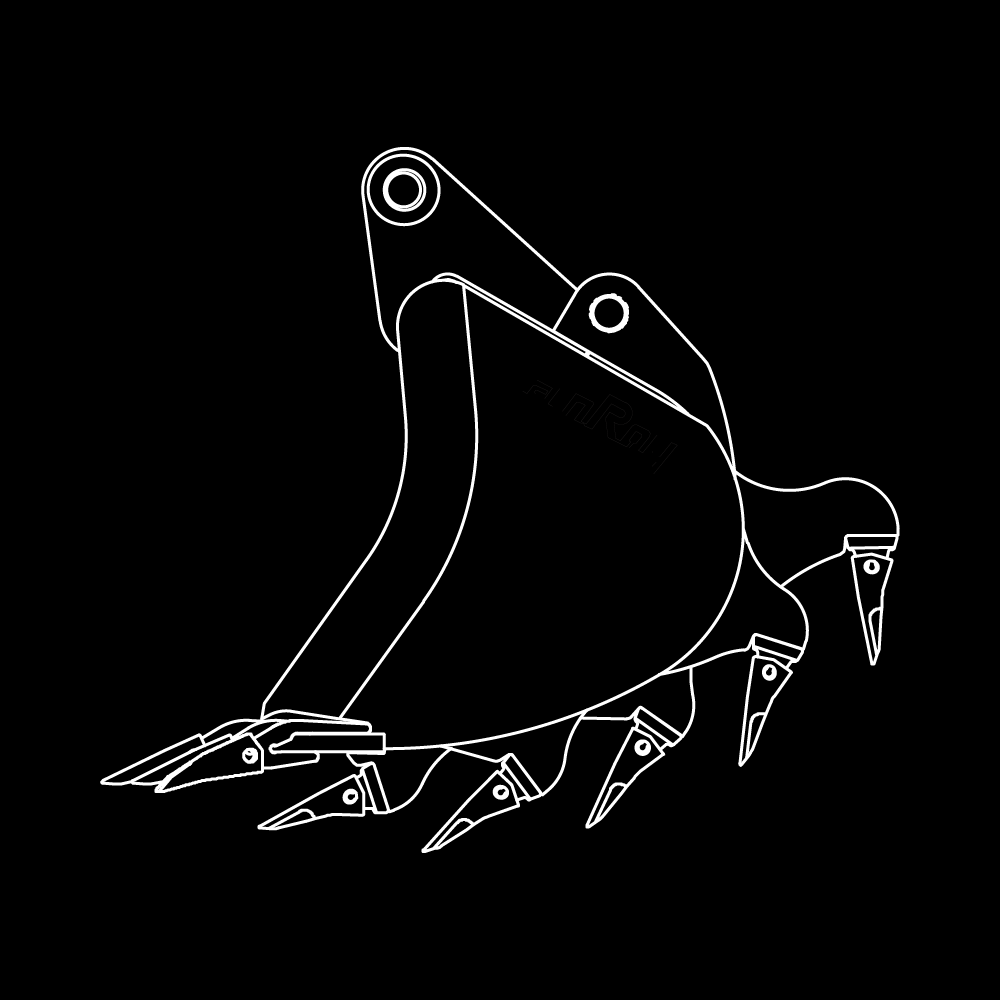

RIPPER BUCKET

WAIN ROY XLS, ORIGINAL

GANNNON, CP, TAG

WIDTH CAPACITY (CU. FT) LBS CUTTING EDGE TEETH
RB1QC-12 12" 3.2
305 3
RB1QC-16 16" 4.3 340 5
RB1QC-18 18" 4.9 356 5
RB1QC-24 24" 6.5 405 5



MAKE UP TO 16000 LB BACKHOE
CASE
  • 580 Series 3, 580 Super M Series 2, 580 Super M Series 3, 580 Super M+ Series 2, 580 Super M+ Series 3, 580 Super N, 580 Super N WT, 580 Turbo Series 2, 580L, 580M, 580M Series 2, 580N, 580N EP, 580SL, 580SM, 590 SL, 590 Super M Series 3, 590 Super M+ Series 3, 590 Super N, 590M Super M+ Series 3, 590SM
CAT
  • 415F2, 415F2 IL, 416B, 416C, 416D, 416E, 416F2, 420D, 420D-IT, 420E, 420E-IT, 420FX/420FX IT, 426B, 426C, 428, 430D, 430E, 430E-IT, 430FX/430FX IT, 436B, 436C, 4630D-IT
JCB
  • 3C 14, 3C LL, 3CX, 3CX-14, 3CX-14 SUPER
JOHN DEERE
  • 310J, 310L Backhoe, 310L EP Backhoe, 310SJ, 310SJ TMC, 310SJ TMC Tool Carrier, 310SL Backhoe, 310SL HL Backhoe, 315SJ, 315SL Backhoe, 410J, 410J TMC Tool Carrier, 410L Backhoe, 410SJ TMC
KOMATSU
  • W70A, WB140, WB142-5, WB146-5, WB146PS-5, WB150, WB156PS-5, WB91, WB93, WB93R-5, WB93R-8, WB93S-5, WB97, WB97R-5, WB97S-5, WB98
NEW HOLLAND
  • 555B, 555C, 555E, 575E, 655A, 655C, 655E, 675E, B110, B110B, B110C, B115B, B90B, B95, B95B, B95B LR, B95B TC, B95C, B95C LR, B95C TC, B95LR, B95TC, BL110B, LB110, LB1156, LB115B, LB75, LB75B, LB90, LB90B
VOLVO
  • BL60, BL60B, BL61, BL61 Plus, BL61B, BL70B, BL71, BL71 Plus, BL71B, PL70
