RTPO2-1

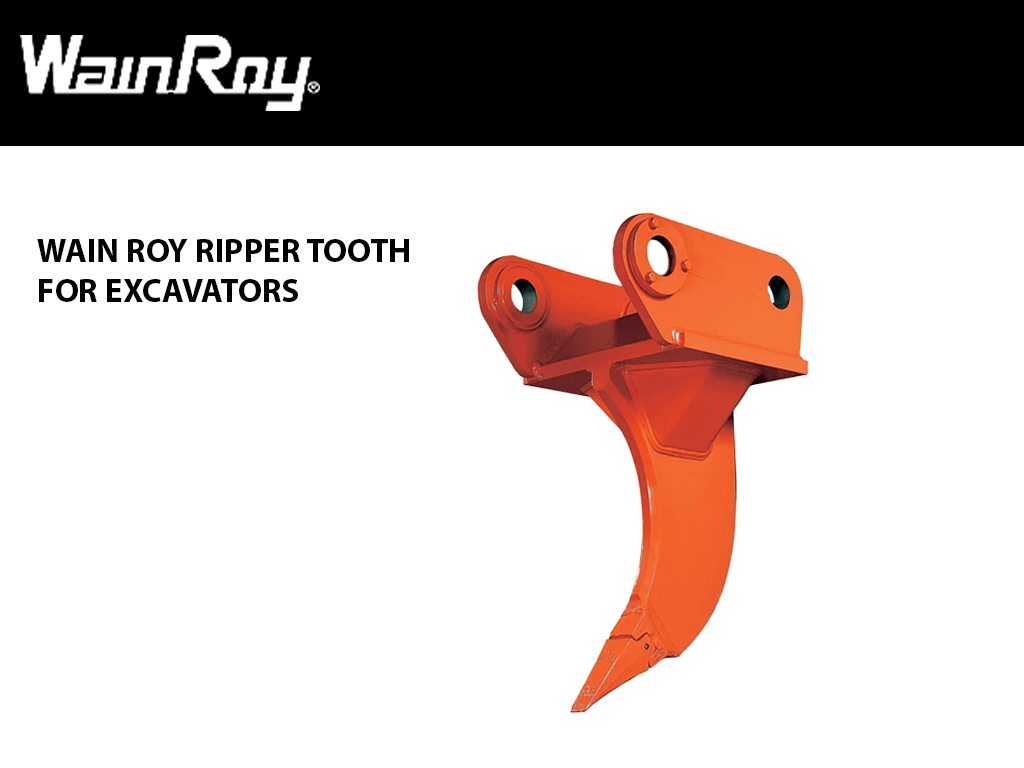

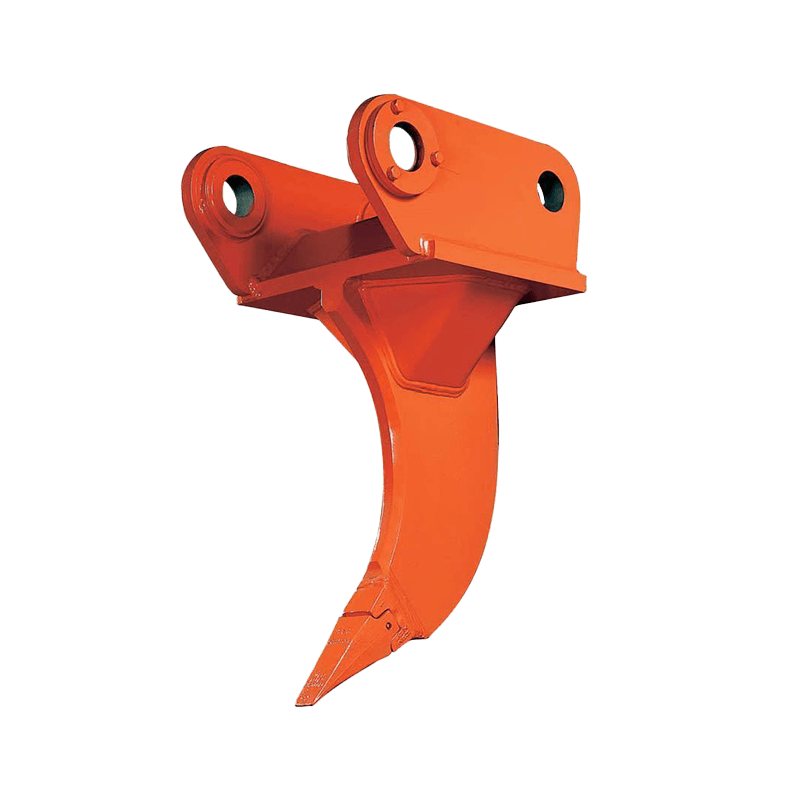

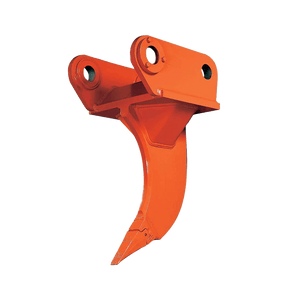

WAIN ROY Ripper Tooth / Frost Ripper for Excavators up to 280,000 lbs.

WEIGHT CLASS
MOUNTING

RIPPER TOOTH FOR EXCAVATORS AND MINING & MASS EXCAVATORS

Single Point Rippers are designed for the most demanding ripping applications of rock, clay, coral, and frost. Our standard design incorporates a heavy-duty OEM ear group mounting, and is available in many standard shank lengths and widths. Our rippers are manufactured with high strength steel shanks and can be custom designed to meet specific applications on equipment up to 280,000 lb (120MT).

RIPPER TOOTH

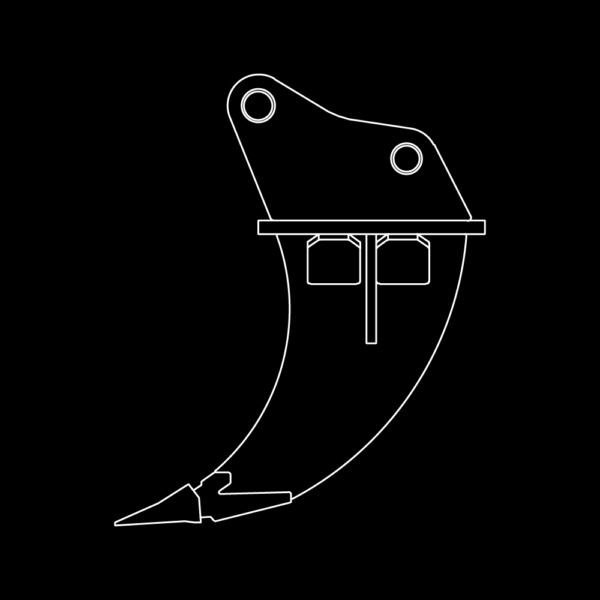

OEM PIN ON

WEIGHT CLASS WIDTH LBS
RTPO2-1 12MT (20,000 - 30,000 lbs.)
36" 658
RTPO2-2 15MT (30,000 - 41,000 lbs.)
36" 658
RTPO2-3 20MT (41,000 - 52,000 lbs.)
42"
660
RTPO2-4 25MT (52,000 - 65,000 lbs,)
42"
1000
RTPO2-5 30MT (65,000 - 95,000 lbs.)
36"
1050
RTPO2-6 45MT (95,000 - 110,000 lbs.) 55" 2201
RTPO2-7 60MT (110,000 - 160,000 lbs.) 55" 2600
RTPO2-8 80MT (160,000 - 200,000 lbs.) 65" 3100
RTPO2-9 120MT (200,000 - 280,000 lbs.) 55" 4300

RIPPER TOOTH

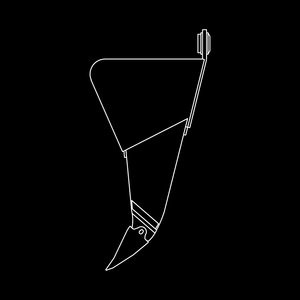

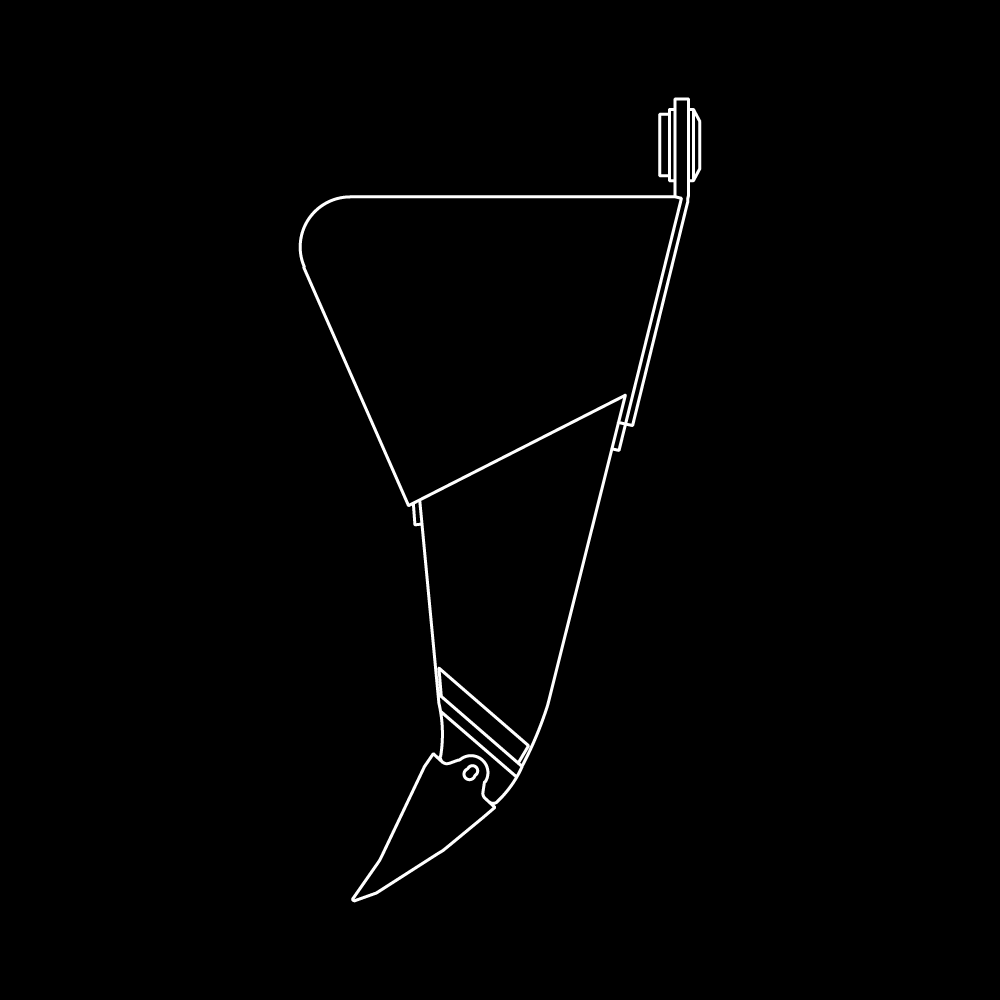

WAIN ROY XLS, ORIGINAL

WEIGHT CLASS WIDTH LBS
RTPO3-03 12MT (20,000 - 30,000 lbs.) 47" 275
RTPO3-04 15MT (30,000 - 41,000 lbs.) 50" 770
RTPO3-04 20MT (41,000 - 52,000 lbs.) 50" 770
RTPO3-04 25MT (52,000 - 65,000 lbs,) 50" 770
