CF800X350-36

WAIN ROY Severe-duty rock buckets for excavators 160,000-200,000 lbs.

Style
Size

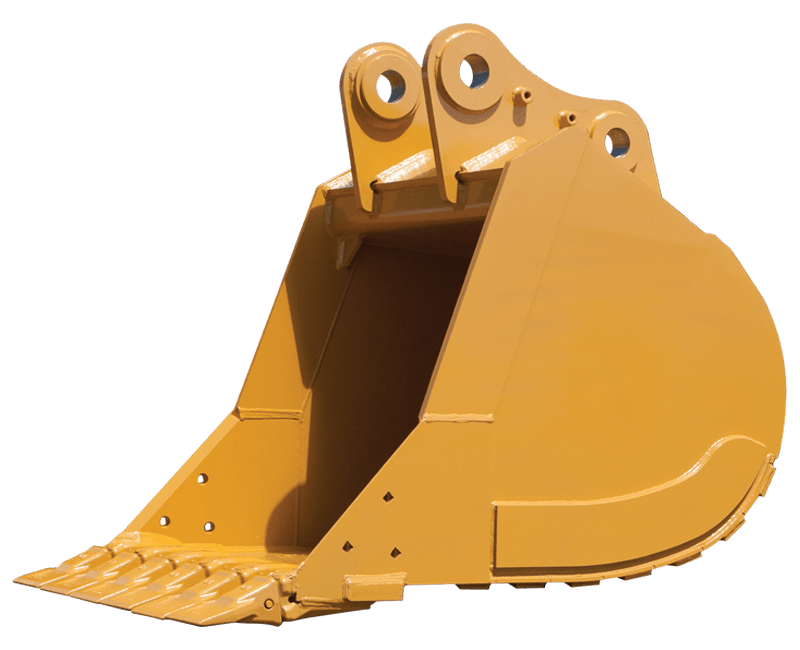

WAIN ROY SEVERE-DUTY ROCK BUCKETS

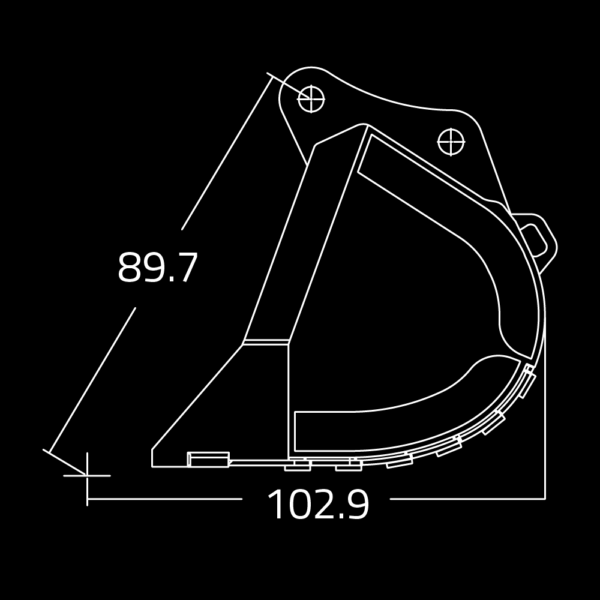

CF800X350 / 4.5BXES

STANDARD/HIGH CAPACITY SEVERE DUTY PIN-ON EXCAVATOR BUCKET

“X” Series buckets are designed for easy material flow when loading and unloading the bucket. The low profile bridge design allows excellent operator visibility. Internal struts and the back side of the ears attached to the double thickness bridge / moldboard provide superior strength and rigidity. Corner gussets provide strength and rigidity to the upper corners of the bucket with minimal interference to material flow. The front corners of the buckets feature a unique interlocking welded joint between the cutting edge and replaceable side cutter insert. The side cutter insert and cutting edge are notched to provide a larger, stronger, and more rigid attaching joint.

Designed for abrasive and high impact applications in shot rock, coral, stratified materials, caliche and highly compacted material.



AVAILABLE MOUNTS DESCRIPTION
OEM PIN ON TWO HORIZONTAL PINS



STD. CAPACITY SEVERE DUTY

OEM PIN ON



CAPACITY

CU. YARD

LBS NO. TEETH
36" 2.36
7175
3
42" 2.91
7691
4
48" 3.46
8830
4
54" 4.03
8774
5
60" 4.60
9405
5
66" 5.18
10033 5
72" 5.76
10662
6
78" 6.35
11275
6
80" 6.54
11419
6
84" 6.93
11914
7
96" 8.10
13170
8
HIGH CAPACITY SEVERE DUTY



OEM PIN ON
CAPACITY LBS NO. TEETH
36" 2.74
7607
3
42" 3.34
8165
4
48" 3.95
8754
4
54" 4.57
9645
5
60" 5.20
10214
5
72" 6.49
11633 6
80" 7.36
12416
6
MAKE MODELS: 80 MT 160,000 - 200,000 LBS
CASE
  • CX800, CX800B
CAT
  • 375L, 385C FS, 385C L, 385C LR, 390F L (2017)
HITACHI
  • ZX670LC-6, ZX800, ZX800ME, ZX850LC-3
HYUNDIA
  • R800LC7A
JOHN DEERE
  • 800C, 800C ME, 850D LC, 870G LC

KOBELCO
  • SK850LC-9
KOMATSU
  • PC750LC-7, PC750SE-7, PC800LC-8, PC800LC-8 MH
LIEBHERR
  • A954C-HD, R950 Demolition Litronic, R954C Abbruch Litronic, R964C, R966 Litronic, R970 SME Litronic, R974C
LINK-BELT
  • 700LX, 700LX-ME, 800 X2, 800LX, 800LX-ME
VOLVO
  • EC700B-icme, EC700B-LC, EC750E
