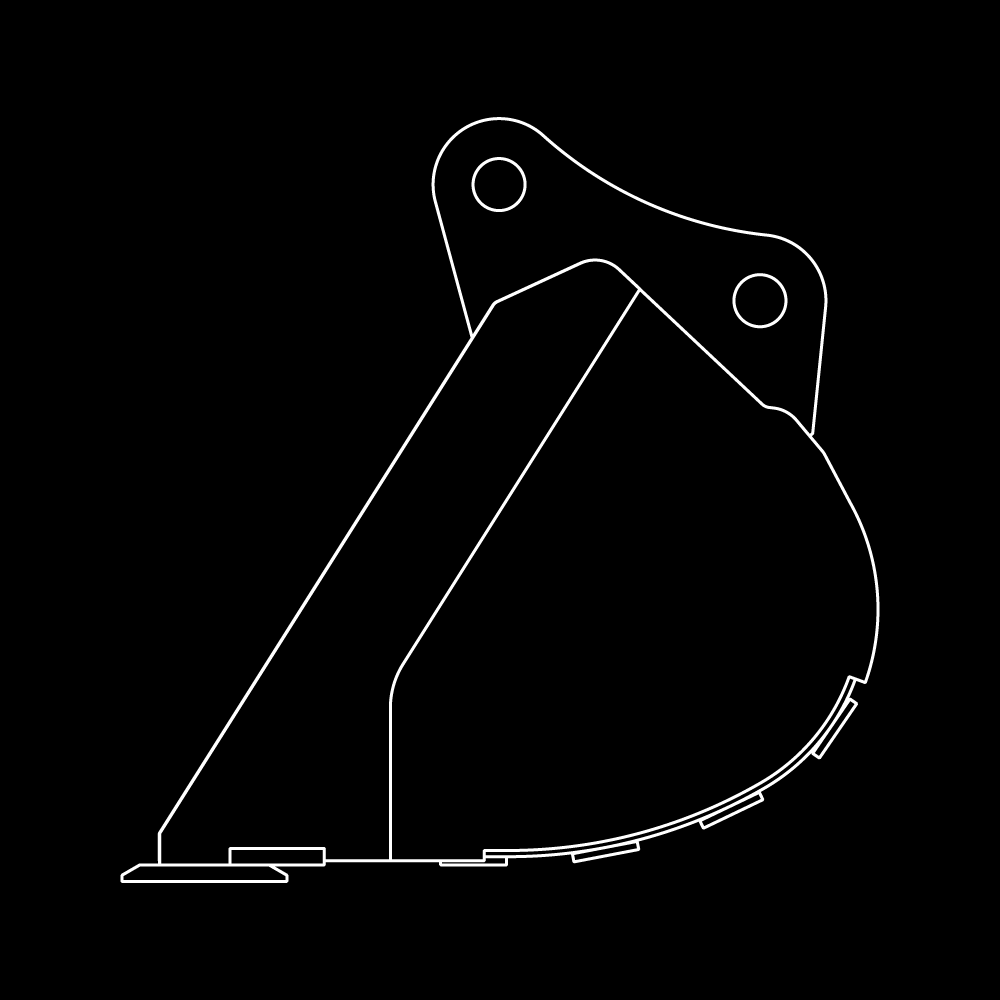

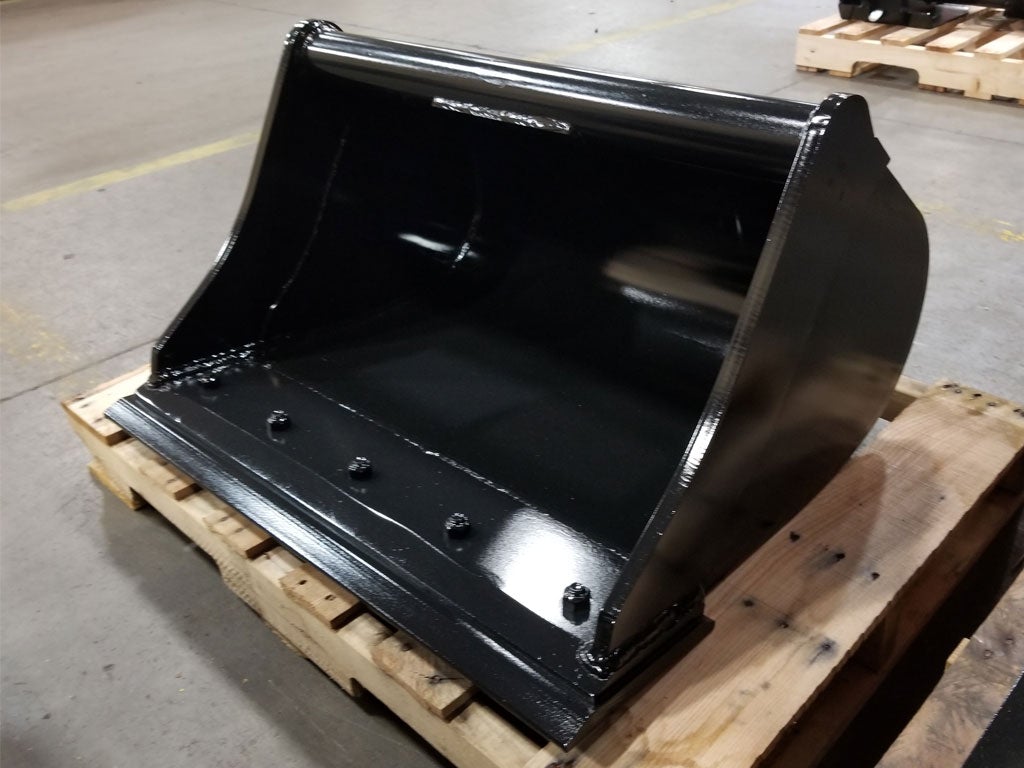

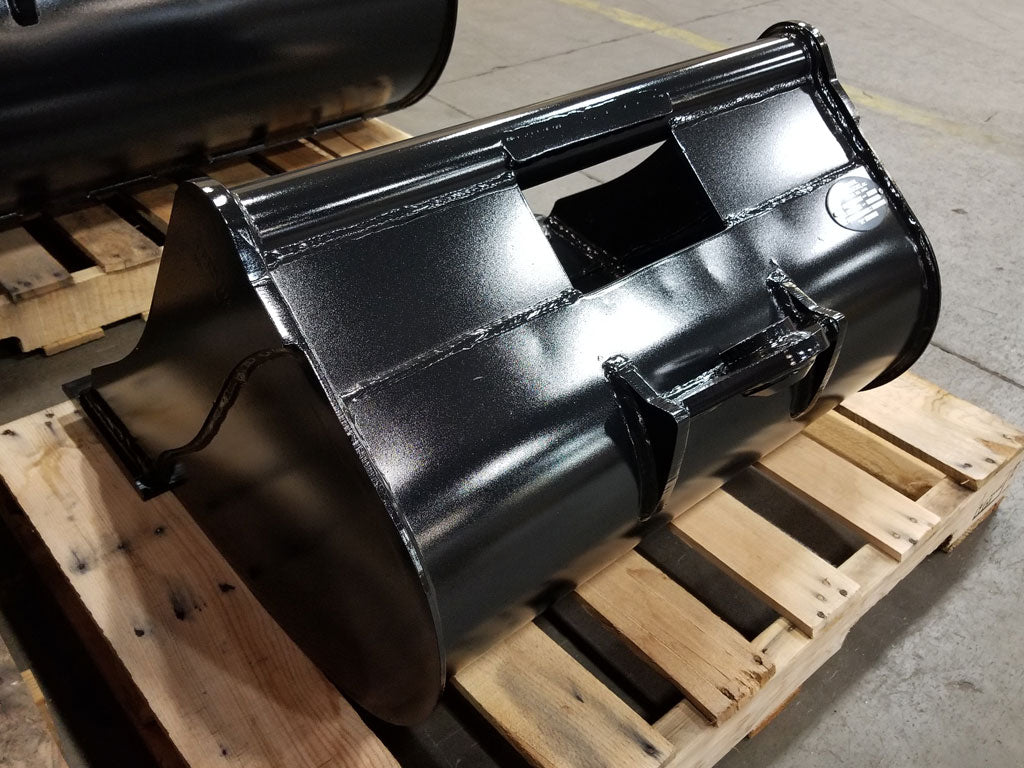

WAIN ROY ditching & grading buckets for excavators 20,000-30,000 lbs.

STYLE
MOUNTING
SIZE

WAIN ROY CFX120DB / CFX125DB

Central Fabricator “X” Series buckets are designed for easy material flow when loading and unloading the bucket. The low profile bridge design allows excellent operator visibility. Internal struts and the back side of the ears attached to the double thickness bridge / moldboard provide superior strength and rigidity. Corner gussets provide strength and rigidity to the upper corners of the bucket with minimal interference to material flow. The front corners of the buckets feature a unique interlocking welded joint between the cutting edge and replaceable side cutter insert. The side cutter insert and cutting edge are notched to provide a larger, stronger, and more rigid attaching joint.

AVAILABLE MOUNTS DESCRIPTION
OEM PIN ON TWO HORIZONTAL PINS
WAIN ROY XLS HOOK WITH VERTICAL PIN



 DITCH CLEANING STD. CAPACITY CFX120DB
OEM PIN ON  CAPACITY (CU. YARD) LBS
36" .50 798
42" .60 890
48" .70 1052
54" .80 1154
60" .90 1256
66" 1.00 1359
72" 1.10 1461
DITCH CLEANING HIGH CAPACITY
OEM PIN ON  CAPACITY
LBS
36" .70 1048
42" .83 1170
48" .97 1291
54" 1.10 1413
60" 1.24 1575
66" 1.38 1657
72" 1.52 1815
78" 1.66 1899
84" 1.70 2111

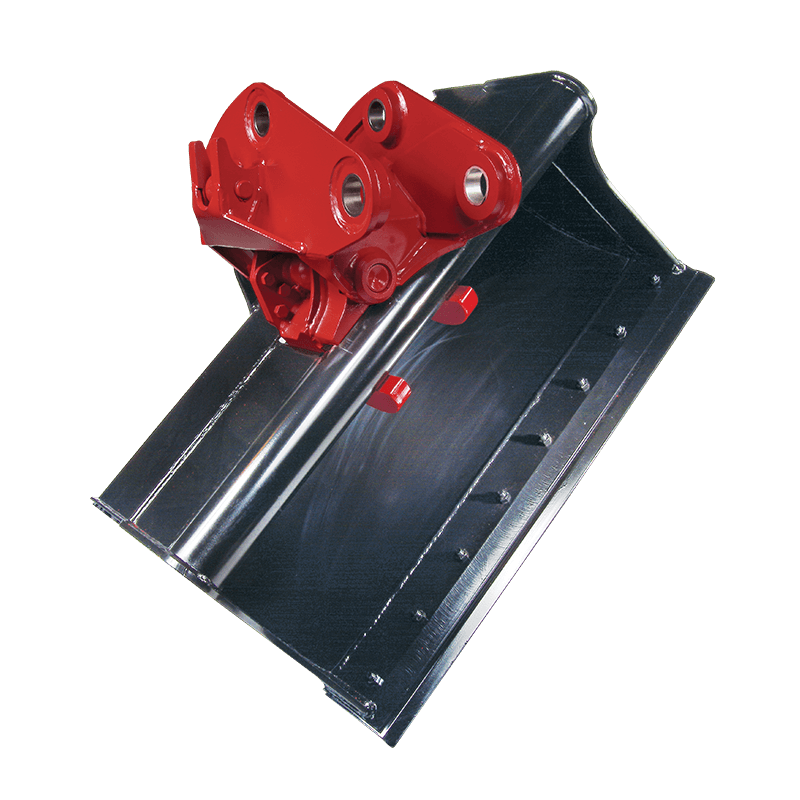

DITCHING & GRADING
WAIN ROY QC CAPACITY LBS
DG3-36 0.49 710
DG3-48 0.67 740
DG3-60 0.81 820
DG3-72 1.00 935





MAKE MODELS: 12 TON 20,000 - 30,000 LBS
CASE
  • 9010B, CX130B, CX130D, CX135 MSR, CX145
CAT
  • 311 D LRR, 311C, 311F LRR (2017), 312C L, 312D, 312D L, 313F L GC (2017), 314D, 315F, A-link, M313C
DOOSAN
  • 1202, DX140, S140LCV
HITACHI
  • ZX120, ZX120-3, ZX130-6, ZX135, ZX135US-3
HYUNDIA
  • HW140, HX130LCR, HX140L, HX145LCR, R110D-7, R125LCR09A, R140LC-7, R140LC-9, R140LC-9A, R140LCD-7, R140W-9, R140W-9A, R145LCR-9, R145LCR-9A
JCB
  • HYDRADIG 110W, JS130LC, JS131, JS145, JZ141
JOHN DEERE
  • 110, 120C, 120D, 130G, 135C RTS, 135D, 135G, 490D, 490E
KOBELCO
  • 115SRDZ, 135SRLCOSB, 140SR
KOMATSU
  • PC100-6, PC120-6, PC128UU-2, PC130-8, PC138USLC-11, PC138USLC-2, PC158USLC-2, PC20LC-6
LIEBHERR
  • A309, A311, A312
LINK BELT
  • 130 X2, 130 X3, 130 X4, 130LX, 135MSR, 145 X3 Spin Ace (Tier 4a), 145 X4 Spin Ace, 210LX-LF, 240LX-LF
MECALAC
  • 11MWR
NEW HOLLAND
  • E135B, EH130LC
SANY
  • SY135C-Tier 2
TEREX
  • TC125 (hr42), TC140LC-1, TW110, TW130
VERMEER
  • CX224, CX229, CX234
VOLVO
  • EC140B-LC, EC140C, EC140E, ECR145C, ECR145E
WACKER NEUSON
  • GE1202, ME12002
