WAIN ROY severe-duty rock buckets for excavators 30,000-41,000 lbs.

Style
Mounting
Size

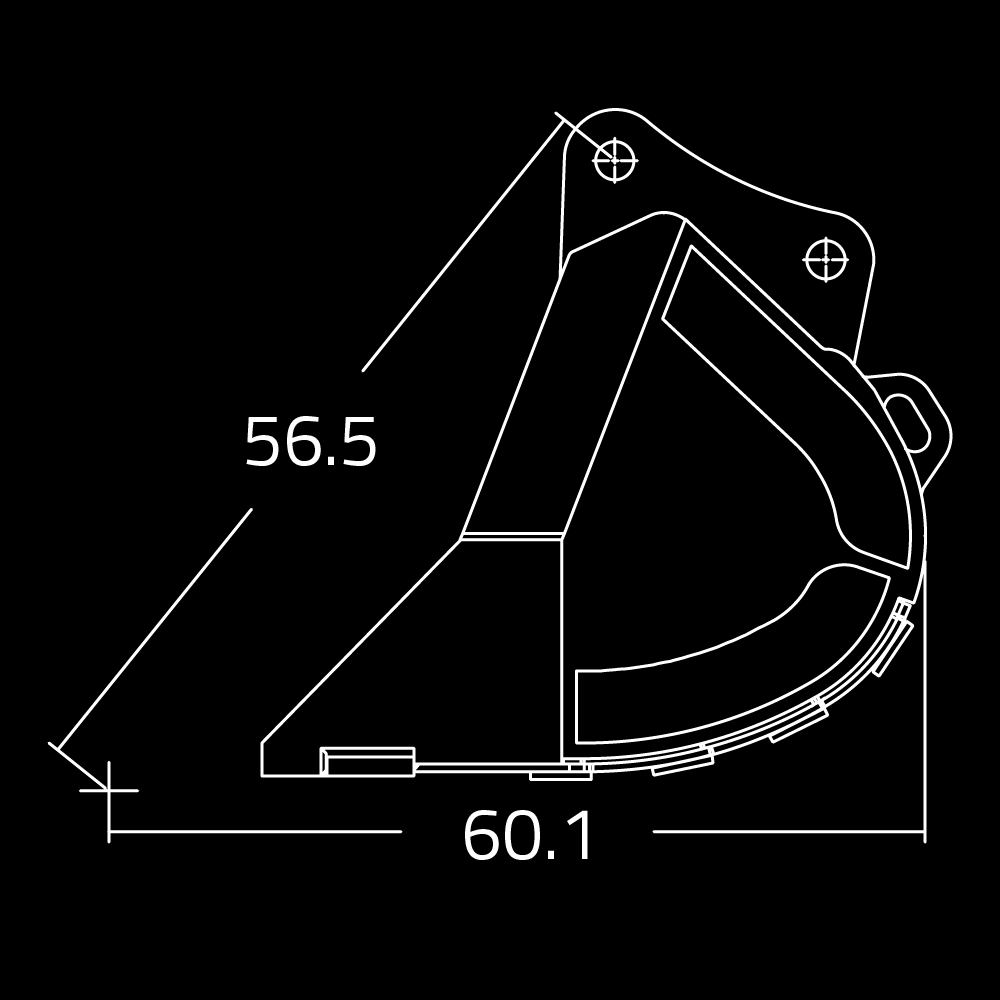

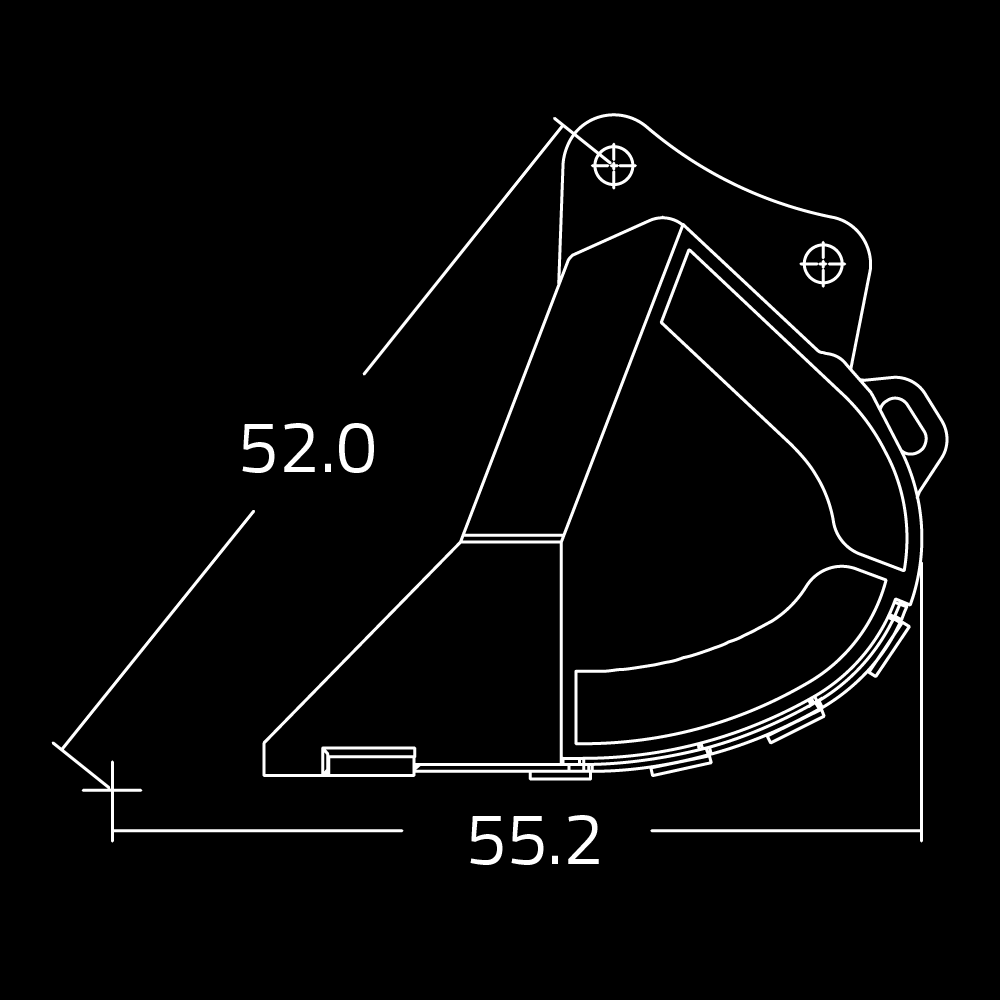

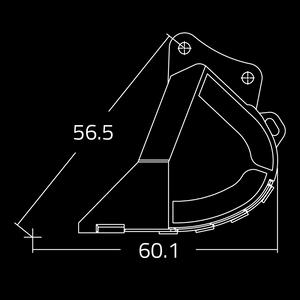

CF150X350 / CF155X350

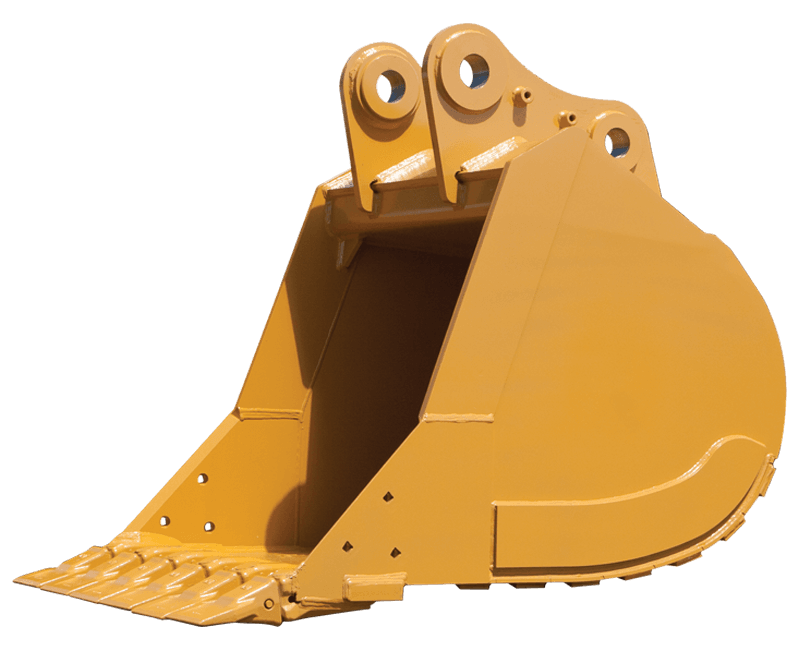

SEVERE DUTY PIN-ON EXCAVATOR BUCKET

“X” Series buckets are designed for easy material flow when loading and unloading the bucket. The low profile bridge design allows excellent operator visibility. Internal struts and the back side of the ears attached to the double thickness bridge / moldboard provide superior strength and rigidity. Corner gussets provide strength and rigidity to the upper corners of the bucket with minimal interference to material flow. The front corners of the buckets feature a unique interlocking welded joint between the cutting edge and replaceable side cutter insert. The side cutter insert and cutting edge are notched to provide a larger, stronger, and more rigid attaching joint.

Designed for abrasive and high impact applications in shot rock, coral, stratified materials, caliche and highly compacted material.



AVAILABLE MOUNTS DESCRIPTION
OEM PIN ON TWO HORIZONTAL PINS



STD. CAPACITY SEVERE DUTY

OEM PIN ON



CAPACITY

CU. YARD

LBS NO. TEETH
18" 0.34 1183 3
20" 0.42 1255 3
24" 0.50 1299 3
30" 0.66 1415 4
36" 0.83 1493 5
42" 1.01 1730 5
48" 1.18 1960 6
HIGH CAPACITY SEVERE DUTY



OEM PIN ON
CAPACITY LBS NO. TEETH
18"
0.37 1673
3
20" 0.45 1693 3
24" 0.54 1720
3
30" 0.73 1777
4
36" 0.92 1809
5
42" 1.12 1862
5
48" 1.31 2350
6
MAKE MODELS: 15 TON 30,000 - 41,000 LBS
CASE
  • 9020B, CX160, CX160B, CX160D
CAT
  • 315C L, 315D L, 316F L (2017), 318F, DX160, M315C, M316C, M318C
DOOSAN
  • DX180LC-5, DX18LC, DX190-W, S175LCV
HITACHI
  • EX150, ZX160LC, ZX160LC-3, ZX160LC-6 ,ZX180
HYUNDIA
  • HX160L, HX180, R160LC-9, R160LC-9A, R170W, R180LC-9
JCB
  • JS160, JS160LC, JS180, JS190
JOHN DEERE
  • 160C LC, 160D LC, 160G-LC, 180G-LC, 590D, 595D
KOBELCO
  • ED150BR, ED160-3 BLADE RUNNER, ED160-5 BLADE RUNNER, ED190BR, SK140SRLC-5, SK160LC, SK170LC, SK170LC-10
KOMATSU
  • PC138USLC-11, PC138USLC-8, PC160LC-7, PC160LC-8
LIEBHERR
  • A314, A316, A914 Litronic, R313, R317, R914 Compact Litronic
LINK BELT
  • 160 X2, 160 X3, 160 X4, 160X
LIUGONG
  • CLG915D, CLG915E
MECALAC
  • 15MC, 15MWR
NEW HOLLAND
  • E175B, EH160LC
TEREX
  • TS180SR, TW150, TW160, TW160SR, TW170, TW190, TW220, TXC140LC-2, TXC180LC-2
VERMEER
  • CX254
VOLVO
  • EC160B, EC160C, EC160C-LC, EC160E, EW160C, EW160E, EW180C, EWR150E, EWR170E
