WAIN ROY severe-duty rock buckets for excavators 41,000-52,000 lbs.

Style
Mounting
Size

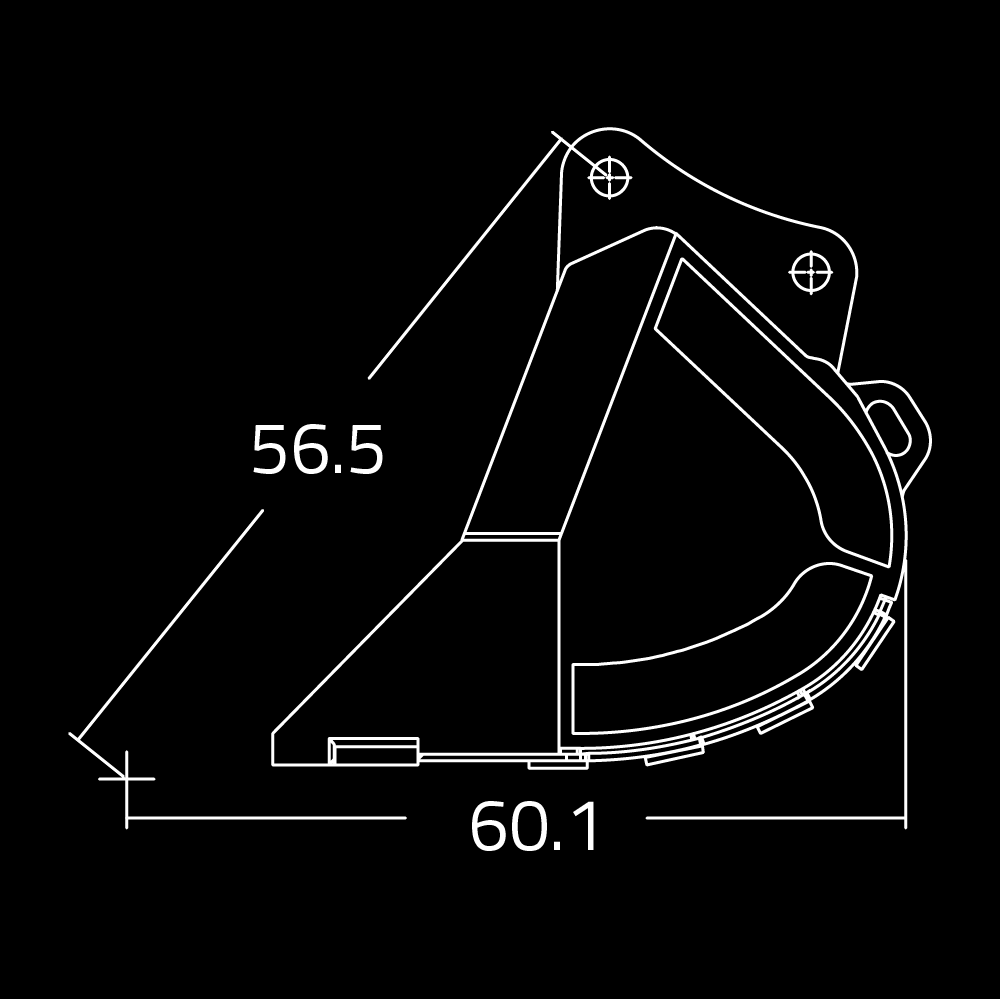

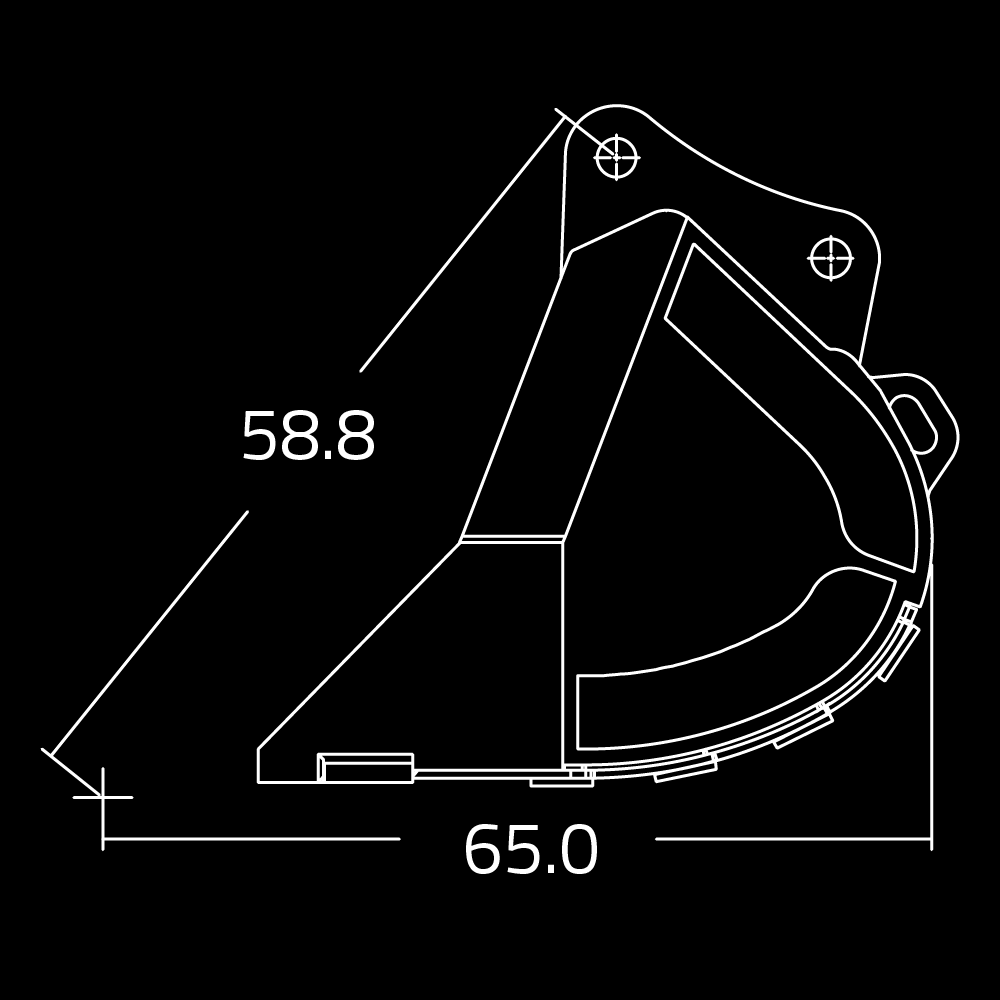

CF200X350 / CF205X350

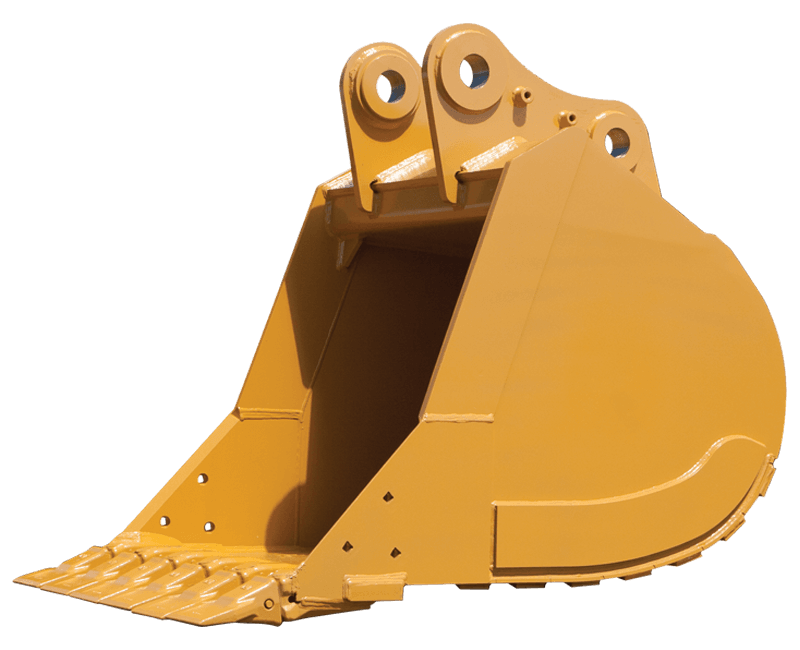

STANDARD/HIGH CAPACITY SEVERE DUTY PIN-ON EXCAVATOR BUCKET

Central Fabricator “X” Series buckets are designed for easy material flow when loading and unloading the bucket. The low profile bridge design allows excellent operator visibility. Internal struts and the back side of the ears attached to the double thickness bridge / moldboard provide superior strength and rigidity. Corner gussets provide strength and rigidity to the upper corners of the bucket with minimal interference to material flow. The front corners of the buckets feature a unique interlocking welded joint between the cutting edge and replaceable side cutter insert. The side cutter insert and cutting edge are notched to provide a larger, stronger, and more rigid attaching joint.

Abrasive and high impact applications in shot rock, coral, stratified materials, caliche and highly compacted material.



AVAILABLE MOUNTS DESCRIPTION
OEM PIN ON TWO HORIZONTAL PINS



STD. CAPACITY SEVERE DUTY

OEM PIN ON



CAPACITY

CU. YARD

LBS NO. TEETH
24" 0.54 1658
3
30" 0.73 1760 4
36" 0.92 1859 4
42" 1.12 2029 5
48" 1.31 2197 5
54" 1.51 2365 6
60" 1.70 2478 7
HIGH CAPACITY SEVERE DUTY



OEM PIN ON
CAPACITY LBS NO. TEETH
24" 0.60 1695
3
30" 0.81 1805
4
36" 1.02 1943
4
42" 1.23 2089 5
48" 1.45 2305
5
54" 1.66 2410 6
60" 1.88 2560 7

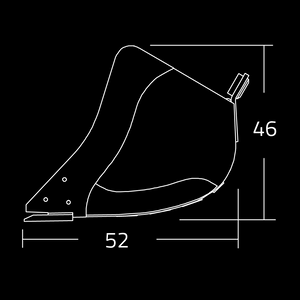

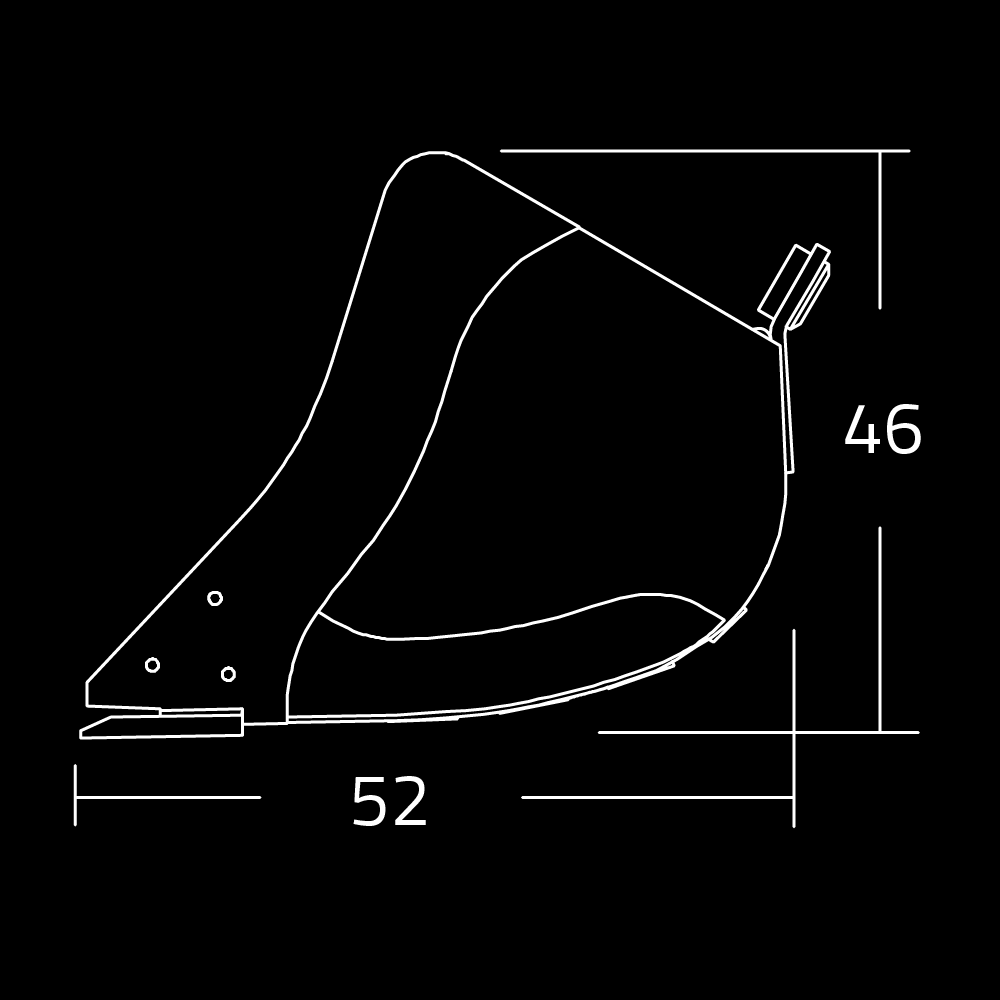

HIGH CAPACITY HEAVY DUTY

WAIN ROY QC

WAIN ROY ORIGINAL

CAPACITY LBS NO. TEETH
HD5-24 0.66
1205 3
HD5-30 0.90 1370 4
HD5-36 1.14 1535 5
HD5-42 1.38 1690 5
HD5-48 1.63 1845 6
MAKE MODELS: 20 TON 41,000 - 52,000 LBS
CASE
  • 9030B, CX210B, CX210D, CX225 MSR
CAT
  • 319D L, 319D LN, 320, 320 GC, 320 UTIL, 320C, 320C L ME, 320CL SLR, 320D L, 320D LRR, 321D LCR, 323, B-link, M322C
DOOSAN
  • DX190W-5, DX210W, DX210W-5, DX210WMH-5, DX225LC, DX235
HITACHI
  • ZX190W-3, ZX190W-6, ZX200LC, ZX200LC-3, ZX210-6, ZX210LC-6, ZX220W-3, ZX225USLC, ZX225USLC-3, ZX245
HYUNDIA
  • HW210, HX220L, R210C-7LR, R210LC-7, R210LC-9, R210W-9, R210W-9A, R220LC-9A, R235
JCB
  • JS220, JS220LC, JS220LR, JS220XD
JOHN DEERE
  • 180CW, 180DW, 190D W, 190G W, 200C LC, 200D, 200D LC, 210CW, 210G LC, 220D W, 225C LCRTS, 225D LC, 245G LC, 690D, 690E
KOBELCO
  • ED195BR, SK210LC, SK210LC-10, SK210LC-LR
KOMATSU
  • PC170LC-11, PC200-7, PC200LC HD, PC200LC-7, PC200LC-8, PC228USLC-3, PC228USLC-8
LIEBHERR
  • A 918 Compact Litronic, A900C, A900C-ZW, A904C, A914C, A918 Litronic, A924C, R317, R900C, R906-A/C, R916 AC, R918 Litronic, R920 Compact Litronic
LINK BELT
  • 210 X2, 210 X2 Long Front, 210 X3, 210 X4, 210LX, 225MSR
LIUGONG
  • CLG922D
NEW HOLLAND
  • E215B, EH215LC
SANY
  • SY215CLC
TEREX
  • TC210C, TC225LC, TC240LC, TW220, TXC225LC-2
VOLVO
  • EC210B, EC210B-LC, EC210B-NLC, EC210C, EC210C-LR, ECR235C, EW180C, EW180E, EW210D, EW230C, EX210C
