WAIN ROY severe-duty rock buckets for excavators 52,000-65,000 lbs.
WAIN ROY severe-duty rock buckets for excavators 52,000-65,000 lbs.
WAIN ROY severe-duty rock buckets for excavators 52,000-65,000 lbs.
WAIN ROY severe-duty rock buckets for excavators 52,000-65,000 lbs.
WAIN ROY severe-duty rock buckets for excavators 52,000-65,000 lbs.
WAIN ROY severe-duty rock buckets for excavators 52,000-65,000 lbs.
WAIN ROY severe-duty rock buckets for excavators 52,000-65,000 lbs.
WAIN ROY severe-duty rock buckets for excavators 52,000-65,000 lbs.

CF250X350-24

WAIN ROY severe-duty rock buckets for excavators 52,000-65,000 lbs.

$10,490.00 - $16,147.00

Business Financing Available

Style
Mounting
Size

4/24

CF250X350 / CF255X350

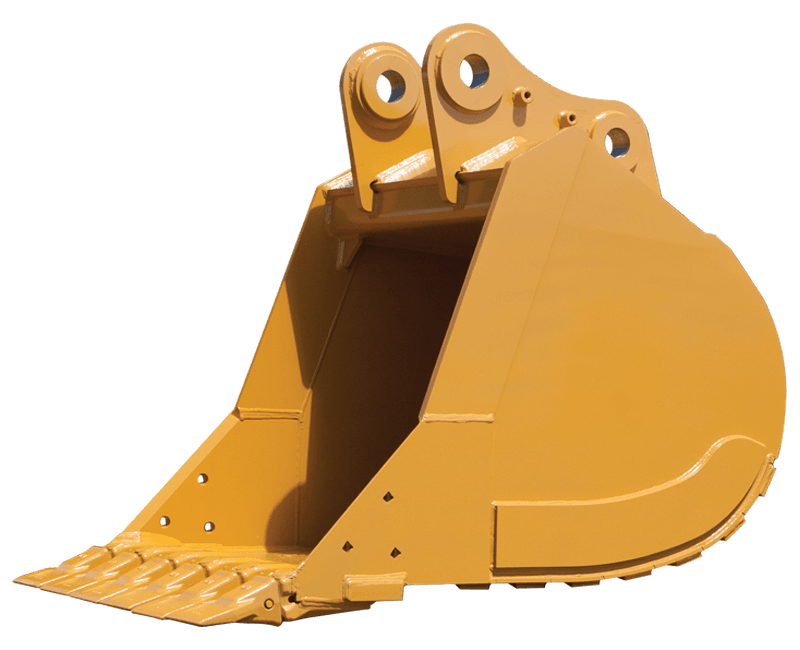

STANDARD/HIGH CAPACITY SEVERE DUTY PIN-ON EXCAVATOR BUCKET

“X” Series buckets are designed for easy material flow when loading and unloading the bucket. The low profile bridge design allows excellent operator visibility. Internal struts and the back side of the ears attached to the double thickness bridge / moldboard provide superior strength and rigidity. Corner gussets provide strength and rigidity to the upper corners of the bucket with minimal interference to material flow. The front corners of the buckets feature a unique interlocking welded joint between the cutting edge and replaceable side cutter insert. The side cutter insert and cutting edge are notched to provide a larger, stronger, and more rigid attaching joint.

Designed for abrasive and high impact applications in shot rock, coral, stratified materials, caliche and highly compacted material.


AVAILABLE MOUNTS DESCRIPTION
OEM PIN ON TWO HORIZONTAL PINS



STD. CAPACITY SEVERE DUTY

OEM PIN ON



CAPACITY

CU. YARD

 LBS NO. TEETH
24" 0.60 1658
 3
30" 0.81 2080 4
36" 1.02 2179 4
42" 1.23 2308 4
48" 1.45 2519 5
54" 1.66 2699 6
60" 1.88 2929 6
HIGH CAPACITY SEVERE DUTY



OEM PIN ON 		CAPACITY LBS NO. TEETH
24" 0.81 1735
 3
30" 1.08 2240 4
36" 1.36 2349
 4
42" 1.64 2547
 5
48" 1.93 2810
 5
54" 2.23 3034
 6
60" 2.52 3265
 7
MAKE MODELS: 25 TON 52,000 - 65,000 LBS
CASE
  • 9040B, CX235C SR, CX240B, CX245D SR, CX250D, CX290B, CX300D
CAT
  • 321C LCR, 322C L, 322C L ME, 322C L SLR, 324D L, 325C, 325C L ME, 325D L, 325F L (2017), 328, 329D L, CB-link
DOOSAN
  • DX225LC, DX255LC-5
HITACHI
  • ZX230LC, ZX240LC-3, ZX250LC-3, ZX250LC-6, ZX270LC-3, ZX300LC-6, ZX345USLC-6
HYUNDIA
  • HX260L, R250LC-7, R260LC-9A, R290LC-7A, R290LC-7LR, R290LC-9, RC250LC-7A, RC250LC-9
JCB
  • JS240, JS260, JS260LC, JS260XD, JS290
JOHN DEERE
  • 230C LC, 240D LC, 250G LC, 270C LC, 270C SLF, 270D LC, 290G, 300G LC, 345GC, 790D, 790E
KOBELCO
  • 215SR, 235SR, 235SRLC, SK230RLC-5, SK240, SK250LC-DA, SK250LC-LR, SK260LC, SK260LC-10, SK270SRLC-5
KOMATSU
  • PC210LC-10 SLF, PC210LC-11, PC220LC-7, PC220LC-8, PC240LC-10 SLF, PC240LC-11, PC270LC-7, PC270LC-8, PC308USLC-3
LIEBHERR
  • A924 Heavy Lift Litronic, A924 Litronic, A924 Plus, A924C, R906 A/C, R914C, R916 A/C, R924 Compact, R926, R926 A/C, R926 Compact Litronic, R926 Litronic
LIUGONG
  • CLG922E, CLG925D, CLG925E, CLG925LL
SANY
  • SY235C
TEREX
  • TC260LC, TXC255LC, TXC255LC-2
VOLVO
  • EC220E, EC240B-LC, EC240B-LR, EC240C, EC250E, EC290B-LC, EC290B-LR, EC290C, ECR235E, EW220E, EW230C, EW240E
