CF450X350-30

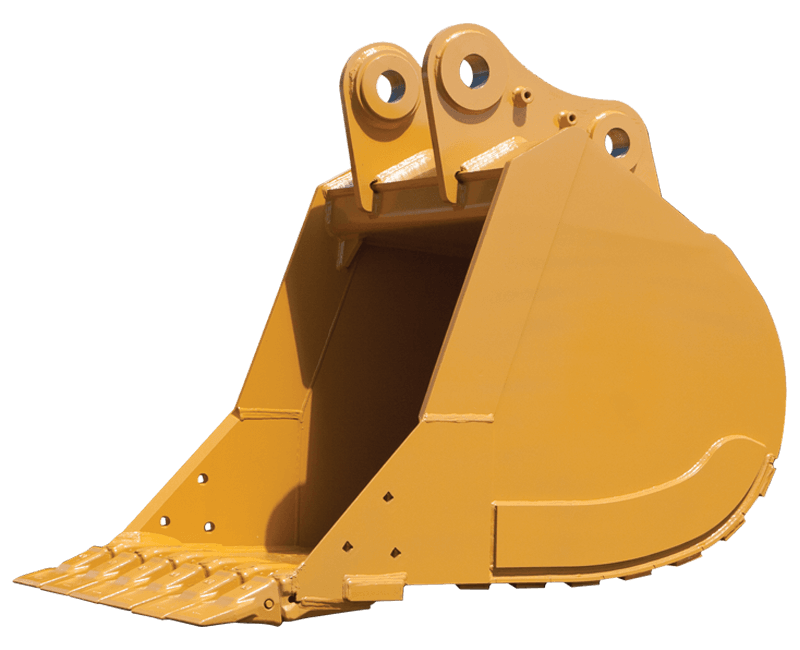

WAIN ROY severe-duty rock buckets for excavators 95,000-110,000 lbs.

Style
Size

4/24

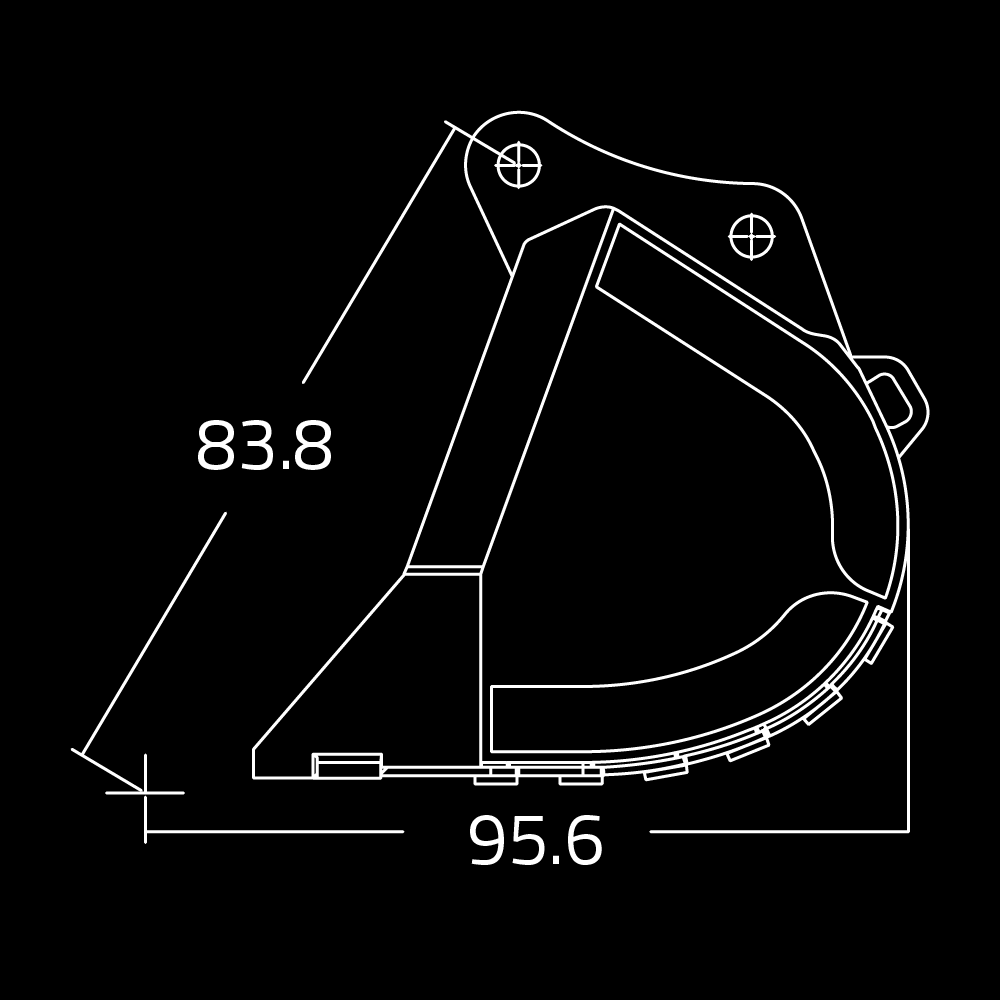

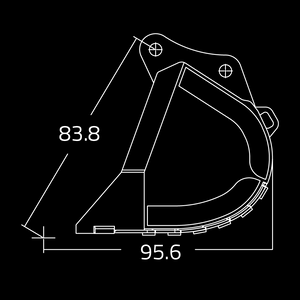

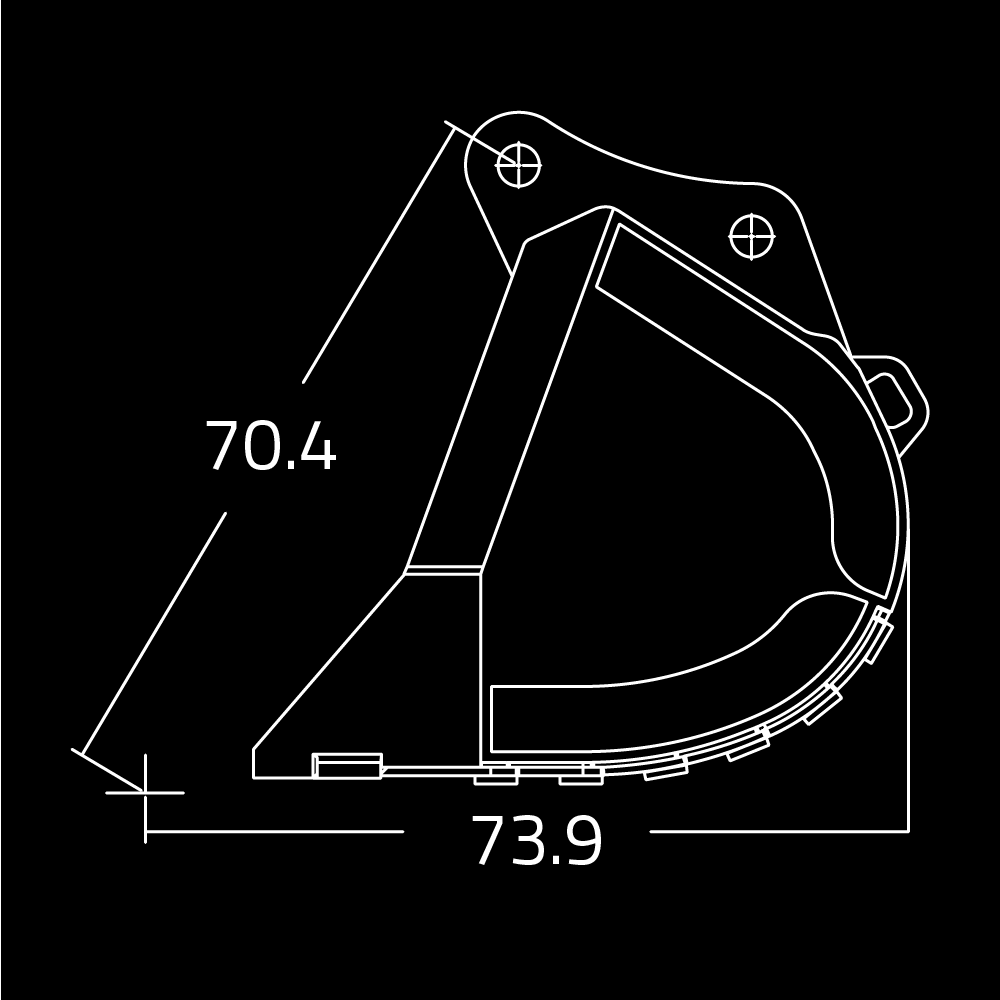

CF450X350 / CF455X350

STANDARD/HIGH CAPACITY SEVERE DUTY PIN-ON EXCAVATOR BUCKET

“X” Series buckets are designed for easy material flow when loading and unloading the bucket. The low profile bridge design allows excellent operator visibility. Internal struts and the back side of the ears attached to the double thickness bridge / moldboard provide superior strength and rigidity. Corner gussets provide strength and rigidity to the upper corners of the bucket with minimal interference to material flow. The front corners of the buckets feature a unique interlocking welded joint between the cutting edge and replaceable side cutter insert. The side cutter insert and cutting edge are notched to provide a larger, stronger, and more rigid attaching joint.

Designed for abrasive and high impact applications in shot rock, coral, stratified materials, caliche and highly compacted material.




AVAILABLE MOUNTS DESCRIPTION
OEM PIN ON TWO HORIZONTAL PINS



STD. CAPACITY SEVERE DUTY

OEM PIN ON



CAPACITY

CU. YARD

LBS NO. TEETH
30" 1.18 3042 3
36" 1.49 3670 4
42" 1.82 3772 4
48" 2.15 4067 5
54" 2.49 4416 5
60" 2.83 4712 6
66" 3.17 5007 6
72" 3.51 5356 7
78" 3.80 5651 7
80" 3.91 5749 7
84" 4.10 5950 8
HIGH CAPACITY SEVERE DUTY



OEM PIN ON
CAPACITY LBS NO. TEETH
30" 1.44 3475 3
36" 1.82 3944 4
42" 2.21 4333 4
48" 2.60 4674 5
54" 3.00 5076 5
60" 3.40 5418 6
66" 3.81 5759 6
72" 4.21 6150 7
78" 4.57 6491 7
80" 4.75 6629 7
84" 4.93 6830 7
MAKE MODELS: 45 MT 95,000 - 110,000 LBS
CASE
  • CX460, CX460 EXT, CX470B, CX490D
CAT
  • 345C L, 345C L WVG, 345C L WVGLR, 345C LR, 345C VG, 345D L, 349F L (2017), 349F L XE (2017), 352F, TB-link
DOOSAN
  • DX420LC, DX420LC-5, DX480LC, DX480LCRCW, S470LCV, S470LCVLF
HITACHI
  • EX400, ZX450KC ME, ZX450LC, ZX450LC-3, ZX470
HYUNDIA
  • R450LC-7, R480LC-9, R480LC-9A
JCB
  • JS460, JS460LC
JOHN DEERE
  • 450C LC, 470G LC, 992D, 992E
KOBELCO
  • SK480LC-DA, SK480LC-ME
KOMATSU
  • PC400LC-6, PC400LC-7, PC400LC-8, PC450-6, PC450-7, PC450LC-6, PC450LC-8, PC490LC-11, PC490LCi-11
LIEBHERR
  • R944C, R944C Tunnel Litronic, R946 Litronic, R950 Tunnel Litronic, R954B, R954B-V, R954C
LINK-BELT
  • 460 X2, 460LX
LIUGONG
  • CLG950E
TEREX
  • TXC470LC, TXC480LC-2
VOLVO
  • EC460B-icme, EC460B-LC, EC460C, EC480E
