CF600X350-36

WAIN ROY severe-duty rock buckets for excavators 110,000-160,000 lbs.

Style
Size

4/24

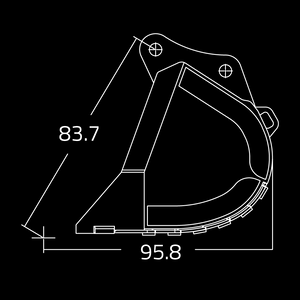

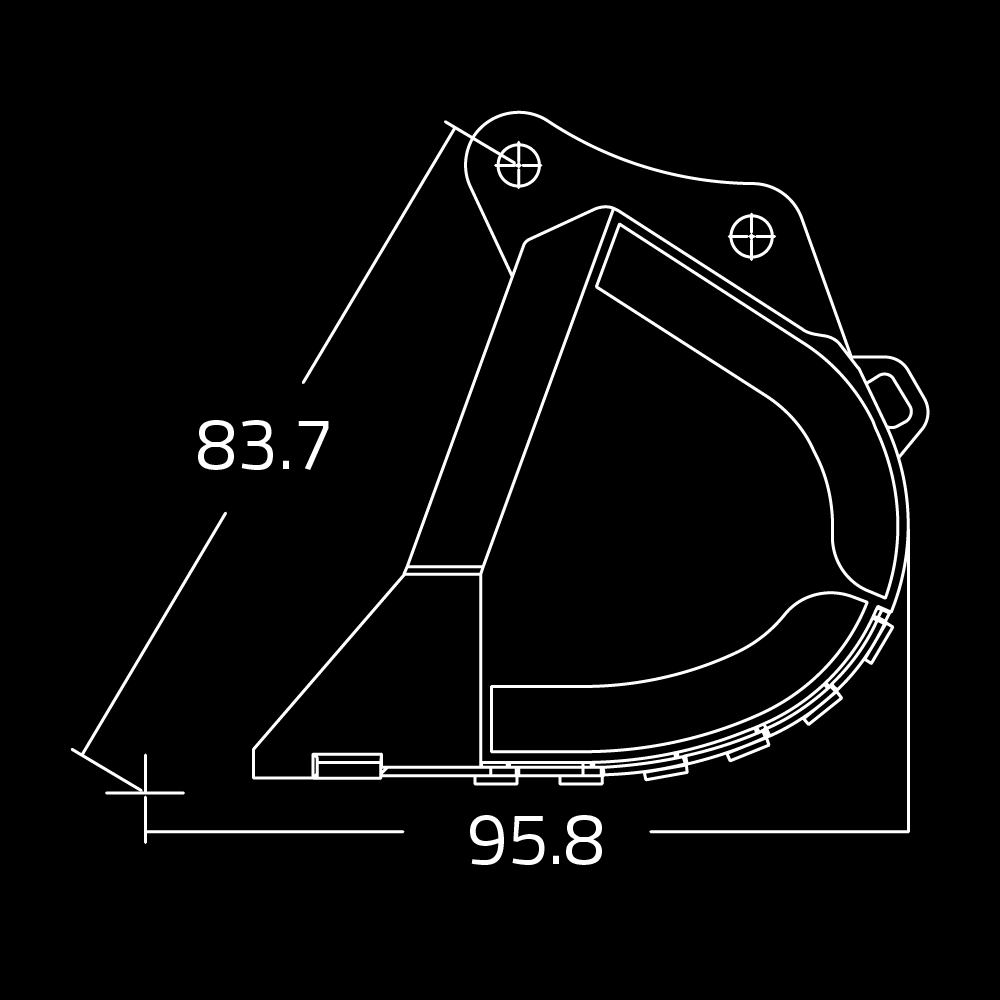

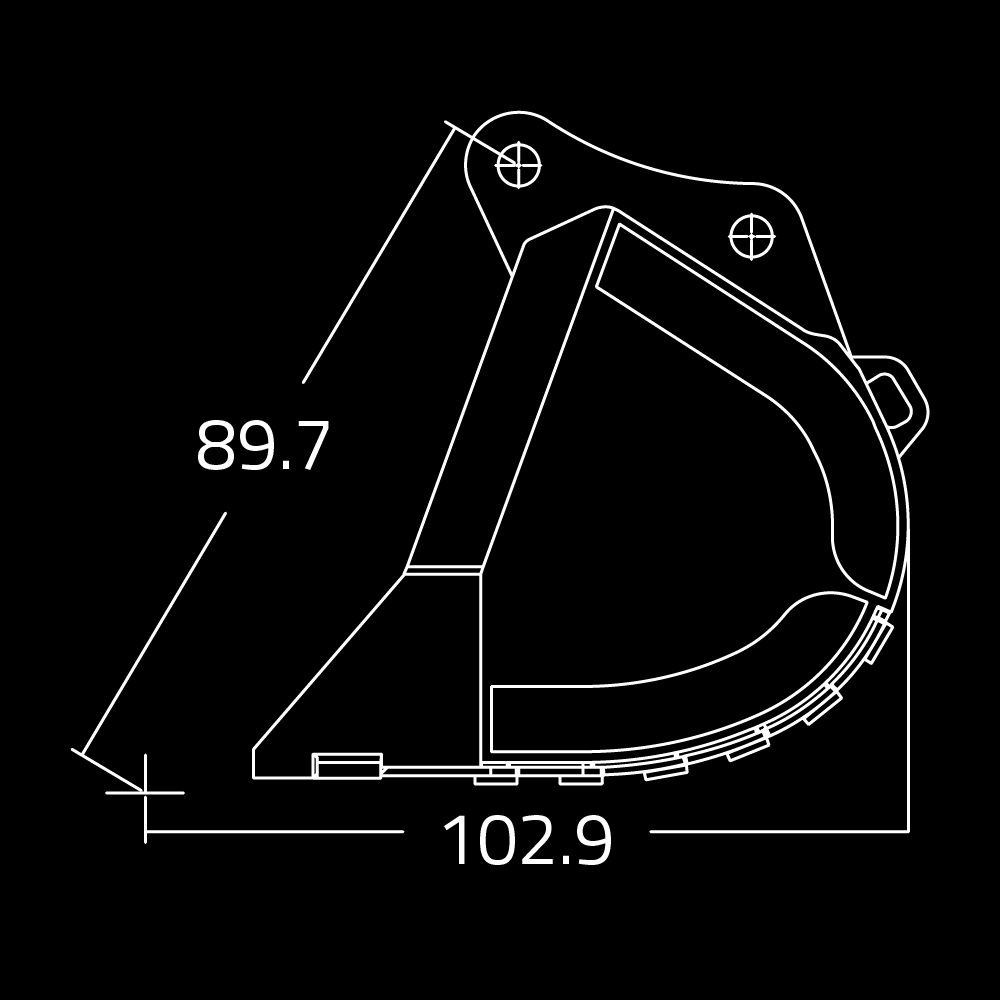

CF600X350 / CF605X350

STANDARD/HIGH CAPACITY SEVERE DUTY PIN-ON EXCAVATOR BUCKET

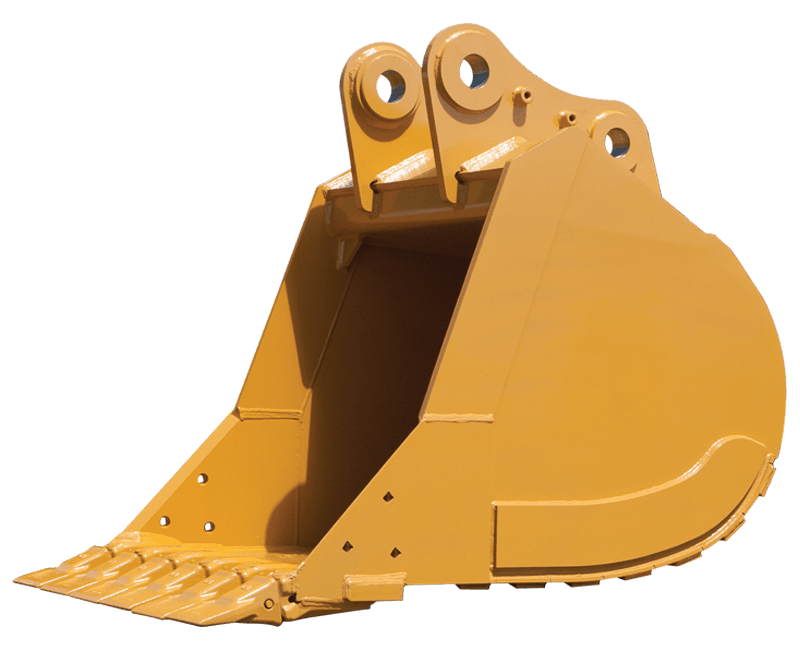

“X” Series buckets are designed for easy material flow when loading and unloading the bucket. The low profile bridge design allows excellent operator visibility. Internal struts and the back side of the ears attached to the double thickness bridge / moldboard provide superior strength and rigidity. Corner gussets provide strength and rigidity to the upper corners of the bucket with minimal interference to material flow. The front corners of the buckets feature a unique interlocking welded joint between the cutting edge and replaceable side cutter insert. The side cutter insert and cutting edge are notched to provide a larger, stronger, and more rigid attaching joint.

Designed for abrasive and high impact applications in shot rock, coral, stratified materials, caliche and highly compacted material.




AVAILABLE MOUNTS DESCRIPTION
OEM PIN ON TWO HORIZONTAL PINS



STD. CAPACITY SEVERE DUTY

OEM PIN ON



CAPACITY

CU. YARD

LBS NO. TEETH
36" 1.97
5985
3
42" 2.43
6440
4
48" 2.90
6710
4
54" 3.38
6980
5
60" 3.86
7390
5
66" 4.35
7595
5
72" 4.84
8690
6
78" 5.37
9195
6
80" 5.50
9460
6
84" 5.81
9624
6
96" 6.78 10160 7
HIGH CAPACITY SEVERE DUTY



OEM PIN ON
CAPACITY LBS NO. TEETH
36" 2.36
6600
3
42" 2.91
7150
4
48" 3.47
7480
4
54" 4.04
7810
5
60" 4.63
8360
5
66" 5.22
8910
5
72" 5.81
9435
6
78" 6.41
9784
6
80" 6.60
9991
6
84" 7.00
10125
6
96" 8.18 10996 7
MAKE MODELS: 60 MT 110,000 - 160,000 LBS
CASE
  • CX700, CX700B, CX750D
CAT
  • 352F (2017), 365C L, 365L II, 374F L (2017)
DOOSAN
  • DX490LC-5, DX530LC-5
HITACHI
  • ZX600LC, ZX600LC BE, ZX650LC-3
HYUNDIA
  • HX520L, R500LC-7A, R520LC-9, R520LC-9A
JOHN DEERE
  • 600C LC, 600C LC ME, 650D LC, 670G LC

KOBELCO
  • SK485LC, SK500LC-10
KOMATSU
  • PC490LC-10 SLF, PC490LC-10MH, PC600LC-7, PC600LC-7SE, PC600LC-8, PC600LC-8 MH, PC650LC-11
LIEBHERR
  • A944C-HD, R 9100, R9150, R954C, R956 Litronic, R960 SME Litronic, R964C
LINK-BELT
  • 470 X3, 490 X4, 700 X2, 750 X4
TEREX
  • TXC520LC-2
VOLVO
  • EC700C
