CP16ATDALITEC

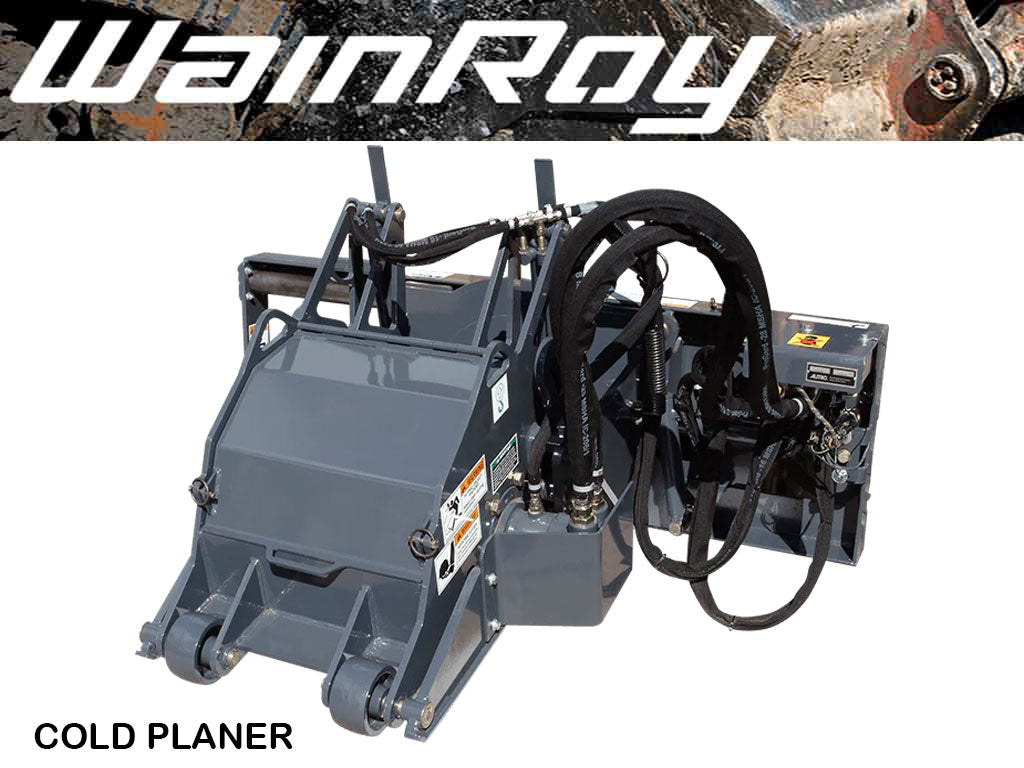

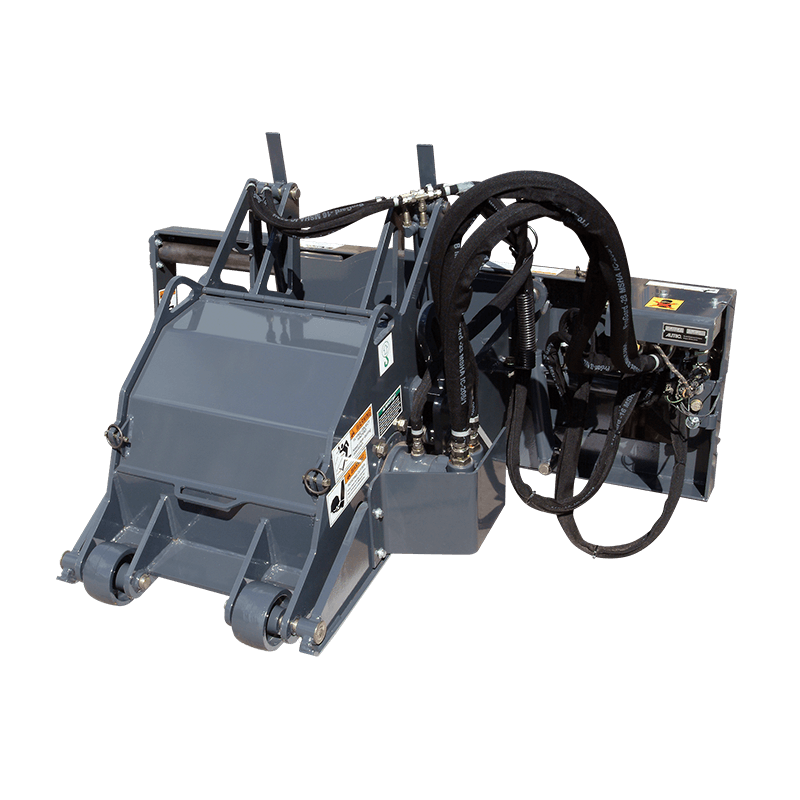

WAIN ROY High Flow Cold Planer for skid steers

SIZE
HARNESS
OPTIONS
Revised 5/24

CP16ATD/CP18ATD/CP24ATD/CP30ATD

COLD PLANER FOR HIGH-FLOW SKID STEERS

FEATURES

  • Skid Steer (SAE J2513) Quick Attach System
  • Hydraulic depth up to 6 inches
  • 22-inch Hydraulic side-shift
  • Top center pivot design
  • Front and rear cast wheels
  • Dual depth cylinders
  • Double reduction planetary drive
  • Debris guards
  • Hydraulic hoses included
  • Top accessible drum
  • Pick removal tool
  • Welded to American Welding Society standards

APPLICATIONS

  • For asphalt and concrete applications
  • Curb cuts (wedge cuts)
  • Butt joints
  • Pothole repair
  • Milling of frost heaves in pavement
  • Re-establish proper drainage
  • characteristics of pavement
  • Texture pavement for skid resistance
  • Remove asphalt around manholes and storm drains prior to overlay
  • Traffic stripe removal (fine finish)
  • Mill small areas inaccessible by larger dedicated planers
  • Full depth utility cuts prior to installation or repair of gas, sewer and water lines
  • Bridge deck planing due to weight restrictions of larger planers





        BASE MODEL  FLOW GPM PRESSURE PSI DRUM WIDTH NO. OF PICKS LBS
        CP16ATDALITEC 22-32
        2000-3500
        16"
        44
        1750
        CP18ATDALITEC 25-32 2000-3500 18" 48 1801
        CP24ATDALITEC 28-32 2200-3500 24" 62 1919
        CP30ATDALITEC 30-32 2500-3500 30" 74 2450



        BASE MODE CONFIGURATIONS DESCRIPTION
        CP16ATDXT Same as CP16ATDALITEC except for skid steers with Auxiliary pump outputs of >32 gpm.
        CP16ATDXTP Same as CP16ATDALITEC except for skid steers with auxiliary pump outputs of >32 gpm. & >3500 psi.
        CP16ATD/S/C Same as CP16ATDALITEC except for skid steers with single-circuit auxiliary hydraulics.
        CP18ATDXT Same as CP18ATDALITEC except for skid steers with Auxiliary pump outputs of >32 gpm.
        CP18ATDXTP Same as CP18ATDALITEC except for skid steers with auxiliary pump outputs of >32 gpm. & >3500 psi.
        CP18ATD/S/C Same as CP18ATDALITEC except for skid steers with single-circuit auxiliary hydraulics.
        CP24ATDXT Same as CP24ATDALITEC except for skid steers with Auxiliary pump outputs of >32 gpm.
        CP24ATDXTP Same as CP24ATDALITEC except for skid steers with auxiliary pump outputs of >32 gpm. & >3500 psi.
        CP24ATD/S/C Same as CP24ATDALITEC except for skid steers with single-circuit auxiliary hydraulics.
        CP30ATDXT Same as CP30ATDALITEC except for skid steers with Auxiliary pump outputs of >32 gpm
        CP30ATDXTP Same as CP30ATDALITEC except for skid steers with auxiliary pump outputs of >32 gpm. & >3500 psi.
        CP30ATD/S/C Same as CP30ATDALITEC except for skid steers with single-circuit auxiliary hydraulics.
