02A-12

WAIN ROY Cemetery / Bellhole buckets for Tractor Loader Backhoes up to 16,000 lbs.

Style
MOUNTING
Size

WAIN ROY CEMETERY / BELLHOLE BUCKETS

Cemetery / Bellhole bucket is specifically designed for digging straight vertical walls. This design of bucket is typically needed for digging graves. The Bellhole Bucket has rotation incorporated into the design that enables the operator to dig the straight vertical walls as well as a flat bottom.



AVAILABLE MOUNTS DESCRIPTION
OEM PIN ON TWO HORIZONTAL PINS
WAIN ROY XLS HOOK WITH VERTICAL PIN

GANNON ELIMINATOR /

TAG / CP / WR ORIGINAL

HOOK WITH VERTICAL PIN

CEMETERY / BELLHOLE

OEM PIN ON

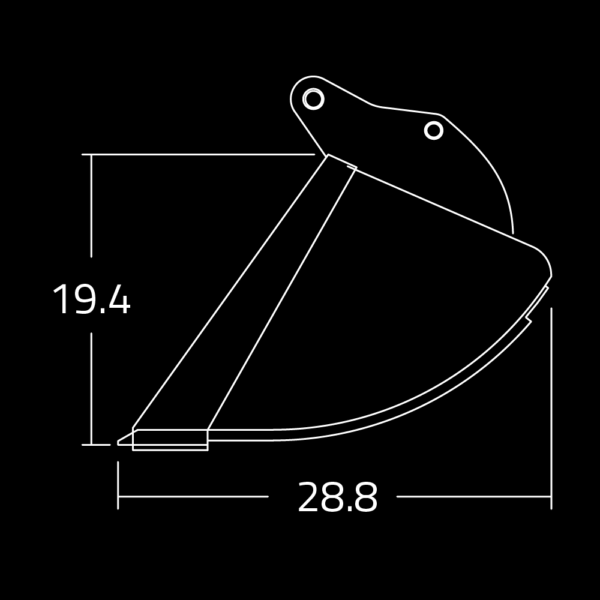

CAPACITY LBS NO. TEETH HEIGHT
LENGTH
12" 1.9
271
3
19.4" 28.8"
18" 2.8
328
4
19.4" 28.8"
24" 4.2
373
5
19.4" 28.8"
30" 5.6
439
6
19.4" 28.8"
36" 7.4
478
7
19.4" 28.8"
38" 7.9 486 7 19.4" 28.8"
40" 8.4 513 8 19.4" 28.8"

CEMETERY / BELLHOLE

WAIN ROY XLS, WAIN ROY ORIGINAL

GANNON ELIMINATOR, TAG, CP

CAPACITY  LBS NO. TEETH HEIGHT  LENGTH
12" 2.0
165
3
16" 2.7
185
3
18" 3.0
195
3
24" 4.4
250
4
30" 5.9
285
6
36" 7.3
330
7
40"
MAKE UP TO 16000 LB BACKHOE
CASE
  • 580 Series 3, 580 Super M Series 2, 580 Super M Series 3, 580 Super M+ Series 2, 580 Super M+ Series 3, 580 Super N, 580 Super N WT, 580 Turbo Series 2, 580L, 580M, 580M Series 2, 580N, 580N EP, 580SL, 580SM, 590 SL, 590 Super M Series 3, 590 Super M+ Series 3, 590 Super N, 590M Super M+ Series 3, 590SM
CAT
  • 415F2, 415F2 IL, 416B, 416C, 416D, 416E, 416F2, 420D, 420D-IT, 420E, 420E-IT, 420FX/420FX IT, 426B, 426C, 428, 430D, 430E, 430E-IT, 430FX/430FX IT, 436B, 436C, 4630D-IT
JCB
  • 3C 14, 3C LL, 3CX, 3CX-14, 3CX-14 SUPER
JOHN DEERE
  • 310J, 310L Backhoe, 310L EP Backhoe, 310SJ, 310SJ TMC, 310SJ TMC Tool Carrier, 310SL Backhoe, 310SL HL Backhoe, 315SJ, 315SL Backhoe, 410J, 410J TMC Tool Carrier, 410L Backhoe, 410SJ TMC
KOMATSU
  • W70A, WB140, WB142-5, WB146-5, WB146PS-5, WB150, WB156PS-5, WB91, WB93, WB93R-5, WB93R-8, WB93S-5, WB97, WB97R-5, WB97S-5, WB98
NEW HOLLAND
  • 555B, 555C, 555E, 575E, 655A, 655C, 655E, 675E, B110, B110B, B110C, B115B, B90B, B95, B95B, B95B LR, B95B TC, B95C, B95C LR, B95C TC, B95LR, B95TC, BL110B, LB110, LB1156, LB115B, LB75, LB75B, LB90, LB90B
VOLVO
  • BL60, BL60B, BL61, BL61 Plus, BL61B, BL70B, BL71, BL71 Plus, BL71B, PL70
