WAIN ROY Tilt Bucket for 1/2 yard Tractor Loader Backhoes over 16,000 lbs.

MOUNTING
SIZE

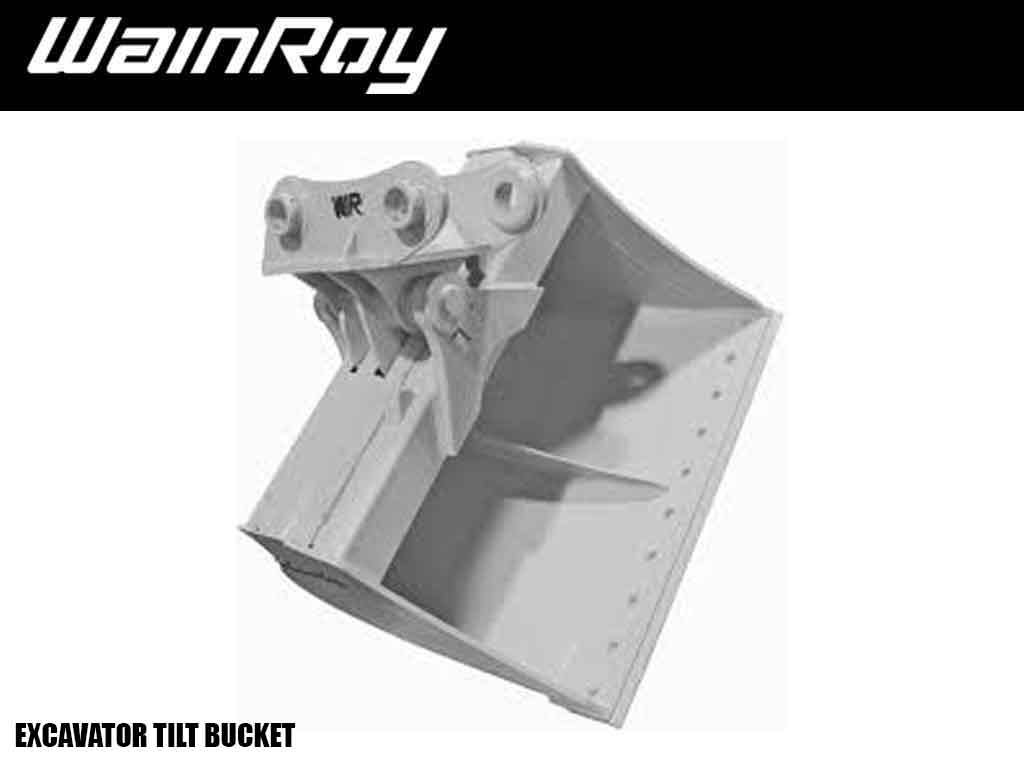

WAIN ROY TILT BUCKETS

Tilt Buckets rotate up to a total of 90 degrees, 45 degrees each side of center, for greater control and flexibility during ditch cleaning, grading, backfilling and loose material loading and unloading applications. The tilting mechanism allows the bucket to rotate at various angles in order to form the surface to the desired shape without repositioning the machine. This is especially beneficial when working along roadways or in tight operating conditions.

45° rotation. Bolt‑on edge standard. Machine must be equipped with valve and lines down to end of dipperstick. Valve must have port reliefs. For Hydraulic Kit availability & pricing, contact Dealer Services.

TILT BUCKET

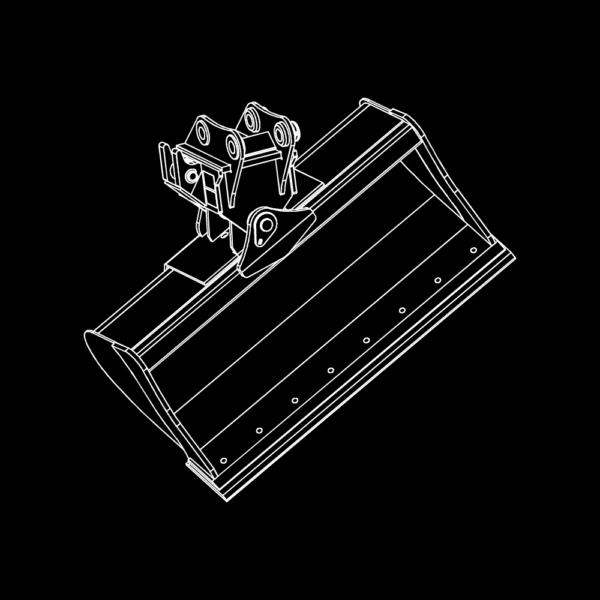

OEM PIN ON

WIDTH
CAPACITY (CU. YD.)
LBS
TLT2PO-48 48" 0.70 1180
TLT2PO-60 60" 0.90
1367
TLT2PO-66 66"
1.00
1445
TLT2PO-72 72" 1.10 1513

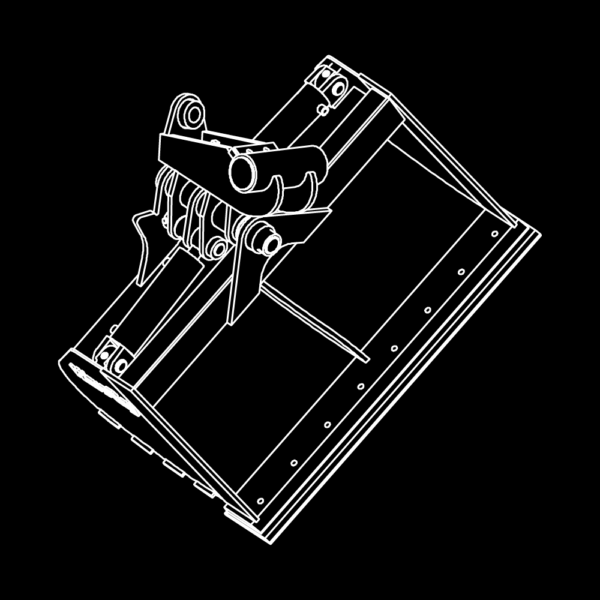

TILT BUCKET

WAIN ROY XLS / ORIGINAL

GANNON / CP / TAG

WIDTH CAPACITY (CU. YD.) LBS

TLT2QC-48

48" 0.70 1135

TLT2QC-60

54"
0.90
1322

TLT2QC-66

60"
1.00
1400
TLT2QC-72 72" 1.10 1468
MAKE OVER 16,000 LBS
CAT
  • 446B, 446C, 446D, 450E, 450F
JCB
  • 3C 15, 3CX 17, 3CX-15, 3CX-15 SUPER, 4CX 14, 4CX 15, 4CX 17, 4CX-14 SUPER, 4CX-15 SUPER, DYMAX RAIL SYSTEM
JOHN DEERE
  • 710J Backhoe, 710K Backhoe, 710L Backhoe
MECALAC
  • TLB830, TLB840R, TLB850, TLB870, TLB890, TLB990
