TLT3PO-60

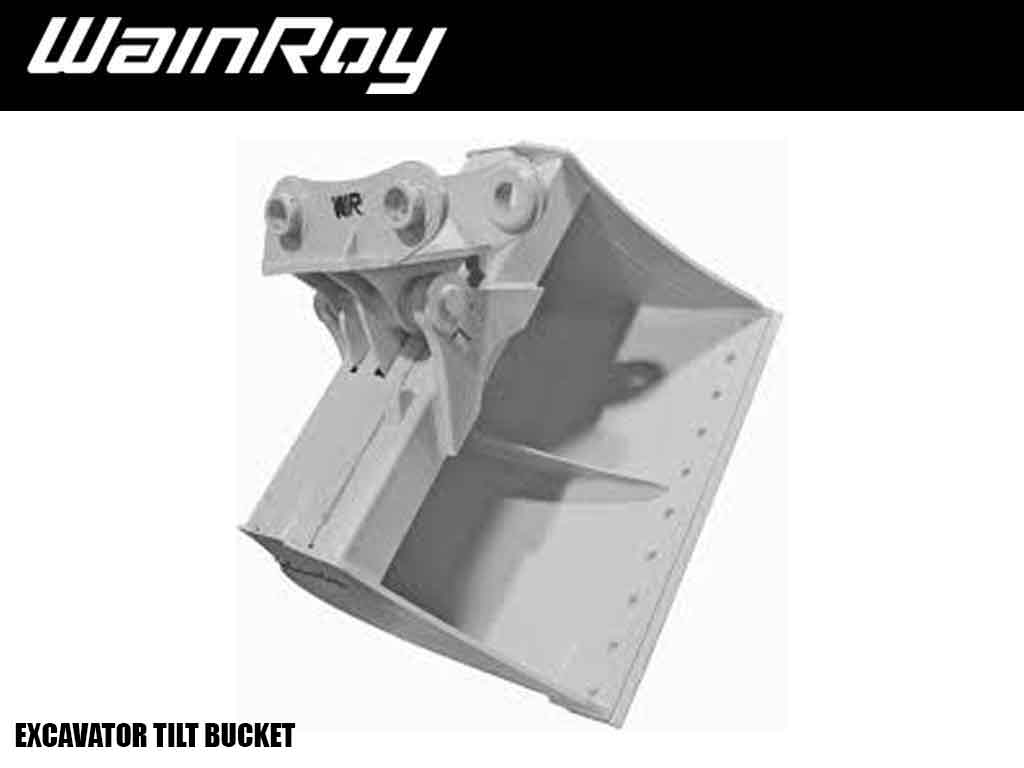

WAIN ROY Tilt Bucket for 20MT Excavators 41,000 - 52,000 lbs.

MOUNTING
SIZE

WAIN ROY TILT BUCKETS

Tilt Buckets rotate up to a total of 90 degrees, 45 degrees each side of center, for greater control and flexibility during ditch cleaning, grading, backfilling and loose material loading and unloading applications. The tilting mechanism allows the bucket to rotate at various angles in order to form the surface to the desired shape without repositioning the machine. This is especially beneficial when working along roadways or in tight operating conditions.

45° rotation. Bolt‑on edge standard. Machine must be equipped with valve and lines down to end of dipperstick. Valve must have port reliefs. For Hydraulic Kit availability & pricing, contact Dealer Services.

TILT BUCKET

OEM PIN ON

WIDTH
CAPACITY (CU. YD.)
LBS
TLT3PO-60 60" 1.00 1875
TLT3PO-72 72" 1.13
2400

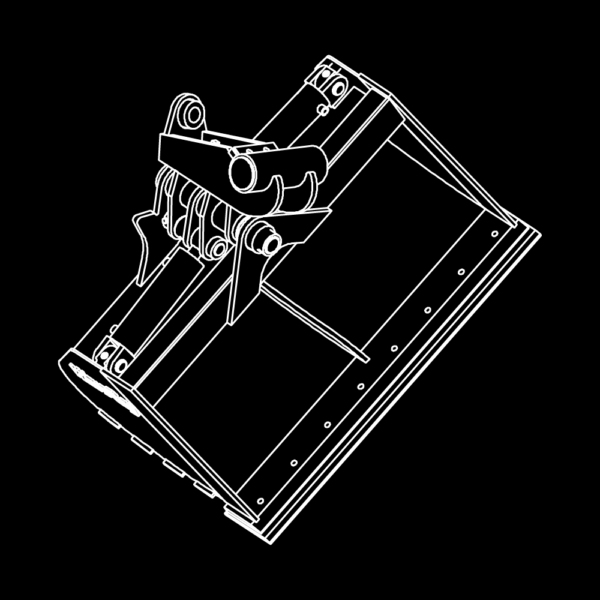

TILT BUCKET

WAIN ROY XLS / ORIGINAL

GANNON / CP / TAG

WIDTH CAPACITY (CU. YD.) LBS

TLT3QC-60

60" 0.90
1322
TLT2QC-72 72" 1.10 1468
MAKE MODELS: 20 TON 41,000 - 52,000 LBS
CASE
  • 9030B, CX210B, CX210D, CX225 MSR
CAT
  • 319D L, 319D LN, 320, 320 GC, 320 UTIL, 320C, 320C L ME, 320CL SLR, 320D L, 320D LRR, 321D LCR, 323, B-link, M322C
DOOSAN
  • DX190W-5, DX210W, DX210W-5, DX210WMH-5, DX225LC, DX235
HITACHI
  • ZX190W-3, ZX190W-6, ZX200LC, ZX200LC-3, ZX210-6, ZX210LC-6, ZX220W-3, ZX225USLC, ZX225USLC-3, ZX245
HYUNDIA
  • HW210, HX220L, R210C-7LR, R210LC-7, R210LC-9, R210W-9, R210W-9A, R220LC-9A, R235
JCB
  • JS220, JS220LC, JS220LR, JS220XD
JOHN DEERE
  • 180CW, 180DW, 190D W, 190G W, 200C LC, 200D, 200D LC, 210CW, 210G LC, 220D W, 225C LCRTS, 225D LC, 245G LC, 690D, 690E
KOBELCO
  • ED195BR, SK210LC, SK210LC-10, SK210LC-LR
KOMATSU
  • PC170LC-11, PC200-7, PC200LC HD, PC200LC-7, PC200LC-8, PC228USLC-3, PC228USLC-8
LIEBHERR
  • A 918 Compact Litronic, A900C, A900C-ZW, A904C, A914C, A918 Litronic, A924C, R317, R900C, R906-A/C, R916 AC, R918 Litronic, R920 Compact Litronic
LINK BELT
  • 210 X2, 210 X2 Long Front, 210 X3, 210 X4, 210LX, 225MSR
LIUGONG
  • CLG922D
NEW HOLLAND
  • E215B, EH215LC
SANY
  • SY215CLC
TEREX
  • TC210C, TC225LC, TC240LC, TW220, TXC225LC-2
VOLVO
  • EC210B, EC210B-LC, EC210B-NLC, EC210C, EC210C-LR, ECR235C, EW180C, EW180E, EW210D, EW230C, EX210C
